TPESD0P2RF-02LS

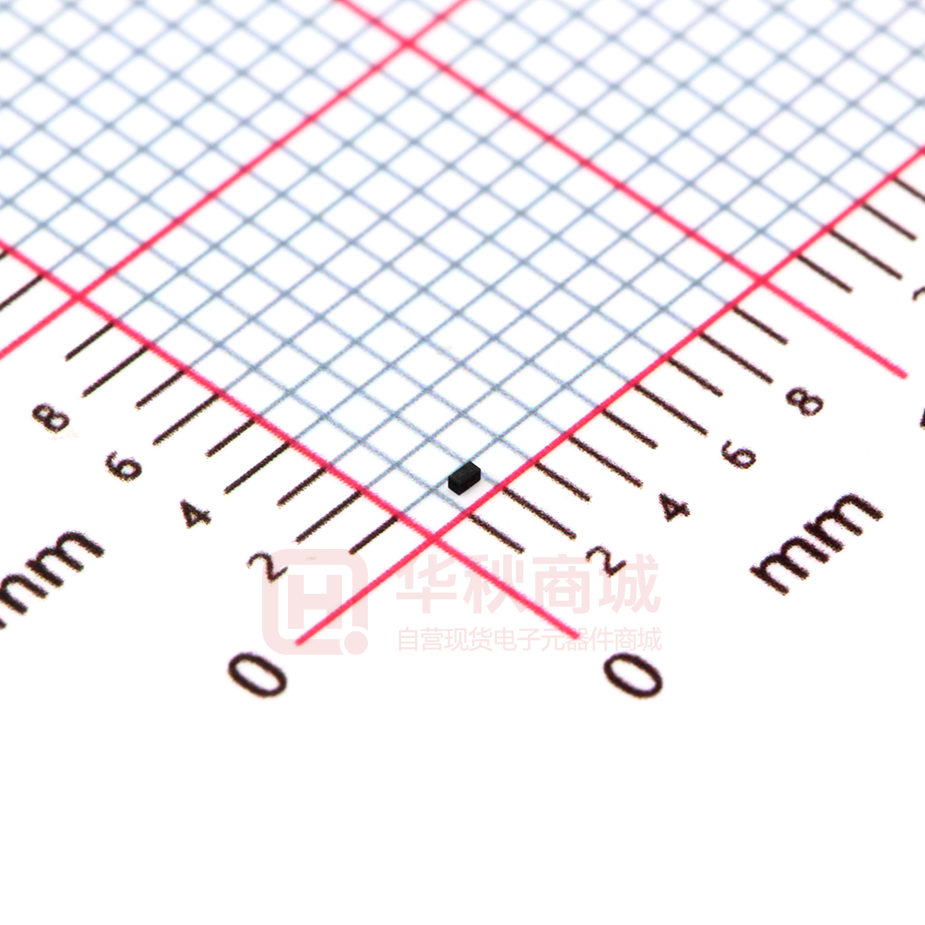

关注公众号新品资讯 TPESD0P2RF-02LS Ultra-Low Capacitance 1-Line ESD Protection www.sot23.com.tw Mechanical Characteristics Features ⚫ Ultra small package: 0.6x0.3x0.3mm ⚫ ⚫ IC ⚫ ⚫ Case Material: “Green” Molding Compound. ⚫ Moisture Sensitivity: Level 3 per J-STD-020 ⚫ Terminal Connections: See Diagram Below Applications ⚫ ⚫ ⚫ ⚫ Cellular Handsets and Accessories Personal Digital Assistants Notebooks and Handhelds Portable Instrumentation ⚫ Digital Cameras ⚫ Peripherals BL ⚫ Ultra low capacitance: 0.2 pF typical Ultra low leakage: nA level Low operating voltage: 5V Low clamping voltage 2-pin leadless package Complies with following standards: - IEC 61000-4-2 (ESD) immunity test Air discharge: ±18kV Contact discharge: ±12kV – IEC61000-4-5 (Lightning) 3A (8/20 μs) These are Pb−Free Devices Response Time is Typically < 1 ns PU ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ Package: DFN0603-2 (0201) ⚫ Lead Finish: Matte Tin Ordering Information Qty per Reel Reel Size TPESD0P2RF-02LS 10000 or 15000 7” TE CH Part Number Dimensions and Pin Configuration 1 WWW.TECHPUBLIC.COM.TW 关注公众号新品资讯 TPESD0P2RF-02LS Ultra-Low Capacitance 1-Line ESD Protection www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 70 W Peak Pulse Current (8/20µs) Ipp 3 A ESD per IEC 61000−4−2 (Air) ±18 VESD kV ±12 IC ESD per IEC 61000−4−2 (Contact) Operating Temperature Range −55 to +125 °C Tstg −55 to +150 °C BL Storage Temperature Range TJ Parameter Symbol Reverse Working Voltage Clamping Voltage Junction Capacitance Typ Max Unit Test Condition 5 V 8.6 V IR 0.07 uA VC 12 V Ipp=1A(8x 20us pulse) VC 20 V Ipp=3A(8x 20us pulse) 0.25 pF VR = 0V, f = 1MHz 6 TE Clamping Voltage VRWM VBR Reverse Leakage Current Min CH Breakdown Voltage PU Electrical Characteristics (TA=25°C unless otherwise specified) CJ 7.5 0.2 2 IT = 1mA VRWM = 5V WWW.TECHPUBLIC.COM.TW 关注公众号新品资讯 TPESD0P2RF-02LS Ultra-Low Capacitance 1-Line ESD Protection www.sot23.com.tw TE CH PU BL IC Typical Performance Characteristics (TA=25°C unless otherwise Specified) WWW.TECHPUBLIC.COM.TW 3 关注公众号新品资讯 TPESD0P2RF-02LS Ultra-Low Capacitance 1-Line ESD Protection www.sot23.com.tw e D h - b E - NOM MAX A 0.230 0.300 0.330 A1 0.000 0.020 0.050 b 0.215 0.245 0.275 c 0.120 0.150 0.180 D 0.550 0.600 0.650 e CH c A Bottom View TE A1 DIMENSIONS MILLIMETERS MIN PU L SYM BL h IC DFN0603-2 Package Outline Drawing (0201) 0.355 BSC E 0.250 0.300 0.350 L 0.160 0.190 0.220 h 0.079 BSC Suggested Land Pattern DIMENSIONS SYM ╋ Y3 MILLIMETERS INCHES X 0.30 0.012 Y1 0.25 0.010 Y2 0.15 0.006 Y3 0.40 0.016 Z 0.65 0.026 Y1 Y2 Z ╋ X 4 WWW.TECHPUBLIC.COM.TW
