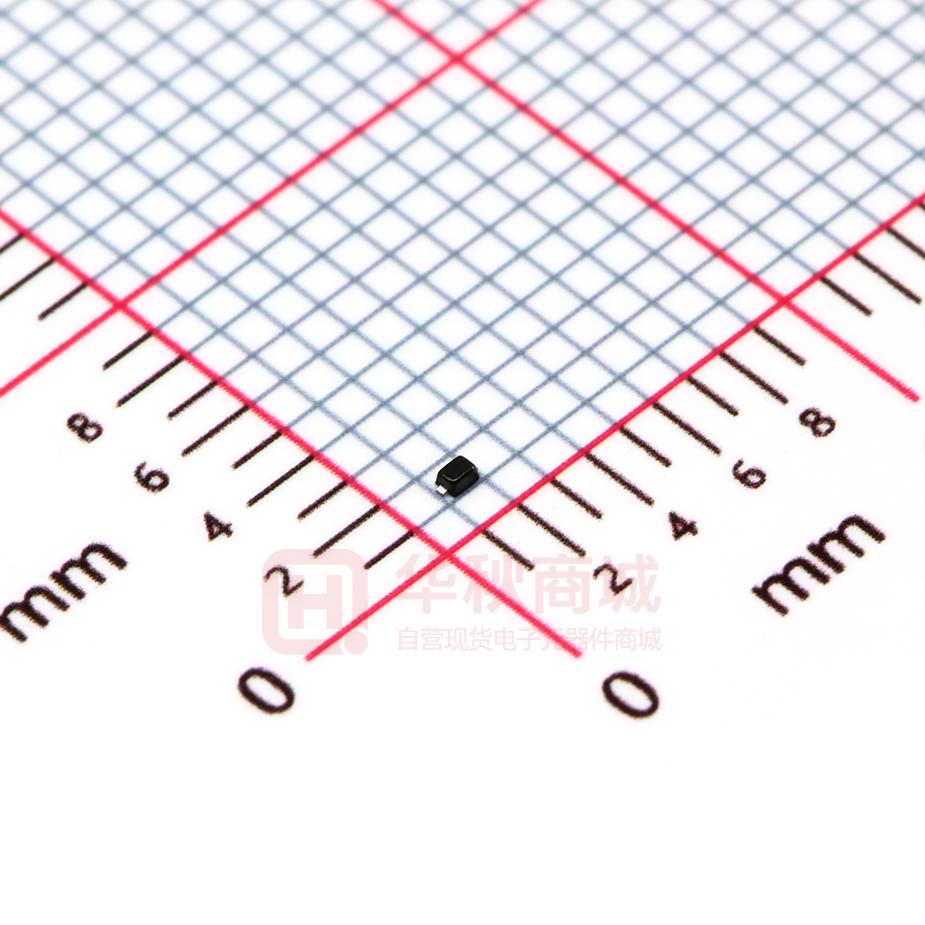

TPD5V0L1B2S9

TPD5V0L1B2S9 1-Line TVS Diode Array WWW.SOT23.COM.TW Features ● 60W peak pulse power per line (tP = 8/20μs) ● Replacement for MLV(0402) ● Bidirectional configurations ● Response time is typically < 1ns ● Low clamping voltage ● RoHS compliant ● Transient protection for data lines to Mechanical Characteristics ● Lead Finish:Matte Tin ● UL Flammability Classification Rating 94V-0 ● IEC61000-4-4 (EFT) 40A (5/50ns) ● Cellular phones ● Portable devices ● Digital cameras ● Power supplies Ordering Information Reel Size 10000 7” TE CH PU Qty per Reel BL IC IEC61000-4-2(ESD) ±30KV(air), ±30KV(contact); TPD5V0L1B2S9 SOD923 Applications ● Part Number ● Dimensions and Pin Configuration WWW.TECHPUBLIC.COM.TW W TPD5V0L1B2S9 1-Line TVS Diode Array WWW.SOT23.COM.TW Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 60 W Peak Pulse Current (8/20µs) Ipp 7 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Storage Temperature Range kV TJ −55 to +125 °C Tstg −55 to +150 °C IC Operating Temperature Range ±30 Symbol VRWM Typ Max Unit 5 V Test Condition Breakdown Voltage VBR 6 8.5 V IT = 1mA Reverse Leakage Current CH Reverse Working Voltage Min PU Parameter BL Electrical Characteristics (TA=25°C unless otherwise specified) IR 0.2 μA VRWM = 15V VC 7 V IPP = 1A (8 x 20µs pulse) VC 9 V IPP = 7A (8 x 20 s pulse) pF VR = 0V, f = 1MHz Clamping Voltage TE Clamping Voltage Junction Capacitance CJ 15 WWW.TECHPUBLIC.COM.TW TPD5V0L1B2S9 1-Line TVS Diode Array WWW.SOT23.COM.TW PROTECTION PRODUCTS Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 60 40 td=t IPP/2 20 0 0 5 10 15 20 25 30 t - Time ( s) Power Derating Curve 110 100 tr = 0.7~1ns Time (ns) 30ns 60ns CH 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power 10% PU Fig3. IC 80 90% BL IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 0 25 50 75 100 125 150 Ambient Temperature –TA (ºC) WWW.TECHPUBLIC.COM.TW TPD5V0L1B2S9 1-Line TVS Diode Array WWW.SOT23.COM.TW Outline Drawing - SOD-9 23 A B DIM C A B C D E F NOTE D TE CH PU F BL IC E DIMENSIONS INCHES MM MAX MIN MAX MIN .037 .041 0.95 1.05 .030 .033 0.75 0.85 .022 .026 0.55 0.65 .014 .017 0.36 0.43 .006 .010 0.15 0.25 .003 .007 0.07 0.17 Land Pattern - SOD-9 23 0.90 mm 0.40mm 0.30mm WWW.TECHPUBLIC.COM.TW
