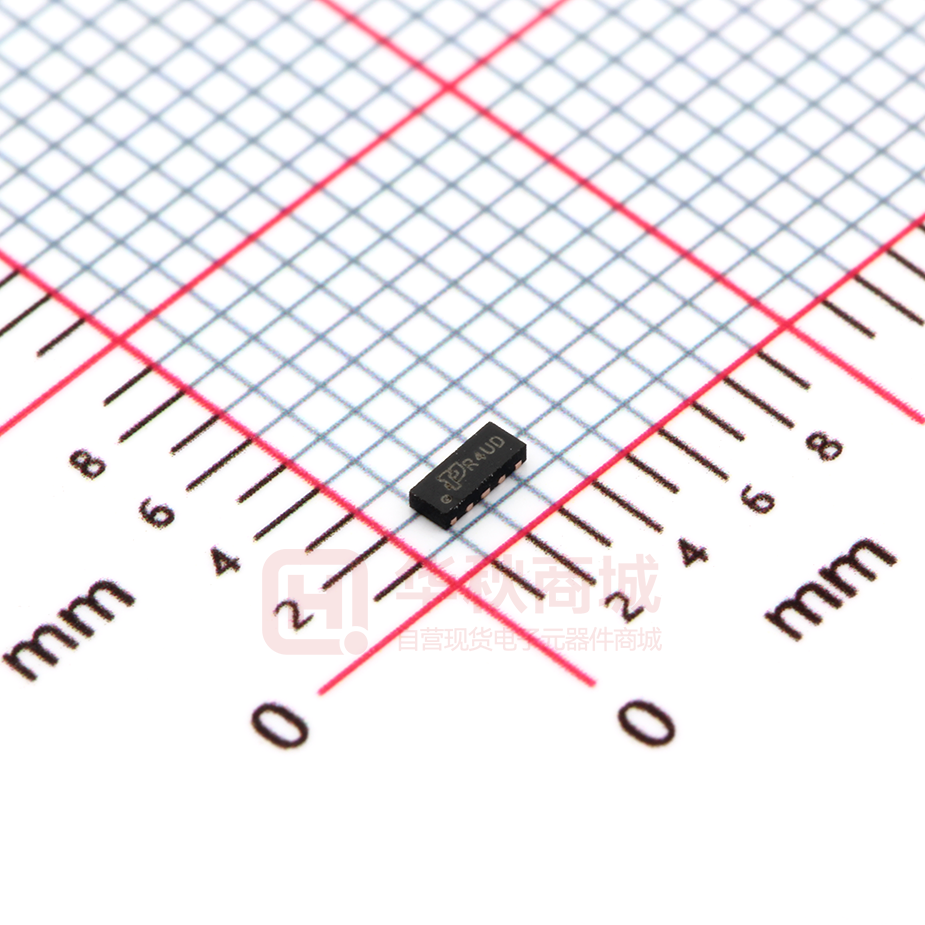

关注公众号新品资讯 TPD4S010DQ AR-TP 4-Line Uni-directional TVS Diode www.sot23.com.tw Features Mechanical Characteristics u Low capacitance: 0.35 pF typical (I/O to I/O) u Low operating voltage: 5V u RoHS Compliant u IEC61000-4-2 (ESD) ±25kV (air), ±20kV (contact) u IEC61000-4-4 (EFT) 40A (5/50ηs) u IEC61000-4-5 (Lightning) 4.3A(8/20μs) u Package: DFN2510-10 (2.5×1.0×0.5mm) u Ultra low leakage: nA level u Case Material: “Green” Molding Compound. u UL Flammability Classification Rating 94V-0 u Moisture Sensitivity: Level 3 per J-STD-020 u Terminal Connections: See Diagram Below Applications 7” u MDDI Ports u PCI Express u Serial ATA C Unified Display Interface (UDI) UB 3000 Reel Size u CH P TPD4S010DQAR-TP Qty per Reel Digital Visual Interface (DVI) Dimensions and Pin Configuration TE Part Number High Definition Multimedia Interface (HDMI) u LI Ordering Information u WWW.TECHPUBLIC.COM.TW 关注公众号新品资讯 TPD4S010DQ AR-TP 4-Line Uni-directional TVS Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit I pp 4.3 A Peak Pulse Power (8/20µs) ESD per IEC 61000−4−2 (Air) ±25 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range TJ −55 to +125 °C Tstg −55 to +150 °C IC Storage Temperature Range kV ±15 Symbol Reverse Working Voltage VBR Reverse Leakage Current Clamping Voltage IR Typ 6.8 CH Breakdown Voltage VRWM Min VC CJ 0.35 CJ 0.6 TE Junction Capacitance Junction Capacitance Max Unit 5 V Any I/O pin to ground 9.5 V IT = 1mA, any I/O pin to ground 0.08 µA VRWM = 5V, any I/O pin to ground 15 V PU Parameter BL Electrical Characteristics (TA=25°C unless otherwise specified) pF 0.8 pF Test Condition IPP = 4.3A (8 x 20µs pulse), any I/O pin to ground VR = 0V, f = 1MHz, between I/O pins VR = 0V, f = 1MHz, any I/O pin to ground WWW.TECHPUBLIC.COM.TW 关注公众号新品资讯 TPD4S010DQ AR-TP 4-Line Uni-directional TVS Diode www.sot23.com.tw Characteristic Curves 8/20μs Pulse Waveform Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) tr 100 Peak Value IPP 80 100% TEST WAVEFORM PARAMETERS tr=8μs td=20μs Percent of Peak Pulse Current % 60 40 td=t IPP/2 20 0 0 5 10 15 20 25 30 t - Time (μs) tr = 0.7~1ns Time (ns) 30ns 60ns Non - Repetitive Peak Pulse Power vs. Pulse Time CH 10 1 0.1 TE Peak Pulse Power - PPK (kW) 10% PU Fig3. 90% BL IPP - Peak Pulse Current - % of IPP 120 IC Fig1. 0.01 0.1 1 10 100 1000 Pulse Duration - tp (μs) WWW.TECHPUBLIC.COM.TW 关注公众号新品资讯 TPD4S010DQ AR-TP 4-Line Uni-directional TVS Diode www.sot23.com.tw Application Information   1 2 3 GND 8 4 1 2 3 GND 8 4 IC BL 5 IC 5 1 2 3 8 PU GND 4 5 TE CH     ESD protection for HDMI port     TMDS_D2+ TMDS_D2_   TMDS_GND   TMDS_D1+   TMDS_D1_   TMDS_D0+   TMDS_D0_   TMDS_GND TMDS_CK+   TMDS_CK_   CE_REMOTE   DDC_CLK     DDC_DAT   HOTPLUG_DET       WWW.TECHPUBLIC.COM.TW 关注公众号新品资讯 TPD4S010DQ AR-TP 4-Line Uni-directional TVS Diode www.sot23.com.tw Outline Drawing - DFN2510-10 D B DIM E A SEATING PLANE aaa C A2 b1xN bbb R0.125 1 2 C A B PU E/2 C A1 A A1 A2 b b1 D E e L N aaa bbb BL PIN 1 INDICATOR (LASER MARK) DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX .020 .023 .026 0.50 0.58 0.65 0.00 .001 .002 0.00 0.03 0.05 (.005) (0.13) .006 .008 .010 0.15 0.20 0.25 .014 .016 .018 0.35 0.40 0.45 .094 .098 .102 2.40 2.50 2.60 .035 .039 .043 0.90 1.00 1.10 .020 BSC 0.50 BSC .012 .015 .017 0.30 0.38 0.425 8 8 0.08 .003 0.10 .004 IC A LxN 2X R0.075 7 PLACES CH N bxN e bbb C A B TE D/2 Land Pattern - DFN2510-10 P1 P DIMENSIONS Y Z (C) (Y1) G X X1 DIM C G P P1 X X1 Y Y1 Z INCHES (.034) .008 .020 .039 .008 .016 .027 (.061) .061 MILLIMETERS (0.875) 0.20 0.50 1.00 0.20 0.40 0.675 (1.55) 1.55 WWW.TECHPUBLIC.COM.TW
