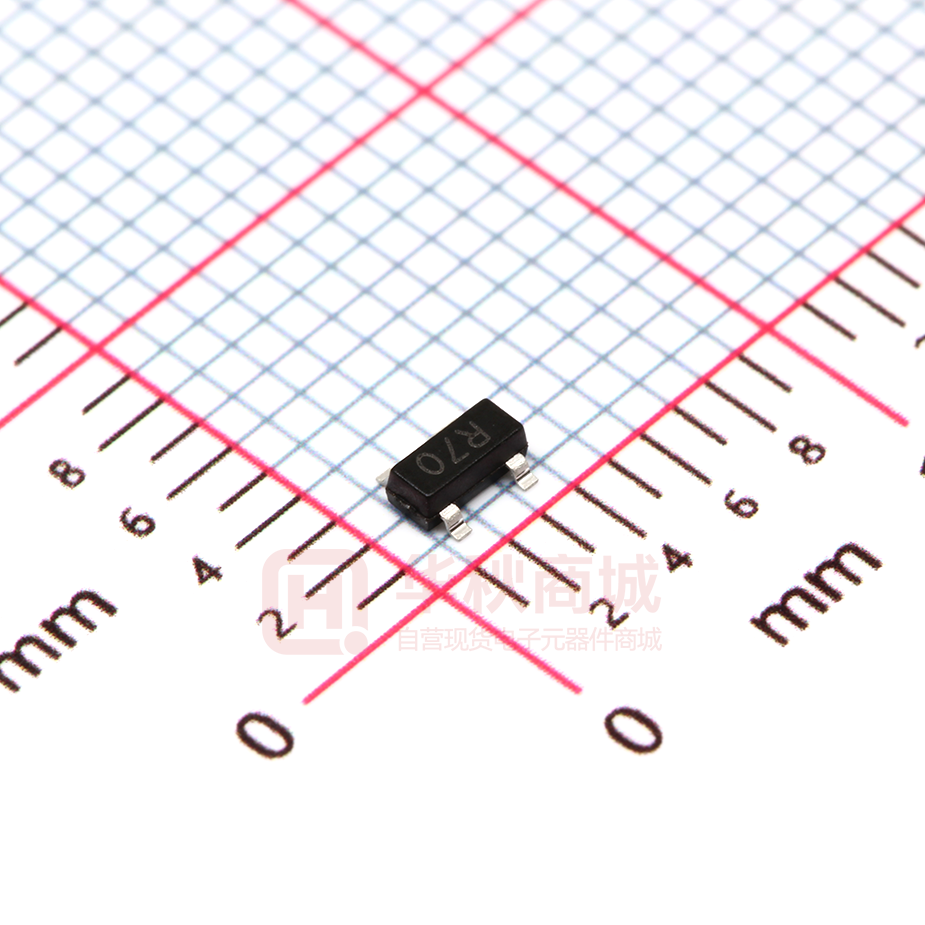

SR70

SR70 Low Capacitance TVS Diode Array www.sot23.com.tw Features Mechanical Characteristics ⚫ Ultra low capacitance: 3pF typical ⚫ Package: SOT143 ⚫ Lead Finish: Matte Tin ⚫ Ultra low leakage: nA level ⚫ Case Material: “Green” Molding Compound. ⚫ Moisture Sensitivity: Level 3 per J-STD-020 ⚫ Protects Two I/O lines ⚫ Low clamping voltage ⚫ Terminal Connections: See Diagram Below ⚫ Shipping Qty : 3000pcs/7Inch Tape & Reel ⚫ Complies with following standards: ⚫ – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV - - (Lightning)24A (8/20μs) ⚫ – IEC61000-4-5 ⚫ RoHS Compliant Applications ⚫ Portable Electronics ⚫ T1/E1 secondary IC Side Protection 电 子 ⚫ WAN/LAN Equipment ⚫ ISDN S/T Interface ⚫ Digital Cameras   台 舟 Dimensions and Pin Configuration   WWW.TECHPUBLIC.COM.TW SR70 Low Capacitance TVS Diode Array www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Ipp 24 A Peak Pulse Current (8/20µs) ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range kV ±30 TJ −55 to +125 °C Tstg −55 to +150 °C Symbol Reverse Working Voltage Breakdown Voltage VRWM VBR IR Typ Clamping Voltage Junction Capacitance Unit 70 V V Test Condition IT = 50uA 1 uA VC 1.5 V Ipp=1A(8x 20us pulse) VC 7 V Ipp=24A(8x 20us pulse) pF VR = 0V, f = 1MHz, IO to IO 台 Clamping Voltage Max 85 舟 Reverse Leakage Current Min 电 Parameter 子 Electrical Characteristics (TA=25°C unless otherwise specified) CJ 3 2 VRWM = 5V WWW.TECHPUBLIC.COM.TW SR70 Low Capacitance TVS Diode Array www.sot23.com.tw 舟 电 子 Typical Performance Characteristics (TA=25°C unless otherwise Specified) 台 % Of Rated Power FIGURE 3 SR70 Low Capacitance TVS Diode Array www.sot23.com.tw Outline Drawing - SOT-143 D A e H e/2 DIM 4 3 GAUGE PLANE SEATING PLANE B C L L1 DETAIL A 2 子 1 0.25 E E1 c 0 bxN bbb A2 C A B A SIDE VIEW SEE DETAIL A .035 .114 .093 .051 .075 .008 .015 .020 (.021) 4 0° .006 .008 .004 .031 .000 .029 .011 .029 .003 .110 .082 .047 .048 0.80 1.22 .006 0.013 0.15 .042 0.75 0.90 1.07 0.51 .020 0.30 .037 0.76 0.94 0.20 .008 0.08 .120 2.80 2.90 3.04 .104 2.10 2.37 2.64 .055 1.20 1.30 1.40 1.92 BSC 0.20 BSC .024 0.40 0.50 0.60 (0.54) 4 8° 0° 8° 0.15 0.20 0.10 电 e1 A A1 A2 b b1 c D E E1 e e1 L L1 N 0 aaa bbb ccc DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX ccc C 4X SEATING PLANE A1 b1 C A B 台 舟 aaa C Land Pattern -SOT-143 X1 X1 SYM C E1 E2 Y Z C E1 G E2 Y X2 DIMENSIONS MILLIMETERS INCHES 2.20 0.087 1.92 0.076 1.72 0.068 G 0.80 0.031 X1 X2 Y Z 1.00 1.20 1.40 3.60 0.039 0.047 0.055 0.141 X1 4 WWW.TECHPUBLIC.COM.TW
