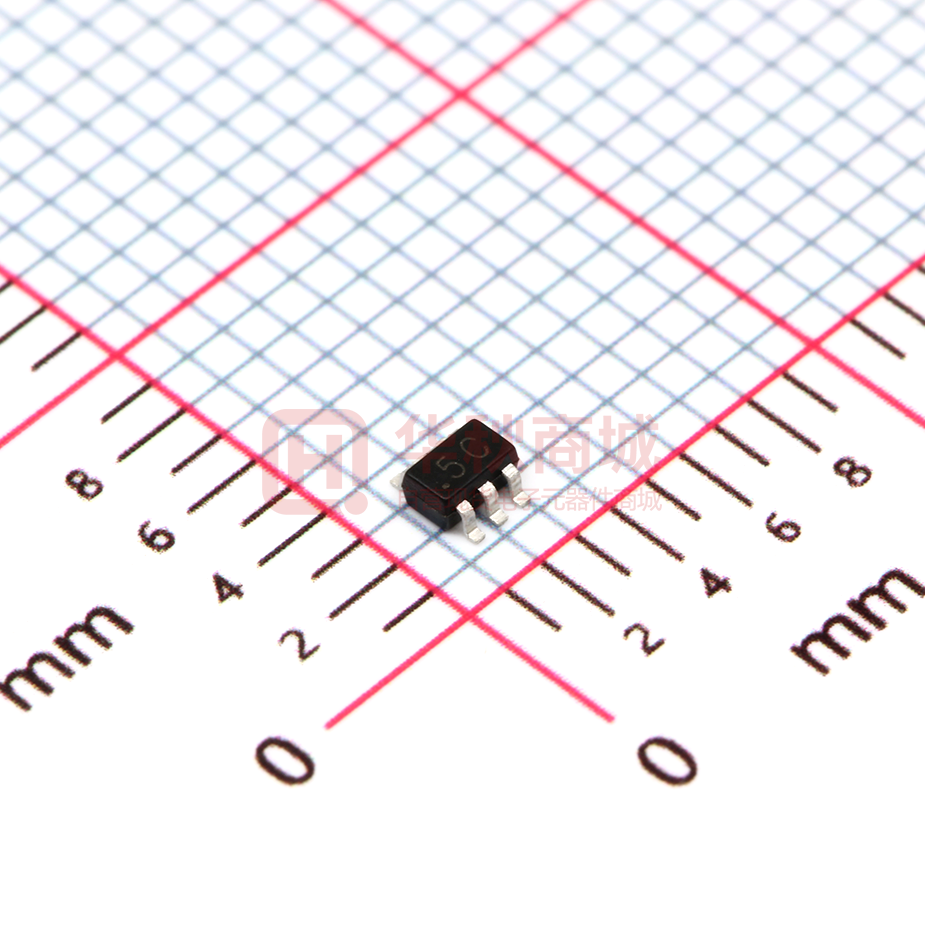

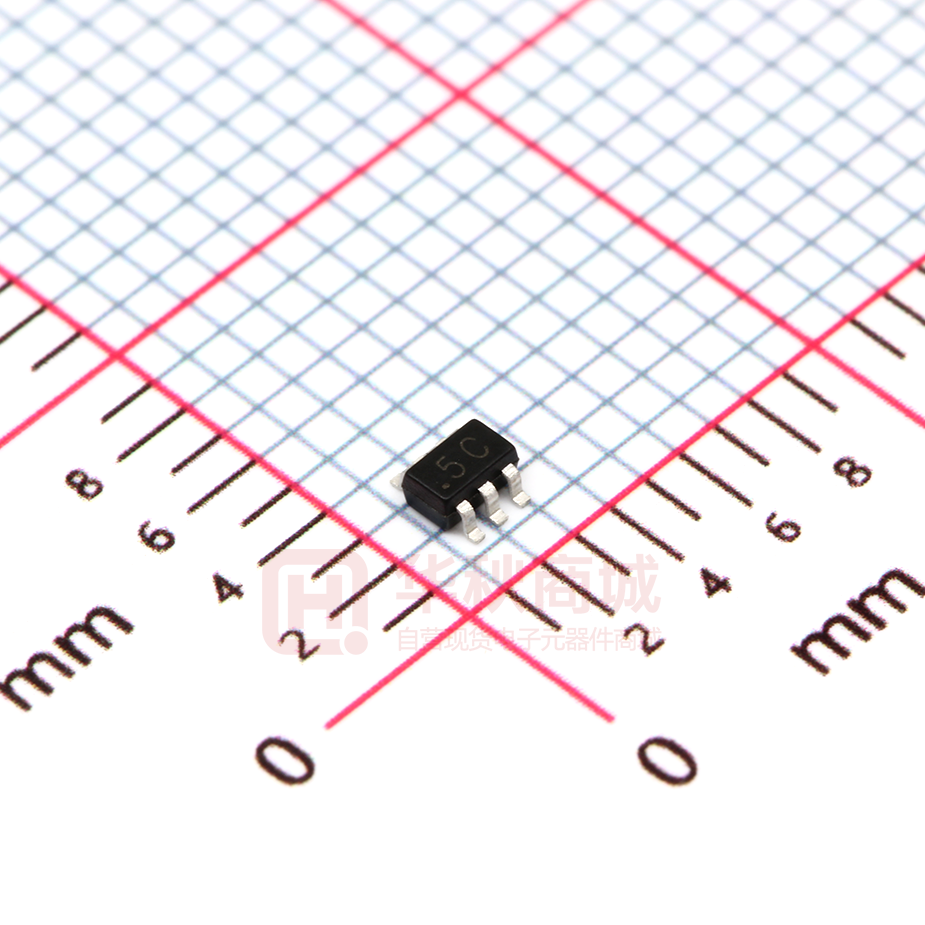

SMF05C

SMF05C 5-Line TVS Array www.sot23.com.tw Mechanical Characteristics Features • Working voltage: 5V • • Low clamping voltage • Lead Finish: Matte Tin • Protects five I/O lines • Case Material: “Green” Molding Compound. • Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV – IEC61000-4-4 (EFT) 40A (5/50ns) • UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 3 per J-STD-020 • • • Ordering Information Reel Size 3000 7” Microprocessor Based Equipmenmt Cell Phone Handsets and Accessories Personal Digital Assistants (PDAs) and Pagers PU SMF05C Qty per Reel CH Part Number Portable Instrumentation BL • IC Applications RoHS Compliant Dimensions and Pin Configuration TE • Package: SOT-363 (2.0X2.1X0.35mm) Pin Configuration SMF05C 5-Line TVS Array www.sot23.com.tw Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Ppk 100 W Peak Pulse Power (8/20µs) ESD per IEC 61000−4−2 (Air) ±15 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range −55 to +125 °C Tstg −55 to +150 °C Reverse Working Voltage Breakdown Voltage Min VRWM VBR 6 Typ Max Unit 5 V PU Symbol BL Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Test Condition V IT = 1mA 0.1 uA VRWM = 5V IR Forward Voltage VF 1.2 V IF = 15mA Clamping Voltage VC 10 V IPP 1A=(8 x 20us pulse) pF VR = 0V, f = 1MHz TE CH Reverse Leakage Current Junction Capacitance CJ Note 1: I/O pins are Pin 1, 3, 4, 5 and 6 15 kV TJ IC Storage Temperature Range ±8 SMF05C 5-Line TVS Array www.sot23.com.tw PROTECTION PRODUCTS Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP 80 60 40 td=t IPP/2 0 0 5 10 15 20 25 30 CH Power Derating Curve 110 100 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power PU t - Time ( s) Fig3. 0 25 50 75 100 125 Ambient Temperature –TA (ºC) 10% BL 20 90% IC tr Percent of Peak Pulse Current % IPP - Peak Pulse Current - % of IPP 120 150 tr = 0.7~1ns 30ns 60ns Time (ns) SMF05C 5-Line TVS Array www.sot23.com.tw Outline Drawing - SOT-363(2.0X2.1) DIM D e1 A A1 A2 b c D E1 E e e1 L L1 N 01 aaa bbb ccc N E/2 E1 1 ccc C 2X N/2 TIPS E 2 e B D A2 A SEATING PLANE bxN bbb 1.10 0.00 0.10 0.70 0.90 1.00 0.15 0.30 0.08 0.22 1.80 2.00 2.20 1.15 1.25 1.35 2.10 BSC 0.65 BSC 1.30 BSC 0.26 0.36 0.46 (0.42) 6 0° 8° 0.10 0.10 0.30 H A1 C .043 .000 .004 .028 .035 .039 .012 .006 .003 .009 .071 .079 .087 .045 .049 .053 .083 BSC .026 BSC .051 .010 .014 .018 (.017) 6 8° 0° .004 .004 .012 BL aaa C DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX IC A C A-B D GAGE PLANE PU 0.15 SEE DETAIL 01 (L1) DETAIL A A CH SIDE VIEW L c TE Land Pattern - SOT-363 X DIM C G Y P Z C G P X Y Z DIMENSIONS INCHES MILLIMETERS (.073) .039 .026 .016 .033 .106 (1.85) 1.00 0.65 0.40 0.85 2.70
