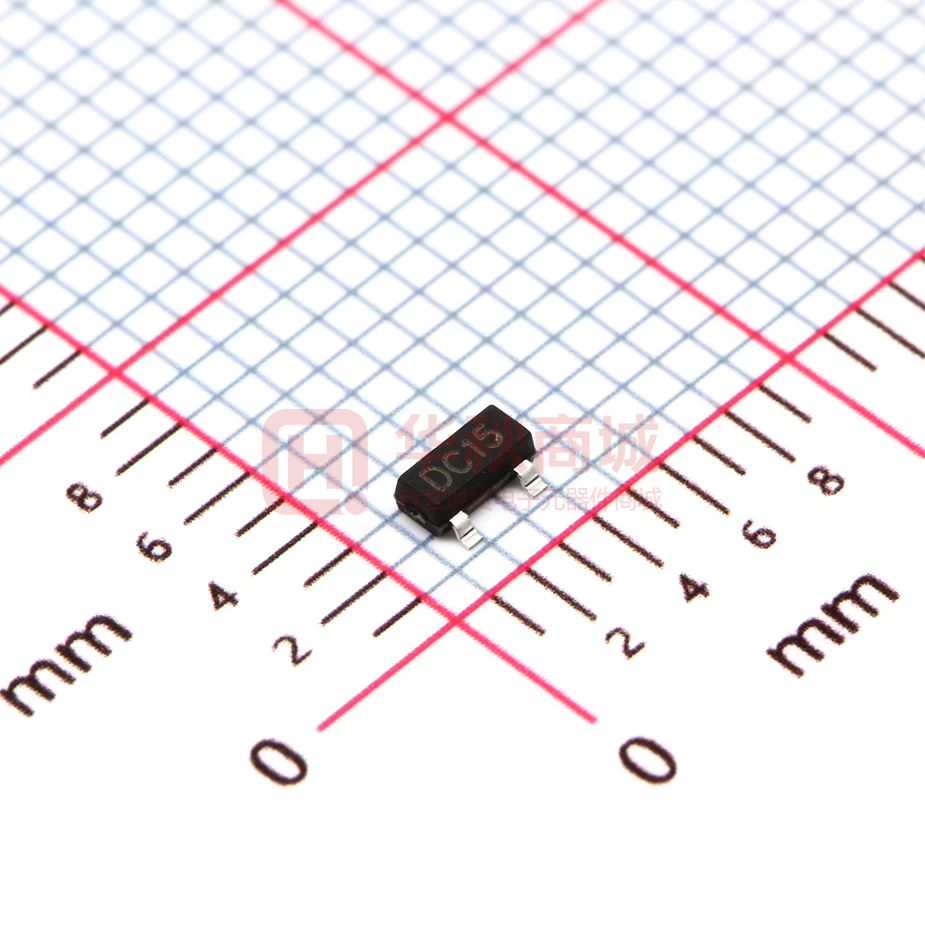

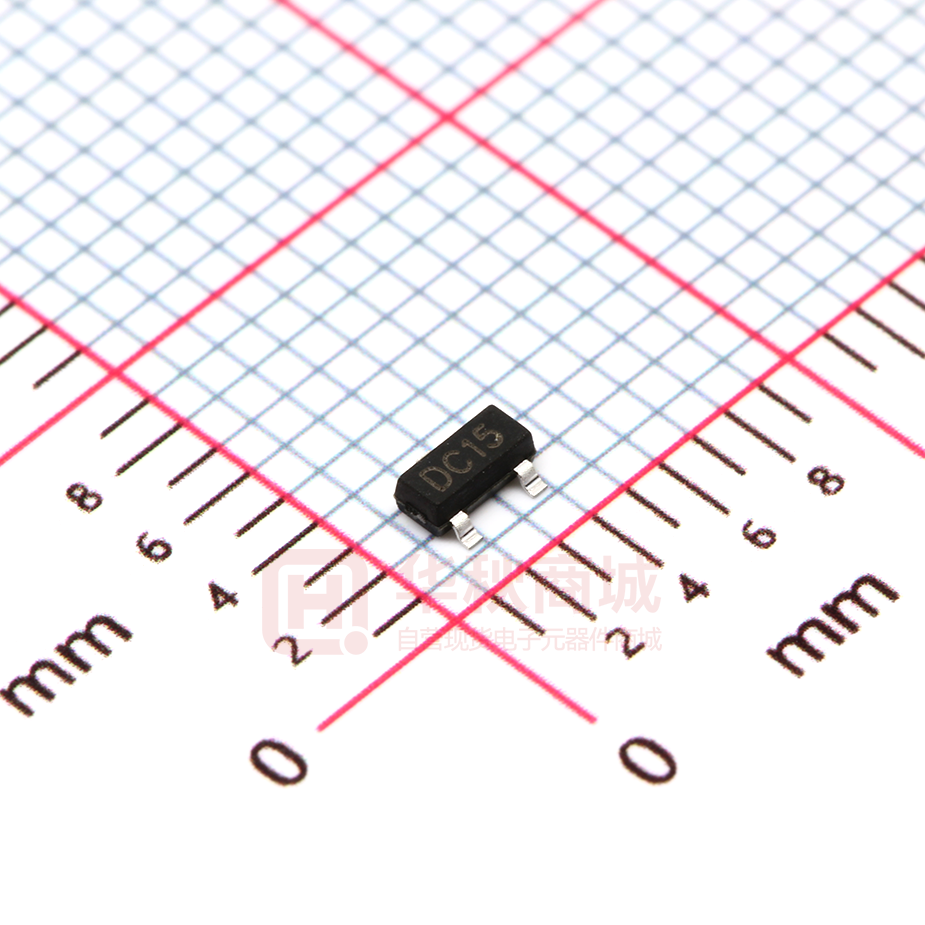

SDC15

SDC15 TVS Diode Array WWW.SOT23.COM.TW Features   Mechanical Characteristics  Package: SOT23  Lead Finish: Matte Tin  UL Flammability Classification Rating 94V-0  Pb-Free, Halogen Free, RoHS/WEEE Compliant Applications      USB Power & Data Line Protection Monitors and Flat Panel Displays I²C Bus Protection Portable Instrumentation Set Top Box Ordering Information 3000 Reel Size 7” CH SDC15 Qty per Reel PU Part Number BL IC     230 Watts peak pulse power (tp = 8/20μs) Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) Working voltages : 12.7V Protects one bidirectional line or two unidirectional lines Low operating and clamping voltages Solid-state silicon avalanche technology TE Dimensions and Pin Configuration A WWW.TECHPUBLIC.COM.TW SDC15 TVS Diode Array WWW.SOT23.COM.TW Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Peak Pulse Power (8/20μs) ESD per IEC61000-4-2 (Air) Symbol Value Unit Ppk 230 W ±30 VESD ESD per IEC61000-4-2 (Contact) kV ±30 Operating Temperature Range TJ -55 to +125 ℃ Storage Temperature Range Tstg -55 to +150 ℃ Electrical Characteristics (TA=25°C unless otherwise specified) specified Parameter Reverse Working Voltage Symbol Min Typ VRWM 13 15 Max Unit Test Condition 12.7 V 17 V IT=1mA Breakdown Voltage VBR Leakage Current ILeak 100 nA VRWM=12.7V Clamping Voltage VC 18 V IPP=1A,Tp=8/20μs Clamping Voltage VC 25 V IPP= 9 A,Tp=8/20 μs Junction Capacitance CJ pF VR=0V, f=1MHz 45 WWW.TECHPUBLIC.COM.TW SDC15 TVS Diode Array WWW.SOT23.COM.TW PROTECTION PRODUCTS Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP 80 60 40 td=t IPP/2 0 0 5 10 15 20 25 30 Time (ns) 30ns 60ns CH Power Derating Curve 110 100 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power tr = 0.7~1ns PU t - Time ( s) Fig3. 10% BL 20 90% IC tr Percent of Peak Pulse Current % IPP - Peak Pulse Current - % of IPP 120 0 25 50 75 100 125 150 Ambient Temperature –TA (ºC) WWW.TECHPUBLIC.COM.TW SDC15 TVS Diode Array WWW.SOT23.COM.TW Outline Drawing - SOT23 D A DIM e1 A A1 A2 b c D E E1 e e1 L L1 N 0 aaa bbb H 3 B C c 0 0.25 IC E1 GAUGE PLANE SEATING PLANE E L L1 DETAIL A 1 2 A2 A C A B 3X aaa C PU bbb BL bxN e SEATING PLANE A1 .035 .000 .035 .012 .003 .110 .082 .047 .015 0° .037 .114 .093 .051 .075 .037 .020 .022 3 .004 .008 .044 .004 .040 .020 .007 .120 .104 .055 .024 8° 0.89 1.12 0.01 0.10 0.88 0.95 1.02 0.51 0.30 0.18 0.08 2.80 2.90 3.04 2.10 2.37 2.64 1.20 1.30 1.40 1.90 BSC 0.95 BSC 0.40 0.50 0.60 (0.55) 3 0° 8° 0.10 0.20 CH SEE DETAIL A TE Land Pattern - SOT23 C SIDE VIEW DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX X Y DIM Z G Y C C E E1 G X Y Z DIMENSIONS INCHES MILLIMETERS (.087) .037 .075 .031 .039 .055 .141 (2.20) 0.95 1.90 0.80 1.00 1.40 3.60 E E1 WWW.TECHPUBLIC.COM.TW
