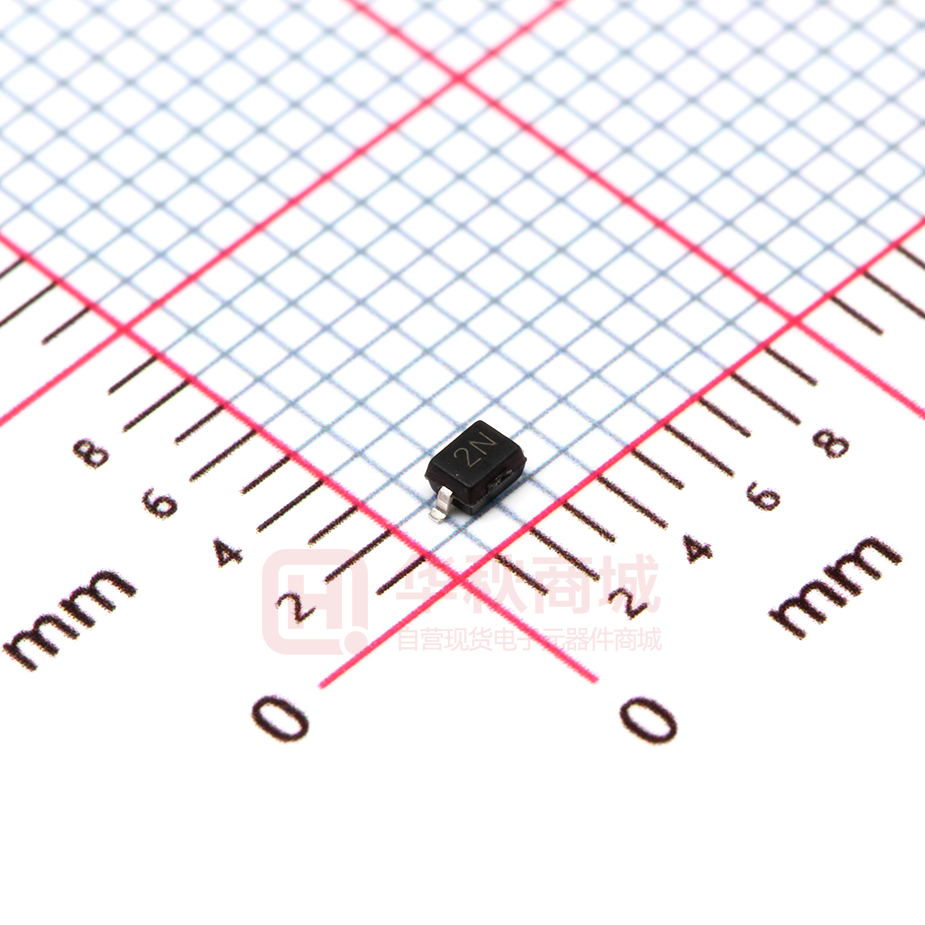

SD36C

SD36C BI-directional TVS Diode www.sot23.com.tw Mechanical Characteristics Features * 250W peak pulse power (8/20μs) * Protects one data or power line * Ultra low leakage: nA level * Operating voltage: 36V * Ultra low clamping voltage * * * * * * Package: SOD-323 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 Terminal Connections: See Diagram Below * * * * * * Cellular Handsets and Accessories Personal Digital Assistants Notebooks and Handhelds Portable Instrumentation Peripherals Pagers Peripherals Desktop and Servers * Complies with following standards: Air discharge: ±30kV BL Contact discharge: ±30kV Ordering Information Reel Size 3000 7” CH Qty per Reel TE SD36C PU – IEC61000-4-4 (Lightning) 4A (8/20ns) Part Number IC Applications – IEC 61000-4-2 (ESD) immunity test Dimensions and Pin Configuration 1 2 WWW.TECHPUBLIC.COM.TW SD36C BI-directional TVS Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 250 W Peak Pulse Current (8/20µs) IPP 4 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range TJ −55 to +125 °C Tstg −55 to +150 °C IC Storage Temperature Range kV ±30 Symbol Parameter Nominal Reverse Working Voltage IR Reverse Leakage Current @ VRWM VBR Reverse Breakdown Voltage @ IT PU VRWM Test Current for Reverse Breakdown VC Clamping Voltage @ IPP IPP Maximum Peak Pulse Current f VC VBR VRWM IT IR IR IT VRWM VBR VC V Parasitic Capacitance Reverse Voltage IPP TE VR I IPP CH IT CESD BL Electrical Characteristics (TA=25°C unless otherwise specified) Small Signal Frequency Parameter Reverse Working Voltage Breakdown Voltage Symbol Bi-Directional TVS Min Typ VRWM VBR Max Unit 36 V 40 0.5 Test Condition V IT = 1mA µA VRWM = 36V Reverse Leakage Current IR Clamping Voltage VC 41 V IPP = 1A (8 x 20µs pulse) Clamping Voltage VC 60 V IPP = 4A (8 x 20µs pulse) Junction Capacitance CJ pF VR = 0V, f = 1MHz 10 WWW.TECHPUBLIC.COM.TW SD36C BI-directional TVS Diode www.sot23.com.tw PROTECTION PRODUCTS Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 60 40 td=t IPP/2 20 0 0 5 10 15 20 25 30 t - Time ( s) Power Derating Curve 110 100 tr = 0.7~1ns Time (ns) 30ns 60ns CH 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power 10% PU Fig3. IC 80 90% BL IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 0 25 50 75 100 125 150 Ambient Temperature –TA (ºC) WWW.TECHPUBLIC.COM.TW SD36C BI-directional TVS Diode www.sot23.com.tw Outline Drawing - SOD-323 A DIMENSIONS MILLIMETERS INCHES MIN MAX MIN MAX 1.50 1.80 0.060 0.071 B 1.20 1.40 0.045 0.054 C 2.30 2.70 0.090 0.107 D - 1.10 - 0.043 E 0.30 0.40 0.012 0.016 F 0.10 0.25 0.004 0.010 H - 0.10 - 0.004 TE CH PU BL IC SYM Land Pattern - SOD-323 SYM DIMENSIONS MILLIMETERS INCHES A 3.15 0.120 B 0.80 0.031 C 0.80 0.031 WWW.TECHPUBLIC.COM.TW
