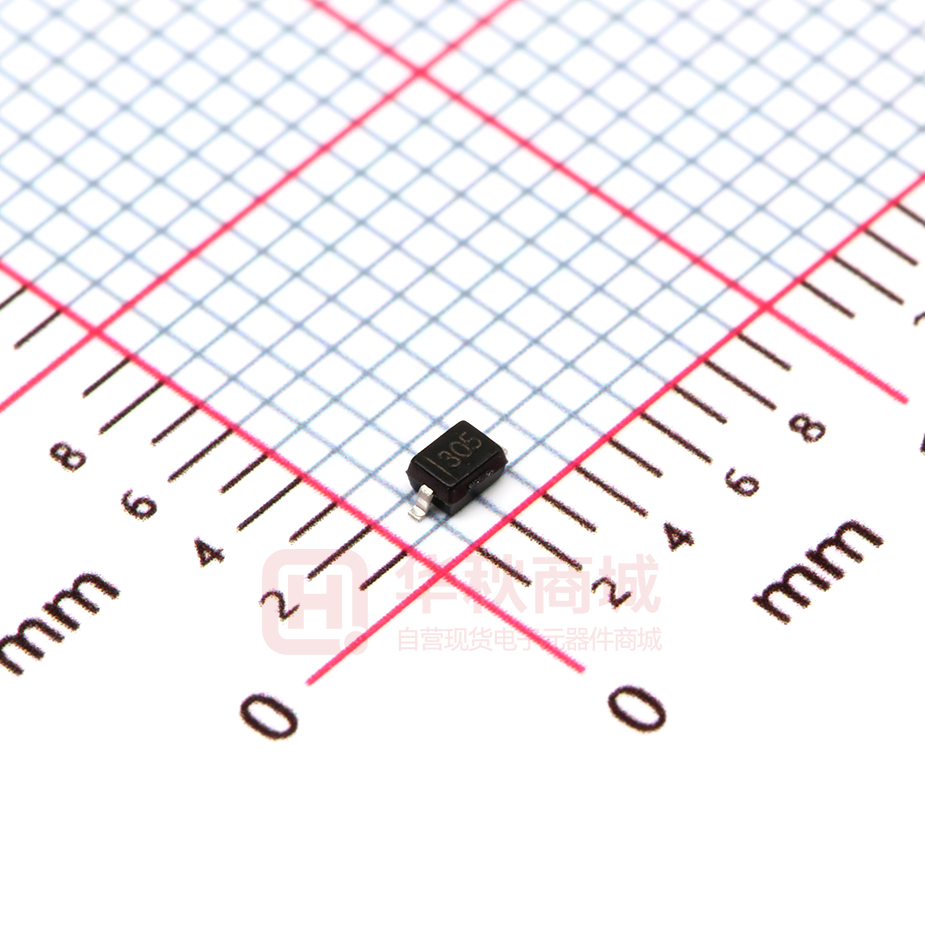

SD05

SD05 BI-directional TVS Diode www.sot23.com.tw Mechanical Characteristics Features  350W peak pulse power (8/20μs)  Protects one data or power line  Ultra low leakage：nA level  Operating voltage：5V  Ultra low clamping voltage  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns)  RoHS Compliant * * * * * * Package: SOD-323 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 Terminal Connections: See Diagram Below * * * * * * * Cellular Handsets and Accessories Personal Digital Assistants Notebooks and Handhelds Portable Instrumentation Peripherals Pagers Peripherals Desktop and Servers Ordering Information Reel Size 3000 7” CH SD05 Qty per Reel TE Part Number PU BL IC Applications Dimensions and Pin Configuration WWW.TECHPUBLIC.COM.TW SD05 BI-directional TVS Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 350 W Peak Pulse Current (8/20µs) IPP 26 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) TJ −55 to +125 IC Operating Temperature Range ±30 Storage Temperature Range Tstg −55 to +150 kV °C °C Symbol Reverse Working Voltage Breakdown Voltage Forward Voltage VBR IR Junction Capacitance Typ Max Unit 5 V Test Condition V IT = 1mA 0.5 µA VRWM = 5V 1.2 V IF=10mA 6 VF 0.8 VC 7 V IPP = 1A (8 x 20µs pulse) VC 11 V IPP = 26A (8 x 20µs pulse) pF VR = 0V, f = 1MHz TE Clamping Voltage Clamping Voltage VRWM CH Reverse Leakage Current Min PU Parameter BL Electrical Characteristics (TA=25°C unless otherwise specified) CJ 150 WWW.TECHPUBLIC.COM.TW SD05 BI-directional TVS Diode www.sot23.com.tw Typical Performance Characteristics (TA=25℃ unless otherwise Specified) Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 60 40 td=t IPP/2 20 0 0 5 10 15 20 25 30 t - Time ( s) Power Derating Curve 110 100 tr = 0.7~1ns Time (ns) 30ns 60ns CH 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power 10% PU Fig3. IC 80 90% BL IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 0 25 50 75 100 125 150 Ambient Temperature –TA (ºC) WWW.TECHPUBLIC.COM.TW SD05 BI-directional TVS Diode www.sot23.com.tw Outline Drawing - SOD-323 A DIMENSIONS MILLIMETERS INCHES MIN MAX MIN MAX 1.50 1.80 0.060 0.071 B 1.20 1.40 0.045 0.054 C 2.30 2.70 0.090 0.107 D - 1.10 - 0.043 E 0.30 0.40 0.012 0.016 F 0.10 0.25 0.004 0.010 H - 0.10 - 0.004 TE CH PU BL IC SYM Land Pattern - SOD-323 SYM DIMENSIONS MILLIMETERS INCHES A 3.15 0.120 B 0.80 0.031 C 0.80 0.031 WWW.TECHPUBLIC.COM.TW
