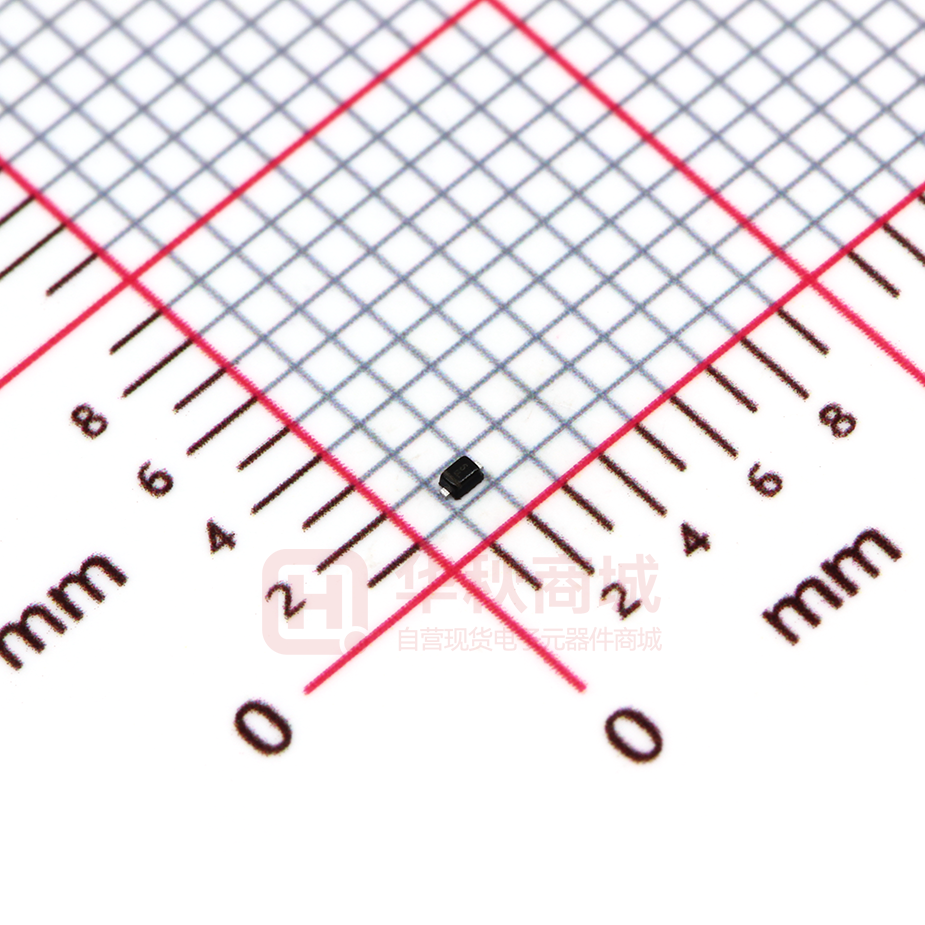

RB521CS-30

RB521CS-30 Schottky barrier diode www.sot23.com.tw Features Average forward current: IF(AV) ≤ 200 mA Reverse voltage: VR ≤ 30 V Low forward voltage: VF ≤ 350 mV @10mA Low reverse current: IR ≤ 10 μA Leadless ultra small SMD plastic package We declare that the material of product compliance with RoHS requirements and Halogen Free ● Low current rectification BL IC • • • • • • Applications CH PU SOD-923 TE Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Limits Unit Reverse voltage(DC) VR 30 V Average rectified forward current Io 200 mA IFSM 500 mA Tj 125 ℃ TSTG -40~+125 ℃ Peak forward surge current Junction temperature Storage Temperature Range Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Symbol Forward voltage VF Reverse current IR Min. Max. Unit Conditions - 0.35 V IF=10mA - 0.4 V IF=20mA - 10  VR=10V 1 RB521CS-30 Schottky barrier diode www.sot23.com.tw Outline Drawing - SOD9 23 SYMBOL 2 Dimensions In Millimet MIN MAX A 0.74 0.86 B 0.54 0.66 C 0.35 0.45 D 0.14 0.26 K 0.04 0.16 S 0.95 1.10
