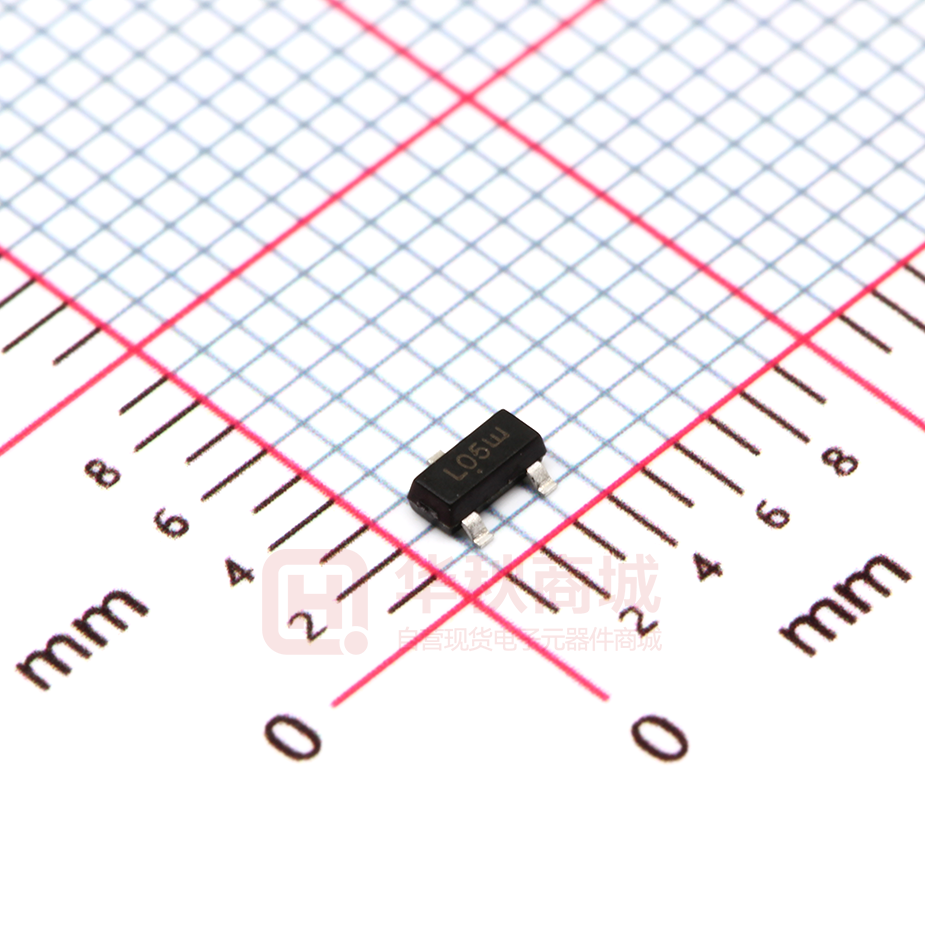

PSOT05LC TVS Diode Array www.sot23.com.tw Features ◆ ◆ ◆ ◆ 300 Watts peak pulse power (tp = 8/20μs) Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) Working voltages : 5V Protects two unidirectional line Low operating and clamping voltages Solid-state silicon avalanche technology Mechanical Characteristics  Package: SOT23  Lead Finish: Matte Tin  UL Flammability Classification Rating 94V-0  Pb-Free, Halogen Free, RoHS/WEEE Compliant  Shipping Qty : 3000pcs/7Inch Tape & Reel IC ◆ ◆ CH PU USB Power & Data Line Protection Monitors and Flat Panel Displays I²C Bus Protection Portable Instrumentation Set Top Box Dimensions and Pin Configuration TE ◆ ◆ ◆ ◆ ◆ BL Applications 1 3 (N.C.) 2 PSOT05LC TVS Diode Array www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Ppk 300 W Peak Pulse Power(8/20µs) ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) −55 to +125 °C Tstg −55 to +150 °C BL Storage Temperature Range kV TJ IC Operating Temperature Range ±30 Electrical Characteristics (TA=25°C unless otherwise specified) Symbol Reverse Working Voltage Breakdown Voltage Min VRWM VBR Typ Max PU Parameter 5 6 Unit Test Condition V V IT = 1mA 1.0 uA VRWM = 5V IR Clamping Voltage VC 9.8 V IPP = 1A (8 x 20µs pulse) Clamping Voltage VC 11 V IPP = 5A (8 x 20µs pulse) IPP 17 A tp = 8/20µs CJ 5 pF VR = 0V, f = 1MHz, Pin 1 to Pin 2 Junction Capacitance TE Peak Pulse Current CH Reverse Leakage Current PSOT05LC TVS Diode Array www.sot23.com.tw CH PU BL IC Typical Performance Characteristics (TA=25°C unless otherwise Specified) TE % Of Rated Power FIGURE 3 PSOT05LC TVS Diode Array www.sot23.com.tw Outline Drawing - SOT23 D A DIM e1 H 3 B E1 GAUGE PLANE SEATING PLANE E c 0.25 L L1 IC C 0 DETAIL A 1 2 bxN bbb C A B A2 A 3X BL e aaa C TE CH C PU A1 SEE DETAIL A SIDE VIEW SEATING PLANE Land Pattern - SOT23 X Y DIM Z G Y E E1 C C E E1 G X Y Z DIMENSIONS INCHES MILLIMETERS (.087) .037 .075 .031 .039 .055 .141 (2.20) 0.95 1.90 0.80 1.00 1.40 3.60 A A1 A2 b c D E E1 e e1 L L1 N 0 aaa bbb DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX .035 .000 .035 .012 .003 .110 .082 .047 .015 0° .037 .114 .093 .051 .075 .037 .020 .022 3 .004 .008 .044 .004 .040 .020 .007 .120 .104 .055 .024 8° 0.89 1.12 0.01 0.10 0.88 0.95 1.02 0.30 0.51 0.08 0.18 2.80 2.90 3.04 2.10 2.37 2.64 1.20 1.30 1.40 1.90 BSC 0.95 BSC 0.40 0.50 0.60 (0.55) 3 0° 8° 0.10 0.20
