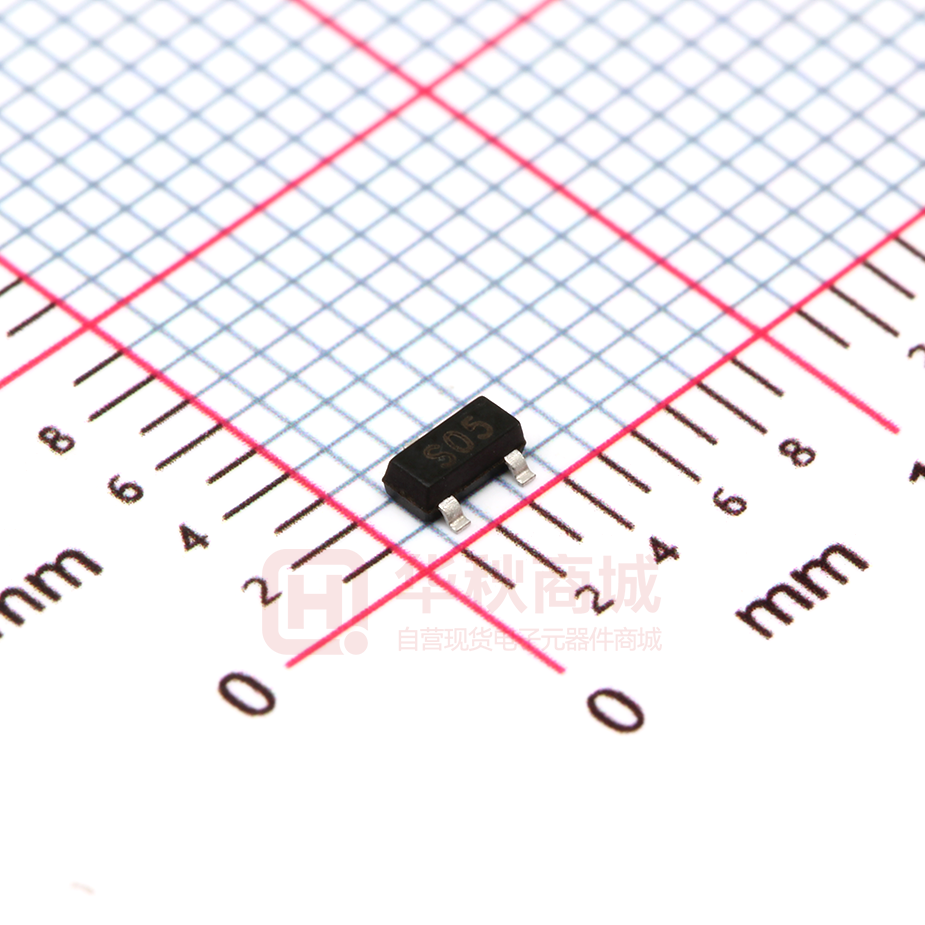

PSOT05C

PSOT05C 2 -L ine Uni-directional TVS Diode www.sot23.com.tw Mechanical Characteristics Features       500W peak pulse power(8/20µs)  Protects one bi-directional or two uni-directional lines  Ultra low leakage：nA level  Operating voltage：5V  Low clamping voltage  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV - Applications – IEC61000-4-4 (EFT) 40A (5/50ns) –IEC61000-4-5 (Lightning) 27A (8/20μs)  RoHS Compliant      Ordering Information Part Number 3000 Reel Size Cellular Handsets and Accessories Notebooks and Handhelds Portable Instrumentation Set Top Box Industrial Controls 7” 电 子 PSOT05C Qty per Reel Package: SOT-23 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J STD 020 台 舟 Dimensions and Pin Configuration 1 1 PSOT05C 2 -L ine Uni-directional TVS Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 500 W Peak Pulse Current (8/20µs) IPP 27 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Symbol Breakdown Voltage VRWM VBR IR Forward Voltage VF Clamping Voltage VC Clamping Voltage VC 0.8 5 V 90 2 Test Condition IT = 1mA 0.1 µA 1.2 V IF = 10mA V IPP = 1A (8 x 20µs pulse) 20 V IPP = 27A (8 x 20µs pulse) 200 pF 7 CJ CJ Unit V 台 Junction Capacitance Max 6 舟 Reverse Leakage Current Junction Capacitance Typ 子 Reverse Working Voltage Min 电 Parameter pF VRWM = 5V VR=0, f=1MHz，Pin 1 to Pin 3 or Pin 2 to Pin 3 VR=0, f=1MHz，Pin 1 to Pin 2 PSOT05C 2 -L ine Uni-directional TVS Diode www.sot23.com.tw Typical Performance Characteristics (TA=25°C unless otherwise Specified) Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP 80 Percent of Peak Pulse Current % tr 60 40 td=t IPP/2 20 90% 10% 0 0 5 10 15 20 25 30 子 Power Derating Curve 电 舟 0 台 % of Rated Power 110 100 90 80 70 60 50 40 30 20 10 0 25 50 75 30ns 60ns t - Time ( s) Fig3. tr = 0.7~1ns 100 125 150 Ambient Temperature –TA (ºC) 3 Time (ns) PSOT05C 2 -L ine Uni-directional TVS Diode www.sot23.com.tw Outline Drawing - SOT23 D A DIM e1 H 3 B E1 GAUGE PLANE SEATING PLANE E C 0 c 0.25 L L1 DETAIL A 1 2 bxN bbb e A2 A C A B 3X aaa C C 舟 电 子 A1 SEE DETAIL A SIDE VIEW SEATING PLANE 台 Land Pattern - SOT23 X Y DIM Z G Y C DIMENSIONS INCHES MILLIMETERS (.087) .037 .075 .031 .039 .055 .141 C E E1 G X Y Z E E1 4 (2.20) 0.95 1.90 0.80 1.00 1.40 3.60 A A1 A2 b c D E E1 e e1 L L1 N 0 aaa bbb DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX .035 .000 .035 .012 .003 .110 .082 .047 .015 0° .037 .114 .093 .051 .075 .037 .020 .022 3 .004 .008 .044 .004 .040 .020 .007 .120 .104 .055 .024 8° 0.89 1.12 0.01 0.10 0.88 0.95 1.02 0.30 0.51 0.18 0.08 2.80 2.90 3.04 2.10 2.37 2.64 1.20 1.30 1.40 1.90 BSC 0.95 BSC 0.40 0.50 0.60 (0.55) 3 0° 8° 0.10 0.20
