PSD03C

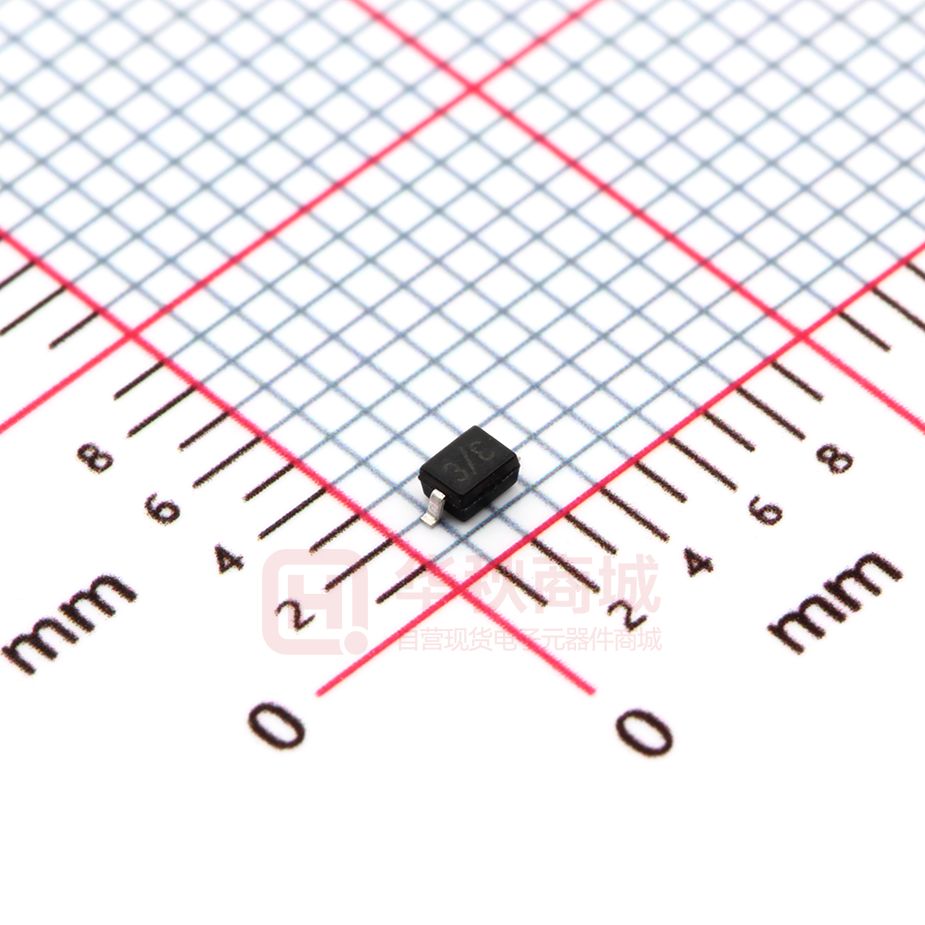

PSD03C 1-Line Bi-directional Diode www.sot23.com.tw Features Mechanical Characteristics  450W peak pulse power (8/20μs)  Package：SOD-323  Protects one data or power line Operating voltage: 3.3V   Ultra low leakage: nA level   Ultra low clamping voltage UL Flammability Classification Rating 94V-0  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 80A (5/50ns) – IEC61000-4-5 (SURGE) 38A (8/20us)    Shipping Qty : 3000pcs/7InchTape & Reel Case Material: “Green” Molding Compound. IC Moisture Sensitivity: Level 3 per J-STD-020 Applications Cellular Handsets and Accessories  Personal Digital Assistants  Notebooks and Handhelds  Portable Instrumentation  Peripherals TE CH PU BL  Dimensions and Pin Configuration 1 PSD03C 1-Line Bi-directional Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 450 W Peak Pulse Current (8/20µs) IPP 38 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) TJ −55 to +125 °C IC Operating Temperature Range kV ±30 Storage Temperature Range Tstg −55 to +150 °C Symbol Reverse Working Voltage Min VRWM Typ PU Parameter BL Electrical Characteristics (TA=25°C unless otherwise specified) Max Unit Test Condition 3.3 V 6.0 V IT=1mA Breakdown Voltage VBR Leakage Current ILeak 200 nA VRWM=3.3V VC 9 V IPP=20A,Tp=8/20μs VC 12.0 V IPP=38A,Tp=8/20μs Dynamic Resistance CH 4.0 RDYN 0.1 Ω TLP=0.2/100ns Junction Capacitance CJ 50 pF VR=0V, f=1MHz Clamping Voltage TE Clamping Voltage WWW.TPsemi.COM PSD03C 1-Line Bi-directional Diode www.sot23.com.tw Typical Performance Characteristics (TA=25℃ unless otherwise Specified) Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 60 40 td=t IPP/2 20 0 0 5 10 15 20 25 30 t - Time ( s) Power Derating Curve 110 100 CH 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power 10% PU Fig3. 0 25 50 75 100 125 Ambient Temperature –TA (ºC) 150 IC 80 90% tr = 0.7~1ns BL IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 30ns 60ns Time (ns) PSD03C 1-Line Bi-directional Diode www.sot23.com.tw Outline Drawing - SOD323 DIMENSIONS MILLIMETERS MIN INCHES MAX MIN MAX 1.50 1.80 0.060 0.071 B 1.20 1.40 0.045 0.054 C 2.30 2.70 0.090 0.107 D - 1.10 - 0.043 E 0.30 0.40 0.012 0.016 F 0.10 0.25 0.004 0.010 H - 0.10 - 0.004 TE CH PU A BL IC SYM Land Pattern - SOD323 SYM DIMENSIONS MILLIMETERS INCHES A 3.15 0.120 B 0.80 0.031 C 0.80 0.031 WWW.TPsemi.COM
