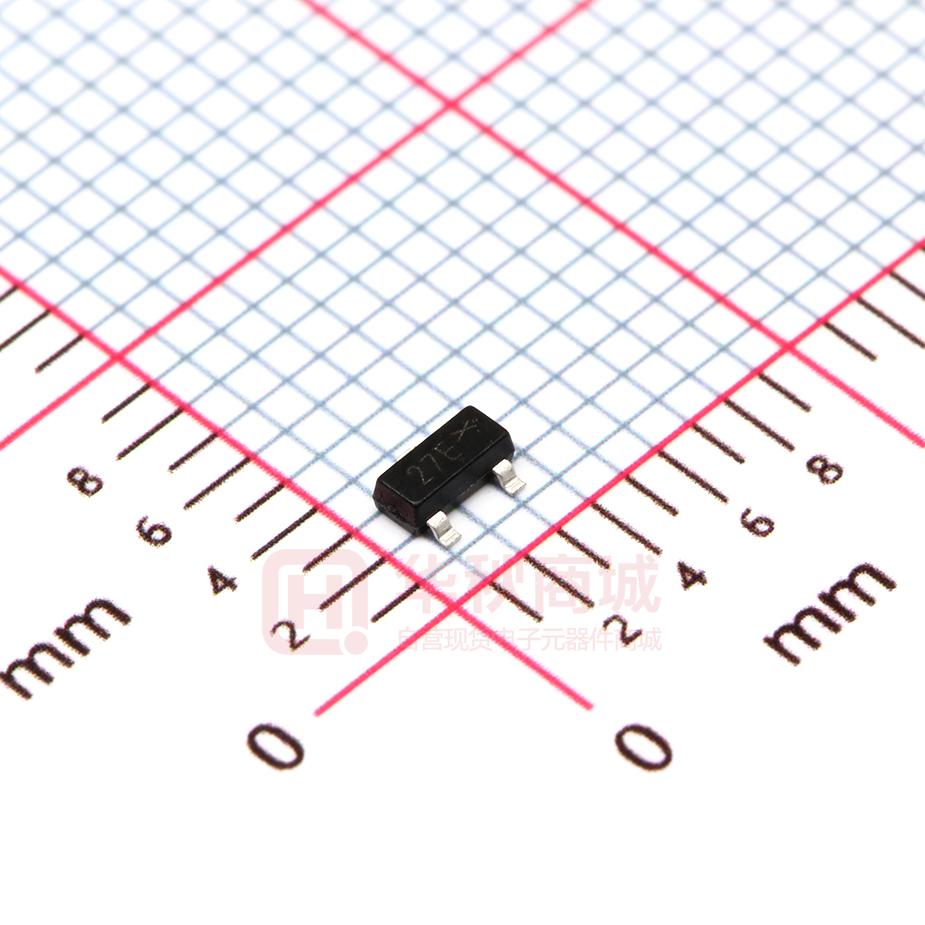

PESD1CAN

PESD1CAN CAN bus ESD protection diode www.sot23.com.tw Mechanical Characteristics Features Lead Finish: Matte Tin ● UL Flammability Classification Rating 94V-0 ● Shipping Qty : 3000pcs/7InchTape & Reel Applications ● ● ● ● IC ●  Cell Phones Audio Interface Connections Consumer Electronics (DVR, Set-Top Box, TV) CAN bus protection Automotive applications BL ● Package: SOT23 ● PU ● ● CH ● Ultra low leakage: nA level Operating voltage: 24V Low clamping voltage Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns) –IEC61000-4-5 (Lightning) 3A (8/20μs) RoHS Compliant Dimensions and Pin Configuration TE ● 1 3 2 PESD1CAN CAN bus ESD protection diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 150 W Peak Pulse Current (8/20µs) Ipp 3 A ESD per IEC 61000−4−2 (Air) ±30 VESD ±30 IC ESD per IEC 61000−4−2 (Contact) Operating Temperature Range TJ −55 to +125 °C Tstg −55 to +150 °C BL Storage Temperature Range Symbol Breakdown Voltage Clamping Voltage VBR Junction Capacitance Typ VC CJ Max Unit 24 V 10 Test Condition V IT = 1mA 0.08 uA VRWM =24V 50 V IPP = 3A (8 x 20 s pulse) 25 IR TE Reverse Leakage Current VRWM Min CH Reverse Working Voltage PU Electrical Characteristics (TA=25°C unless otherwise specified) Parameter kV pF VR = 0V, f = 1MHz PESD1CAN CAN bus ESD protection diode www.sot23.com.tw Typical Performance Characteristics (TA=25°C unless otherwise Specified) Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 80 60 40 td=t IPP/2 0 5 10 15 20 t - Time ( s) Fig3. Power Derating Curve 30 CH 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power 110 100 25 PU 0 0 25 50 75 10% BL 20 90% 100 125 Ambient Temperature –TA (ºC) IC IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 150 tr = 0.7~1ns 30ns 60ns Time (ns) PESD1CAN CAN bus ESD protection diode www.sot23.com.tw Outline Drawing - SOT23 D A DIM e1 H 3 B E C c 0 0.25 IC E1 GAUGE PLANE SEATING PLANE L L1 DETAIL A 2 bxN C A B A2 A 3X aaa C PU bbb e BL 1 SEATING PLANE A1 SIDE VIEW TE CH C Land Pattern - SOT23 X Y DIM Z G Y E E1 C C E E1 G X Y Z DIMENSIONS INCHES MILLIMETERS (.087) .037 .075 .031 .039 .055 .141 (2.20) 0.95 1.90 0.80 1.00 1.40 3.60 SEE DETAIL A A A1 A2 b c D E E1 e e1 L L1 N 0 aaa bbb DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX .035 .000 .035 .012 .003 .110 .082 .047 .015 0° .037 .114 .093 .051 .075 .037 .020 .022 3 .004 .008 .044 .004 .040 .020 .007 .120 .104 .055 .024 8° 0.89 1.12 0.01 0.10 0.88 0.95 1.02 0.30 0.51 0.08 0.18 2.80 2.90 3.04 2.10 2.37 2.64 1.20 1.30 1.40 1.90 BSC 0.95 BSC 0.40 0.50 0.60 (0.55) 3 0° 8° 0.10 0.20
