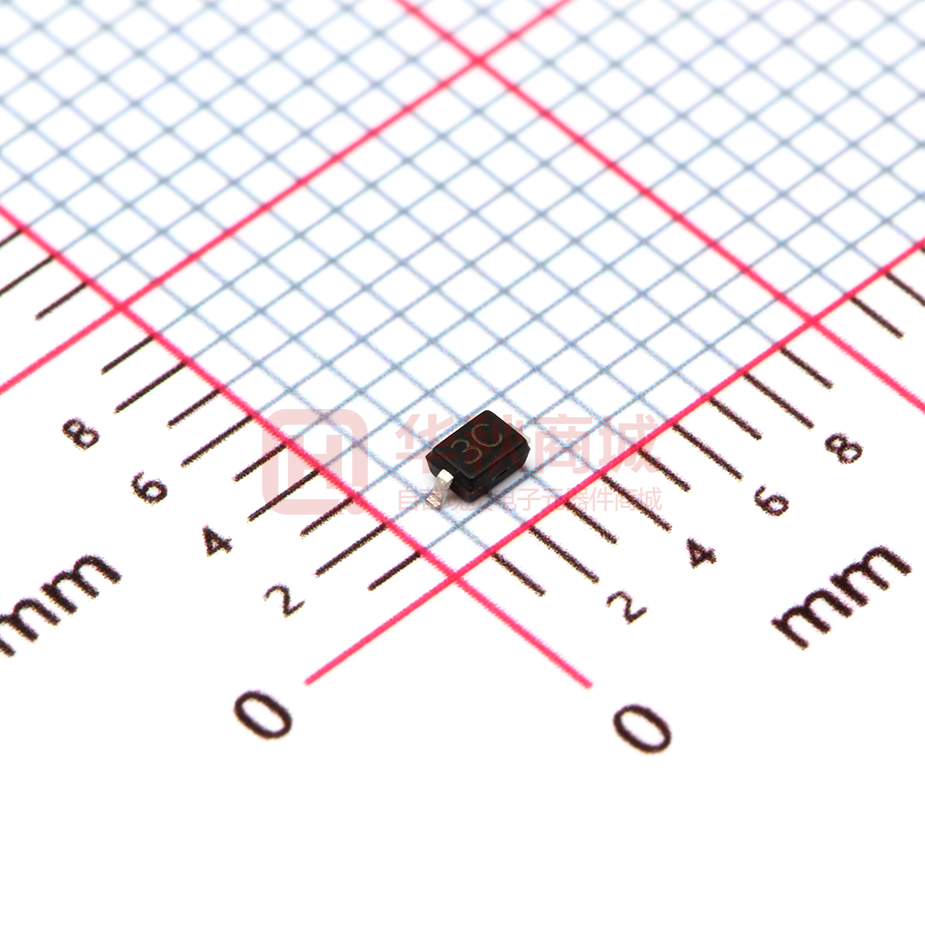

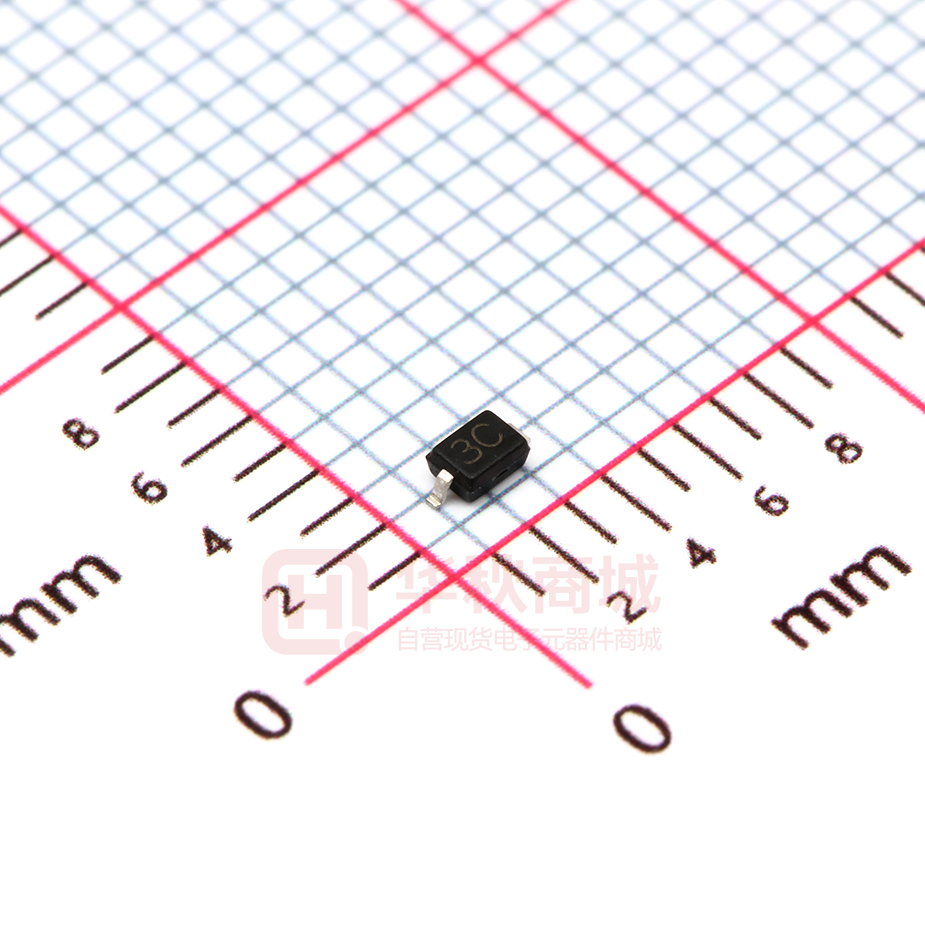

GBLC03C-TP

GBLC03C-TP 1-Line Low Capacitance Bi-directional TVS Diode www.sot23.com.tw Features    Mechanical Characteristics 100W peak pulse power (8/20μs)   Ultra low capacitance: 0.3 pF typical Ultra low leakage: nA leel Low operating : 3.3V  Low clamping voltage  Protects one power line or data line  Complies with following standards:  – IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV  – IEC61000-4-4 (EFT) 40A (5/50ns)  RoHS Compliant     BL IC  PU Applications   USB Ports Smart Phones Wireless Systems Ethernet 10/100/1000 Base T Qty per Reel Reel Size 3000 7” TE GBLC03C-TP   CH Ordering Information Part Number Package: SOD-323 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 Terminal Connections: See Diagram Below Dimensions and Pin Configuration 1 A 2 1 GBLC03C-TP 1-Line Low Capacitance Bi-directional TVS Diode www.sot23.com.tw Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 100 W Peak Pulse Current (8/20µs) IPP 4 A ESD per IEC 61000−4−2 (Air) ±20 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range TJ −40 to +85 °C Tstg −55 to +150 °C IC Storage Temperature Range kV ±15 Symbol Reverse Working Voltage VBR Clamping Voltage Junction Capacitance IT = 1mA Typ 4 Max Unit 3.3 V 6 V 0.2 µA IR VRWM = 3.3 V VC IPP = 1A (8 x 20µs pulse) 5 V VC IPP = 4A (8 x 20 s pulse) 23 V TE Reverse Leakage Current Clamping Voltage VRWM Min CH Breakdown Voltage Test Condition PU Parameter BL Electrical Characteristics (TA=25°C unless otherwise specified) CJ VR = 0V, f = 1MHz 2 0.3 pF GBLC03C-TP 1-Line Low Capacitance Bi-directional TVS Diode www.sot23.com.tw Typical Performance Characteristics (TA=25°C unless otherwise Specified) Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 80 60 40 td=t IPP/2 0 0 5 10 15 20 25 30 t - Time ( s) Power Derating Curve CH 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power 110 100 0 25 50 75 100 125 tr = 0.7~1ns 30ns PU Fig3. 10% BL 20 90% IC IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 150 Ambient Temperature –TA (ºC) 3 60ns Time (ns) GBLC03C-TP 1-Line Low Capacitance Bi-directional TVS Diode www.sot23.com.tw SOD-323 Package Outline Drawing A DIMENSIONS MILLIMETERS INCHES MIN MAX MIN MAX 1.50 1.80 0.060 0.071 B 1.20 1.40 0.045 0.054 C 2.30 2.70 0.090 0.107 D - 1.10 - 0.043 E 0.30 0.40 0.012 0.016 IC SYM 0.10 0.25 0.004 0.010 H - 0.10 - 0.004 BL F PU Suggested Land Pattern TE CH SYM 4 DIMENSIONS MILLIMETERS INCHES A 3.15 0.120 B 0.80 0.031 C 0.80 0.031
