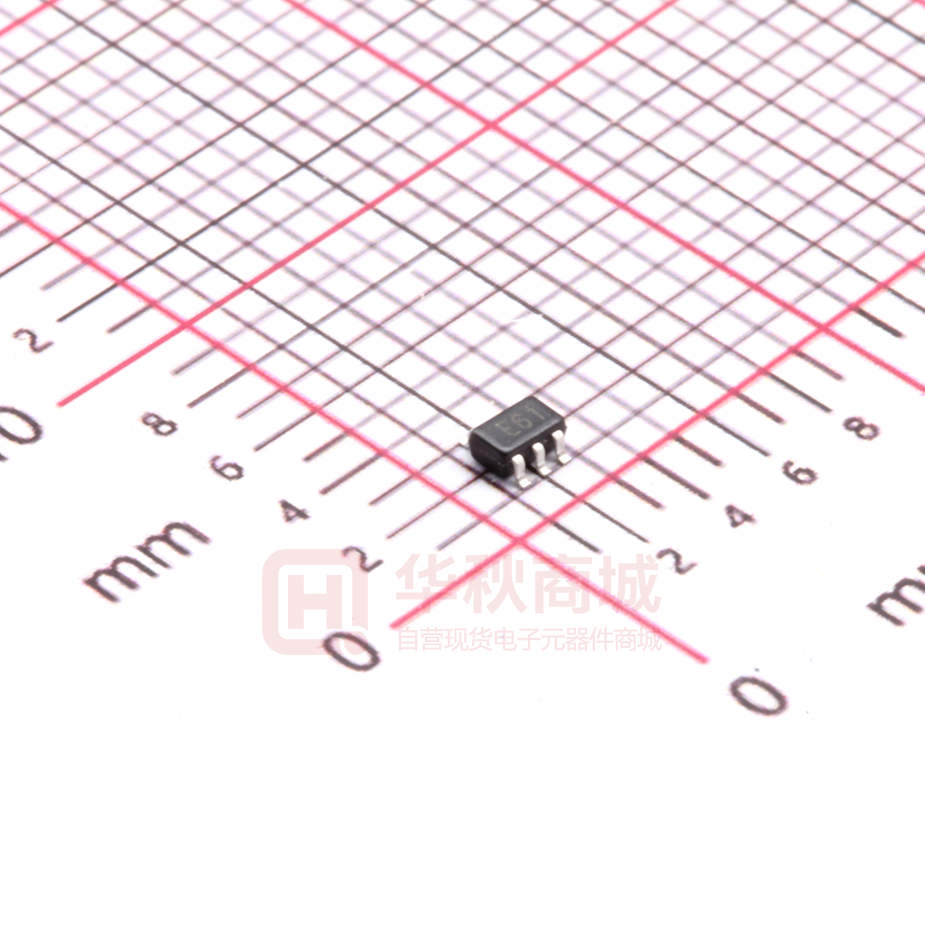

ESDA6V1W5-TP

ESDA6V1W 5-TP 4-Line TVS Array WWW.SOT23.COM.TW Features ‹ ‹ ‹ ‹ Mechanical Characteristics ‹ ‹ ‹ ‹ ‹ ‹ Ultra low leakage: nA level Low operating voltage: 5V Low clamping voltage Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns) ‹ ROHS Compliant Package: SOT353(SC70-5) Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 Shipping Qty : 3000pcs/7InchTape & Reel Applications Qty per Reel Reel Size ESDA6V1W5-TP 3000 7” 舟 电 Part Number Cell phone Handsets and Accessories Microprocessor Based Equipment Personal Digital Assistants (PDA’s) and Pagers Desktops PC and Servers Notebook, Laptop, and Palmtop Computers Portable Instrumentation Peripherals 子 Ordering Information ‹ ‹ ‹ ‹ ‹ ‹ ‹ 1 台 Dimensions and Pin Configuration 3 4 5 1 5 2 3 2 W 1 4 ESDA6V1W 5-TP 4-Line TVS Array WWW.SOT23.COM.TW Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Ppk 150 W Peak Pulse Power (8/20μs) (Vcc-GND) ESD per IEC61000-4-2 (Air) ±30 VESD ESD per IEC61000-4-2 (Contact) kV ±30 Operating Temperature Range TJ -55 to +125 ℃ Storage Temperature Range Tstg -55 to +150 ℃ Electrical Characteristics (TA=25°C unless otherwise specified) Symbol Reverse Working Voltage 5 V 9 V IT=1mA ILeak 100 nA VRWM=5V VC 11 V IPP=4.5A,Tp=8/20μs 14 V IPP=10A,Tp=8/20μs 90 pF VR=0V, f=1MHz, pF VR=0V, f=1MHz, 电 6 CJ 60 CJ 30 台 (I/O to I/O ) Typ 舟 Clamping Voltage (I/O to GND) Junction Capacitance Unit VBR Leakage Current Junction Capacitance Max VRWM Breakdown Voltage Clamping Voltage Min 子 Parameter VC 2 Test Condition ESDA6V1W 5-TP 4-Line TVS Array WWW.SOT23.COM.TW Typical Performance Characteristics (TA=25°C unless otherwise Specified) Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP 80 Percent of Peak Pulse Current % tr 60 40 td=t IPP/2 0 0 5 10 15 20 25 Power Derating Curve 舟 Fig3. 110 100 90 80 70 60 50 40 30 20 10 0 台 % of Rated Power 30 电 t - Time ( s) 0 25 50 75 100 125 10% 子 20 90% 150 Ambient Temperature –TA (ºC) 3 tr = 0.7~1ns 30ns 60ns Time (ns) ESDA6V1W 5-TP 4-Line TVS Array WWW.SOT23.COM.TW Outline Drawing - SOT-353 A DIM e1 D H N EI 1 E 0.15 2 e DETAIL B D aaa C A2 A 电 A1 bxN bbb C A-B D 舟 C 01 A SEE DETAIL SIDE VIEW 台 SEATING PLANE L (L1) 子 ccc C 2X N/2 TIPS c GAGE PLANE 2X E/2 4 A A A1 A2 b c D E1 E e e1 L L1 N 01 aaa bbb ccc DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX .043 .000 .004 .028 .035 .039 .006 .012 .003 .009 .075 .079 .083 .045 .049 .053 .083 BSC .026 BSC .051 .010 .014 .018 (.017) 5 0° 8° .004 .004 .012 1.10 0.10 0.00 0.70 0.90 1.00 0.15 0.30 0.22 0.08 1.90 2.00 2.10 1.15 1.25 1.35 2.10 BSC 0.65 BSC 1.30 BSC 0.26 0.36 0.46 (0.42) 5 0° 8° 0.10 0.10 0.30
