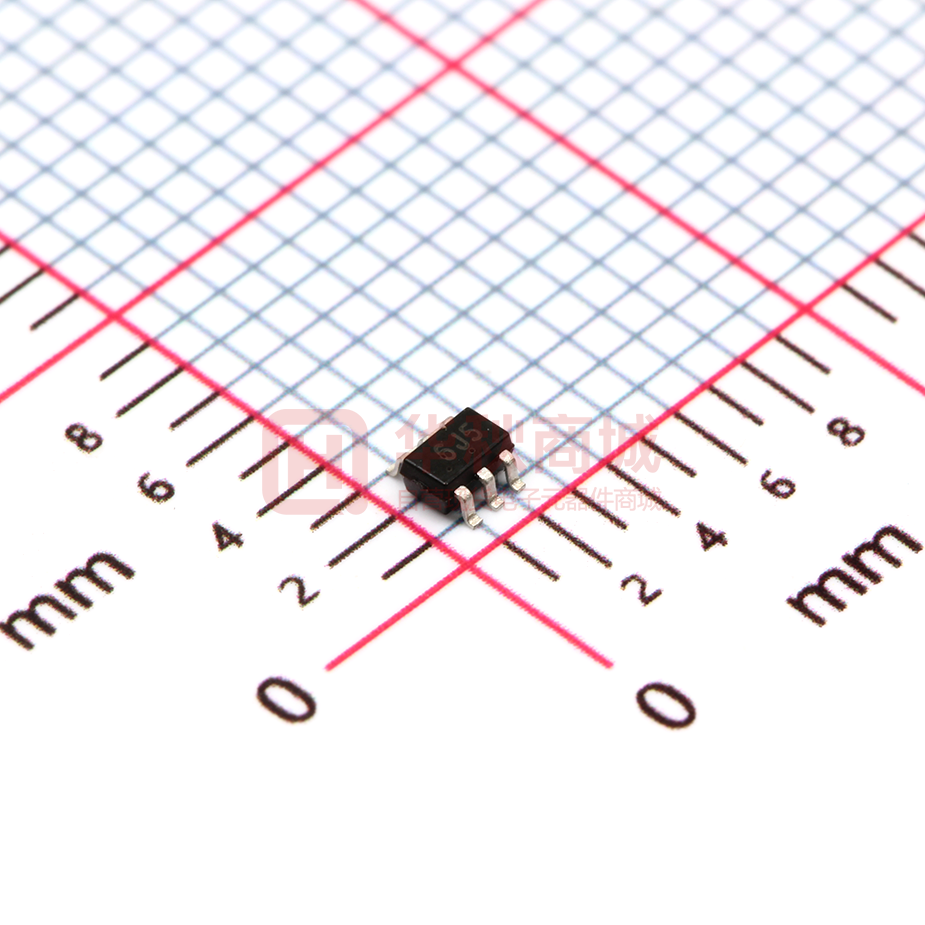

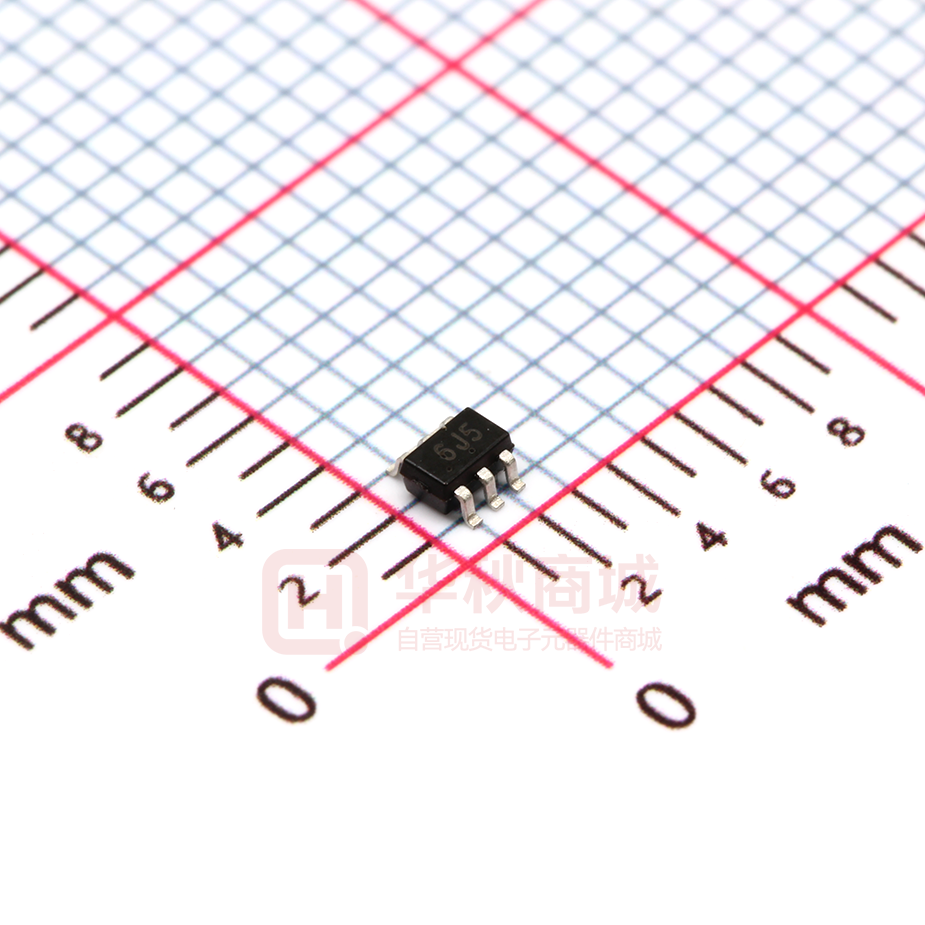

ESDA6V1-5W6-TP

ESDA6V1-5W 6-TP 5-Line TVS Array www.sot23.com.tw Mechanical Characteristics Features • Working voltage: 5V • • Low clamping voltage • Lead Finish: Matte Tin • Protects five I/O lines • Case Material: “Green” Molding Compound. • Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV – IEC61000-4-4 (EFT) 40A (5/50ns) • UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 3 per J-STD-020 • • • Ordering Information Reel Size 3000 7” Microprocessor Based Equipmenmt Cell Phone Handsets and Accessories Personal Digital Assistants (PDAs) and Pagers PU ESDA6V1-5W6-TP Qty per Reel CH Part Number Portable Instrumentation BL • IC Applications RoHS Compliant Dimensions and Pin Configuration TE • Package: SOT-363 (2.0X2.1X0.35mm) Pin Configuration ESDA6V1-5W 6-TP 5-Line TVS Array www.sot23.com.tw Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Ppk 100 W Peak Pulse Power (8/20µs) ESD per IEC 61000−4−2 (Air) ±25 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range −55 to +125 °C Tstg −55 to +150 °C Reverse Working Voltage Breakdown Voltage Min VRWM VBR 6 Typ Max Unit 5 V PU Symbol BL Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Test Condition V IT = 1mA 0.1 uA VRWM = 5V IR Forward Voltage VF 1.2 V IF = 15mA Clamping Voltage VC 10 V IPP 1A=(8 x 20us pulse) pF VR = 0V, f = 1MHz TE CH Reverse Leakage Current Junction Capacitance CJ Note 1: I/O pins are Pin 1, 3, 4, 5 and 6 30 kV TJ IC Storage Temperature Range ±20 ESDA6V1-5W 6-TP 5-Line TVS Array www.sot23.com.tw PROTECTION PRODUCTS Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP 80 60 40 td=t IPP/2 0 0 5 10 15 20 25 30 CH Power Derating Curve 110 100 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power PU t - Time ( s) Fig3. 0 25 50 75 100 125 Ambient Temperature –TA (ºC) 10% BL 20 90% IC tr Percent of Peak Pulse Current % IPP - Peak Pulse Current - % of IPP 120 150 tr = 0.7~1ns 30ns 60ns Time (ns) ESDA6V1-5W 6-TP 5-Line TVS Array www.sot23.com.tw Outline Drawing - SOT-363(2.0X2.1) DIM D e1 A A1 A2 b c D E1 E e e1 L L1 N 01 aaa bbb ccc N E/2 E1 1 ccc C 2X N/2 TIPS E 2 e B D A2 A SEATING PLANE bxN bbb 1.10 0.00 0.10 0.70 0.90 1.00 0.15 0.30 0.08 0.22 1.80 2.00 2.20 1.15 1.25 1.35 2.10 BSC 0.65 BSC 1.30 BSC 0.26 0.36 0.46 (0.42) 6 0° 8° 0.10 0.10 0.30 H A1 C .043 .000 .004 .028 .035 .039 .012 .006 .003 .009 .071 .079 .087 .045 .049 .053 .083 BSC .026 BSC .051 .010 .014 .018 (.017) 6 8° 0° .004 .004 .012 BL aaa C DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX IC A C A-B D GAGE PLANE PU 0.15 SEE DETAIL 01 (L1) DETAIL A A CH SIDE VIEW L c TE Land Pattern - SOT-363 X DIM C G Y P Z C G P X Y Z DIMENSIONS INCHES MILLIMETERS (.073) .039 .026 .016 .033 .106 (1.85) 1.00 0.65 0.40 0.85 2.70
