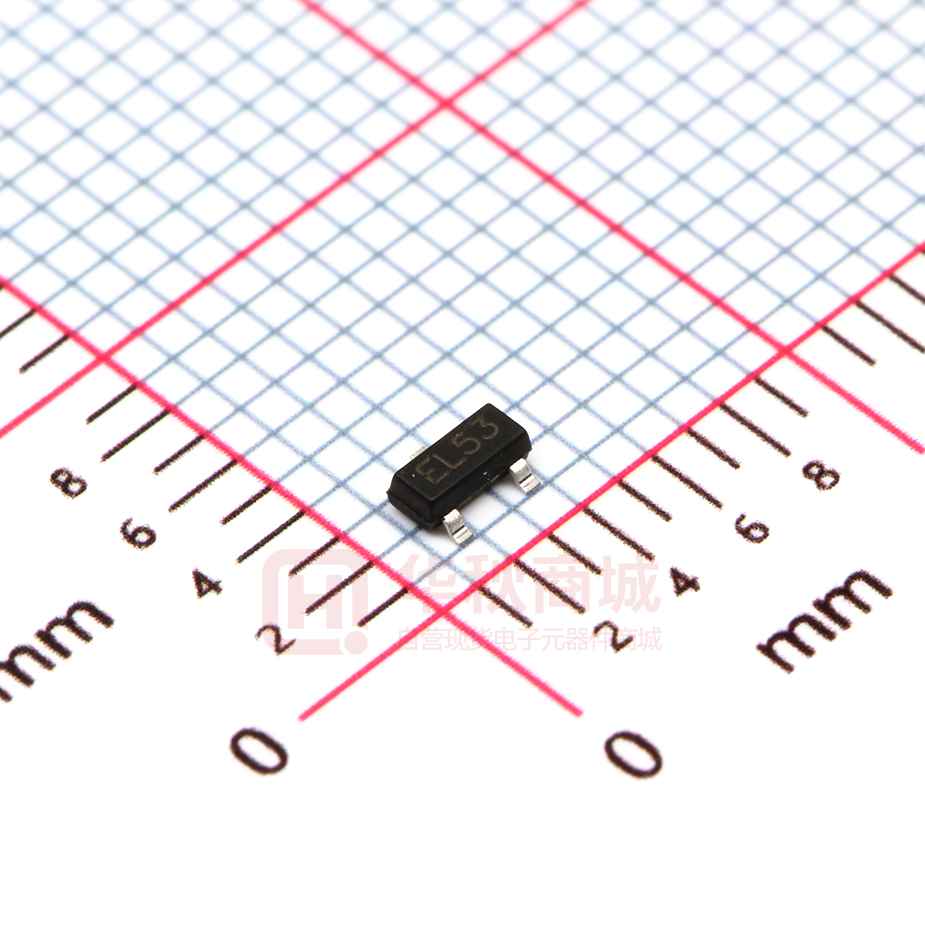

ESDA5V3L

ESDA5V3L TVS Diode Array www.sot23.com.tw Features IC Applications Qty per Reel Reel Size 3000 7”      USB Power & Data Line Protection Monitors and Flat Panel Displays I²C Bus Protection Portable Instrumentation Set Top Box PU ESDA5V3L  Lead Finish: Matte Tin  UL Flammability Classification Rating 94V-0  Pb-Free, Halogen Free, RoHS/WEEE Compliant BL Ordering Information Part Number  Package: SOT23 CH     Mechanical Characteristics Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) Working voltages : 3V Protects one bidirectional line or Low operating and clamping voltages Solid-state silicon avalanche technology Dimensions and Pin Configuration TE  Circuit and Pin Schematic ESDA5V3L TVS Diode Array www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Ipp 7 A VESD ±30 ±30 kV TJ −55 to +125 °C Peak Pulse Current (8/20µs) ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) IC Operating Temperature Range Tstg −55 to +150 BL Storage Temperature Range °C Electrical Characteristics (TA=25°C unless otherwise specified) Max Min 1.0 4.8 It PU VBR(V)IT VC(V) Max Ipp Ipp(A) C(pf) Max mA Max Max Max 6.0 1.0 13.5 7.4 70 CH ESDA5V3L IR(uA) Vrwm TE Type ESDA5V3L TVS Diode Array www.sot23.com.tw CH PU BL IC Typical Performance Characteristics (TA=25°C unless otherwise Specified) TE % Of Rated Power FIGURE 3 ESDA5V3L TVS Diode Array www.sot23.com.tw Outline Drawing - SOT23 D A DIM e1 H 3 B E1 GAUGE PLANE SEATING PLANE E c 0.25 L L1 IC C 0 DETAIL A 1 2 bxN bbb C A B A2 A 3X BL e aaa C TE CH C PU A1 SEE DETAIL A SIDE VIEW SEATING PLANE Land Pattern - SOT23 X Y DIM Z G Y E E1 C C E E1 G X Y Z DIMENSIONS INCHES MILLIMETERS (.087) .037 .075 .031 .039 .055 .141 (2.20) 0.95 1.90 0.80 1.00 1.40 3.60 A A1 A2 b c D E E1 e e1 L L1 N 0 aaa bbb DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX .035 .000 .035 .012 .003 .110 .082 .047 .015 0° .037 .114 .093 .051 .075 .037 .020 .022 3 .004 .008 .044 .004 .040 .020 .007 .120 .104 .055 .024 8° 0.89 1.12 0.01 0.10 0.88 0.95 1.02 0.30 0.51 0.08 0.18 2.80 2.90 3.04 2.10 2.37 2.64 1.20 1.30 1.40 1.90 BSC 0.95 BSC 0.40 0.50 0.60 (0.55) 3 0° 8° 0.10 0.20
