ESD0P2RF-02LRH-TP

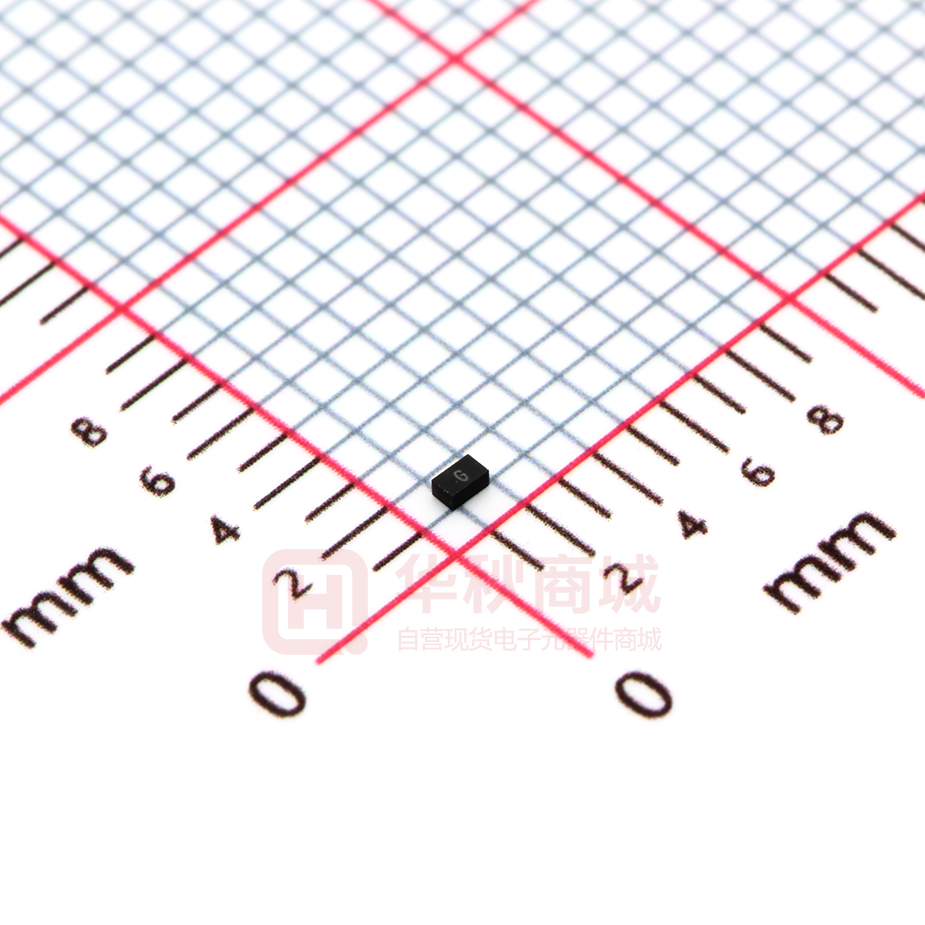

ESD0P2RF-02LRH-TP 0.18pf 1-Line Ultra Low Capacitance TVS Diode Array www.sot23.com.tw Features Mechanical Characteristics  Ultra small package: 1.0x0.6x0.5mm  Package: DFN1006-2 (0402)  Ultra low capacitance: 0.18pF typical  Lead Finish: Matte Tin  Ultra low leakage: nA level  Case Material: “Green” Molding Compound.  Low operating voltage: 5V  Moisture Sensitivity: Level 3 per J-STD-020  Low clamping voltage  Terminal Connections: See Diagram Below Shipping Qty : 10000pcs/7Inch Tape & Reel  2-pin leadless package Applications  Lead Finish: NiPdAu Smart phones  Display Ports BL RoHS Compliant   MDDI Ports  USB Ports  Digital Video Interface (DVI)  PCI Express and Serial SATA Ports TE CH  IC Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV – IEC61000-4-5 -4- (Lightning) 3A (8/20μs) PU   Dimensions and Pin Configuration 1.0 0.60  0.65  0.50 WWW.TECHPUBLIC.COM.TW ESD0P2RF-02LRH-TP 0.18pf 1-Line Ultra Low Capacitance TVS Diode Array www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 60 W Peak Pulse Current (8/20µs) Ipp 3 A ESD per IEC 61000−4−2 (Air) Storage Temperature Range kV ±8 CH PU BL IC ESD per IEC 61000−4−2 (Contact) Operating Temperature Range ±15 VESD TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Symbol Reverse Working Voltage Breakdown Voltage Junction Capacitance Max Unit 5 V Test Condition 9 V IT = 1mA IR 0.2 μA VRWM = 5V VC 12 V IPP = 1A (8 x 20µs pulse) VC 19 V IPP = 3A (8 x 20 s pulse) 0.25 pF VR = 0V, f = 1MHz IO to IO TE Clamping Voltage Typ VRWM VBR Reverse Leakage Current Clamping Voltage Min CJ 6 7.5 0.18 2 WWW.TECHPUBLIC.COM.TW ESD0P2RF-02LRH-TP 0.18pf 1-Line Ultra Low Capacitance TVS Diode Array www.sot23.com.tw TE CH PU BL IC Typical Performance Characteristics (TA=25°C unless otherwise Specified) WWW.TECHPUBLIC.COM.TW 3 ESD0P2RF-02LRH-TP 0.18pf 1-Line Ultra Low Capacitance TVS Diode Array www.sot23.com.tw DFN1006-2 Package Outline Drawing (0402) h h A A1 0.00 0.02 0.05 0.000 0.001 0.002 b 0.45 0.50 0.55 0.018 0.020 0.022 c 0.12 0.15 0.18 0.005 0.006 0.007 D 0.95 1.00 1.05 0.037 0.039 0.041 SYM - b E - DIMENSIONS MILLIMETERS INCHES MIN NOM MAX MIN NOM MAX 0.45 0.50 0.55 0.018 0.020 0.022 L A1 c A Bottom View e IC e D 0.65 BSC 0.55 L 0.20 h 0.07 0.60 0.65 0.022 0.024 0.026 0.25 0.30 0.008 0.010 0.012 0.12 0.17 0.003 0.005 0.007 TE CH PU BL E 0.026 BSC Suggested Land Pattern ╋ Y3 Y2 SYM Y1 Z DIMENSIONS MILLIMETERS INCHES X 0.60 0.024 Y1 0.50 0.020 Y2 0.30 0.012 Y3 0.80 0.032 Z 1.30 0.052 ╋ X 4 WWW.TECHPUBLIC.COM.TW
