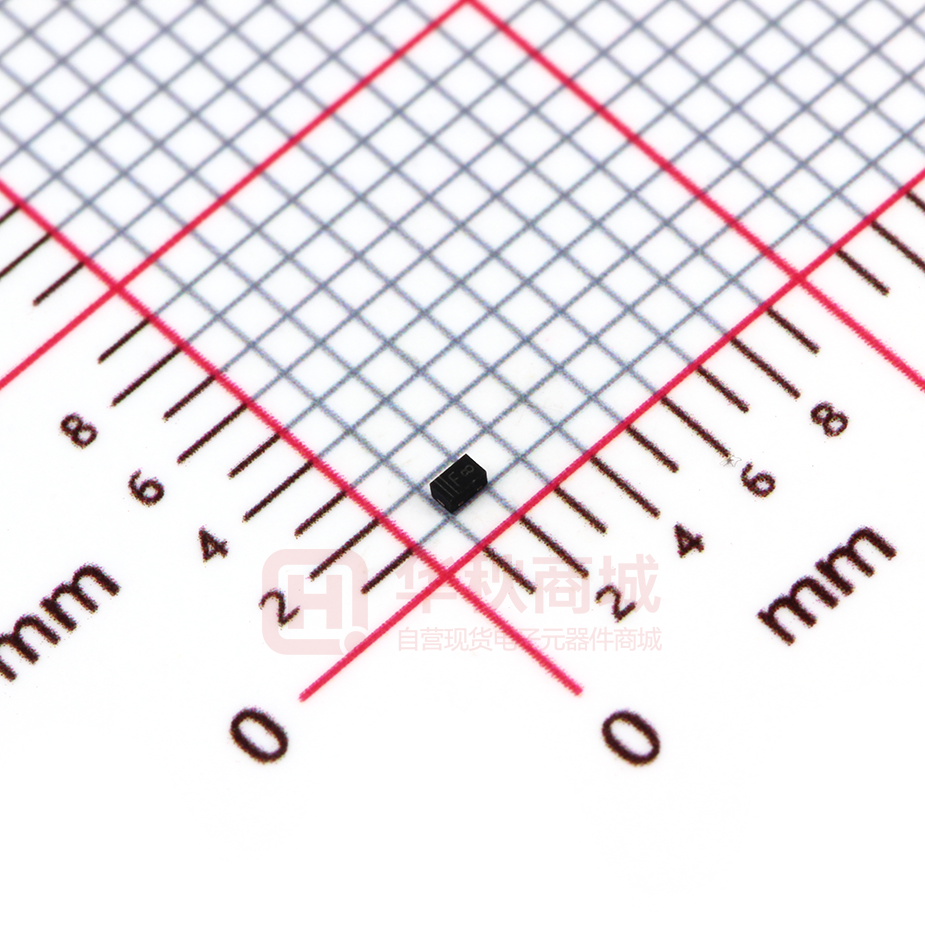

BAT54L-TP

BAT54L-TP Schottky barrier diode www.sot23.com.tw Features Average forward current: IF(AV) ≤ 200 mA Reverse voltage: VR ≤ 30 V Low forward voltage: VF ≤ 350 mV @10mA Low reverse current: IR ≤ 10 μA Leadless ultra small SMD plastic package We declare that the material of product compliance with RoHS requirements and Halogen Free ● Low current rectification BL IC • • • • • • Applications CH PU SOD8 8 2 TE Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Limits Unit Reverse voltage(DC) VR 30 V Average rectified forward current Io 200 mA IFSM 500 mA Tj 125 ℃ TSTG -40~+125 ℃ Peak forward surge current Junction temperature Storage Temperature Range Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Symbol Forward voltage VF Reverse current IR Min. Max. Unit Conditions - 0.35 V IF=10mA - 0.4 V IF=20mA - 10  VR=10V 1 BAT54L-TP Schottky barrier diode www.sot23.com.tw Outline Drawing - SOD882 e D h A DIMENSIONS MILLIMETERS INCHES MIN NOM MAX MIN NOM MAX 0.45 0.50 0.55 0.018 0.020 0.022 A1 0.00 0.02 0.05 0.000 0.001 0.002 b 0.45 0.50 0.55 0.018 0.020 0.022 c 0.12 0.15 0.18 0.005 0.006 0.007 D 0.95 1.00 1.05 0.037 0.039 0.041 SYM - b E - L c A Bottom View IC h E 0.55 0.60 0.65 0.022 0.024 0.026 L 0.20 0.25 0.30 0.008 0.010 0.012 h 0.07 0.12 0.17 0.003 0.005 0.007 CH SYM Y2 Z ╋ X 2 DIMENSIONS MILLIMETERS INCHES X 0.60 0.024 Y1 0.50 0.020 Y2 0.30 0.012 Y3 0.80 0.032 Z 1.30 0.052 Y1 TE Y3 0.026 BSC PU Land Pattern - SOD882 ╋ 0.65 BSC BL A1 e
