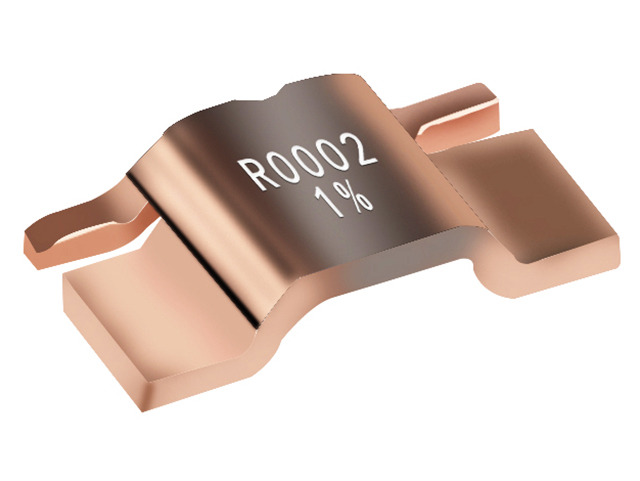

SBB-K-2F-y-t5

深圳市业展电子有限公司 承 认 书 SPECIFICATION FOR APPROVAL 客户名称 Customer Name 客户料号 Customer P/N 产品名称 Product Name 产品规格 Product Type 申请承认日期 Apply Date Alloy Shunt Resistors – SBB Series SBB-M-0.5F-y-t5 版本 REV. 2019-11-28 供货商属性 □代理商 █ 制造商 深圳市业展电子有限公司 Vendor Type Agency Manufacturer Note: 禁止使用 1 级环境管理物质.遵守 ACBEL"环境管理物质规范"中所要求之含量标准. Restrict use of hazardous substances of level 1; Comply with "Specification for Hazardous Substances andMaterials Management" of ACBEL 供货商印鉴 APPROVED CHECKED PREPARED Vendor Stamp 承认印鉴 Stamp 邓小辉 Mainland China：深圳市业展电子有限公司 Shenzhen Yezhan Electronics Co., Ltd. Add: 深圳市龙华区环观中路荣倡工业园 7 栋 4 楼 Tel: 0755-26517682 Fax: 0755-83918284 E-mail: yezhan@yezhan.com.cn 标准书名 Classification 承认书 Specification Spec No. YZ-QR-EN-007 品 名 ： 内拆分流电阻 SBB Series Product Name：Alloy Shunt Resistors Version 1.5 Page 5-2 1. 一般事项 General 1.1 适用范围 Scope 本承认书适用于深圳市业展电子有限公司 制造之[ 内折分流电阻]。 This specification is available for Alloy Shunt Resistors manufactured by Shenzhen Yezhan Electronics Co., Ltd. 1.2 品质 Quality 本电阻器的制造系经高质量管理程序，并具有高信赖性的质量保证，且符合 RoHS 和 无卤要求。 The resistor is manufactured by highly quality-controlled process and guaranteed high reliability, it meets RoHS & Halogen-Free requirement. 1.3 标准试验狀态 Standard measuring conditions 温度 20±2℃、湿度 65±5%。 但在温度 5～35℃、湿度 45～85%之情况下，仍可给予判定。 Temperature 20±2℃, Humidity 65±5%. Being no doubt about the judgment, measurements can be made within the following Temperature 5～35℃, Humidity 45～85%. 1.4 形名 (例) Type designation (example) 依使用种類、线径、脚距、形狀、公称电阻值、电阻值容许差而区别，其构造如下： The type designation shall be in the following form and as specified. SBB形状 Yezhan Type - M 材料 M:manganin K：Kama F:FeCrAl - 0.5 F 阻值 精度 K：±10% J：±5% G：±2% F：±1% D：±0.5% Unit：mΩ - y y：Out 外折 n：In 内折 - t5 其他 标准书名 Classification 承认书 Specification Spec No. YZ-QR-EN-007 品 名 ： 内拆分流电阻 SBB Series Product Name：Alloy Shunt Resistors Version 1.5 Page 5-3 1.5 功率曲线 Power Derating 1.6 温度系数曲线 TCR Derating 1.7 推荐焊盘尺寸 Recommended Solder Pad Layout PCB 内折 In 外折 Out a 2.9 4 c 2 5.5 1.8 印字标识 Marking R0003 1% 0.3mΩ 1% e 0.9 0.9 f 0.8 0.8 g 5.6 5.6 标准书名 Classification 承认书 Specification Spec No. YZ-QR-EN-00 7 Version 1.5 品 名 ：内拆分流电阻 SBB Series Product Name：Alloy Shunt Resistors Page 5-4 1.9 特征 Feature 项 目 图 解 阻 值 0.3~3mΩ 精 度 ± 1%、± 2、± 5% 额定功率 使用温度 参 数 5W -65℃～170℃ 阻值 Resistor 类型 Type M H W T A X D SBB-M-0.3F-y-t5 Out 6.6±0.3 3±0.5 6.9±0.3 1.06±0.1 2.5±0.2 4.8±0.4 0.9 SBB-M-0.5F-y-t5 Out 6.6±0.3 3±0.5 6.9±0.3 0.67±0.1 2.5±0.2 4.8±0.4 0.9 SBB-M-1F-y-t5 Out 6.6±0.3 3±0.5 6.9±0.3 0.33±0.1 2.5±0.2 4.8±0.4 0.9 SBB-K-2F-y-t5 Out 6.6±0.3 3±0.5 6.9±0.3 0.47±0.1 2.5±0.2 4.8±0.4 0.9 SBB-K-3F-y-t5 Out 6.6±0.3 3±0.5 6.9±0.3 0.34±0.1 2.5±0.2 4.8±0.4 0.9 SBB-M-0.5F-n-t5 In 6.6±0.3 3±0.5 6.9±0.3 0.67±0.1 2.5±0.2 4.8±0.4 0.9 SBB-M-1F-n-t5 In 6.6±0.3 3±0.5 6.9±0.3 0.33±0.1 2.5±0.2 4.8±0.4 0.9 SBB-K-2F-n-t5 In 6.6±0.3 3±0.5 6.9±0.3 0.5±0.1 2.5±0.2 4.8±0.4 0.9 SBB-K-3F-n-t5 In 6.6±0.3 3±0.5 6.9±0.3 0.34±0.1 2.5±0.2 4.8±0.4 0.9 标准书名 Classification 承认书 Specification 品 名 ：内拆分流电阻 SBB Series Product Name：Alloy Shunt Resistors 3 Spec No. YZ-QR-EN-007 Version 1.5 Page 5-5 2 应用范围 Applications  混合应用的电源电流传感器 Current sensor for power hybrid applications  变频器 Frequency converters  电源模块 Power modules  通讯系统 Communication system  自动化控制电源 Automatic control power supply  汽车市场的高电流应用 High current applications for the automotive market  体系认证 IATF16949 3 包装 Packaging 编带 Embossed Plastic Tape Specifications Type A B W E F P0 P1 P2 D0 T Quantity (EA) In 7.5 8 16 1.75 7.35 6 12 12 1.5 3.8 3000 Out 7.5 12.1 24 1.75 12.2 6 12 12 1.5 3.5 1000 Reference Limits 4 工作特性 Performance Date Iterms Additional Requirements JESD22 Temperature 1000 Cycles(-55℃ to +125℃) Cycling Measurement at 24± 2hours after test conclusion High Temperature 1000hrs.@T=125℃.Unpowered. MIL-STD-202 Exposure Measurement at 24± 2hours after test conclusion Method 108 1000hrs 85℃/85%RH。Note: Specified conditions: Biased Humidity 10% of operating power. Measurement at 24± 2hours after test conclusion Operational Life Method ± 0.5% JA-104 MIL-STD-202 Method 103 Condition D Steady State TA=125℃ at rated power. MIL-STD-202 Measurement at 24± 2hours after test conclusion Method 108 ± 0.5% ± 0.5% ± 1% 95% Solderability 245℃± 5℃,5s+0.5s/-0 J-STD-002C Coverage Min Resistance to 260℃± 5℃，10s± 1s MIL-STD-202 Soldering Heat Measurement at 24± 2hours after test conclusion Method 210 Short Time 5× Rated power for 5 s MIL-STD-202 Overload Measurement at 24± 2hours after test conclusion Method 301 ± 0.5% ± 0.5%
