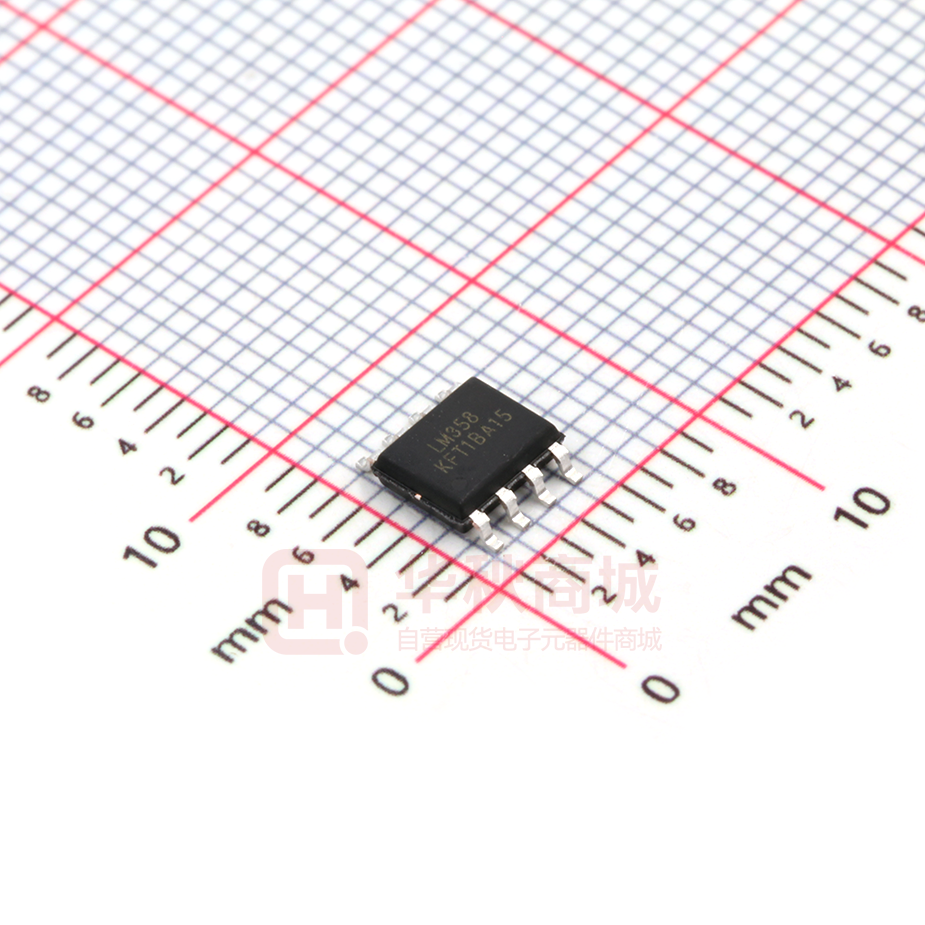

LM358H-SR

LM321H/358H/324H 1MHZ High Voltage Bipolar Opamp Features  Single-Supply Operation from +3V ~ +36V  Large Outpu Voltage Swing:0V to Vcc-1.5V  Dual-Supply Operation from ±1.5V ~ ±18V  Operating Temperature: -25°C ~ +85°C  Gain-Bandwidth Product: 1MHz (Typ)  Small Package:  Low Input Bias Current: 20nA (Typ) LM321H Available in SOT23-5 Package  Low Offset Voltage: 5mV (Max) LM358H Available in SOP-8 and MSOP-8 Packages  Quiescent Current: 250μA per Amplifier (Typ) LM324H Available in SOP-14 Package  Input Common Mode Voltage Range Includes Ground General Description The LM321H/358H/324H family have a high gain-bandwidth product of 1MHz, a slew rate of 0.2V/μs, and a quiescent current of 250μA/amplifier at 5V. The LM321H/358H/324H family is designed to provide optimal performance in low voltage and low noise systems. The maximum input offset voltage is 5mV for LM321H/358H/324H family. The operating range is from 3V to 36V. The LM321H single is available in Green SOT-23-5 package. The LM358H Dual is available in Green SOP-8 and MSOP-8 packages. The LM324H Quad is available in Green SOP-14 package. Applications Walkie-Talkie   Battery Management Solution  Oscillators  Transducer Amplifiers  Switcching Telephone  Summing Amplifiers  Portable Systems  Multivibrators Pin Configuration Figure 1. Pin Assignment Diagram March 2020-REV_V3 1/13 LM321H/358H/324H Absolute Maximum Ratings Condition Symbol Max Vcc ±20V or 40V VI(DIFF) 40V VI -0.3V~40V Operating Temperature Range Topr -25°C ~+85°C Storage Temperature Range Tstg -65°C ~+150°C Power Supply Voltage Differential input voltage Input Voltage Note: Stress greater than those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions outside those indicated in the operational sections of this specification are not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability. Package/Ordering Information PACKAGE PACKAGE MARKING DESCRIPTION OPTION INFORMATION LM321H-TR SOT23-5 Tape and Reel,3000 LM321 LM358H-SR SOP-8 Tape and Reel,4000 LM358 LM358H-MR MSOP-8 Tape and Reel,3000 LM358 LM324H-SR SOP-14 Tape and Reel,2500 LM324 MODEL CHANNEL ORDER NUMBER LM321H Single LM358H Dual LM324H Quad January 2021-REV_V0 2/13 LM321H/358H/324H Electrical Characteristics (At VS = +15V, TA=25oC, unless otherwise noted.) LM321H/358H/324H PARAMETER SYMBOL CONDITIONS TYP MIN/MAX OVER TEMPERATURE +25℃ +25℃ UNITS MIN/MAX 0.4 5 mV MAX INPUT CHARACTERISTICS Input Offset Voltage VOS VCM = VS/2 Input Bias Current IB 20 nA TYP Input Offset Current IOS 5 nA TYP Common-Mode Voltage Range VCM -0.1 to +4 V TYP Common-Mode Rejection Ratio CMRR Open-Loop Voltage Gain AOL Input Offset Voltage Drift ΔVOS/ΔT VS = 5.5V VCM = 0V to Vs-1.5V 70 60 dB MIN RL = 5kΩ, VO = 1V to 11V 100 85 dB MIN 7 μV/℃ TYP V MIN OUTPUT CHARACTERISTICS Output Voltage Swing from Rail Output Current VOH RL = 2kΩ 11 VOL RL = 2kΩ 5 20 mV MAX VOH RL = 10kΩ 12 13 V MIN VOL RL = 10kΩ 5 20 mV MAX 40 60 40 60 mA MAX 3 V MIN 36 V MAX ISOURCE ISINK RL = 10Ω to VS/2 POWER SUPPLY Operating Voltage Range Power Supply Rejection Ratio PSRR Quiescent Current / Amplifier IQ VS = +5V to +36V, VCM = +0.5V 100 70 dB MIN ∞ 0.25 2.0 mA MAX 1 MHz TYP 0.2 V/μs TYP VS = 36V, RL= DYNAMIC PERFORMANCE Gain-Bandwidth Product Slew Rate January 2021-REV_V0 GBP SR G = +1, 2V Output Step 3/13 LM321H/358H/324H Typical Performance characteristics January 2021-REV_V0 4/13 LM321H/358H/324H Typical Performance characteristics January 2021-REV_V0 5/13 LM321H/358H/324H Application Note Size LM321H/358H/324H family series op amps are unity-gain stable and suitable for a wide range of general-purpose applications. The small footprints of the LM321H/358H/324H family packages save space on printed circuit boards and enable the design of smaller electronic products. Power Supply Bypassing and Board Layout LM321H/358H/324H family series operates from a single 3V to 36V supply or dual ±1.5V to ±18V supplies. For best performance, a 0.1μF ceramic capacitor should be placed close to the VDD pin in single supply operation. For dual supply operation, both VDD and VSS supplies should be bypassed to ground with separate 0.1μF ceramic capacitors. Low Supply Current The low supply current (typical 250μA per channel) of LM321H/358H/324H family will help to maximize battery life. Operating Voltage LM321H/358H/324H family operates under wide input supply voltage (3V to 36V). In addition, all temperature specifications apply from -25 oC to +85 oC. Most behavior remains unchanged throughout the full operating voltage range. These guarantees ensure operation throughout the single Li-Ion battery lifetime. Capacitive Load Tolerance The LM321H/358H/324H family is optimized for bandwidth and speed, not for driving capacitive loads. Output capacitance will create apole in the amplifier’s feedback path, leading to excessive peaking and potential oscillation. If dealing with load capacitance is a requirement of the application, the two strategies to consider are (1) using a small resistor in series with the amplifier’s output and the load capacitance and (2) reducing the bandwidth of the amplifier’s feedback loop by increasing the overall noise gain. Figure 2. shows a unity gain follower using the series resistor strategy. The resistor isolates the output from the capacitance and, more importantly, creates a zero in the feedback path that compensates for the pole created by the output capacitance. Figure 2. Indirectly Driving a Capacitive Load Using Isolation Resistor January 2021-REV_V0 6/13 LM321H/358H/324H The bigger the RISO resistor value, the more stable VOUT will be. However, if there is a resistive load RL in parallel with the capacitive load, a voltage divider (proportional to RISO/RL) is formed, this will result in a gain error. The circuit in Figure 3 is an improvement to the one in Figure 2. RF provides the DC accuracy by feed-forward the VIN to RL. CF and RISO serve to counteract the loss of phase margin by feeding the high frequency component of the output signal back to the amplifier’s inverting input, thereby preserving the phase margin in the overall feedback loop. Capacitive drive can be increased by increasing the value of CF. This in turn will slow down the pulse response. Figure 3. Indirectly Driving a Capacitive Load with DC Accuracy January 2021-REV_V0 7/13 LM321H/358H/324H Typical Application Circuits Differential amplifier The differential amplifier allows the subtraction of two input voltages or cancellation of a signal common the two inputs. It is useful as a computational amplifier in making a differential to single-end conversion or in rejecting a common mode signal. Figure 4. shown the differential amplifier using LM321H/358H/324H family. Figure 4. Differential Amplifier VOUT( RR13RR24 ) RR14 VIN  RR12 VIP ( RR13RR24 ) RR13 VREF If the resistor ratios are equal (i.e. R1=R3 and R2=R4), then VOUT  R2 R1 (VIP  VIN )  VREF Low Pass Active Filter The low pass active filter is shown in Figure 5. The DC gain is defined by –R2/R1. The filter has a -20dB/decade roll-off after its corner frequency ƒC=1/(2πR3C1). Figure 5. Low Pass Active Filter January 2021-REV_V0 8/13 LM321H/358H/324H Instrumentation Amplifier The triple LM321H/358H/324H family can be used to build a three-op-amp instrumentation amplifier as shown in Figure 6. The amplifier in Figure 6 is a high input impedance differential amplifier with gain of R2/R1. The two differential voltage followers assure the high input impedance of the amplifier. Figure 6. Instrument Amplifier . January 2021-REV_V0 9/13 LM321H/358H/324H Package Information SOP-8 January 2021-REV_V0 10/13 LM321H/358H/324H MSOP-8 January 2021-REV_V0 11/13 LM321H/358H/324H SOP-14 January 2021-REV_V0 12/13 LM321H/358H/324H SOT23-5 January 2021-REV_V0 13/13
