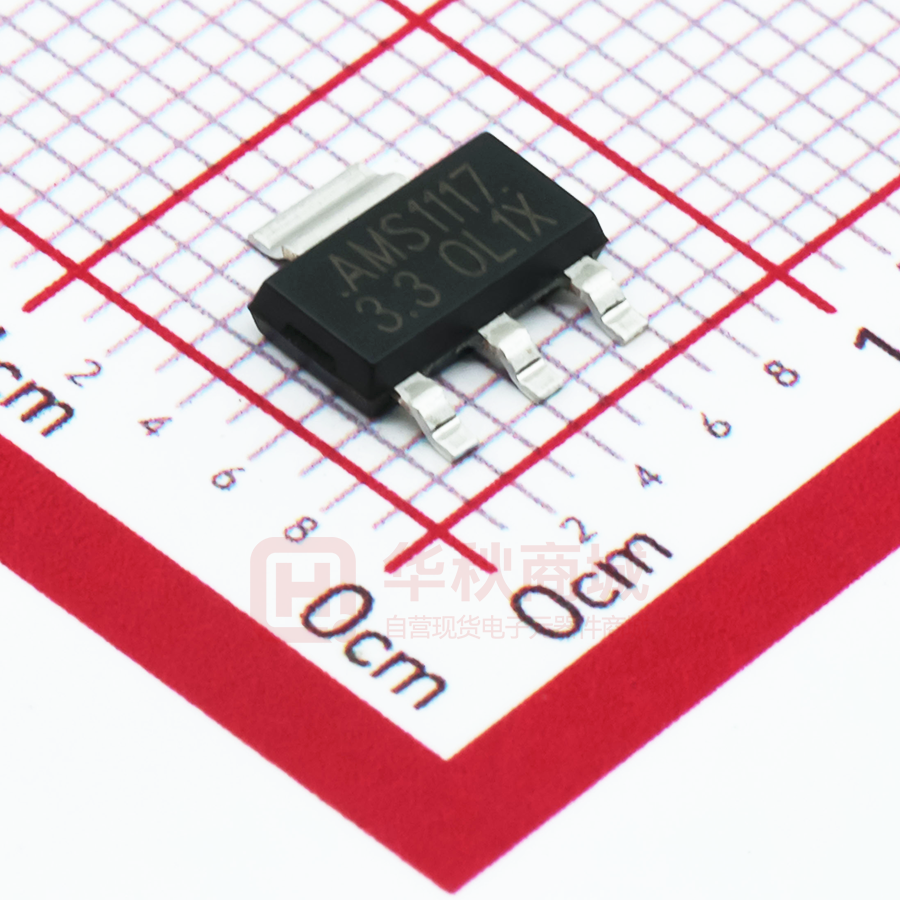

AMS1117-3.3V

1A Adjustable / Fixed Low Dropout Linear Regulator Integrated in OVP&OCP products provider AMS1117 1A Adjustable / Fixed Low Dropout Linear Regulator Description  Load regulation:0.5% Max.  Optimized for Low Voltage The AMS1117 is a series of low dropout  On-chip thermal limiting. voltage regulators which can provide up to 1A of  Maximum Input Voltage : 20V output current. The AMS1117 is available in six  Adjustable Output Voltage or Fixed 1.2V, fixed voltage, 1.2, 1.8, 2.5, 3.3 and 5.0V. Additionally it is also available in adjustable 1.8V, 2.5V, 3.3V, 5V  version. On chip precision trimming adjusts the Standard SOT-223,TO-252 ,SOT89 Packages reference/ output voltage to within ± 2%. On-chip thermal limiting provides protection against any combination of temperatures that overload would and create Applications ambient excessive  Converter junction temperatures. The AMS1117 series is available in SOT-223, TO-252 ,SOT89 packages. A minimum of 10uF tantalum capacitor is required at the output to improve the transient response and stability. Post Regulator for switching DC/DC  High Efficiency Linear Regulator  Battery Chargers  PC Add on Card  Motherboard clock supplies  LCD Monitor r  Set-top Box FEATURES  Low Dropout Voltage. Functional Diagram Rev.A_Aug,2016 -1- www.wpmtek.com 1A Adjustable / Fixed Low Dropout Linear Regulator AMS1117 Integrated in OVP&OCP products provider 1A Adjustable / Fixed Low Dropout Linear Regulator Pin Description Absolute Maximum Ratings Symbol Description VIN Input Voltage IOUT DC Output Current TJ Operating Junction Temperature Range Max Units 20 V PD/(VIN-VOUT) mA -40 to 125 °C θ JA Thermal Resistance (SOT-223) 150 °C/W θ JA Thermal Resistance (TO-252) 120 °C/W θ JA Thermal Resistance (SOT89) 200 °C/W Internally Limited mW PD Maximum Power Dissipation (SOT-223) PD Maximum Power Dissipation (TO-252) PD Maximum Power Dissipation (SOT89) Rev.A_Aug,2016 -2- mW 500 mW www.wpmtek.com AMS1117 Integrated in OVP&OCP products provider 1A Adjustable / Fixed Low Dropout Linear Regulator Electrical Characteristics (Vin =
