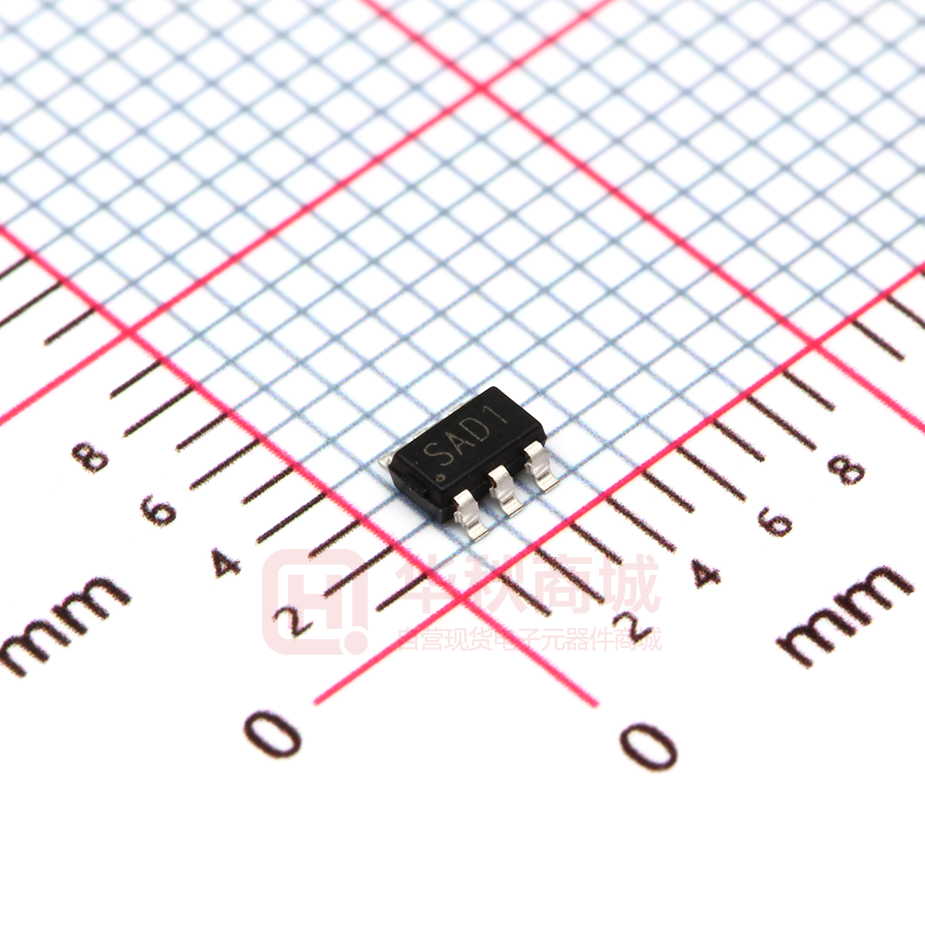

TPSN65220DBVR

TPSN65220DBVR





WWW.SOT23.COM.TW Features Mechanical Characteristics Ultra low capacitance: 50 pF typical Ultra low leakage: nA level Low operating voltage: 5V Low clamping voltage Up to 4 data lines and one power line protects Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±20kV – IEC61000-4-4 (EFT) 40A (5/50ns) – IEC61000-4-5 (Lightning) : 5 A(8/20μs)  ROHS Compliant      Applications 3000 Reel Size 7” PU Qty per Reel CH TPSN65220DBVR USB 2.0 and USB 3.0 Ports USB OTG Digital video interface(DVI) Monitor and Flat Panel Displays PCI Express and Serial SATA Ports Gigabit Ethernet IEEE 1394 firewire ports Consumer products (STB, DVD, DSC, DVC…) BL         Ordering Information Part Number Package: SOT23-6 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 IC       TE Dimensions and Pin Configuration 1 NC 1 6 A GND 2 5 GND NC 3 4 B 1 TPSN65220DBVR





WWW.SOT23.COM.TW Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power（tp=8/20μs） PPP 100 W Peak Pulse Current（tp=8/20μs） IPP 5 A ESD per IEC 61000−4−2 (Air) ±20 VESD ESD per IEC 61000−4−2 (Contact) TJ −55 to +125 IC Operating Temperature Range ±20 Storage Temperature Range Tstg −55 to +150 kV °C °C Symbol Breakdown Voltage Reverse Leakage Current Clamping Voltage VRWM VBR IR Typ PU Reverse Working Voltage Min 6 CH Parameter BL Electrical Characteristics (TA=25°C unless otherwise specified) VC CJ TE Junction Capacitance 2 50 Max Unit 5 V Any I/O pin to ground 9 V IT = 1mA, any I/O pin to ground 0.5 µA VRWM = 5V, any I/O pin to ground 20 V pF Test Condition IPP = 5A (8 x 20µs pulse) any I/O pin to ground VI=0.4 SIN(4E6nt)+0.5V TPSN65220DBVR





WWW.SOT23.COM.TW PROTECTION PRODUCTS Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 80 60 40 td=t IPP/2 0 0 5 10 15 20 25 30 CH Power Derating Curve 110 100 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power PU t - Time ( s) Fig3. 0 25 50 75 100 125 10% BL 20 90% IC IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 150 Ambient Temperature –TA (ºC) 3 tr = 0.7~1ns 30ns 60ns Time (ns) TPSN65220DBVR





TE CH PU BL IC WWW.SOT23.COM.TW 4
