Embedded USB Host/Slave Controller
CBM9001A Datasheet
Features
■
■
Functional Description
First USB Host/Slave controller for embedded systems in the
market with a standard microprocessor bus interface
Supports both full speed (12 Mbps) and low speed (1.5 Mbps)
USB transfer in both master and slave modes
■
Conforms to USB Specification 1.1 for full- and low speed
■
Operates as a single USB host or slave under software control
■
Automatic detection of either low- or full-speed devices
■
8-bit bidirectional data, port I/O (DMA supported in slave mode)
■
On-chip SIE and USB transceivers
■
On-chip single root HUB support
■
256-byte internal SRAM buffer
■
Ping-pong buffers for improved performance
■
Operates from 12 or 48 MHz crystal or oscillator (built-in DPLL)
■
5 V-tolerant interface
■
■
■
The CBM9001A is an Embedded USB Host/Slave Controller
capable of communicating in either full speed or low speed. The
CBM9001A interfaces to devices such as microprocessors,
micro- controllers, DSPs, or directly to a variety of buses such
as ISA, PCMCIA, and others. The CBM9001A USB Host
Controller conforms to USB Specification 1.1.
The CBM9001A incorporates USB Serial Interface functionality
along with internal full or low speed transceivers. The
CBM9001A supports and operates in USB full speed mode at 12
Mbps, or in low-speed mode at 1.5 Mbps. When in host mode,
the CBM9001A is the master and controls the USB bus and the
devices that are connected to it. In peripheral mode, otherwise
known as a slave device, the CBM9001A operates as a variety
of full- or low-speed devices.
The CBM9001A data port and microprocessor interface provide
an 8-bit data path I/O or DMA bidirectional, with interrupt
support to allow easy interface to standard microprocessors or
microcontrollers such as Motorola or Intel CPUs and many
others. The CBM9001A has 256 bytes of internal RAM, which
is used for control registers and data buffers.
Suspend/resume, wake up, and low-power modes are
supported
The available Pb-free package is a 48-pin (CBM9001A)
package. All packages operate at 3.3 VDC. The I/O interface
logic is 5 V-tolerant.
Auto-generation of SOF and CRC5/16
Auto-address increment mode, saves memory READ/WRITE
cycles
■
Development kit including source code drivers is available
■
3.3-V power source, 0.35 micron CMOS technology
■

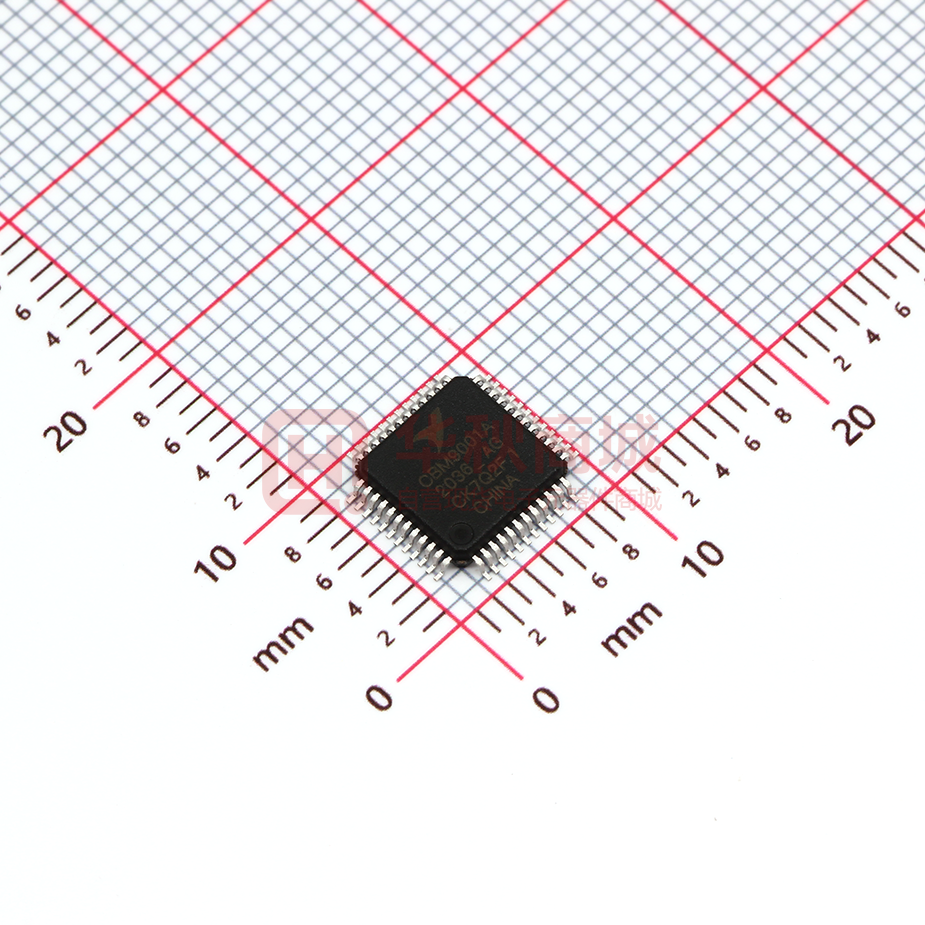

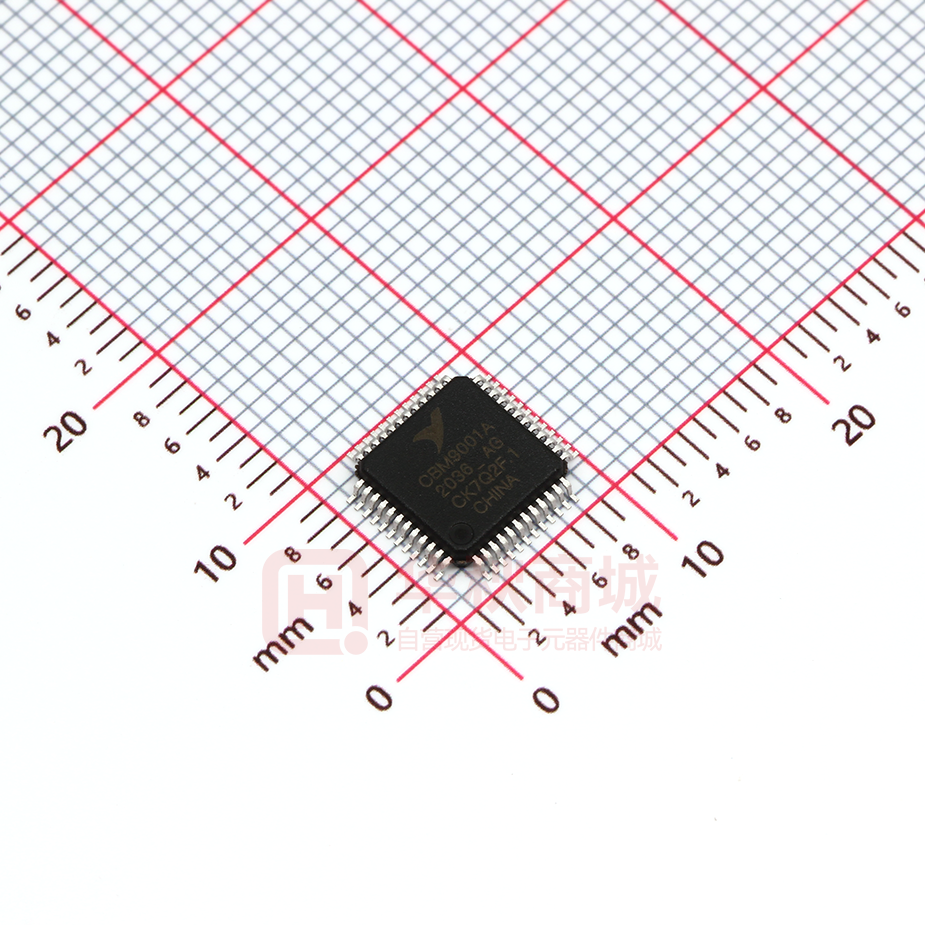

Available in 48-pin TQFP package
Logic Block Diagram
Master/Slave
Controller
INTERRUPT
CONTROLLER
D
+
D-
SERIAL
USB
INTERFACE
Root HUB
ENGINE
XCVRS
CLOCK
GENERATOR
INTR
256 Byte RAM
BUFFERS
&
CONTROL
REGISTERS
DMA
Interface
PROCESSOR
INTERFACE
nDRQ
nDACK
nWR
nRD
nCS
nRST
D0-7
X1
专芯发展 • 用芯服务 • 创芯未来
X2
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Functional Overview
DMA Controller (slave mode only)
In applications that require transfers of large amount of data,
such as scanner interfaces, the CBM9001A provides a DMA
interface. This interface supports DMA READ or WRITE
transfers to the CBM9001A internal RAM buffer, it is done
through the microprocessor data bus via two control lines
(nDRQ - Data Request and nDACK - Data Acknowledge), along
with the nWR line and controls the data flow into the
CBM9001A. The CBM9001A has a count register that allows
selection of programmable block sizes for DMA transfer. The
control signals, both nDRQ and nDACK, are designed for
compatibility with standard DMA interfaces.
Data Port, Microprocessor Interface
The CBM9001A microprocessor interface provides an 8-bit
bidirectional data path along with appropriate control lines to
interface to external processors or controllers. Programmed I/O
or memory mapped I/O designs are supported through the 8-bit
interface, chip select, read and write input strobes, and a single
address line, A0.
Access to memory and control register space is a simple two
step process, requiring an address Write with A0 = ‘0’, followed
by a register/memory Read or Write cycle with address line
A0 = ‘1’.
In addition, a DMA bidirectional interface in slave mode is
available with handshake signals such as nDRQ, nDACK, nWR,
nRD, nCS and INTRQ.
The CBM9001A WRITE or READ operation terminates when
either nWR or nCS goes inactive. For devices interfacing to the
CBM9001A that deactivate the Chip Select nCS before the
Write nWR, the data hold timing must be measured from the
nCS and
is the same value as specified. Therefore, both Intel®- and
Motorola-type CPUs work easily with the CBM9001A without
any external glue logic requirements.
专芯发展 • 用芯服务 • 创芯未来
Interrupt Controller
The CBM9001A interrupt controller provides a single output
signal (INTRQ) that is activated by a number of programmable
events that may occur as a result of USB activity. Control and
status registers are provided to allow the user to select single
or multiple events, which generate an interrupt (assert INTRQ)
and let the user view interrupt status. The interrupts are
cleared by writing to the Interrupt Status Register.
-2-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Auto Address Increment Mode
Buffer Memory
The CBM9001A supports the auto increment mode to reduce
READ and WRITE memory cycles. In this mode, the
microcontroller needs to set up the address only once.
Whenever any subsequent DATA is accessed, the internal
address counter advances to the next address location.
The CBM9001A contains 256 bytes of internal memory used
for USB data buffers, control registers, and status registers.
When in master mode (host mode), the memory is defined
where the first 16 bytes are registers and the remaining 240
bytes are used for USB data buffers. When in slave mode
(peripheral mode), the first 64 bytes are used for the four
endpoint control and status registers along with the various
other registers. This leaves 192 bytes of endpoint buffer space
for USB data transfers.
Auto Address Increment Example. To fill the data buffer that is
configured for address 10h, follow these steps:
1. Write 10h to CBM9001A with A0 LOW. This sets the
memory address that is used for the next operation.
2. Write the first data byte into address 10h by doing a write
operation with A0 HIGH. An example is a Get Descriptor; the
first byte that is sent to the device is 80h (bmRequestType) so
you would write 80h to address 10h.
3. Now the internal RAM address pointer is set to 11h. So, by
doing another write with A0 HIGH, RAM address location 11h
is written with the data. Continuing with the Get Descriptor
example, a 06h is written to address 11h for the bRequest
value.
4. Repeat Step 3 until all the required bytes are written as
necessary for a transfer. If auto-increment is not used, you
write the address value each time before writing the data as
shown in Step 1.
The advantage of the auto address increment mode is that it
reduces the number of required CBM9001A memory
READ/WRITE cycles to move data to/from the device. For
example, transferring 64 bytes of data to/from CBM9001A,
using auto increment mode, reduces the number of cycles to 1
address WRITE and 64 READ/WRITE data cycles, compared
to 64 address writes and 64 data cycles for random access.
Access to the registers and data memory is through the 8-bit
external microprocessor data bus, in either indexed or direct
addressing. Indexed mode uses the Auto Address Increment
mode described in Auto Address Increment Mode, where direct
addressing is used to READ/WRITE to an individual address.
USB transactions are automatically routed to the memory buffer
that is configured for that transfer. Control registers are provided
so that pointers and block sizes in buffer memory are determined
and allocated.
Figure 1. Memory Map
16 bytes
240 bytes
0x00 – 0x0F Control
and s tatus registers
64 bytes
0x10 – 0xFF
USB data buffer
0x00 – 0x39
Cont rol/status registers
and endpoint
contr ol/status registers
0x40 – 0xFF
USB data buffer
192 bytes
Host Mode Memory Map
Peripheral Mode Memory Map
专芯发展 • 用芯服务 • 创芯未来
-3-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
PLL Clock Generator
Figure 3. Optional 12 MHz Crystal Circuit
Either a 12-MHz or a 48-MHz external crystal is used with the
CBM9001A. Two pins, X1 and X2, are provided to connect a low
cost crystal circuit to the device as shown in Figure 2 and
Figure 3. Use an external clock source if available in the
application instead of the crystal circuit by connecting the source
directly to the X1 input pin. When a clock is used, the X2 pin is
not connected.
X1
X2
Rf
1M
When the CM pin is tied to a logic 0, the internal PLL is bypassed
so the clock source must meet the timing requirements specified
by the USB specification.
100
X1
Figure 2. Full Speed 48 MHz Crystal Circuit
12 MHz , series, 20-pF load
X2
X1
Rs
Cin
Cout
22 pF
22 pF
Rf
Typical Crystal Requirements
1M
The following are examples of ‘typical requirements.’ Note that
these specifications are generally found as standard crystal
values and are less expensive than custom values. If crystals are
used in series circuits, load capacitance is not applicable. Load
capacitance of parallel circuits is a requirement. The 48-MHz
third overtone crystals require the Cin/Lin filter to guarantee
48-MHz operation.
Rs
X1
100
48 MHz, series, 20-pF load
Cbk
0.01 µF
Cin
22 pF
Lin
2.2 µH
专芯发展 • 用芯服务 • 创芯未来
Cout
22 pF
-4-
12 MHz Crystals:
Frequency Tolerance:
Operating Temperature Range:
Frequency:
Frequency Drift over Temperature:
ESR (Series Resistance):
Load Capacitance:
Shunt Capacitance:
Drive Level:
Operating Mode:
±100 ppm or better
0 °C to 70 °C
12 MHz
± 50 ppm
60 Ω
10 pF min
7 pF max
0.1–0.5 mW
fundamental
48 MHz Crystals:
Frequency Tolerance:
Operating Temperature Range:
Frequency:
Frequency Drift over Temperature:
ESR (Series Resistance):
Load Capacitance:
Shunt Capacitance:
Drive Level:
Operating Mode:
±100 ppm or better
0 °C to 70 °C
48 MHz
± 50 ppm
40 Ω
10 pF min
7 pF max
0.1–0.5 mW
third overtone
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
USB Transceiver
Table 1. CBM9001A Master (Host) Mode Registers
The CBM9001A has a built-in transceiver that meets USB
Specification 1.1. The transceiver is capable of transmitting and
receiving serial data at USB full speed (12 Mbits) and low
speed (1.5 Mbits). The driver portion of the transceiver is
differential while the receiver section is comprised of a differential
receiver and two single-ended receivers. Internally, the
transceiver interfaces to the Serial Interface Engine (SIE) logic.
Externally, the transceiver connects to the physical layer of the
USB.
USB-A Host Control Register
CBM9001A
(hex) Address
00h
USB-A Host Base Address
01h
USB-A Host Base Length
USB-A Host PID, Device Endpoint
(Write)/USB Status (Read)
02h
USB-A Host Device Address
(Write)/Transfer Count (Read)
04h
Control Register 1
05h
Interrupt Enable Register
06h
Reserved Register
Reserved
USB-B Host Control Register
08h
USB-B Host Base Address
09h
USB-B Host Base Length
USB-B Host PID, Device Endpoint
(Write)/USB Status (Read)
0Ah
USB-B Host Device Address
(Write)/Transfer Count (Read)
0Ch
Status Register
0Dh
SOF Counter LOW (Write)/HW Revision
Register (Read)
0Eh
Register Name
CBM9001A
CBM9001A Registers
Operation and control of the CBM9001A is managed through
internal registers. When operating in Master/Host mode, the first
16 address locations are defined as register space. In
Slave/Peripheral mode, the first 64 bytes are defined as register
space. The register definitions vary greatly between each mode
of operation and are defined separately in this document (section
Table 1 describes Host register definitions, while Table 19 on
page 15 describes Slave register definitions). Access to the
registers are through the microprocessor interface similar to
normal RAM accesses (see “Bus Interface Timing
Requirements” on page 26) and provide control and status
information for USB transactions.
Any write to control register 0FH enables the CBM9001A full
features bit. This is an internal bit of the CBM9001A that
enables additional features.
Table 1 shows the memory map and register mapping of the
CBM9001A in master/host mode.
03h
0Bh
SOF Counter HIGH and Control Register 2 0Fh
Memory Buffer
10H-FFh
The registers in the CBM9001A are divided into two major
groups. The first group is referred to as USB Control registers.
These registers enable and provide status for control of USB
transactions and data flow. The second group of registers
provides control and status for all other operations.
Register Values on Power-up and Reset
The following registers initialize to zero on power-up and reset:
■
USB-A/USB-B Host Control Register [00H, 08H] bit 0 only
■
Control Register 1 [05H]
■
USB Address Register [07H]
■
Current Data Set/Hardware Revision/SOF Counter LOW
Register [0EH]
All other register’s power-up and reset in an unknown state and
firmware for initialization.
专芯发展 • 用芯服务 • 创芯未来
-5-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
USB Control Registers
Communication and data flow on the USB bus uses the
CBM9001A’ USB A-B Control registers. The CBM9001A
communi- cates with any USB Device function and any specific
endpoint via the USB-A or USB-B register sets.
Table 2. CBM9001A Host Control Registers
Register Name CBM9001A
The USB A-B Host Control registers are used in an overlapped
configuration to manage traffic on the USB bus. The USB Host
Control register also provides a means to interrupt an external
CPU or microcontroller when one of the USB protocol transactions is completed. Table 1 and Table 2 show the two sets of USB
Host Control registers, the ’A’ set and ’B’ set. The two register
sets allow for overlapping operation. When one set of parameters is being set up, the other is transferring. On completion of
a transfer to an endpoint, the next operation is controlled by the
other register set.
Note The USB-B register set is used only when CBM9001A
mode is enabled by initializing register 0FH.
The CBM9001A USB Host Control has two groups of five
registers each which map in the CBM9001A memory space.
These registers are defined in the following tables.
专芯发展 • 用芯服务 • 创芯未来
-6-
CBM9001A
(hex) Address
USB-A Host Control Register
00h
USB-A Host Base Address
01h
USB-A Host Base Length
USB-A Host PID, Device Endpoint
(Write)/USB Status (Read)
02h
USB-A Host Device Address
(Write)/Transfer Count (Read)
04h
USB-B Host Control Register
08h
03h
USB-B Host Base Address
09h
USB-B Host Base Length
USB-B Host PID, Device Endpoint
(Write)/USB Status (Read)
0Ah
USB-B Host Device Address
(Write)/Transfer Count (Read)
0Ch
0Bh
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
USB-A/USB-B Host Control Registers [Address = 00h, 08h] .
Table 3. USB-A/USB-B Host Control Register Definition [Address 00h, 08h]
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
Preamble
Data Toggle Bit
SyncSOF
ISO
Reserved
Direction
Enable
Arm
Bit Position
7
Bit Name
Preamble
Function
If bit = ‘1’ a preamble token is transmitted before transfer of low speed packet. If bit = ‘0’,
preamble generation is disabled.
■
The CBM9001A automatically generates preamble packets when bit 7 is set. This bit is
only used to send packets to a low speed device through a hub. To communicate to a full
speed device, this bit is set to ‘0’. For example, when CBM9001A communicates to a
low speed device via the HUB:
— Set CBM9001A SIE to operate at full speed, i.e., bit 5 of register 05h (Control Register
1)
= ‘0’.
— Set bit 6 of register 0Fh (Control Register 2) = ‘0’. Set correct polarity of DATA+ and
DATA– state for full speed.
— Set bit 7, Preamble bit, = ‘1’ in the Host Control register.
■
When CBM9001A communicates directly to a low speed device:
— Set bit 5 of register 05h (Control Register 1) = ‘1’.
— Set bit 6 of register 0Fh (Control Register 2) = ‘1’, DATA+ and DATA– polarity for low
speed.
— The state of bit 7 is ignored in this mode.
’0’ if DATA0, ‘1’ if DATA1 (only used for OUT tokens in host mode).
6
Data Toggle Bit
5
SyncSOF
4
ISO
’1’ = Synchronize with the SOF transfer when operating in FS only.
The CBM9001A uses bit 5 to enable transfer of a data packet after a SOF packet is
transmitted. When bit 5 = ‘1’, the next enabled packet is sent after next SOF. If bit 5 = ‘0’ the
next packet is sent immediately if the SIE is free. If operating in low speed, do not set this
bit.
When set to ‘1’, this bit allows Isochronous mode for this packet.
3
Reserved
Bit 3 is reserved for future use.
2
Direction
1
Enable
When equal to ‘1’ transmit (OUT). When equal to ‘0’ receive (IN).
If Enable = ‘1’, this bit allows transfers to occur. If Enable = ‘0’, USB transactions are ignored.
The Enable bit is used in conjunction with the Arm bit (bit 0 of this register) for USB transfers.
0
Arm
Allows enabled transfers when Arm = ‘1’. Cleared to ‘0’ when transfer is complete (when
Done Interrupt is asserted).
Once the other CBM9001A Control registers are configured (registers 01h-04h or 09h-0Ch) the Host Control register is programmed to
initiate the USB transfer. This register initiates the transfer when the Enable and Arm bit are set as described above.
USB-A/USB-B Host Base Address [Address = 01h, 09h] .
Table 4. USB-A/USB-B Host Base Address Definition [Address 01h, 09h]
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
HBADD7
HBADD6
HBADD5
HBADD4
HBADD3
HBADD2
HBADD1
HBADD0
The USB-A/B Base Address is a pointer to the CBM9001A memory buffer location for USB reads and writes. When transferring data
OUT (Host to Device), the USB-A and USB-B Host Base Address registers can be set up before setting ARM on the USB-A or USB-B
Host Control register. When using a double buffer scheme, the Host Base Address could be set up with the first buffer used for DATA0
data and the other for DATA1 data.
专芯发展 • 用芯服务 • 创芯未来
-7-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
USB-A/USB-B Host Base Length [Address = 02h, 0Ah].
Table 5. USB-A / USB-B Host Base Length Definition [Address 02h, 0Ah]
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
HBL7
HBL6
HBL5
HBL4
HBL3
HBL2
HBL1
HBL0
The USB A/B Host Base Length register contains the maximum packet size transferred between the CBM9001A and a slave USB
peripheral. Essentially, this designates the largest packet size that is transferred by the CBM9001A. Base Length designates the
size of data packet sent or received. For example, in full speed BULK mode, the maximum packet length is 64 bytes. In ISO mode,
the maximum packet length is 1023 bytes since the CBM9001A only has an 8-bit length; the maximum packet size for the ISO mode
using the CBM9001A is 255 – 16 bytes (register space). When the Host Base length register is set to zero, a Zero-Length packet is
transmitted.
USB-A/USB-B USB Packet Status (Read) and Host PID, Device Endpoint (Write) [Address = 03h, 0Bh]. This register has two
modes dependent on whether it is read or written. When read, this register provides packet status and contains information relative
to the last packet that has been received or transmitted. This register is not valid for reading until after the Done interrupt occurs, which
causes the register to update.
Table 6. USB-A/USB-B USB Packet Status Register Definition when READ [Address 03h, 0Bh]
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
STALL
NAK
Overflow
Setup
Sequence
Time-out
Error
ACK
Bit Position
Bit Name
Function
7
STALL
Slave device returned a STALL.
6
NAK
5
Overflow
Slave device returned a NAK.
Overflow condition - maximum length exceeded during receives. For underflow, see USB-A/USB-B
Host Transfer Count Register (Read), USB Address (Write) [Address = 04h, 0Ch].
4
Setup
This bit is not applicable for Host operation since a SETUP packet is generated by the host.
3
Sequence
Sequence bit. ‘0’ if DATA0, ‘1’ if DATA1.
2
Time-out
Timeout occurred. A timeout is defined as 18-bit times without a device response (in full speed).
1
Error
Error detected in transmission. This includes CRC5, CRC16, and PID errors.
0
ACK
Transmission Acknowledge.
When written, this register provides the PID and Endpoint information to the USB SIE engine used in the next transaction.
All 16 Endpoints can be addressed by the CBM9001A.
Table 7. USB-A / USB-B Host PID and Device Endpoint Register when WRITTEN [Address 03h, 0Bh]
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
PID3
PID2
PID1
PID0
EP3
EP2
EP1
EP0
PID[3:0]: 4-bit PID Field (See following table), EP[3:0]: 4-bit Endpoint Value in Binary.
PID TYPE
D7–D4
SETUP
1101 (D Hex)
IN
1001 (9 Hex)
OUT
0001 (1 Hex)
SOF
0101 (5 Hex)
PREAMBLE
1100 (C Hex)
NAK
1010 (A Hex)
STALL
1110 (E Hex)
DATA0
0011 (3 Hex)
DATA1
1011 (B Hex)
专芯发展 • 用芯服务 • 创芯未来
-8-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
USB-A/USB-B Host Transfer Count Register (Read), USB Address (Write) [Address = 04h, 0Ch]. This register has two
different functions depending on whether it is read or written. When read, this register contains the number of bytes remaining (from
Host Base Length value) after a packet is transferred. For example, if the Base Length register is set to 0x040 and an IN Token was
sent to the peripheral device. If, after the transfer is complete, the value of the Host Transfer Count is 0x10, the number of bytes
actually transferred is 0x30. This is considered as an underflow indication.
Table 8. USB-A / USB-B Host Transfer Count Register when READ [Address 04h, 0Ch]
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
HTC7
HTC6
HTC5
HTC4
HTC3
HTC2
HTC1
HTC0
When written, this register contains the USB Device Address with which the Host communicates.
Table 9. USB-A / USB-B USB Address when WRITTEN [Address 04h, 0Ch]
Bit 7
Bit 6
Bit 5
Bit 4
Bit3
Bit 2
Bit 1
Bit 0
0
DA6
DA5
DA4
DA3
DA2
DA1
DA0
DA6-DA0
Device address, up to 127 devices can be addressed.
DA7
Reserved bit must be set to zero.
CBM9001A Control Registers
The next set of registers are the Control registers and control more of the operation of the chip instead of USB packet type of transfers.
Table 10 is a summary of the control registers.
Table 10. Control Registers Summary
Control Register 1
Register Name
CBM9001A
CBM9001A (hex)
Address
05h
Interrupt Enable Register
06h
Reserved Register
07h
Status Register
0Dh
SOF Counter LOW (Write)/HW Revision Register (Read)
0Eh
SOF Counter HIGH and Control Register 2
0Fh
Memory Buffer
专芯发展 • 用芯服务 • 创芯未来
10h-FFh
-9-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Control Register 1 [Address = 05h]. The Control Register 1 enables/disables USB transfer operation with control bits defined as
follows.
Table 11. Control Register 1 [Address 05h]
Bit 7
Bit 6
Bit 5
Reserved
Suspend
USB Speed
Bit Position
Bit 4
Bit 3
J-K state force USB Engine
Reset
Bit Name
Bit 2
Bit 1
Bit 0
Reserved
Reserved
SOF ena/dis
Function
7
Reserved
‘0’
6
Suspend
’1’ = enable, ‘0’ = disable.
5
USB Speed
’0’ setup for full speed, ‘1’ setup low speed.
4
J-K state force
See Table 12.
3
USB Engine Reset
USB Engine reset = ‘1’. Normal set ‘0’.
When a device is detected, the first thing that to do is to send it a USB Reset to force it into
its default address of zero. The USB 2.0 specification states that for a root hub a device
must be reset for a minimum of 50 mS.
2
Reserved
Some existing firmware examples set bit 2, but it is not necessary.
1
Reserved
‘0’
0
SOF ena/dis
’1’ = enable auto Hardware SOF generation; ‘0’ = disable.
In the CBM9001A, bit 0 is used to enable hardware SOF auto-generation. The generation
of SOFs continues when set to ‘0’, but SOF tokens are not output to USB.
At power-up this register is cleared to all zeros.
There are two cases when communicating with a low speed
device. When a low speed device is connected directly to the
CBM9001A, bit 5 of Register 05h is set to ‘1’ and bit 6 of register
0Fh, Polarity Swap, is set to ‘1’ in order to change the polarity of
D+ and D–. When a low speed device is connected via a HUB to
CBM9001A, bit 5 of Register 05h is set to ‘0’ and bit 6 of register
0Fh is set to ’0’ in order to keep the polarity of D+ and D– for full
speed. In addition, make sure that bit 7 of USB-A/USB-B Host
Control registers [00h, 08h] is set to ‘1’ for preamble generation.
Low-power Modes [Bit 6 Control Register, Address 05h]
When bit 6 (Suspend) is set to ‘1’, the power of the transmit
transceiver is turned off, the internal RAM is in suspend mode,
and the internal clocks are disabled.
Note Any activity on the USB bus (that is, K-State, etc.) resumes
normal operation. To resume normal operation from the CPU
side, a Data Write cycle (i.e., A0 set HIGH for a Data Write cycle)
is done. This is a special case and not a normal direct write
where the address is first written and then the data. To resume
normal operation from the CPU side, you must do a Data Write
cycle only.
J-K Programming States [Bits 4 and 3 of Control Register 1,
Address 05h]
The J-K force state control and USB Engine Reset bits are used
to generate a USB reset condition. Forcing K-state is used for
Peripheral device remote wake up, resume, and other modes.
These two bits are set to zero on power-up.
Low Speed/Full Speed Modes [Bit 5 Control Register 1,
Address 05h]
The CBM9001A is designed to communicate with either full- or
low speed devices. At power-up bit 5 is LOW, i.e., for full speed.
Table 12. Bus Force States
USB Engine
Reset
J-K Force
State
0
0
Normal operating mode
0
1
Force USB Reset, D+ and D– are set LOW (SE0)
1
0
Force J-State, D+ set HIGH, D– set LOW
1
1
Force K-State, D– set HIGH, D+ set LOW
Function
专芯发展 • 用芯服务 • 创芯未来
-10-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Interrupt Enable Register [Address = 06h]. The CBM9001A
provides an Interrupt Request Output, which is activated for a
number of conditions. The Interrupt Enable register allows the
user to select conditions that result in an interrupt that is issued
to an external CPU through the INTRQ pin. A separate Interrupt
Status register reflects the reason for the interrupt. Enabling or
disabling these interrupts does not have an effect on whether or
not the corresponding bit in the Interrupt Status register is set or
cleared; it only determines if the interrupt is routed to the INTRQ
pin. The Interrupt Status register is normally used in conjunction
with the Interrupt Enable register and can be polled in order to
determine the conditions that initiated the interrupt (See the
description for the Interrupt Status Register). When a bit is set
to ’1’ the corresponding interrupt is enabled. So when the
enabled interrupt occurs, the INTRQ pin is asserted. The
INTRQ pin is a level interrupt, meaning it is not deasserted until
all enabled inter- rupts are cleared.
USB Reset Sequence
After a device is detected, write 08h to the Control register (05h)
to initiate the USB reset, then wait for the USB reset time (root
hub should be 50 ms) and additionally some types of devices
such as a Forced J-state. Lastly, set the Control register (05h)
back to 0h. After the reset is complete, the auto-SOF generation
is enabled.
SOF Packet Generation
The CBM9001A automatically computes the frame number and
CRC5 by hardware. No CRC or SOF generation is required by
external firmware for the CBM9001A, although it can be done
by sending an SOF PID in the Host PID, Device Endpoint
register.
To enable SOF generation, assuming host mode is configured:
1. Set up the SOF interval in registers 0x0F and 0x0E.
2. Enable the SOF hardware generation in this register by
setting bit 0 = ‘1’.
3. Set the Arm bit in the USB-A Host Control register.
Table 13. Interrupt Enable Register [Address 06h]
Bit 7
Reserved
Bit Position
Bit 6
Device
Detect/Resum
e
Bit Name
Bit 5
Inserted/
Removed
Bit 4
Bit 3
Bit 2
SOF Timer
Reserved
Reserved
Bit 1
USB-B
DONE
Bit 0
USB-A
DONE
Function
7
Reserved
6
Device Detect/Resume Enable Device Detect/Resume Interrupt.
When bit 6 of register 05h (Control Register 1) is equal to ’1’, bit 6 of this register enables
the Resume Detect Interrupt. Otherwise, this bit is used to enable Device Detection
status as defined in the Interrupt Status register bit definitions.
‘0’
5
Inserted/Removed
Enable Slave Insert/Remove Detection is used to enable/disable the device
inserted/removed interrupt.
4
SOF Timer
1 = Enable Interrupt for SOF Timer. This is typically at 1 mS intervals, although the timing
is determined by the SOF Counter high/low registers.
To use this bit function, bit 0 of register 05h must be enabled and the SOF counter
registers 0E hand 0Fh must be initialized.
3
Reserved
‘0’
2
Reserved
‘0’
1
USB-B DONE
USB-B Done Interrupt (see USB-A Done interrupt).
0
USB-A DONE
USB-A Done Interrupt. The Done interrupt is triggered by one of the events that are
logged in the USB Packet Status register. The Done interrupt causes the Packet Status
register to update.
USB Address Register, Reserved, Address [Address = 07h]. This register is reserved for the device USB Address in Slave
operation. It should not be written by the user in host mode.
Registers 08h-0Ch Host-B registers. Registers 08h-0Ch have the same definition as registers 00h-04h except they apply to Host-B
instead of Host-A.
专芯发展 • 用芯服务 • 创芯未来
-11-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Interrupt Status Register, Address [Address = 0Dh]. The Interrupt Status register is a READ/WRITE register providing interrupt
status. Interrupts are cleared by writing to this register. To clear a specific interrupt, the register is written with corresponding bit set
to ‘1’.
Table 14. Interrupt Status Register [Address 0Dh]
Bit 7
Bit 6
Bit 5
Device
Insert/Remove
Detect/Resum
e
D+
Bit Position
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
SOF timer
Reserved
Reserved
USB-B
USB-A
Bit Name
Function
7
D+
Value of the Data+ pin.
Bit 7 provides continuous USB Data+ line status. Once it is determined that a device
is inserted (as described below) with bits 5 and 6, bit 7 is used to detect if the inserted
device is low speed (0) or full speed (1).
6
Device Detect/Resume Device Detect/Resume Interrupt.
Bit 6 is shared between Device Detection status and Resume Detection interrupt.
When bit-6 of register 05h is set to one, this bit is the Resume detection Interrupt bit.
Otherwise, this bit is used to indicate the presence of a device, ‘1’ = device ‘Not present’
and ‘0’ = device ‘Present.’ In this mode, check this bit along with bit 5 to determine
whether a device has been inserted or removed.
5
Insert/Remove
Device Insert/Remove Detection.
Bit 5 is provided to support USB cable insertion/removal for the CBM9001A in host
mode. This bit is set when a transition from SE0 to IDLE (device inserted) or from
IDLE to SE0 (device removed) occurs on the bus.
4
SOF timer
‘1’ = Interrupt on SOF Timer.
3
Reserved
‘0’
2
Reserved
‘0’
1
USB-B
USB-B Done Interrupt. (See description in Interrupt Enable Register [address 06h].)
0
USB-A
USB-A Done Interrupt. (See description in Interrupt Enable Register [address 06h].)
Current Data Set Register/Hardware Revision/SOF Counter LOW [Address = 0Eh]. This register has two modes. Read from this
register indicates the current CBM9001A silicon revision.
Table 15. Hardware Revision when Read [Address 0Eh]
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Hardware Revision
Bit Position
Bit Name
Bit 1
Bit 0
Reserved
Function
7-4
Hardware Revision
CBM9001A rev1.2 Read = 1H; CBM9001A rev1.5 Read = 2.
3-2
Reserved
Read is zero.
1-0
Reserved
Reserved for slave.
Writing to this register sets up auto generation of SOF to all connected peripherals. This counter is based on the 12 MHz clock and
is not dependent on the crystal frequency. To set up a 1 ms timer interval, the software must set up both SOF counter registers to the
proper values.
Table 16. SOF Counter LOW Address when Written [Address 0Eh]
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
SOF7
SOF6
SOF5
SOF4
SOF3
SOF2
SOF1
SOF0
Example: To set up SOF for 1 ms interval, SOF counter register 0Eh should be set to E0h.
专芯发展 • 用芯服务 • 创芯未来
-12-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
SOF Counter High/Control Register 2 [Address = 0Fh]. When read, this register returns the value of the SOF counter divided by
64. The software must use this register to determine the available bandwidth in the current frame before initiating any USB transfer.
In this way, the user is able to avoid babble conditions on the USB. For example, to determine the available bandwidth left in a frame
do the following.
Maximum number of clock ticks in 1 ms time frame is 12000 (1 count per 12 MHz clock period, or approximately 84 ns.) The value
read back in Register 0FH is the (count × 64) × 84 ns = time remaining in current frame. USB bit time = one 12 MHz period.
Value of register 0FH
Available bit times left are between
BBH
12000 bits to 11968 (187 × 64) bits
BAH
11968 bits to 11904 (186 × 64) bits
Note: Any write to the 0Fh register clears the internal frame counter. Write register 0Fh at least once after power-up. The internal
frame counter is incremented after every SOF timer tick. The internal frame counter is an 11-bit counter, which is used to track the
frame number. The frame number is incremented after each timer tick. Its contents are transmitted to the slave every millisecond in
a SOF packet.
Table 17. SOF High Counter when Read [Address 0Fh]
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
C13
C12
C11
C10
C9
C8
C7
C6
Bit 3
Bit 2
Bit 1
Bit 0
When writing to this register the bits definition are defined as follows.
Table 18. Control Register 2 when Written [Address 0Fh]
Bit 7
Bit 6
CBM9001A
Master/Slave
selection
CBM9001A
D+/D– Data
Polarity Swap
Bit Position
Bit 5
Bit 4
SOF High Counter Register
Bit Name
Function
7
CBM9001A Master/Slave selection
Master = 1, Slave = 0.
6
CBM9001A D+/D– Data Polarity Swap
’1’ = change polarity (low speed)
’0’ = no change of polarity (full speed).
Write a value or read it back to SOF High Counter Register.
5-0
SOF High Counter Register
Note Any write to Control register 0Fh enables the CBM9001A
full features bit. This is an internal bit of the CBM9001A that
enables additional features.
The USB-B register set is used when CBM9001A full feature bit
is enabled.
Example. To set up host to generate 1 ms SOF time:
The register 0Fh contains the upper 6 bits of the SOF timer.
Register 0Eh contains the lower 8 bits of the SOF timer. The
timer is based on an internal 12-MHz clock and uses a counter,
which counts down to zero from an initial value. To set the timer
for 1 ms time, the register 0Eh is loaded with value E0h and
register 0Fh (bits 0–5) is loaded with 2Eh. To start the timer, bit
0 of register 05h (Control Register 1) is set to ’1’, which enables
专芯发展 • 用芯服务 • 创芯未来
-13-
hardware SOF generation. To load both HIGH and LOW
registers with the proper values, the user must follow this
sequence:
1. Write E0h to register 0Eh. This sets the lower byte of the SOF
counter
2. Write AEh to register 0Fh, AEh configures the part for full
speed (no change of polarity) Host with bits 5–0 = 2Eh for
upper portion of SOF counter.
3. Enable bit 0 in register 05h. This enables hardware generation
of SOF.
4. Set the ARM bit at address 00h. This starts the SOF
generation.
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Table 19. CBM9001A Slave Mode Registers
Register Name
Endpoint specific register addresses
EP 0 – A EP 0 - B
EP 1 – A
EP 1 - B
EP 2 - A
08h
10h
18h
20h
01h
09h
11h
19h
21h
29h
31h
0x39
02h
0Ah
12h
1Ah
22h
2Ah
0x32
0x3A
03h
0Bh
13h
1Bh
23h
2Bh
0x33
0x3B
04h
0Ch
14h
1Ch
24h
2Ch
0x34
0x3C
EP Control Register
00h
EP Base Address Register
EP Base Length Register
EP Packet Status Register
EP Transfer Count Register
Register Name
05h
Interrupt Status Register
0Dh
Interrupt Enable Register
USB Address Register
06h
Current Data Set Register
0Eh
07h
Control Register 2
SOF Low Register (read only)
15h
Reserved
SOF High Register (read only)
16h
Reserved
25h-27h
Reserved
17h
Reserved
2Dh-2Fh
DMA Total Count Low Register
35h
DMA Total Count High Register
36h
Memory Buffer
30h
EP 3 - B
0x38
0Fh
1Dh1Fh
37h
40h–FFh
When in slave mode, the registers in the CBM9001A are
divided into two major groups. The first group contains
Endpoint regis- ters that manage USB control transactions and
data flow. The second group contains the USB Registers that
provide the con- trol and status information for all other
operations.
Endpoint Registers
Communication and data flow on USB is implemented using
endpoints. These uniquely identifiable entities are the terminals
of communication flow between a USB host and USB devices.
Each USB device is composed of a collection of independently
operating endpoints. Each endpoint has a unique identifier,
which is the Endpoint Number. For more information, see USB
Specification 1.1 section 5.3.1.
The CBM9001A supports four endpoints numbered 0–3.
Endpoint 0 is the default pipe and is used to initialize and
generically manipulate the device to configure the logical
device as the Default Control Pipe. It also provides access to
the device's configuration information, allows USB status and
control access, and supports control transfers.
Endpoints 1–3 support Bulk, Isochronous, and Interrupt
transfers. Endpoint 3 is supported by DMA. Each endpoint has
two sets of registers—the ‘A’ set and the ‘B’ set. This allows
overlapped operation where one set of parameters is set up and
the other is transferring. Upon completion of a transfer to an
endpoint, the ‘next data set’ bit indicates whether set ‘A’ or set ‘B’
is used next. The ‘armed’ bit of the next data set indicates
whether the CBM9001A is ready for the next transfer without
inter- ruption.
专芯发展 • 用芯服务 • 创芯未来
28h
Miscellaneous register addresses
Control Register 1
Reserved
EP 2 - B EP 3 - A
-14-
Endpoints 0–3 Register Addresses
Each endpoint set has a group of five registers that are mapped
within the CBM9001A memory. The register sets have address
assignments Endpoint 0–3 Register Addresses as shown in the
following table.
Table 20. Endpoint 0–3 Register Addresses
Endpoint Register Set
Endpoint 0 – a
Endpoint 0 – b
Endpoint 1 – a
Endpoint 1 – b
Endpoint 2 – a
Endpoint 2 – b
Endpoint 3 – a
Endpoint 3 – b
Address (in Hex)
00 - 04
08 - 0C
10 - 14
18 - 1C
20 - 24
28 - 2C
30 - 34
38 - 3C
For each endpoint set (starting at address Index = 0), the
registers are mapped as shown in the following table.
Table 21. Endpoint Register Indices
Endpoint Register Sets
(for Endpoint n starting at register position Index=0)
Index
Endpoint n Control
Index + 1
Endpoint n Base Address
Index + 2
Endpoint n Base Length
Index + 3
Endpoint n Packet Status
Index + 4
Endpoint n Transfer Count
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Endpoint Control Registers
Endpoint n Control Register [Address a = (EP# * 10h), b = (EP# * 10h)+8]. Each endpoint set has a Control register defined as
follows:
Table 22. Endpoint Control Register [Address EP0a/b:00h/08h, EP1a/b:10h/18h, EP2a/b:20h/28h, EP3a/b:30h/38h]
7
6
5
4
3
2
1
0
Reserved
Sequence
Send STALL
ISO
Next Data Set
Direction
Enable
Arm
Bit Position
Bit Name
Function
7
Reserved
6
Sequence
Sequence bit. ‘0’ if DATA0, ‘1’ if DATA1.
5
Send STALL
When set to ‘1’, sends Stall in response to next request on this endpoint.
4
ISO
When set to ‘1’, allows Isochronous mode for this endpoint.
3
Next Data Set
'0' if next data set is ‘A’, ‘1’ if next data set is 'B'.
2
Direction
When Direction = ‘1’, transmit to Host (IN). When Direction = ‘0’, receive from Host (OUT).
1
Enable
When Enable = ‘1’, allows transfers for this endpoint. When set to ‘0’, USB transactions are
ignored. If Enable = ‘1’ and Arm = ‘0’, the endpoint returns NAKs to USB transmissions.
0
Arm
Allows enabled transfers when set = ‘1’. Clears to ‘0’ when transfer is complete.
Endpoint Base Address [Address a = (EP# * 10h)+1, b = (EP# * 10h)+9]]. Pointer to memory buffer location for USB reads and
writes.
Table 23. Endpoint Base Address Reg [Address; EP0a/b:01h/09h, EP1a/b:11h/19h, EP2a/b:21h/29h, EP3a/b:31h/39h]
7
6
5
4
3
2
1
0
EPxADD7
EPxADD6
EPxADD5
EPxADD4
EPxADD3
EPxADD2
EPxADD1
EPxADD0
Endpoint Base Length [Address a = (EP# * 10h)+2, b = (EP# * 10h)+A]. The Endpoint Base Length is the maximum packet size
for IN/OUT transfers with the host. Essentially, this designates the largest packet size that is received by the CBM9001A with an
OUT transfer, or it designates the size of the data packet sent to the host for IN transfers.
Table 24. Endpoint Base Length Reg [Address EP0a/b:02h/0Ah, EP1a/b:12h/1Ah, EP2a/b:22h/2Ah, EP3a/b:32h/3Ah]
7
6
5
4
3
2
1
0
EPxLEN7
EPxLEN6
EPxLEN5
EPxLEN4
EPxLEN3
EPxLEN2
EPxLEN1
EPxLEN0
专芯发展 • 用芯服务 • 创芯未来
-15-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Endpoint Packet Status [Address a = (EP# * 10h)+3, b = (EP# * 10h)+Bh]. The packet status contains information relative to the
packet that is received or transmitted. The register is defined as follows:
Table 25. Endpoint Packet Status Reg [Address EP0a/b:03h/0Bh, EP1a/b:13h/1Bh, EP2a/b:23h/2Bh, EP3a/b:33h/3Bh]
7
6
5
4
3
2
1
0
Reserved
Reserved
Overflow
Setup
Sequence
Time-out
Error
ACK
Bit Position
Bit Name
Function
7
Reserved
Not applicable.
6
Reserved
Not applicable.
5
Overflow
Overflow condition - maximum length exceeded during receives. This is considered a serious
error. The maximum number of bytes that can be received by an endpoint is determined by
the Endpoint Base Length register for each endpoint. The Overflow bit is only relevant during
OUT Tokens from the host.
4
Setup
'1' indicates Setup Packet. If this bit is set, the last packet received was a setup packet.
3
Sequence
This bit indicates if the last packet was a DATA0 (0) or DATA1 (1).
2
Time-out
This bit is not used in slave mode.
1
Error
Error detected in transmission, this includes CRC5/16 and PID errors.
0
ACK
Transmission Acknowledge.
Endpoint Transfer Count [Address a = (EP# * 10h)+4, b =
(EP# * 10h)+Ch]. As a peripheral device, the Endpoint Transfer
Count register is only important with OUT tokens (host sending
the slave data). When a host sends the peripheral data, the
Transfer Count register contains the difference between the
Endpoint Base Length and the actual number of bytes received
in the last packet. In other words, if the Endpoint Base Length
register was set for 64 (40h) bytes and an OUT token was sent
to the endpoint that only had 16 (10h) bytes, the Endpoint
Transfer Count register has a value of 48 (30h). If more bytes
were sent in an OUT token then the Endpoint Base Length
register was programmed for, the overflow flag is set in the
Endpoint Packet Status register and is considered a serious
error.
Table 26. Endpoint Transfer Count Reg [Address EP0a/b:04h/0Ch, EP1a/b:14h/1Ch, EP2a/b:24h/2Ch, EP3a/b:34h/3Ch]
7
6
5
4
3
2
1
0
EPxCNT7
EPxCNT6
EPxCNT5
EPxCNT4
EPxCNT3
EPxCNT2
EPxCNT1
EPxCNT0
USB Control Registers
The USB Control registers manage communication and data flow on the USB. Each USB device is composed of a collection of
independently operating endpoints. Each endpoint has a unique identifier, which is the Endpoint Number. For more details about USB
endpoints, refer to the USB Specification 1.1, Section 5.3.1.
The Control and Status registers are mapped as follows:
Table 27. USB Control Registers
Register Name
Address (in Hex)
Control Register 1
05h
Interrupt Enable Register
06h
USB Address Register
07h
Interrupt Status Register
0Dh
Current Data Set Register
0Eh
Control Register 2
0Fh
SOF Low Byte Register
15h
SOF High Byte Register
16h
DMA Total Count Low Byte Register
35h
DMA Total Count High Byte Register
36h
专芯发展 • 用芯服务 • 创芯未来
-16-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Control Register 1, Address [05h]. The Control register enables or disables USB transfers and DMA operations with control bits.
Table 28. Control Register 1 [Address 05h]
7
6
5
4
3
2
1
0
Reserved
STBYD
SPSEL
J-K1
J-K0
DMA Dir
DMA Enable
USB Enable
Bit Position
Bit Name
Function
7
Reserved
Reserved bit - must be set to '0'.
6
STBYD
XCVR Power Control. ‘1’ sets XCVR to low power. For normal operation set this bit to ‘0’.
Suspend mode is entered if bit 6 = ‘1’ and bit ‘0’ (USB Enable) = ‘0’.
5
SPSEL
4
J-K Force State
Speed Select. ‘0’ selects full speed. ‘1’ selects low speed (also see Table 33 on page 20).
J-K1 and J-K0 force state control bits are used to generate various USB bus conditions.
USB Engine Reset Forcing K-state is used for Peripheral device remote wake-up, Resume, and other modes.
These two bits are set to zero on power-up, see Table 12 on page 11 for functions.
DMA Transfer Direction. Set equal to ‘1’ for DMA READ cycles from CBM9001A. Set equal
DMA Dir
to ‘0’ for DMA WRITE cycles.
3
2
1
DMA Enable
Enable DMA operation when equal to ‘1’. Disable = ‘0’. DMA is initiated when DMA Count
High is written.
0
USB Enable
Overall Enable for Transfers. ‘1’ enables and’ ‘0 disables. Set this bit to ‘1’ to enable USB
communication. Default at power-up = ‘0’
JK-Force State
USB Engine Reset
0
0
Normal operating mode
Function
0
1
Force SE0, D+ and D– are set low
1
0
Force K-State, D– set high, D+ set low
1
1
Force J-State, D+ set high, D– set low
Interrupt Enable Register, Address [06h] . The CBM9001A
provides an Interrupt Request Output that is activated resulting
from a number of conditions. The Interrupt Enable register allows
the user to select events that generate the Interrupt Request
Output assertion. A separate Interrupt Status register is read in
order to determine the condition that initiated the interrupt (see
the description in section Interrupt Status Register, Address
[0Dh]). When a bit is set to ‘1’, the corresponding interrupt is
enabled. Setting a bit in the Interrupt Enable register does not
effect the Interrupt Status register’s value; it just determines
which interrupts are output on INTRQ.
Table 29. Interrupt Enable Register [Address: 06h]
7
6
5
4
3
2
1
0
DMA Status
USB Reset
SOF Received
DMA Done
Endpoint 3
Done
Endpoint 2
Done
Endpoint 1
Done
Endpoint 0
Done
Bit Position
Bit Name
7
DMA Status
When equal to ‘1’, indicates DMA transfer is in progress. When equal to ‘0’, indicates DMA
transfer is complete.
6
USB Reset
Enable USB Reset received interrupt when = ‘1’.
5
SOF Received
Enable SOF Received Interrupt when = ‘1’.
4
DMA Done
Enable DMA done Interrupt when = ‘1’.
3
Endpoint 3 Done
Enable Endpoint 3 done Interrupt when = ‘1’.
2
Endpoint 2 Done
Enable Endpoint 2 done Interrupt when = ‘1’.
1
Endpoint 1 Done
Enable Endpoint 1 done Interrupt when = ‘1’.
0
Endpoint 0 Done
Enable Endpoint 0 done Interrupt when = ‘1’.
专芯发展 • 用芯服务 • 创芯未来
Function
-17-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
USB Address Register, Address [07h]
This register contains the USB Device Address after assignment by USB host during configuration. On power-up or reset, USB
Address register is set to Address 00h. After USB configuration and address assignment, the device recognizes only USB transactions
directed to the address contained in the USB Address register.
Table 30. USB Address Register [Address 07h]
7
6
5
4
3
2
1
0
USBADD7
USBADD6
USBADD5
USBADD4
USBADD3
USBADD2
USBADD1
USBADD0
Interrupt Status Register, Address [0Dh]
This read/write register serves as an Interrupt Status register when it is read, and an Interrupt Clear register when it is written. To clear
an interrupt, write the register with the appropriate bit set to ‘1’. Writing a ‘0’ has no effect on the status.
Table 31. Interrupt Status Register [Address 0Dh]
7
6
5
4
DMA Status
USB Reset
SOF Received
DMA Done
3
Endpoint 3
Done
2
Endpoint 2
Done
1
Endpoint 1
Done
0
Endpoint 0
Done
Bit Position
Bit Name
7
DMA Status
Function
When equal to ‘1’, indicates DMA transfer is in progress. When equal to 0, indicates DMA
transfer is complete. An interrupt is not generated when DMA is complete.
6
USB Reset
USB Reset Received Interrupt.
5
SOF Received
SOF Received Interrupt.
4
DMA Done
DMA Done Interrupt.
3
Endpoint 3 Done
Endpoint 3 Done Interrupt.
2
Endpoint 2 Done
Endpoint 2 Done Interrupt.
1
Endpoint 1 Done
Endpoint 1 Done Interrupt.
0
Endpoint 0 Done
Endpoint 0 Done Interrupt.
Current Data Set Register, Address [0Eh]. This register indicates current selected data set for each endpoint.
Table 32. Current Data Set Register [Address 0Eh]
7
6
5
Reserved
Bit Position
7–4
Bit Name
4
3
2
1
0
Endpoint 3
Endpoint 2
Endpoint 1
Endpoint 0
Function
Reserved
Not applicable.
3
Endpoint 3 Done
Endpoint 3a = 0, Endpoint 3b = 1.
2
Endpoint 2 Done
Endpoint 2a = 0, Endpoint 2b = 1.
1
Endpoint 1 Done
Endpoint 1a = 0, Endpoint 1b = 1.
0
Endpoint 0 Done
Endpoint 0a = 0, Endpoint 0b = 1.
专芯发展 • 用芯服务 • 创芯未来
-18-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Control Register 2, Address [0Fh]. Control Register 2 is used to control if the device is configured as a master or a slave. It can
change the polarity of the Data+ and Data- pins to accommodate both full- and low speed operation.
Table 33. Control Register 2 [Address 0Fh]
Bit 7
Bit 6
CBM9001A
Master/Slave
selection
CBM9001A
D+/D– Data
Polarity Swap
Bit 5
Bit 4
Bit 3
Bit Position
Bit Name
Function
7
CBM9001A
Master/Slave
selection
Master = ‘1’
Slave = ‘0’
6
CBM9001A D+/D– ’1’ = change polarity (low speed)
Data Polarity Swap ’0’ = no change of polarity (full speed)
Reserved
NA
5–0
Bit 2
Bit 1
Bit 0
Reserved
SOF Low Register, Address [15h]. Read only register
contains the 7 low order bits of Frame Number in positions: bit
7:1. Bit 0 is undefined. Register is updated when a SOF packet
is received. Do not write to this register.
transferred between a peripheral to the CBM9001A. The count
may sometimes require up to 16 bits, therefore the count is
represented in two registers: Total Count Low and Total Count
High. EP3 is only supported with DMA operation.
SOF High Register, Address [16h]. Read only register
contains the 4 low order bits of Frame Number in positions: bit
7:4. Bits 3:0 are undefined and should be masked when read by
the user. This register is updated when a SOF packet is received.
The user should not write to this register.
DMA Total Count High Register, Address [36h]. The DMA
Total Count High register contains the high order 8 bits of DMA
count. When written, this register enables DMA if the DMA
Enable bit is set in Control Register 1. The user should always
write Low Count register first, followed by a write to High Count
register, even if high count is 00h.
DMA Total Count Low Register, Address [35h]. The DMA
Total Count Low register contains the low order 8 bits of DMA
count. DMA total count is the total number of bytes to be
专芯发展 • 用芯服务 • 创芯未来
-19-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Physical Connections
These parts are offered in 48-pin TQFP package. The 48-pin TQFP package is the CBM9001A.
48-Pin TQFP Physical Connections
48-Pin TQFP Pin Layout
Figure 4. 48-pin TQFP USB Host/Slave Controller Pin Layout
NC
NC
NC
NC
nDACK* VDD
D7
nRD
NC
nDRQ*
A0
M/S
37
1
36
48
NC
NC
NC
NC
nWR
NC
nCS
D6
CM
D5
48-Pin TQFP
VDD1
Data+
D4
GND
Data-
D3
USBGnd
D2
NC
D1
NC
NC
12
NC
24
13
NC
NC
nRST
GND
Clk/X1
D0
VDD
INTRQ
X2
NC
NC
25
NC
NC
*See Table 34 for Pin and Signal Description for Pins 43 and 44 in Host Mode. The diagram
below illustrates a simple +3.3 V voltage source.
Figure 5. Sample VDD Generator
+5V (USB)
R1
45 Ohms
2N2222
Zener
3.9v, 1N52288CTGND
+3.3 V (VDD)
Sample VDD Generator
Note NC. Indicates No Connection. NC Pins must be left unconnected.
专芯发展 • 用芯服务 • 创芯未来
-20-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
USB Host Controller Pins Description
The CBM9001A is packaged in a 48-pin TQFP. These devices require a 3.3 VDC power source and an external 12 or 48 MHz
crystal or clock.
.
Table 34. Pin and Signal Description for Pins
48-Pin TQFP
Pin No.
1
Pin Type
Pin Name
Pin Description
NC
NC
No connection.
2
NC
NC
3
IN
nWR
No connection.
Write Strobe Input. An active LOW input used with nCS to write to
registers/data memory.
4
IN
nCS
Active LOW 48-Pin TQFP Chip select. Used with nRD and nWr when
accessing the 48-Pin TQFP.
Clock Multiply. Select 12 MHz/48 MHz Clock Source.
5
IN
CM
6
VDD1
+3.3 VDC
7
BIDIR
DATA +
Power for USB Transceivers. VDD1 may be connected to VDD.
USB Differential Data Signal HIGH Side.
8
BIDIR
DATA -
USB Differential Data Signal LOW Side.
9
GND
USB GND
10
NC
NC
Ground Connection for USB.
No connection.
11
NC
NC
No connection.
12
NC
NC
No connection.
13
NC
NC
No connection.
No connection.
14
NC
NC
15
VDD
+3.3 VDC
16
IN
CLK/X1
17
OUT
X2
18
IN
nRST
Device active low reset input.
19
OUT
INTRQ
Active HIGH Interrupt Request output to external controller.
20
GND
GND
21
BIDIR
D0
Data 0. Microprocessor Data/Address Bus.
22
NC
NC
No connection.
23
NC
NC
No connection.
24
NC
NC
No connection.
25
NC
NC
No connection.
26
NC
NC
No connection.
27
BIDIR
D1
Data 1. Microprocessor Data/Address Bus.
28
BIDIR
D2
Data 2. Microprocessor Data/Address Bus.
29
BIDIR
D3
Data 3. Microprocessor Data/Address Bus.
30
GND
GND
31
BIDIR
D4
Data 4. Microprocessor Data/Address Bus.
32
BIDIR
D5
Data 5. Microprocessor Data/Address Bus.
Device VDD Power.
Clock or External Crystal X1 connection. The X1/X2 Clock requires external
12 or 48 MHz matching crystal or clock source.
External Crystal X2 connection.
Device Ground.
Device Ground.
Notes
1. The CM Clock Multiplier pin must be tied HIGH for a 12 MHz clock source and tied to ground for a 48 MHz clock source.
2. VDD can be derived from the USB supply. See Figure 5.
专芯发展 • 用芯服务 • 创芯未来
-21-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Table 34. Pin and Signal Description for Pins
48-Pin TQFP
Pin No.
33
Pin Type
Pin Name
Pin Description
BIDIR
D6
Data 6. Microprocessor Data/Address Bus.
34
NC
NC
No connection.
35
NC
NC
No connection.
36
NC
NC
No connection.
37
NC
NC
No connection.
38
NC
NC
No connection.
39
BIDIR
D7
Data 7. Microprocessor Data/Address Bus.
40
IN
M/S
Master/Slave Mode Select. ‘1’ selects Slave. ‘0’ = Master.
41
VDD
+3.3 VDC
42
IN
A0
43
IN
nDACK
DMA Acknowledge. An active LOW input used to interface to an external
DMA controller. DMA is enabled only in slave mode. In host mode, the pin
should be tied HIGH (logic ‘1’).
44
OUT
nDRQ
DMA Request. An active LOW output used with an external DMA controller.
nDRQ and nDACK form the handshake for DMA data transfers. In host
mode, leave the pin unconnected.
45
IN
nRD
Read Strobe Input. An active LOW input used with nCS to read
registers/data memory.
46
NC
NC
No connection.
47
NC
NC
No connection.
48
NC
NC
No connection.
Device VDD Power.
A0 = ‘0’. Selects address pointer. Register A0 = ‘1’. Selects data buffer or
register.
Notes
3. VDD can be derived from the USB supply. Figure 5 shows a simple method to provide 3.3 V/30 mA. Another option is to use a Torex Semiconductor, Ltd. 3.3 V
SMD regulator (part number XC62HR3302MR).
4. The A0 Address bit is used to access address register or data registers in I/O Mapped or Memory Mapped applications.
专芯发展 • 用芯服务 • 创芯未来
-22-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Electrical Specifications
Absolute Maximum Ratings
This section lists the absolute maximum ratings of the CBM9001A. Exceeding maximum ratings may shorten the useful life of the device.
User guidelines are not tested.
Description
Condition
Storage Temperature
–40 °C to 125 °C
Voltage on any pin with respect to ground
–0.3 V to 6.0 V
Power Supply Voltage (VDD)
4.0 V
Power Supply Voltage (VDD1)
Lead Temperature (10 seconds)
180°C
4.0 V
Recommended Operating Conditions
Min
Typical
Max
Power Supply Voltage, VDD
Parameter
3.0 V
3.3 V
3.45 V
Power Supply Voltage, VDD1
3.0 V
3.45 V
Operating Temperature
0 °C
65 °C
Crystal Requirements,
(X1, X2)
Operating Temperature Range
Min
Typical
0°C
Parallel Resonant Frequency
Max
65 °C
48 MHz
Frequency Drift over Temperature
±50 ppm
Accuracy of Adjustment
±30 ppm
Series Resistance
100 Ohms
Shunt Capacitance
3 pF
Load Capacitance
6 pF
20 pF
Drive Level
20 µW
5 mW
Mode of Vibration Third Overtone[5]
External Clock Input Characteristics (X1)
Parameter
Clock Input Voltage at X1 (X2 Open)
Min
Typical
Max
1.5 V
48 MHz
Clock Frequency[6]
Notes
5. Fundamental mode for 12 MHz Crystal.
6. The CBM9001A can use a 12 MHz Clock Source.
专芯发展 • 用芯服务 • 创芯未来
-23-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
DC Characteristics
Parameter
Description
Min
Typ
Max
VIL
Input Voltage LOW
–0.3 V
0.8 V
VIH
Input Voltage HIGH (5 V Tolerant I/O)
2.0 V
6.0 V
VOL
Output Voltage LOW (IOL = 4 mA)
VOH
Output Voltage HIGH (IOH = –4 mA)
2.4 V
IOH
Output Current HIGH
4 mA
IOL
Output Current LOW
4 mA
ILL
Input Leakage
0.4 V
±1 µA
CIN
Input Capacitance
ICC
Supply Current (VDD) inc USB at FS
21 mA
25 mA
Supply Current (VDD) Suspend w/Clk & Pll Enb
4.2 mA
5 mA
Supply Current (VDD) Suspend no Clk & Pll Dis
50 µA
60 µA
[7]
ICCsus1
ICCsus2
[8]
[9]
10 pF
IUSB
Supply Current (VDD1)
10 mA
IUSBSUS
Transceiver Supply Current in Suspend
10 µA
USB Host Transceiver Characteristics
Parameter
Description
Min
Typ[10]
Max
VIHYS
Differential
Input Sensitivity (Data+, Data–)
0.2 V
200 mV
VUSBIH
USB Input Voltage HIGH Driven
2.0 V
VUSBIL
USB Input Voltage LOW
0.8 V
VUSBOH
USB Output Voltage HIGH
2.0 V
VUSBOL
USB Output Voltage LOW
0.0 V
0.3 V
ZUSBH
[11]
Output Impedance HIGH STATE
36 Ohms
42 Ohms
ZUSBL[11]
Output Impedance LOW STATE
36 Ohms
42 Ohms
IUSB
Transceiver Supply p-p Current (3.3 V)
10 mA
at FS
Every VDD pin, including USB VDD, must have a decoupling capacitor to ensure clean VDD (free of high frequency noise) at the chip
input point (pin) itself.
The best way to do this is to connect a ceramic capacitor (0.1 µF, 6 V) between the pin itself and a good ground. Keep capacitor leads
as short as possible. Use surface mount capacitors with the shortest traces possible (the use of a ground plane is strongly recommended).
Notes
7. ICC measurement includes USB Transceiver current (IUSB) operating at full speed.
8. ICCsus1 measured with 12 MHz Clock Input and Internal PLL enabled. Suspend set –(USB transceiver and internal Clocking disabled).
9. ICCsus2 measured with external Clock, PLL disabled, and Suspend set. For absolute minimum current consumption, ensure that all inputs to the device are at
static logic level.
10. All typical values are VDD = 3.3 V and TAMB= 25°C.
11. ZUSBX impedance values includes an external resistor of 24 Ohms ± 1% (CBM9001A revision 1.2 requires external resistor values of 33 Ohms ±1%).
专芯发展 • 用芯服务 • 创芯未来
-24-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Bus Interface Timing Requirements
I/O Write Cycle
twrhigh
twr
nWR
twasu
twahld
twdsu
twdhld
A0
Register or Memory
Address
D0-D7
twcsu
twdsu
twdhld
DATA
twshld
nCS
Tcscs See Note.
I/O Write Cycle to Register or Memory Buffer
Parameter
Description
Min
tWR
Write pulse width
85 ns
tWCSU
Chip select set-up to nWR LOW
Chip select hold time
After nWR HIGH
0 ns
A0 address setup time
85 ns
A0 address hold time
10 ns
tWDSU
tWDHLD
Data to Write HIGH set-up time
85 ns
Data hold time after Write HIGH
5 ns
tCSCS
nCS inactive to nCS* asserted
85 ns
NWR HIGH
85 ns
tWSHLD
tWASU
tWAHLD
tWRHIGH
Typ
Max
0 ns
Note nCS an be held LOW for multiple Write cycles provided nWR is cycled. Write Cycle Time for Auto Inc Mode Writes is 170 ns
minimum.
专芯发展 • 用芯服务 • 创芯未来
-25-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
I/O Read Cycle
twr
twrrdl
nWR
twasu
twahld
A0
trdp
nRD
twdsu
twdhld
Register or Memory
Address
D0-D7
tracc
trdhld
DATA
trcsu
trshld
nCS
Tcscs *Note
I/O Read Cycle from Register or Memory Buffer
Parameter
Description
Min
tWR
Write pulse width
85 ns
tRD
Read pulse width
85 ns
tWCSU
tWASU
Chip select set-up to nWR
A0 address set-up time
85 ns
tWAHLD
A0 address hold time
10 ns
tWDSU
tWDHLD
Data to Write HIGH set-up time
85 ns
Data hold time after Write HIGH
5 ns
tRACC
Data valid after Read LOW
25 ns
tRDHLD
tRCSU
Data hold after Read HIGH
40 ns
Chip select LOW to Read LOW
0 ns
tRSHLD
NCS hold after Read HIGH
0 ns
TCSCS*
tWRRDL
nCS inactive to nCS *asserted
85 ns
nWR HIGH to nRD LOW
85ns
Typ
Max
0 ns
85 ns
Note nCS can be kept LOW during multiple Read cycles provided nRD is cycled. Rd Cycle Time for Auto Inc Mode Reads is 170 ns
minimum.
专芯发展 • 用芯服务 • 创芯未来
-26-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
DMA Write Cycle
tackrq
tdakrq
nDRQ
tdack
n DACK
tdwrlo
D0-D 7
DATA
tdsu
tdwrp
tdhld
nW R
tackwrh
DMA Write Cycle
Parameter
Description
Min
tdack
nDACK low
80 ns
tdwrlo
nDACK to nWR low delay
5 ns
tdakrq
nDACK low to nDRQ high delay
5 ns
tdwrp
nWR pulse width
65 ns
tdhld
Data hold after nWR high
5 ns
tdsu
Data set-up to nWR strobe low
60 ns
tackrq
NDACK high to nDRQ low
5 ns
tackwrh
NDACK high to nDRQ low
twrcycle
DMA Write Cycle Time
Typ
Max
5 ns
150 ns
Note nWR must go low after nDACK goes low in order for nDRQ to clear. If this sequence is not implemented as requested, the next
nDRQ is not inserted.
专芯发展 • 用芯服务 • 创芯未来
-27-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
DMA Read Cycle
n DRQ
tdckdr
tdakrq
tdack
n DACK
tddrdlo
D0-D 7
DATA
tdaccs
tdhld
tdrdp
n RD
CBM9001A DMA Read Cycle Timing
Parameter
Description
Min
tdack
nDACK low
tddrdlo
nDACK to nRD low delay
tdckdr
nDACK low to nDRQ high delay
5 ns
tdrdp
nRD pulse width
90 ns
tdhld
Date hold after nDACK high
5 ns
tddaccs
Data access from nDACK low
85 ns
tdrdack
nRD high to nDACK high
0 ns
tdakrq
nDRQ low after nDACK high
5 ns
trdcycle
DMA Read Cycle Time
Typ
Max
100 ns
0 ns
150 ns
Note Data is held until nDACK goes high regardless of state of nREAD.
Reset Timing
treset
nRST
tioact
nRD or nWR
Reset Timing
Parameter
tRESET
tIOACT
Description
Min
nRst Pulse width
16 clocks
nRst HIGH to nRD or nWR active
16 clocks
Typ
Max
Note Clock is 48 MHz nominal.
专芯发展 • 用芯服务 • 创芯未来
-28-
www. corebai. com
Embedded USB Host/Slave Controller
CBM9001A Datasheet
Clock Timing Specifications
tclk
tlow
CLK
thigh
tfall
trise
CLOCK
TIMING
Clock Timing
Parameter
Description
Min
Typ
20.0 ns
20.8 ns
tCLK
Clock Period (48 MHz)
tHIGH
Clock HIGH Time
9 ns
tLOW
tRISE
Clock LOW Time
9 ns
Clock Rise Time
tFALL
Clock Fall Time
Clock Duty Cycle
Max
11 ns
11 ns
5.0 ns
5.0 ns
45%
55%
Package Diagram
Ordering Information
Part Number
CBM9001A-48AG
专芯发展 • 用芯服务 • 创芯未来
Package Type
48-pin TQFP (7 × 7 × 1.4 mm) Pb-free
-29-
–
www. corebai. com
工商网监
湘ICP备2023018690号
