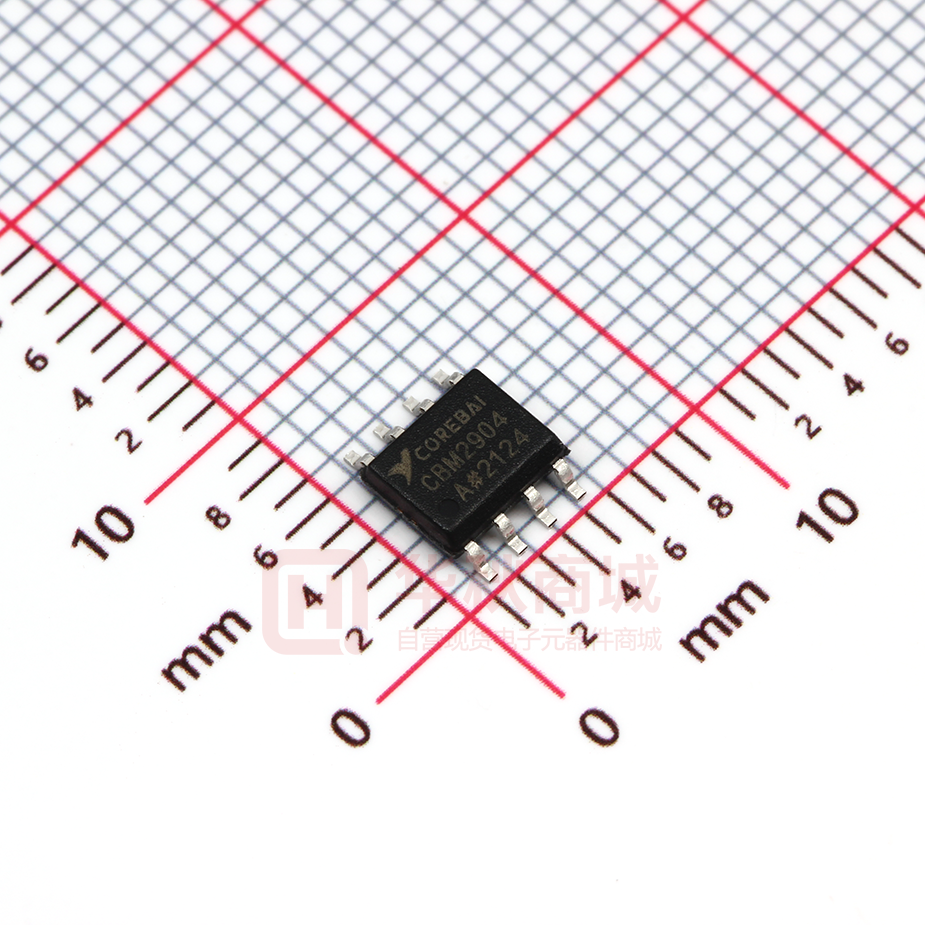

CBM2904AS8

CBM2904 OPERATION INSTRUCTION FEATURES  Internally frequency compensated for unity gain  Large DC voltage gain: 100dB  Wide power supply range:3V ~ 32V (or  Input common-mode voltage range includes ground  Large output voltage swing: 0V DC to VCC-1.5V DC  Power drain suitable for battery operation  Low input offset voltage and offset current  Differential input voltage range equal to the power supply voltage 1.5V ~ 16V) GENERAL DESCRIPTION The CBM2904 contains two independent high gain operational amplifiers with internal frequency compensation. The two op-amps operate over a wide voltage range from a single power supply. Also use a split power supply. The device has low power supply current drain, regardless of the power supply voltage. The low power drain also makes the CBM2904 a good choice for battery operation. When your project calls for a traditional op-amp function, now you can streamline your design with a simple single power supply. Use ordinary +5VDC common to practically any digital system or personal computer application, without requiring an extra 15V power supply just to have the interface electronics you need. The CBM2904 is a versatile, rugged workhorse with a thousand-and-one uses, from amplifying signals from a variety of transducers to dc gain blocks, or any op-amp function. The attached pages offer some recipes that will have your project cooking in no time. 1 www.corebai.com CBM2904 OPERATION INSTRUCTION MAXIMUM RATINGS* Symbol Parameter Value Unit Single Supply 32 V Split Supplies ±16 Power Supply Voltages VCC VIDR Input Differential Voltage Range (1) VICR Input Common Mode Voltage Range ISC Output Short Circuit Duration ±32 V -0.3 to 32 V Continuous Junction Temperature TJ Plastic Packages ℃ 150 Storage Temperature Tstg Plastic Packages -55 to +125 ℃ IIN Input Current, per pin (2) 50 mA TL Lead Temperature, 1mm from Case for 10 Seconds 260 ℃ * Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. Functional operation should be restricted to the Recommended Operating Conditions. +Derating - Plastic DIP: - 10 mW/℃ from 65℃ to 125℃ SOIC Package: : - 7 mW/℃ from 65℃ to 125℃ Notes: 1. Split Power Supplies. 2. VIN
