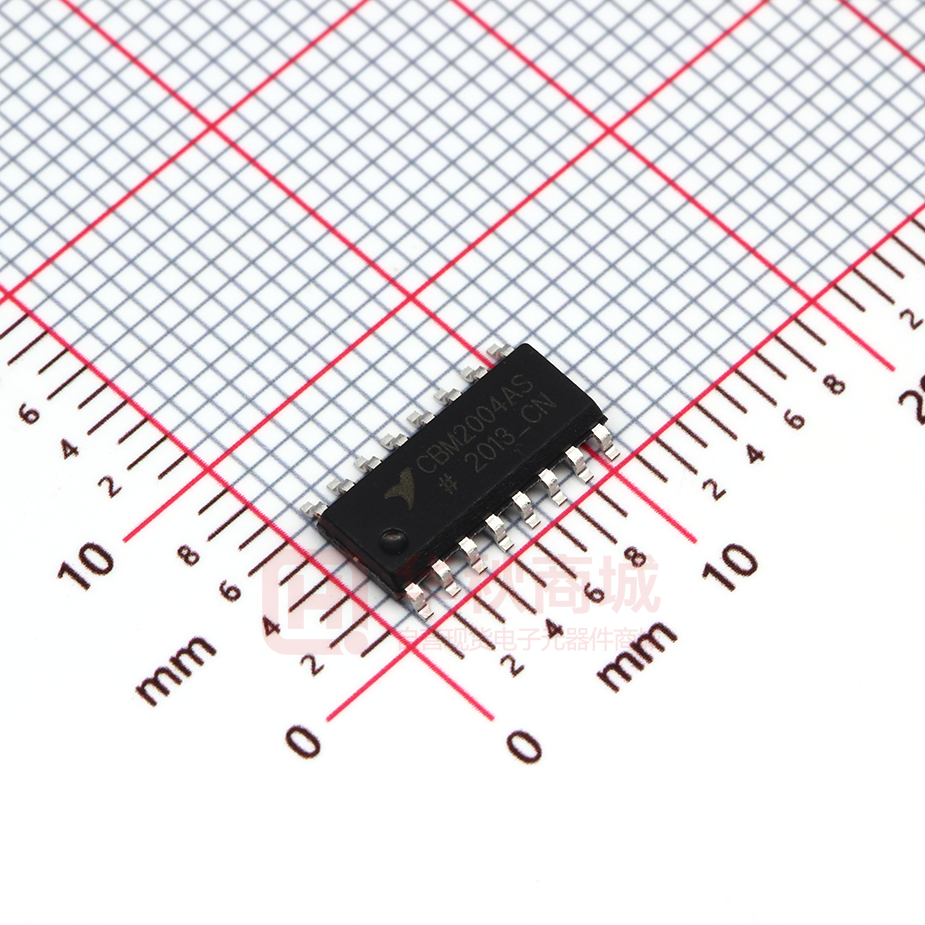

CBM2004AS16

CBM2004AS16

  • 厂商:

    COREBAI(芯佰微)

  • 封装:

    SOP16_150MIL

  • 描述:

    单片高电压、高电流达林顿晶体管阵列

  • 数据手册
  • 价格&库存
CBM2004AS16 数据手册
CBM2004A OPERATION INSTRUCTION Features And Application  500-mA Rated Collector Current (Single Output)  High-Voltage Outputs . . . 50 V  Output Clamp Diodes  Inputs Compatible With Various Types of Logic  Relay Driver Applications Description The CBM2004A are monolithic high-voltage, high-current Darlington transistor arrays. Each consists of seven n-p-n Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 mA. The Darlington pairs may be paralleled for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. The CBM2004A has a 10.5kΩ series base resistor for each Darlington pair for operation directly with 6-15V CMOS devices. LOGIC SYMBOL LOGIC DIAGRAM SCHEMATICS (each Darlington Pair) CBM2004: RB = 10.5kΩ All resistor values shown are nominal. 1 www.corebai.com CBM2004A OPERATION INSTRUCTION Absolute Maximum Ratings (Ta =25℃) Parameter Symbol Values Unit 50 V 30 V 500 mA 500 mA -2.5 A Collector-emitter voltage Input voltage(see Note 1) VI Peak collector current (see Figures 14 and 15) Output clamp current IOK Total emitter-terminal current Continuous total power dissipation See Dissipation Rating Table Operating free-air temperature range Storage temperature range TA –40 to 85 ℃ Tstg –55 to 150 ℃ 260 ℃ Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds NOTE 1: All voltage values are with respect to the emitter/substrate terminal E, unless otherwise noted. Dissipation Rating Table TA=25°C DERATING FACTOR TA=85°C POWER RATING above TA=25°C POWER RATING D 1210mW 7.6mW/℃ 494mW N 1420mW 9.2mW/℃ 598mW PACKAGE 2 www.corebai.com CBM2004A OPERATION INSTRUCTION Electrical Characteristics, TA= 25℃ (unless otherwise noted) Symbol Parameter Test Fig. Test Conditions Min Typ Max Unit VCE=2V Vi(on) VCE(sat) ICEX VF Input Voltage 6 Collector-emitter Saturation Voltage Output Leakage Current Clamp Diode Forward Voltage 5 IC = 125mA 5 IC = 200mA 6 IC = 275mA 7 IC = 350mA 8 IC = 100mA IB = 250mA 0.9 1.1 IC = 200 mA IB = 350mA 1.1 1.3 IC = 350 mA IB = 500mA 1.3 1.6 2 VCE = 50V, Vi = 1V 8 IF = 350mA Ii(off) Off-state Input Current 3 Ii Input Current 4 IR Clamp Reverse Current 7 Ci Input Capacitance VCE=50V, Tamb = 70°C, IC = 500mA 1.7 50 V V 500 uA 2 V 65 uA Vi = 5V 0.35 0.5 Vi = 12V 1 1.45 VR = 50V 50 Tamb = 70°C, VR = 50V 100 mA uA 15 25 pF Switching Characteristics, TA=25℃ tPLH Turn-on Delay Time See Fig.9 0.25 1 us tPHL Turn-off Delay Time See Fig.9 0.25 1 us VOH High level output voltage after switching VS=50V, IO=300mA See Fig.10 VS-20 mV 3 www.corebai.com CBM2004A OPERATION INSTRUCTION PARAMETER MEASUREMENT INFORMATION 4 www.corebai.com CBM2004A OPERATION INSTRUCTION Figure 9. Propagation Delay-Time Waveforms Figure 10. Latch-Up Test Circuit and Voltage Waveforms NOTES: A. The pulse generator has the following characteristics: PRR = 12.5 kHz, ZO=50. B. CL includes probe and jig capacitance. C. VIH = 12 V; 5 www.corebai.com CBM2004A OPERATION INSTRUCTION TYPICAL CHARACTERISTICS COLLECTOR-EMITTER COLLEC TOR-EM ITTER SATURATION VOLTAGE SATURATION VOLTAGE VS vs COLLECTOR CURRENT TOTAL COLLECTOR CURRENT (ONE DARLINGTON) TWO DARLINGTONS PARALLELED) COLLECTOR CURRENT vs INPUT CURRENT 6 www.corebai.com CBM2004A OPERATION INSTRUCTION THERMAL INFORMATION D PACKAGE N PACKAGE MAXIMUM COLLECTOR CURRENT MAXIMUM COLLECTOR CURRENT Vs Vs DUTY CYCLE DUTY CYCLE Figure 14 Figure 15 7 www.corebai.com CBM2004A OPERATION INSTRUCTION APPLICATION INFORMATION 8 www.corebai.com CBM2004A OPERATION INSTRUCTION Package Dimensions DIP-16 SYMBOL MILLIMETER SYMBOL MILLIMETER MIN MAX A 18.67 19.69 H B 6.10 7.11 J 0° 10° 5.33 K 2.92 3.81 C MIN MAX 7.62 D 0.36 0.56 L 7.62 8.26 F 1.14 1.78 M 0.20 0.36 N 0.38 G 2.54 NOTES: 1. Dimensions “A”, “B” do not include mold flash or protrusions. 2. Maximum mold flash or protrusions 0.25 mm (0.010) per side. 9 www.corebai.com CBM2004A OPERATION INSTRUCTION SOP-16 SYMBOL MILLIMETER SYMBOL MILLIMETER MIN MAX A 9.80 10.00 H B 3.80 4.00 J 0° 8° C 1.35 1.75 K 0.10 0.25 D 0.33 0.51 M 0.19 0.25 F 0.40 1.27 P 5.80 6.20 R 0.25 0.50 G 1.27 NOTES: 1. 2. MIN MAX 5.72 Dimensions A and B do not include mold flash or protrusion. Maximum mold flash or protrusion 0.15 mm (0.006) per side for A; for B ‑ 0.25 mm (0.010) per side. 10 www.corebai.com CBM2004A OPERATION INSTRUCTION PACKAGE/ORDERING INFORMATION PRODUCT ORDERING TEMPRANGE PACKAGE PAKEAGE TRANSPOT CBM2004 CBM2004AS16 -40℃~85℃ SOP-16 CBM2004AS Tape and Reel,2500 CBM2004 CBM2004ADP16 -40℃~85℃ DIP-16 CBM2004AD Tape and Reel,50 11 www.corebai.com
