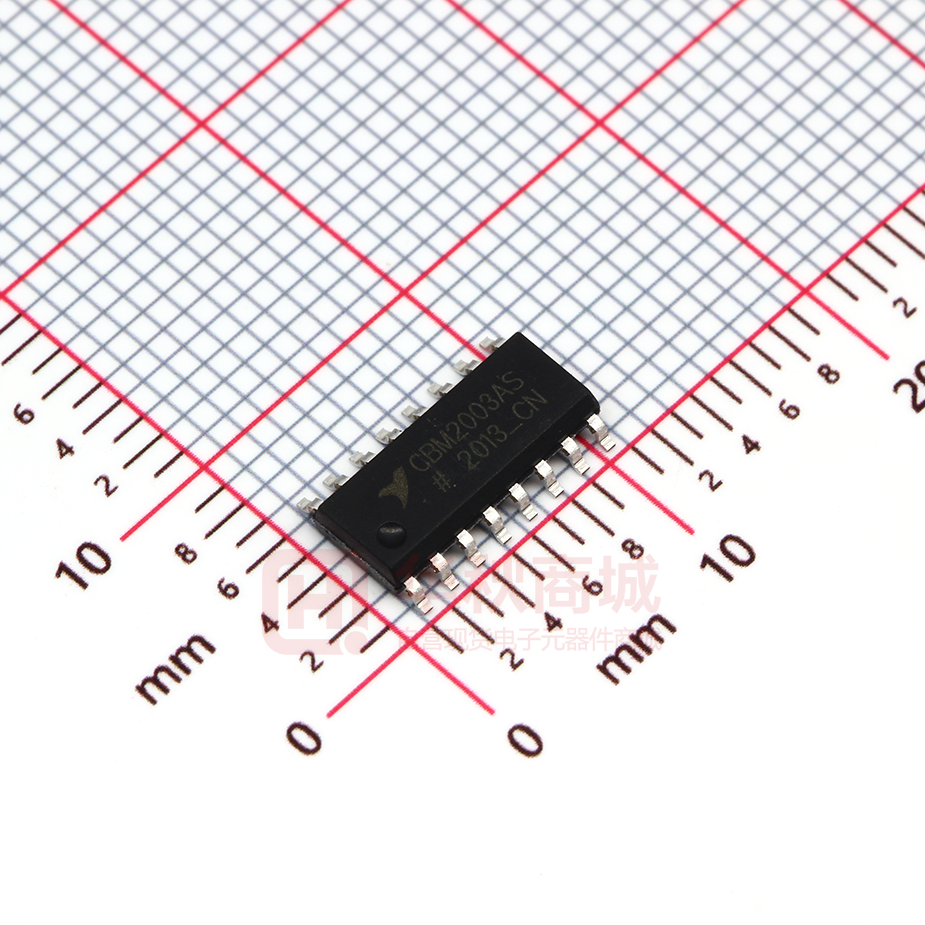

CBM2003AS16

CBM2003A OPERATION INSTRUCTION Features And Application  500-mA Rated Collector Current (Single Output)  High-Voltage Outputs . . . 50 V  Output Clamp Diodes  Inputs Compatible With Various Types of Logic  Relay Driver Applications Description The CBM2003A are monolithic high-voltage, high-current Darlington transistor arrays. Each consists of seven n-p-n Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 mA. The Darlington pairs may be paralleled for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. The CBM2003A has a 2.7-kΩ series base resistor for each Darlington pair for operation directly with TTL or 5-V CMOS devices. 1 www.corebai.com CBM2003A OPERATION INSTRUCTION Absolute Maximum Ratings (Ta =25℃) Limit Values Parameter Symbol Output Sustaining Voltage VCE(SUS) Output Current IOUT Input Voltage VIN Clamp Diode Reverse Voltage VR 50 V Clamp Diode Forward Current IF 500 mA DIP Power Dissipation Min. Max. –0.5 50 V 500 mA/ch – 0.5 30 V 1.15 PD SOP Unit W 0.95 Operating Temperature Topr -40 85 ℃ Storage Temperature Tstg -55 150 ℃ * Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. Recommended Operating Conditions(Ta=-40~85℃) Parameter Symbol Output Sustaining Voltage VCE(SUS) DIP Output Current IOUT SOP Test Condition Limit Value Unit Min Max 0 50 Tpw=25ms,Duty=10%, 7 Circuits 0 370 Tpw=25ms,Duty=30%, 7 Circuits 0 200 Tpw=25ms,Duty=10%, 7 Circuits 0 390 Tpw=25ms,Duty=30%, 7 Circuits 0 150 0 3. V V mA/ch Input Voltage VIN Clamp Diode Reverse Voltage VR 50 V Clamp Diode Forward Current IF 400 mA Power Dissipation DIP SOP 0.52 PD 0.4 W 2 www.corebai.com CBM2003A OPERATION INSTRUCTION Electrical Characteristics ,Ta= 25℃ (unless otherwise noted) Parameter Test Fig. Test Conditions Min Typ Max Unit IC=125mA VI(on) On-state Input Voltage 6 VCE=2V IC=200mA 2.4 IC=250mA 2.7 V IC=275mA IC=300mA 3 IC=350mA VCE(sat) Collector-emitter saturation voltage 5 1 ICEX Collector outoff current 2 II=250uA IC=100mA 0.9 1.1 II=350uA IC=200mA 1 1.3 II=500uA IC=350mA 1.2 1.6 VCE=50V II=0 50 VCE=50V, II=0 100 uA TA=85℃ VI=1V 2 V hFE DC Current Transfer Ratio 5 VCE=2V, IOUT=350mA VF Clamp forward voltage 8 IF=350mA II(off) Off-state input current 3 VCE=50V TA=85℃ 1000 1.7 IC=500uA 50 VI=2.4V II Input current 4 V 65 0.4 uA 0.7 VI=5V mA VI=12V IR CI Clamp reverse current 7 VR=50V Input capacitance 50 VR=50V TA=85℃ VI=0 f=1MHz uA 100 15 25 pF Typ Max Unit 0.25 1 us 0.25 1 us Switching Characteristics, TA=25ºC Parameter tPLH tPHL VOH Propagation delay Test Conditions time, Min See Figure 9 low-to-high-level output Propagation delay time, high -to- low –level output High-level output voltage after switching VS=50V, IO=300mA, See Figure 10 VS-20 mV * EOS (Electrical Over Stress) Immunity Level 3 www.corebai.com CBM2003A OPERATION INSTRUCTION Test Circuit Test conditions VCC 12V Power on time 5000ms Current max 1.0A IN pin4 OUT pin13 tE (Endurance time) : time until IC damage / Criterion : IC should survive EOS EOS Immunity Level: More than 5000ms PARAMETER MEASUREMENT INFORMATION 4 www.corebai.com CBM2003A OPERATION INSTRUCTION Figure 9. Propagation Delay-Time Waveforms Figure 10. Latch-Up Test Circuit and Voltage Waveforms NOTES: A. The pulse generator has the following characteristics: PRR = 12.5 kHz, ZO=50. B. CL includes probe and jig capacitance. C. VIH = 3 V; 5 www.corebai.com CBM2003A OPERATION INSTRUCTION TYPICAL CHARACTERISTICS COLLECTOR-EMITTER COLLEC TOR-EM ITTER SATURATION VOLTAGE SATURATION VOLTAGE vs vs COLLECTOR CURRENT TOTAL COLLECTOR CURRENT (ONE DARLINGTON) TWO DARLINGTONS PARALLELED) COLLECTOR CURRENT vs INPUT CURRENT 6 www.corebai.com CBM2003A OPERATION INSTRUCTION THERMAL INFORMATION D PACKAGE N PACKAGE MAXIMUM COLLECTOR CURRENT MAXIMUM COLLECTOR CURRENT Vs Vs DUTY CYCLE DUTY CYCLE Figure 14 Figure 15 POWER DISSIPATION VS. AMBIENT TEMPERATURE 7 www.corebai.com CBM2003A OPERATION INSTRUCTION APPLICATION INFORMATION 8 www.corebai.com CBM2003A OPERATION INSTRUCTION Package Dimensions DIP-16 SYMBOL MILLIMETER MIN NOM MAX A 3.60 3.80 4.00 A1 0.51 A2 3.10 3.30 A3 1.42 1.52 b 0.44 b1 0.43 B1 c 0.46 MIN NOM MAX c1 0.24 0.25 0.26 D 18.90 19.10 19.30 3.50 E1 6.15 6.35 6.55 1.62 e 2.54 BSC 0.53 eA 7.62 BSC 0.48 eB 7.62 9.50 eC 0 0.94 L 3.00 1.52 BSC 0.25 MILLIMETER SYMBOL 0.31 80×80 L/F 载体尺寸（Mil） 110×140 140×170 9 www.corebai.com CBM2003A OPERATION INSTRUCTION SOP-16 SYMBOL MILLIMETER MIN NOM A SYMBOL MAX NOM MAX D 9.70 9.90 10.10 0.25 E 5.80 6.00 6.20 3.70 3.90 4.10 0.10 A2 1.35 1.40 1.45 E1 A3 0.60 0.65 0.70 e b 0.39 0.48 L b1 0.38 0.43 L1 c 0.21 0.26 θ c1 0.19 0.20 MIN 1.75 A1 0.41 MILLIMETER 1.27 BSC 0.50 0.80 1.05 BSC 0° 8° 0.21 75×75 L/F 载体尺寸（Mil） 90×110 70×180 10 www.corebai.com CBM2003A OPERATION INSTRUCTION PACKAGE/ORDERING INFORMATION PRODUCT ORDERING TEMPRANGE PACKAGE PAKEAGE TRANSPOT CBM2003 CBM2003AS16 -40℃~85℃ SOP-16 CBM2003AS Tape and Reel,2500 CBM2003 CBM2003ADP16 -40℃~85℃ SOP-16 CBM2003AD Tape and Reel,50 11 www.corebai.com
