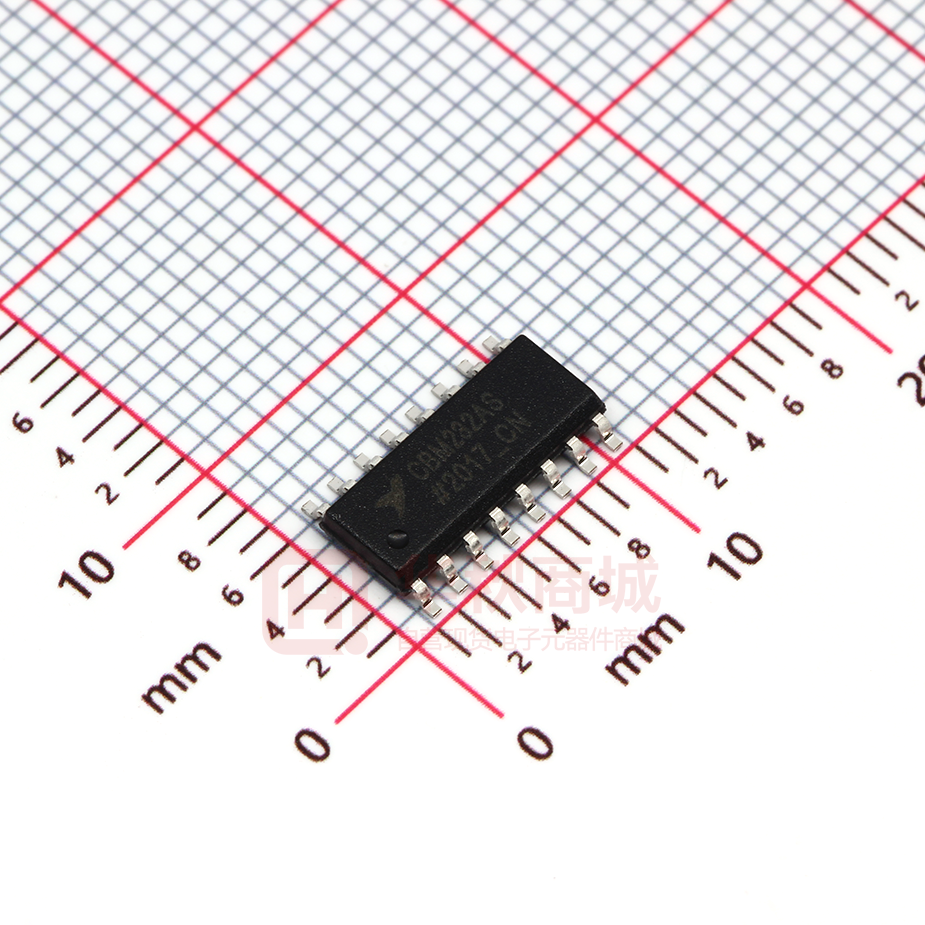

CBM232AS16

CBM232 DATASHEET GENERAL DESCRIPTION FEATURES  CBM232 is purposed for application in Output voltage levels are compatible with high-performance input levels of K-MOS, N-MOS and TTL systems integrated circuits  Supply voltage : 5V  Low input current: 1.0μA; 0.1μA at Т = Output current 24mA  Latching current not less than 450mA at Т Enhanced ESD Specifications: ±15kV ±8kV devices of APPLICATIONS = 25℃  control processing application. 25℃  and information IEC61000-4-2 Air Discharge IEC61000-4-2 Contact Discharge  Computers  Peripherals  Modems  Printers  Instruments Pin symbols in package Inputs Outputs RIN, TIN ROVT, TOVT H L L H Note: H – voltage high level; L – low voltage level 1 www.corebai.com wide CBM232 DATASHEET Table of pin description Pin No. Symbol Pin name 01 C1+ Output of external capacitance of positive voltage multiplier unit 02 V+ Output of positive voltage of multiplier unit 03 C1- Output of external capacitance of positive voltage multiplier unit 04 C2+ Output of external capacitance of negative voltage multiplier unit 05 C2- Output of external capacitance of negative voltage multiplier unit 06 V- Output of negative voltage of multiplier unit 07 T2OUT Output of transmitter data (levels RS– 232) 08 R2IN Input of receiver data (levels RS – 232) 09 R2OUT 10 T2IN Input of transmitter data (levels TTL/KMOS) 11 T1IN Input of transmitter data (levels TTL/KMOS) 12 R1OUT 13 R1IN Input of receiver data (levels RS – 232) 14 T1OUT Output of transmitter data (levels RS – 232) 15 GND Common output 16 VCC Output of receiver data (levels TTL/KMOS) Output of receiver data (levels TTL/KMOS) Supply output of voltage source Maximum conditions Symbol Rate Parameter Min Max -0.3 6.0 VCC Supply voltage V+ Transmitter high output voltage VCC -0.3 14 V- Transmitter low output voltage -0.3 -14 VTIN Transmitter input voltage -0.3 V+ +0.3 VRIN Receiver input voltage -30 30 - 842 Unit V Dissipated power PD DIP – package SO – package mW 762 ISC Output current of transmitter short circuit Тs Storage temperature - Continu-ously mA -60 150 ℃ * Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. 2 www.corebai.com CBM232 DATASHEET Recommended Operating Conditions Symbol Rate Parameter Min Max Unit VCC Supply voltage 4.5 5.5 V+ Transmitter output high voltage 5.0 - V- Transmitter output low voltage -5.0 - 0 VCC -30 30 - ±60 mA -40 125 ℃ VTIN Transmitter input voltage VRIN Receiver input voltage ISC Transmitter short circuit output current Та Ambient temperature V 3 www.corebai.com CBM232 DATASHEET Static parameters Rate Symbol ICC Parameter Test conditions Consumption current VCC =5.0 V static VIL = 0 V -40℃ to 125℃ 25℃ Min Max Min Max - 10.0 - 14.0* 0.2 0.9 0.2 1.0 - 2.4 - 2.3 0.8 - 0.9 - Unit mA Receiver electrical parameters Vh VOn Voff Hysteresis voltage VCC =5.0 V On VO≤0.1 V (operation) voltage Off (dropout) voltage IOL≤20uA VO≥VCC -0.1 V IOH≤-20uA V IOL = 3.2mА VOL Output low voltage VСС = 4.5 V - 0.3 0.4 3.6 - 3.5 - 3.0 7.0 3.0 7.0 - -5.2 - 5.0 VIH = 2.4 V IOH = -1.0 mA VOH Output high voltage VСС = 4.5 V VIL = 0.8 V RI Input resistance VСС = 5.0 V kOhm Transmitter electrical parameters VСС = 4.5V VOL Output low voltage VIH = 2.0V RL = 3.0kOhm V VСС = 4.5V VOH Output high voltage VIL = 0.8V 5.2 - 5.0 - - -1.0 - -10.0 RL = 3.0kOhm IIL IIH SR RО Input low current Input high current Speed of output front change Output resistance VСС =5.5V VIL = 0V uA VСС =5.5V VIH = VСС - 1.0 - 10.0 3.0 30 2.7 27 V/μs 350 - 300 - Ohm VСС =5.0V СL=50 - 1000pF RL=3.0-7.0kOhm VСС=V+=V-=0V VO=2V 4 www.corebai.com CBM232 DATASHEET VСС =5.5 V Short ISC circuit output current VO = 0 V VI = VСС -50 -60 VI = 0 V 50 60 mA VСС =4.5 V Speed of information ST transmission СL = 1000 pF RL = 3.0kOhm 140 - 120 - - 9.7 - 10 kbps tW = 7us (for extreme -tW = 8us) Dynamic parameters VСС = 4.5V tPHLR (tPLHR) Signal propagation СL = 150pF delay time when VIL = 0V switching on (off) VIH = 3.0V tLH = tHL≤10 ns us VСС = 4.5V tPHLT (tPLHT) Signal propagation delay time when switching on (off) СL = 2500pF VIL = 0V - VIH = 3.0 V 5.0* 6.0* RL = 3kOhm tLH = tHL≤10 ns Capacitance Symbol Parameter CIN Input capacitance CPD Dynamic capacitance VCC, 5.0 Rate 9.0 90 Unit pF 5 www.corebai.com CBM232 DATASHEET Timing diagram when measuring IC dynamic parameters 6 www.corebai.com CBM232 DATASHEET 7 www.corebai.com CBM232 DATASHEET PACKAGE NOTES: 1. Dimensions A and B do not include mold flash or protrusion. 2. Maximum mold flash or protrusion 0.15 mm (0.006) per side for A; for B ‑ 0.25 mm (0.010) per side. Symbol Dimensions ,mm Min Max A 9.8 10 B 3.8 4 C 1.35 1.75 D 0.33 0.51 F 0.4 1.27 G 1.27 H 5.72 J 0° 8° K 0.1 0.25 M 0.19 0.25 P 5.8 6.2 R 0.25 0.5 8 www.corebai.com CBM232 DATASHEET PACKAGE/ORDERING INFORMATION PRODUCT ORDERING NUMBER TEMPRANGE PACKAGE PAKEAGE TRANSPOT MARKING MEDIA,QUANTILY CBM232AS16 -40℃~125℃ SOP-16 CBM232A Tape and Reel,2500 CBM232ACS16 -0℃~70℃ SOP-16 CBM232AC Tape and Reel,2500 CBM232 9 www.corebai.com
