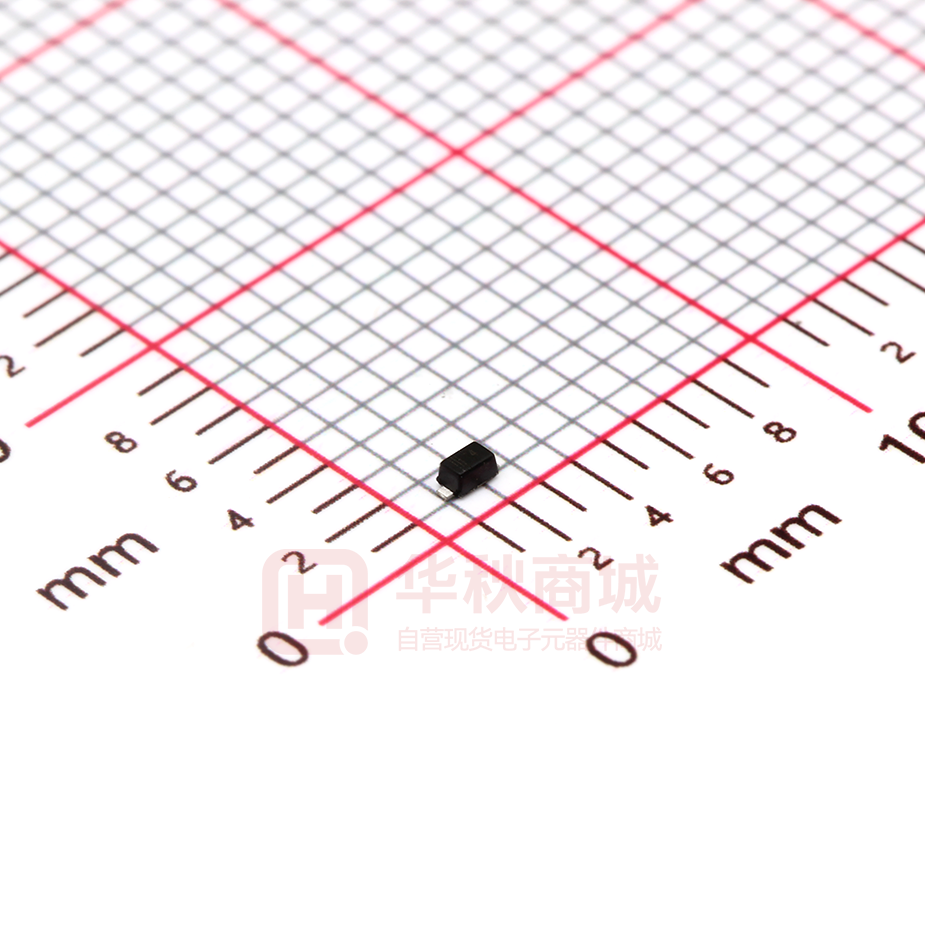

1N4148WT

1N4148WT   SURFACE MOUNT FAST SWITCHING DIODE   PINNING DESCRIPTION PIN Silicon Epitaxial Planar Switching Diode 1 Cathode for high speed switching application 2 Anode Features • Extremely small surface mounting type • High reliability 1       Absolute Maximum Ratings (Ta = 25 OC) Parameter         2 Top View Marking Code: "A" Simplified outline SOD-523 and symbol Symbol Value Unit Peak Reverse Voltage VRM 90 V Reverse Voltage VR 80 V IF(AV) 100 mA Peak Forward Current IFM 225 mA Non-repetitive Peak Forward Surge Current (at t = 1 s) IFSM 500 mA Tj 150 O Tstg - 55 to + 150 O Symbol Max. VF 1.2 Average Rectified Forward Current Junction Temperature Storage Temperature Range Characteristics at Ta = 25 OC Parameter   T4 Forward Voltage at IF = 100 mA     Reverse Current at VR = 80 V IR 0.1 Capacitance Between Terminals at VR = 0.5 V, f = 1 MHz CT 3 Reverse Recovery Time at VR = 6 V, IF = 10 mA, RL = 100 Ω trr 4                                                                                                                                                                                                            www.slkormicro.com 1 C C Unit               V µA pF ns     1N4148WT                                                                                                                                                                                                                       www.slkormicro.com 2   1N4148WT     PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-523           ∠                             A       C                 HE   D A         bp   E                             ALL ROUND                           UNIT mm   A 0.70 0.60 bp 0.4 0.3 C D 1.25 1.15 0.135 0.100 E 0.85 0.75 HE 1.7 1.5 ∠ V 0.1   5 O                                                                                                                                                                                                            www.slkormicro.com 3
