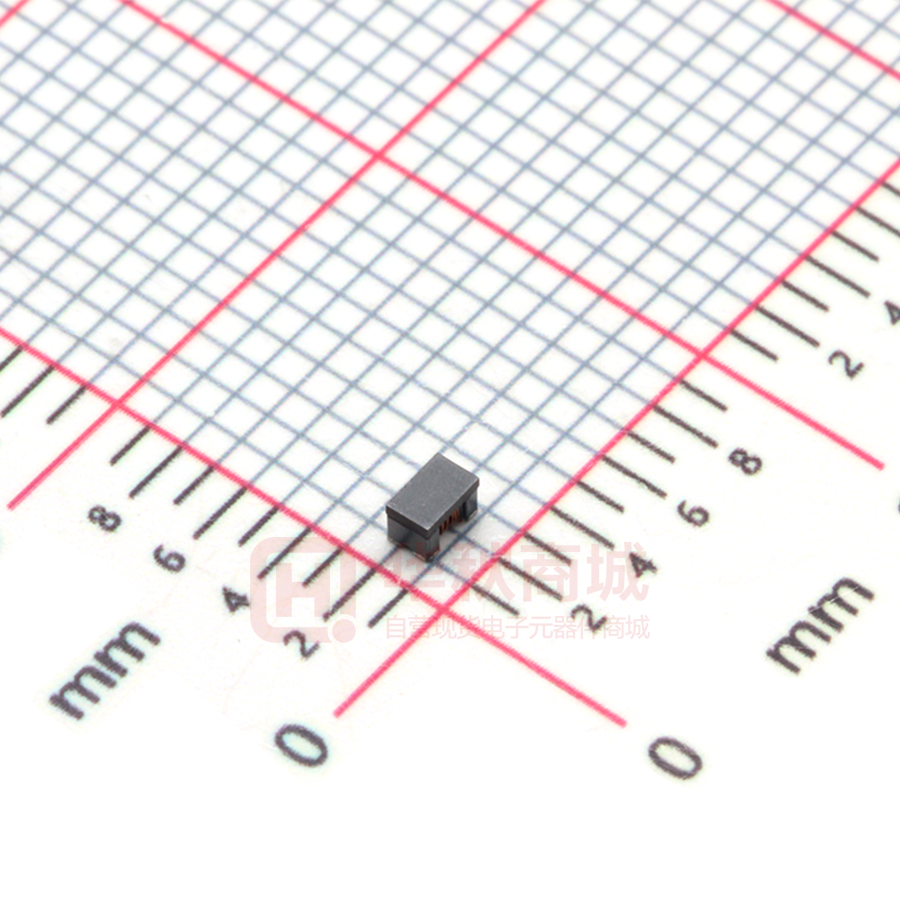

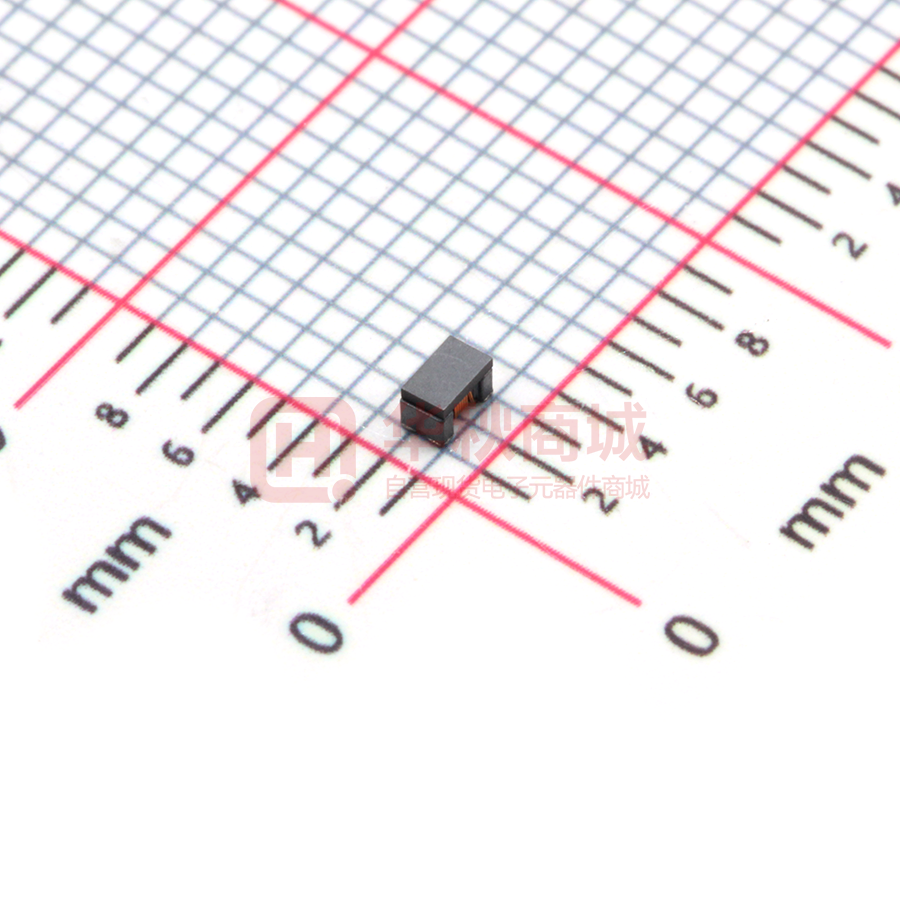

YLM2012-121T

SMD Common Mode Choke -YLM2012 Series ■ Features ● This filter is characterized by small size, highly effective in noise suppression. ● High common mode impedance at noise band and low differential mode impedance at signal band.Due to the low differential mode impedance with high coupling factor,there is almost no distortion on high speed transmission of high resolution video signals. ■ Applications ● YLM Series is suited for use on the USB2.0 line and IEEE1394 line of Notebook PC,LVDS lines of PC,LCD Monitor, PCI express,small digital AV equipment such as digital Camera and Free disk,MP3 player and Serial-ATA. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Taping 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Common Mode Choke -YLM2012 Series ■ Shapes and Dimensions (Unit：mm) TYPE A B C D E YLM2012 2.0±0.2 1.2±0.2 1.2±0.2 0.50±0.1 F 0.50±0.1 0.50±0.1 G H I J 0.40 1.20 0.80 2.60 ■ YLM2012 Series Common mode DC Rated Impedance Resistance Current (Ω) @100MHz (Ω) Max (mA) max YLM2012-300T 30±25% 0.20 YLM2012-670T 67±25% YLM2012-900T Rated Volt. Withstand IR(MΩ) (Vdc)max. Volt.(Vdc)max. min. 450 50 125 10 0.25 400 50 125 10 90±25% 0.30 400 50 125 10 YLM2012-121T 120±25% 0.30 400 50 125 10 YLM2012-161T 160±25% 0.35 350 50 125 10 YLM2012-181T 180±25% 0.35 350 50 125 10 YLM2012-201T 200±25% 0.40 300 50 125 10 YLM2012-221T 220±25% 0.40 300 50 125 10 YLM2012-261T 260±25% 0.40 300 50 125 10 YLM2012-361T 360±25% 0.50 300 50 125 10 YLM2012-601T 600±25% 0.88 300 50 125 10 YLM2012-751T 750±25% 1.00 180 50 125 10 YLM2012-901T 900±25% 1.15 150 50 125 10 YLM2012-102T 1000±25% 1.30 100 50 125 10 Part Number 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Common Mode Choke -YLM2012 Series ■ Recommended soldering temp.Graph ■ Mechanical reliability ■ Endurance Reliability 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Common Mode Choke -YLM2012 Series ■ Taping Dimensions(Unit:mm) TYPE W A B D P K T MPQ YLM2012 8.0±0.2 1.50±0.1 2.35±0.1 3.5±0.05 4.0±0.1 1.45±0.1 0.26±0.05 2000 ■ Reel Dimensions(Unit:mm) TYPE W W1 A B C D YLM2012 178±2.0 9.00±0.50 4.3±0.20 5.0±0.10 3.0±0.10 60±2.0 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4- SMD Common Mode Choke -YLM2012 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -5-
