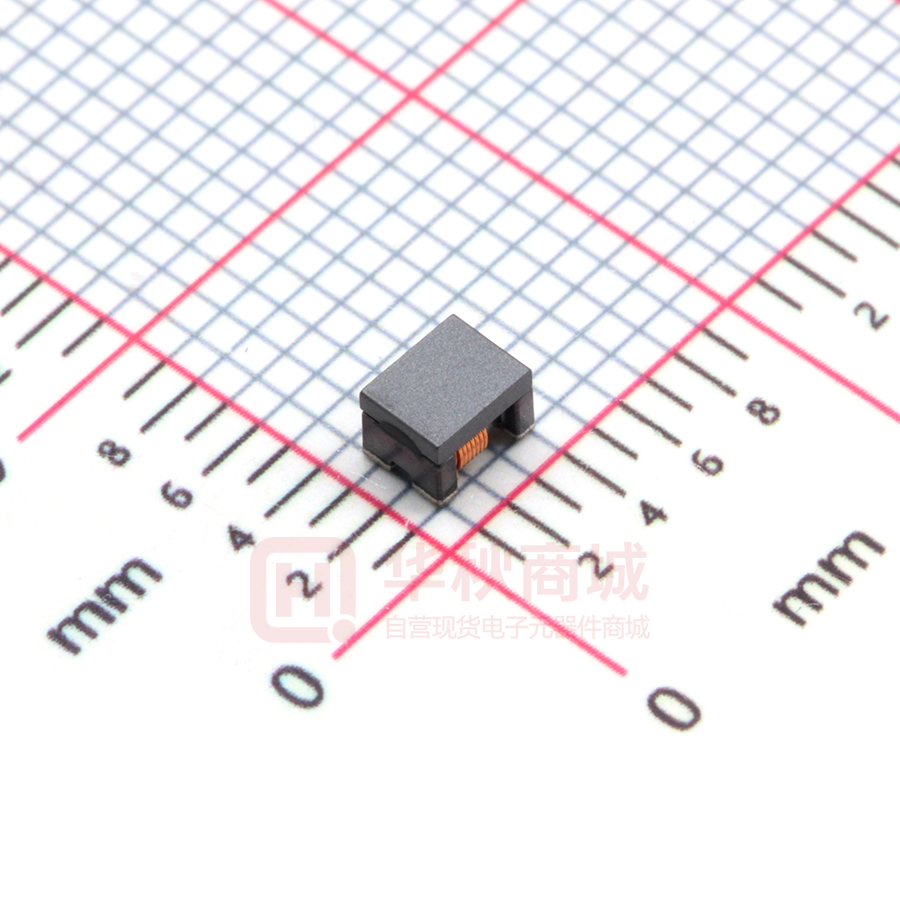

YLM3225-601T

SMD Common Mode Choke -YLM3225 Series ■ Features ● This filter is characterized by small size, highly effective in noise suppression. ● High common mode impedance at noise band and low differential mode impedance at signal band.Due to the low differential mode impedance with high coupling factor,there is almost no distortion on high speed transmission of high resolution video signals. ■ Applications ● YLM Series is suited for use on the USB2.0 line and IEEE1394 line of Notebook PC,LVDS lines of PC,LCD Monitor, PCI express,small digital AV equipment such as digital Camera and Free disk,MP3 player and Serial-ATA. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Identification Code ⑷ ：Impedance ⑸ ：Taping 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Mob:(86)13682526134 -1- SMD Common Mode Choke -YLM3225 Series ■ Shapes and Dimensions (Unit：mm) TYPE A B C D E YLM3225 3.2±0.2 2.5±0.2 2.2±0.2 0.90±0.1 F 0.80±0.1 0.80±0.1 G H I J 0.90 2.50 2.20 4.00 ■ YLM3225 Series Common mode DC Rated Impedance Resistance Current (Ω) @100MHz (Ω) Max (mA) max YLM3225□-900T 90±25% 0.05 YLM3225□-161T 160±25% YLM3225□-271T Rated Volt. Withstand IR(MΩ) (Vdc)max. Volt.(Vdc)max. min. 1000 50 125 10 0.15 480 50 125 10 270±25% 0.25 450 50 125 10 YLM3225□-601T 600±25% 0.20 1000 50 125 10 YLM3225□-102T 1000±25% 0.30 400 50 125 10 Part Number 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Mob:(86)13682526134 -2- SMD Common Mode Choke -YLM3225 Series ■ Recommended soldering temp.Graph ■ Mechanical reliability ■ Endurance Reliability 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Mob:(86)13682526134 -3- SMD Common Mode Choke -YLM3225 Series ■ Taping Dimensions(Unit:mm) TYPE W A B D P K T MPQ YLM3225 8.0±0.2 2.88±0.1 3.65±0.1 3.5±0.05 4.0±0.1 2.50±0.1 0.26±0.05 2000 ■ Reel Dimensions(Unit:mm) TYPE W W1 A B C D YLM3225 178±2.0 9.00±0.50 4.3±0.20 5.0±0.10 3.0±0.10 60±2.0 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Mob:(86)13682526134 -4- SMD Common Mode Choke -YLM3225 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Mob:(86)13682526134 -5-
