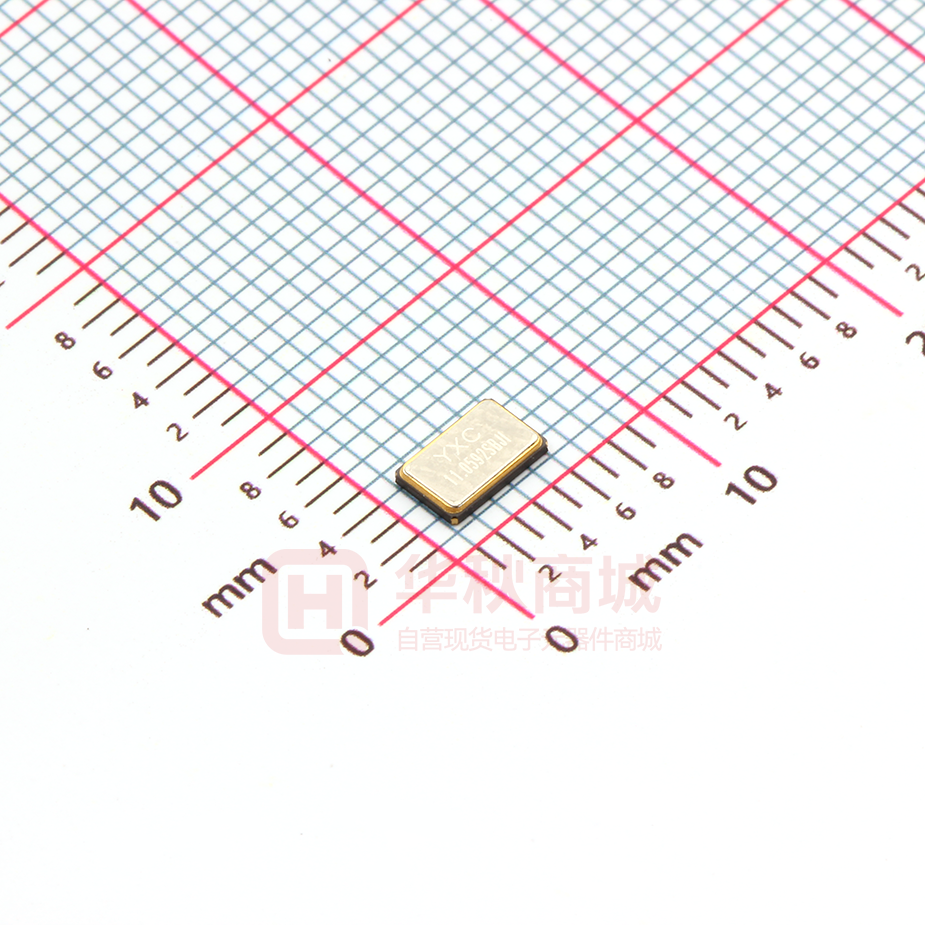

X5032110592MSB4SI

CRYSTAL UNIT YSX531SL Applications Features ‧Industrial Control Consumers. ‧Dimensions:5.00 x 3.20 x 0.90 mm. ‧High precision and high frequency stability. ‧Standard Frequency: 8~54MHz ‧Extremely good for reducing EMI effect. Specifications Standard Frequency 8~54 MHz Vibration Mode AT Fundamental Load Capacitance 10pF,20pF,or specify Frequency Tolerance (at 25 ) ±10ppm,±20ppm,or specify Frequency Versus Temperature Characteristics Operating Temperature ±20ppm,or specify -20~+70℃，-40~+85℃，or specify Storage Temperature -55~+125℃ or specify Shunt Capacitance 5 pF Max. Level of Drive 1~200μWMax.(100uW typical) Aging (at 25 ℃ ) ±3ppm/year Max. Equivalent Series Resistance(ESR) 8 ~ 12MHz 12 ~ 25 MHz 25 ~ 54 MHz Fundamental Dimensions and Patterns [unit:mm] 60~80 Ω Max. 40~60 Ω Max. 30~40 Ω Max. Package Size – Dimensions (Unit: mm) www.yxc.hk 第1页共2页 CRYSTAL UNIT YSX531SL Reflow Soldering Profile Temperature Pre Heating Temperature Tp1 ~ Tp2 = + 170 °C Heating Temperature TMlt = + 220 °C Peek Temperature TMax. = + 260 °C +260℃ TMax. +220℃ Tmlt Point of measuring In case of Solder ability Terminal. In case of Resistance to soldering heat Surface. Tp2 Tp1 35s 100s t(time) Taping Specification(Unit: mm) Size A B C D E F G H SMD-5032 180±2.0 12.0±0.3 5.40±0.1 3.60±0.1 8.00±0.3 1.45±0.1 61.0±1.0 12.0±1.0 1000 pcs per reel www.yxc.hk 第2页共2页
