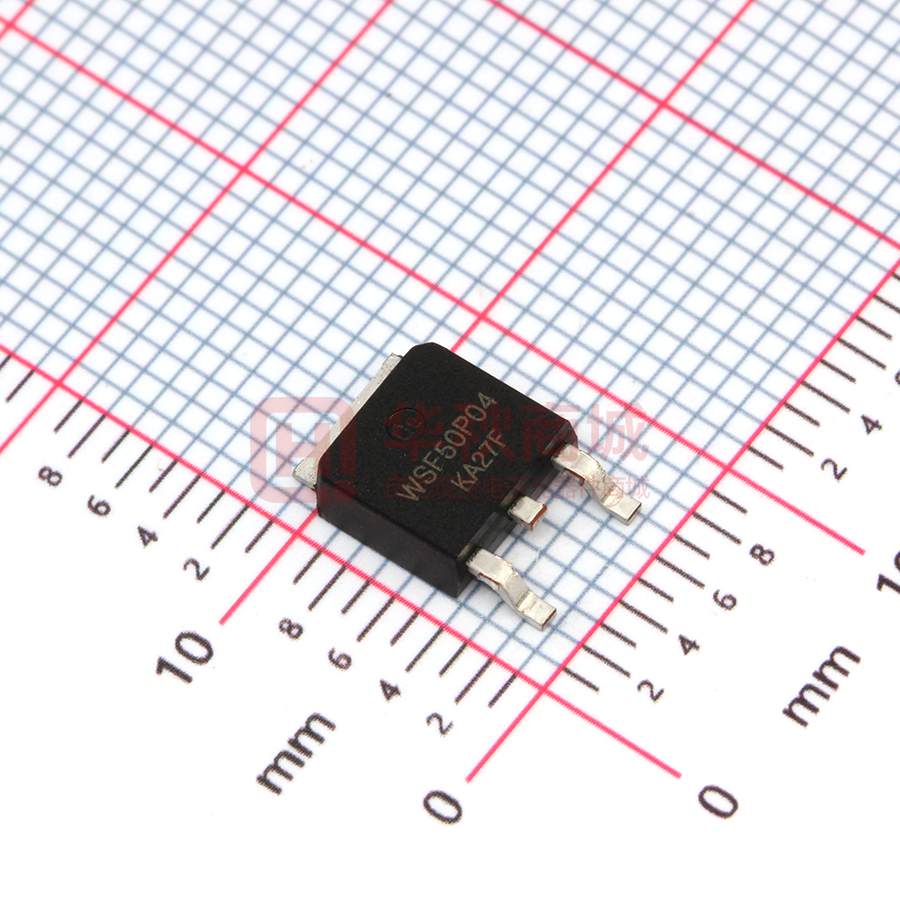

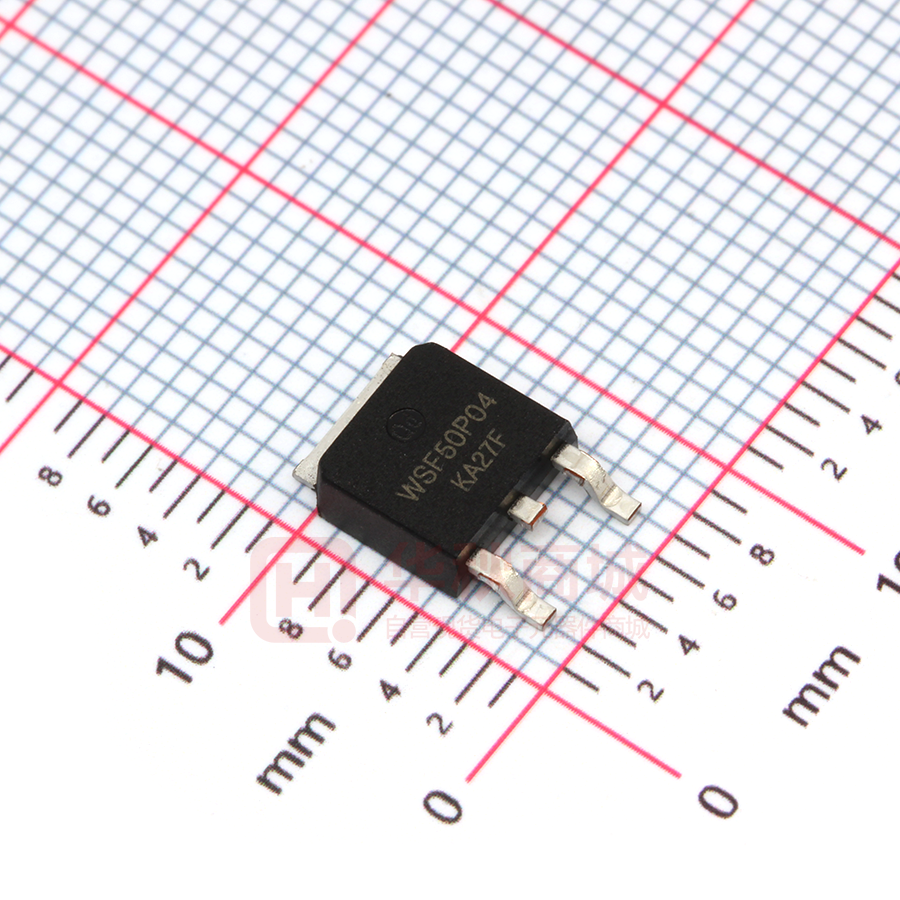

WSF50P04

WSF50P04 P-Ch MOSFET General Description Product Summery The WSF50P04 is the highest performance trench P-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . BVDSS RDSON ID -40V 12mΩ -40A Applications The WSF50P04 meet the RoHS and Green Product requirement 100% EAS guaranteed with full function reliability approved. z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Networking DC-DC Power System Features z Load Switch z Advanced high cell density Trench technology TO-252 Pin Configuration z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Absolute Maximum Ratings (TC=25℃unless otherwise noted) Symbol Parameter Limit Unit VDS Drain-Source Voltage -40 V VGS Gate-Source Voltage ±20 V Drain Current-Continuous -40 A Drain Current-Continuous(TC=100℃) -28 A IDM Pulsed Drain Current -160 A PD Maximum Power Dissipation TC=25°C 80 W EAS Single pulse avalanche energy (Note 5) 544 mJ dv/dt Drain Source voltage slope, VDS ≤-32 V, 50 V/ns dv/dt Reverse diode dv/dt, VDS ≤-32 V, ISD
