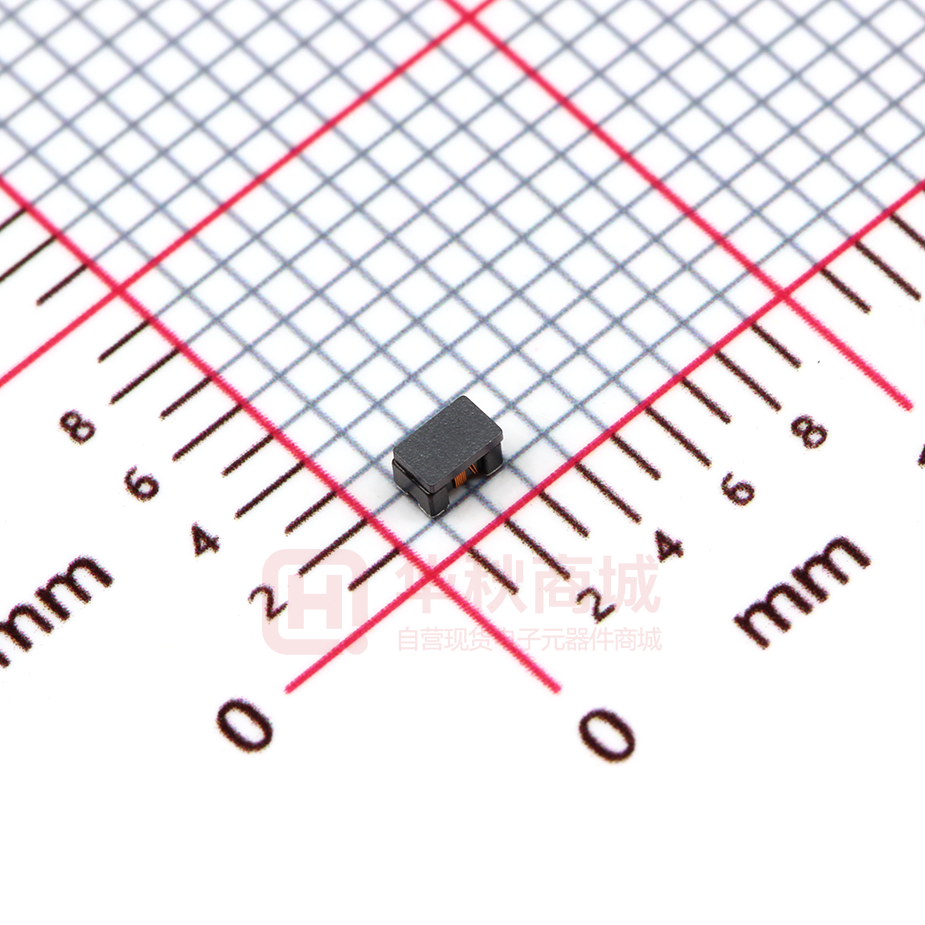

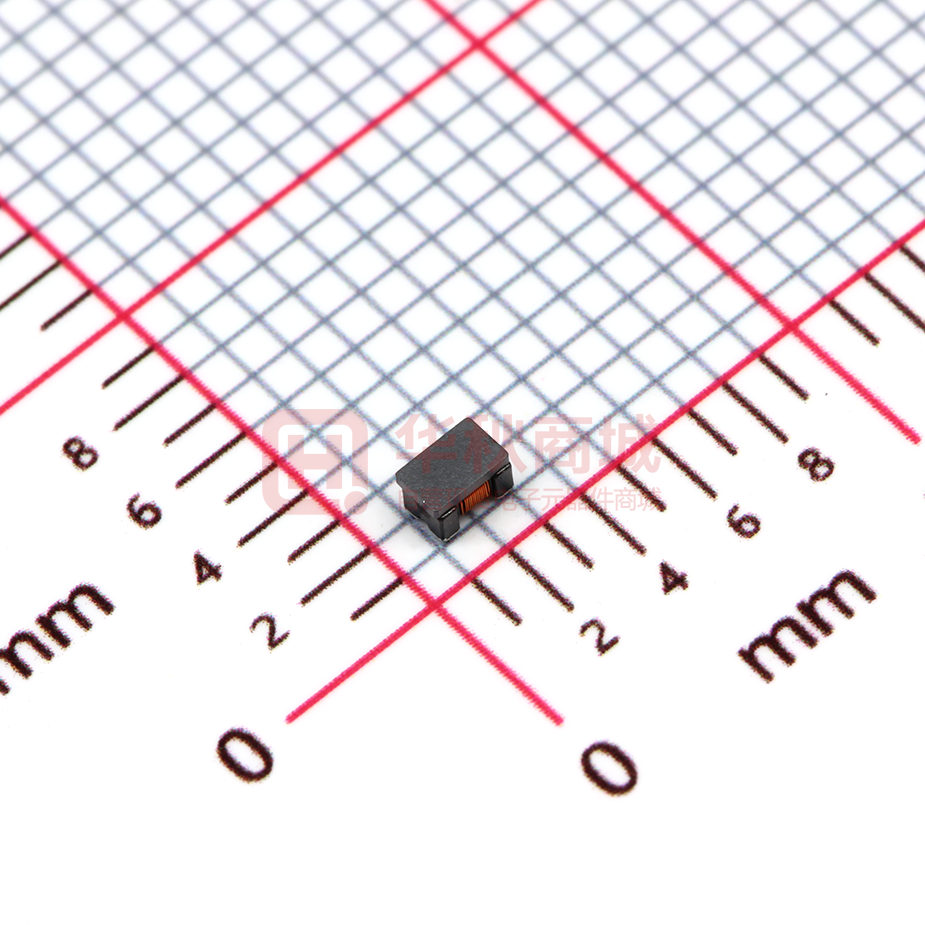

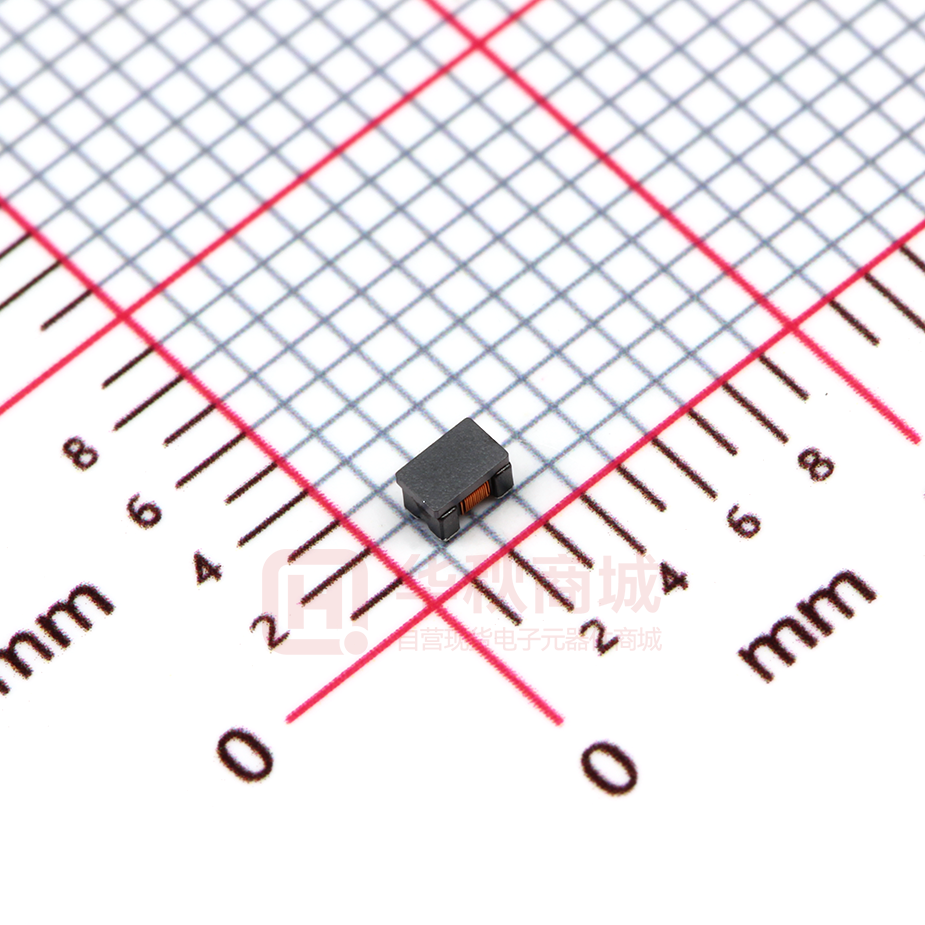

KCMC0805-121S

Winding Type Common Mode Choke-KCMC Series Features     Excellent solderability and resistance to soldering heat. Winding type realizes small size and low profile Good dimensions, high reliability, and easy surface mount assembly Operating temperature: -40℃ to +85℃ Application    USB2.0 of PC, peripheral equipments, smalldigital AV equipments, etc. LVDS lines of Note PC, LCD Audio lines Product Identification KCMC ① 0603 ② - 900 ③ S ④ ② Chip Size: ① ③ ④ Series name: Chip Common Mode Choke Coil Typical Impedance at 100MHz: 900=90Ω Tolerance: ±25% Code L(mm) W(mm) H(mm) 0603 1.60 ± 0.10 0.85 ± 0.10 1.10 ± 0.10 0805 2.00 ± 0.20 1.20 ± 0.20 1.00 ± 0.20 1206 3.20 ± 0.20 1.60 ± 0.20 1.90 ± 0.20 SHAPE AND DIMENSIONS Recommended Land Pattern Unit: mm Series L(mm) W(mm) H(mm) a(mm) b(mm) c(mm) d(mm) e(mm) f(mm) 0603 1.60 ±0.10 0.85 ±0.10 1.10±0.10 0.25 0.33 0.85 0.60 0.25 0.25 0805 2.00 ± 0.20 1.20 ±0.20 1.20 ±0.20 0.40 0.45 0.90 0.80 0.40 0.40 1206 3.20 ± 0.20 1.60 ±0.20 1.90 ±0.20 0.60 0.60 1.00 1.60 0.40 0.60 Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 1 Tel: +86 755 2733 7940 sales@konen-elek.com Winding Type Common Mode Choke-KCMC Series SPECIFICATIONS KCMC0603 Series Part Number ZΩ100MHz(Ω) Ir(mA) Rdc(Ω) KCMC0603-220S 22 500 0.080 KCMC0603-450S 45 500 0.110 KCMC0603-900S 90 500 0.145 KCMC0603-121S 120 500 0.175 KCMC0603-181S 180 500 0.210 KCMC0603-251S 250 400 0.280 Part Number ZΩ100MHz(Ω) Ir(mA) Rdc(Ω) KCMC0805-670S 67 400 0.25 KCMC0805-900S 90 330 0.35 KCMC0805-121S 120 370 0.30 KCMC0805-181S 180 330 0.35 KCMC0805-261S 260 300 0.40 KCMC0805-361S 360 280 0.45 Part Number ZΩ100MHz(Ω) Ir(mA) Rdc(Ω) KCMC1206-900S 90 370 0.3 KCMC1206-161S 160 340 0.4 KCMC1206-261S 260 310 0.5 KCMC1206-601S 600 260 0.8 KCMC1206-102S 1000 230 1.0 KCMC1206-222S 2200 200 1.2 Ur (DC) V 50 KCMC0805 Series Ur (DC) V 50 KCMC1206 Series   Ur (DC) V 50 Impedance is measured in HP4287A at frequency of 100MHz. Ir: for 15℃ rise. Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 2 Tel: +86 755 2733 7940 sales@konen-elek.com Winding Type Common Mode Choke-KCMC Series TYPICAL ELECTRICAL CHARACTERISTICS KCMC0603 Series KCMC0805 Series KCMC1206 Series Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 3 Tel: +86 755 2733 7940 sales@konen-elek.com
