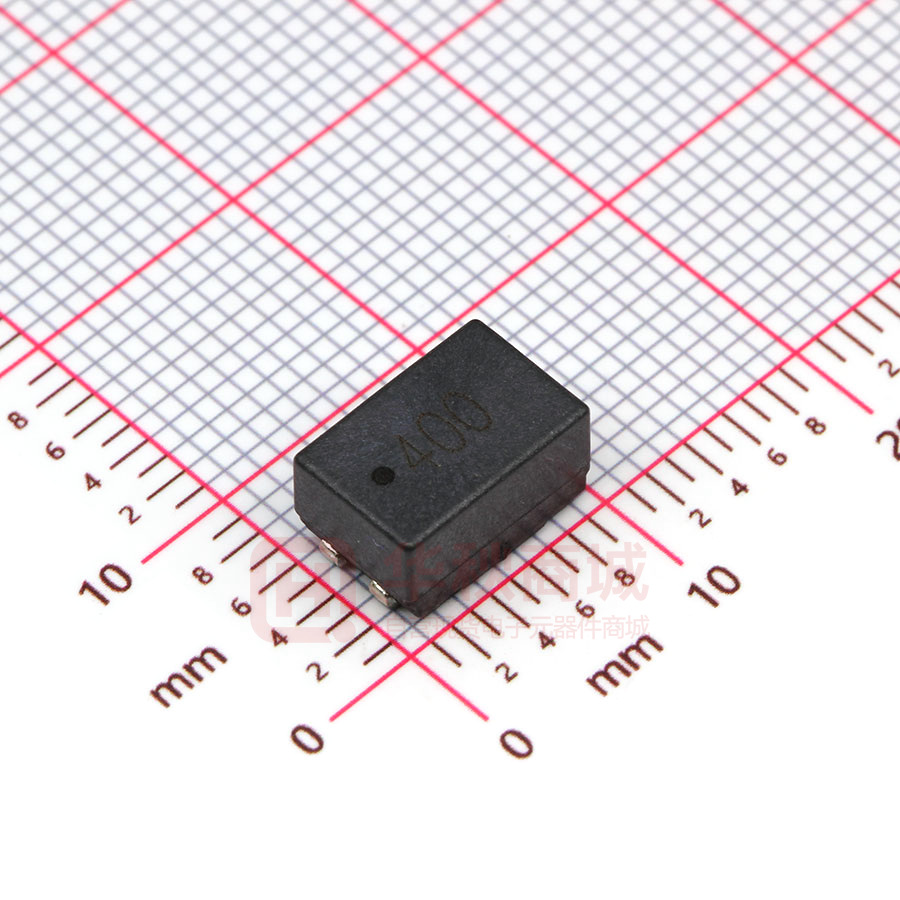

KCMF9060-400Y

Wire Wound Common Mode Line SMT Filter-KCMF Series Features    Common Mode Choke Ring core with the core materials of NiZn and MnZn Operating temperature: -40℃ to +85℃ Application    CAN BUS Suppression for common mode noise Power supply systems Product Identification KCMF ① 9060 ② 100 ③ Y ④ 1 Series name: Wire Wound Common Mode Line Filter 2 Chip Size: 3 Inductance: 4 Tolerance: 9.6x6.0x5.0mm 10uH ±30% or ±50% SHAPE AND DIMENSIONS Recommended Layout: Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com Schematic: 1 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound Common Mode Line SMT Filter-KCMF Series SPECIFICATIONS KCMF9060 Series Part Number     Inductance ( μH ) Test condition DCR IR Impedance Freq MAX ( Ω ) (A) min.( Ω ) Range ( MHz ) KCMF9060-100Y 10±30% 0.1V,1kHz 0.08 1.6 200 20 ~ 300 KCMF9060S*-100Y 10±30% 0.1V,1kHz 0.08 1.6 200 20 ~ 300 KCMF9060-250Y 25±30% 0.1V,1kHz 0.12 1.0 600 20 ~ 150 KCMF9060S*-250Y 25±30% 0.1V,1kHz 0.12 1.0 600 20 ~ 150 KCMF9060-400Y 40±30% 0.1V,1kHz 0.25 0.9 800 20 ~ 100 KCMF9060S*-400Y 40±30% 0.1V,1kHz 0.25 0.9 800 20 ~ 100 KCMF9060-510Y 51±30% 0.1V,1kHz 0.16 1.0 1500 20 ~ 100 KCMF9060S*-510Y 51±30% 0.1V,1kHz 0.16 1.0 1500 20 ~ 100 KCMF9060-251Y 250±50% 5mV,100kHz 0.13 1.2 600 3 ~20 KCMF9060-501Y 500±50% 5mV,100kHz 0.15 1.0 1000 1 ~20 KCMF9060-102Y 1000±50% 5mV,100kHz 0.31 0.8 1500 1 ~15 KCMF9060-202Y 2000±50% 5mV,100kHz 0.42 0.6 3000 1 ~5 KCMF9060-472Y 4700±50% 5mV,100kHz 0.75 0.5 4000 0.3 ~3 KCMF9060-652Y 6500±50% 5mV,100kHz 0.95 0.4 5000 0.3 ~2 KCMF9060-103Y 10000±50% 5mV,100kHz 1.2 0.35 6000 0.3~1.5 KCMF9060-203Y 20000±50% 5mV,100kHz 2.6 0.2 12000 0.2~1.0 DCR Electrical specifications at 20℃ IR base on Temp. rise 40℃，temperature rise from 25℃ ambient Dielectric strength 500VDC max between line to line；Rated voltage: 80VDC S*: winding type is sectional, without S is Bifiliar Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 2 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound Common Mode Line SMT Filter-KCMF Series TYPICAL ELECTRICAL CHARACTERISTICS KCMF9060-100Y KCMF9060S*-100Y KCMF9060-250Y KCMF9060S*-250Y KCMF9060-400Y Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com KCMF9060S*-400Y 3 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound Common Mode Line SMT Filter-KCMF Series TYPICAL ELECTRICAL CHARACTERISTICS KCMF9060-510Y KCMF9060S*-510Y KCMF9060-251Y KCMF9060-501Y KCMF9060-102Y Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com KCMF9060-202Y 4 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound Common Mode Line SMT Filter-KCMF Series TYPICAL ELECTRICAL CHARACTERISTICS KCMF9060-472Y KCMF9060-652Y KCMF9060-103Y KCMF9060-203Y Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 5 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound Common Mode Line SMT Filter-KCMF Series SOLDERING SPECIFICATION Package Volume Package PB-Free Assembly  Thickness
