KCMB2517-222N

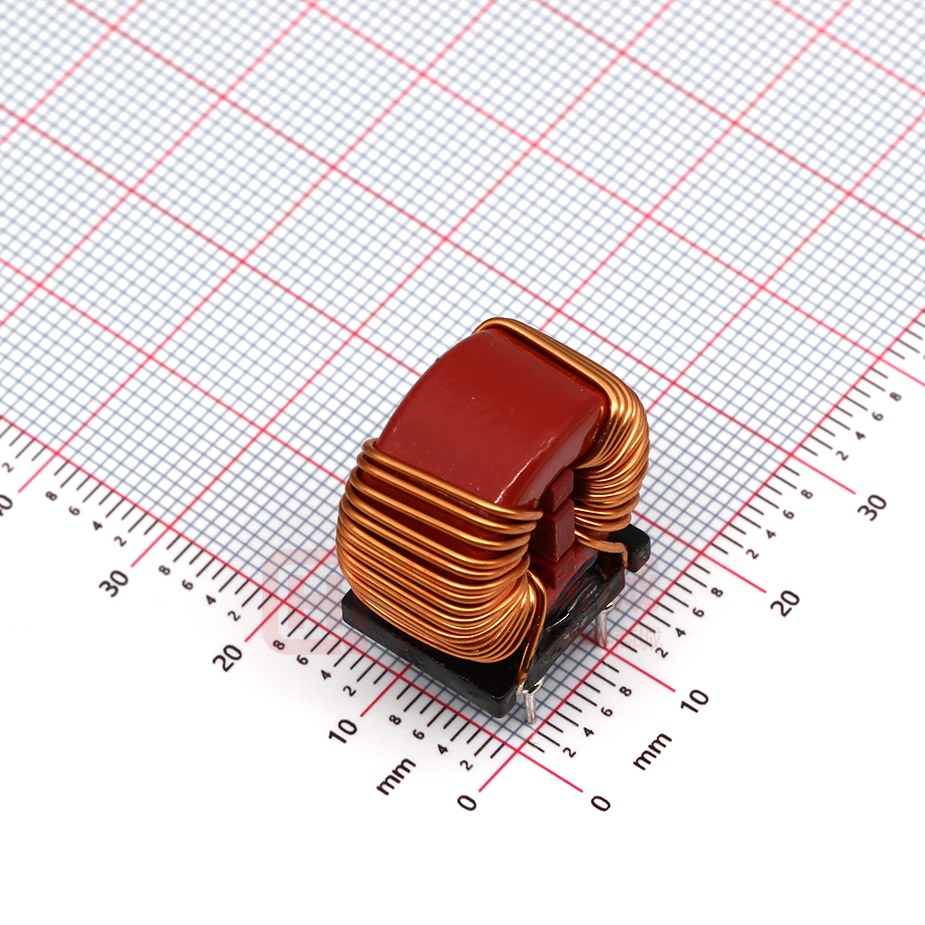

Winding Wound Common Mode THT Choke-KCMB Series Features  Broadband filterring due to low capacitance winding technique;  High suppression of asymmetrical interferences also at low frequency range;  Very compact design;  Highest possible rated current by small size;  Flammability corresponding to UL 94 V-0;  Certified according to IEC 60938-2;  Operating temperature range -55℃～125℃(Including self - temperature rise; Application  Power line input and output filter.  Filterring of devices without any ground connection.  Suppression of radio interferences in motors.  Suppression of common mode noice. Product Identification KCMB ① 1 2 ③ ④ 2517 - 102 N ③ ④ ② Series name: Wire Wound Common Mode THT Choke Chip Size: 25×17×27mm Inductance: 1000 uH Tolerance: ±30% SHAPE AND DIMENSIONS Recommended Layout： Series KCMB2517 Schematic： Mechanical Dimensions(mm) Land Pattern(mm) LMax WMax HMax a b c dTyp e f Ø 25 17 27 10.7±0.5 7.5±0.5 3.0±0.5 0.7 10.7 7.5 0.9 Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 1 Tel: +86 755 2733 7940 sales@konen-elek.com Winding Wound Common Mode THT Choke-KCMB Series SPECIFICATIONS KCMB 2517 Series Part Number L(μH) IR(A) DCR(mΩ) UR(Vac) UT(Vac) Core Material Test Condition KCMB2517-102N 1000 6.0 13 250 1500 Mn-Zn 10KHz/0.25V KCMB2517-222N 2200 4.0 30 250 1500 Mn-Zn 10KHz/0.25V KCMB2517-332N 3300 2.5 60 250 1500 Mn-Zn 10KHz/0.25V KCMB2517-502N 5000 2.5 95 250 1500 Mn-Zn 10KHz/0.25V KCMB2517-103N 10000 2.0 125 250 1500 Mn-Zn 10KHz/0.25V KCMB2517-203N 20000 1.5 270 250 1500 Mn-Zn 10KHz/0.25V L: Inductance; IR: Rated Current; UR: Rated Voltage; UT: Insulation TestVoltage TYPICAL ELECTRICAL CHARACTERISTICS KCMB2517 series Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 2 Tel: +86 755 2733 7940 sales@konen-elek.com
