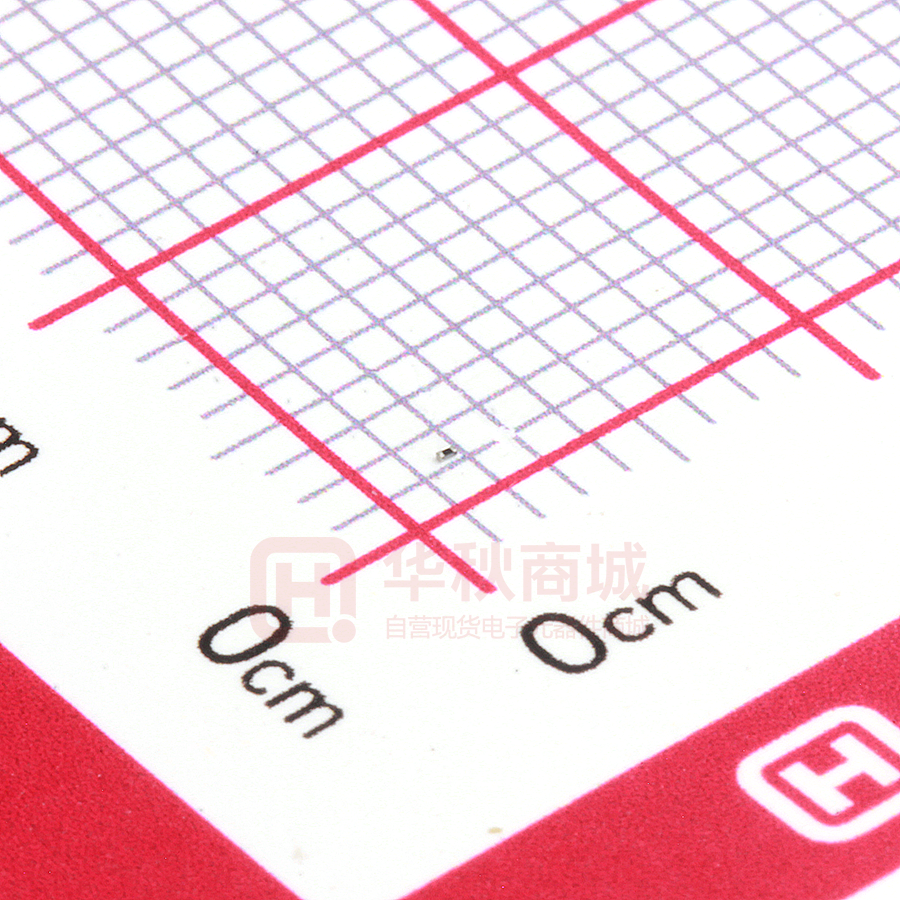

PFR02S-1243-FNH

Chip Resistor 1/32W, 01005, Thick Film Chip Resistor (Halogen Free) Features / Applications :  Telecommunication Equipment, Digital Cameras, Watches, Pocket Calculators, Computers, Instruments.  Halogen Free Epoxy  RoHS compliant  Glass/electrode of resistor with lead free meet RoHS requirements  Pb contained in resistive element is exempted by RoHS Electrical Specifications : Power Rating* Resistance Values Series Resistance Tolerance E24 series & E96 series ± 1.0% (F) 1/32W E24 series Jumper ± 5.0% (J) Temperature Coefficient of Resistance ppm /℃ (Code) -200~+600 ± 300 ± 200 -200~+600 ± 300 ± 200 Resistance Range () 1.0～9.76 10～91 100～1.62M 1.0～9.1 10～91 100～10M Resistance Rated current Below 50mΩ Note: *Package Power Temperature Derating Curve 0.5A Operating Temperature Range Max. Operating Voltage** -55℃ to 125℃ 15V Operating Temperature Range -55℃ to 125℃ RATED LOAD(%) 100 0 -55 70 125 AMBIENT TEMPERATURE(℃) Figure 1.：Power Temperature Derating Curve Note: **Resistors shall have a rated DC or AC(rms.) continuous operating voltage corresponding to the power rating, as calculated from the following formula V  P R Where V : Rated voltage (V) P : Rated power (W) R : Nominal resistance () the voltage so obtained exceeds the maximum operating voltage, this maximum voltage shall be the rated voltage. DOCUMENT : RQ-1NH REVISION : A1 1 Chip Resistor Outline Drawing : Dimensions L a a Code Letter Dimension L 0.40  0.02 W 0.20  0.02 t 0.13  0.02 a 0.10  0.03 b 0.10  0.03 W t b Unit: mm Note: *Which resistance layer(protection coating layer) is down : just ±1%(F) for 1.0 ~ 9.76 ** No marking on the protect coating Type Designation : PFR02S (1) - XXXX (2) - X NH (3) (4) Note : (1) Series No. (2) Resistance value : 103 = 10k (E24) ; 1131 =1.13k (E96) (3) Tolerance : F = ±1%, G = ±2%, J= ±5%, X= Jumper (Below 50m) (4) NH= Sn plating (Lead free / Halogen free) DOCUMENT : RQ-1NH REVISION : A1 2 Chip Resistor Characteristics : Electrical Item Short Time Overload Specification and Requirement Resistor △R: ±(2%+ 0.1) Test Method (Refer to JIS C 5201) Jumper Max. 50m (1) Without damage by Insulation Resistance Applied voltage: 2.5 x rated voltage or flashover, spark, arcing, 2 x maximum operating voltage burning or breakdown whichever is less (2) Test time : 5 seconds Over 100 M on Overcoat layer face up (1) Setup as figure 1 Over 1,000 M on Substrate side face up (2) Test voltage: 100VDC (3) Test time: 60 + 10 / -0 seconds Voltage Proof △R: ±(2%+ 0.1) (1) Setup as figure 1 Without damage by (2) Test voltage: 50VAC(rms.) flashover, spark, arcing, (3) Test time: Max. 50m burning or breakdown 60 +10 / -0 seconds Pressure Rod (Metal) Insulation Plate Spring Measurement Point A (R=0.5 mm) Substrate Over coat Film Sample Electrode Voltage Supply A Metal Block B Measurement Point B Substrate Side Figure 1 : Measurement Setup DOCUMENT : RQ-1NH REVISION : A1 3 Chip Resistor Mechanical Specification and Requirement Item Solderability Resistor Test Method (JIS 5201) Jumper The surface of terminal immersed shall be Solder bath: minimum of 95% covered with a new coating of After immersing in flux, dip in solder 245 ± 5℃ molten solder bath for 2 ± 0.5 seconds Resistance to Solder △R: ±(1%+ 0.05) Heat Max. 50m Resistance to Solder Heat Without distinct deformation in appearance △R: ±(0.5%+ 0.05) Vibration (1) Without mechanical damage such as break Vibration frequency: 10Hz to 55Hz in 60 seconds as a period (2) Vibration time: period cycled for 2 hours in each of 3 mutual perpendicular direction total. Shock (3) Amplitude: 1.5mm △R: ±(0.25%+ 0.05) (1) Peak value: 490N Without mechanical damage such as break (2) Duration of pulse: 11ms (3) 3 times in each positive and negative direction of 3 mutual perpendicular directions △R: ±(1%+ 0.05) Bending Test Bending value : 3mm for 30 ± 1 seconds Without mechanical damage such as break Without mechanical and distinct damage in Solvent Resistance (1) appearance Solvent: Trichloroethane or Isopropyl alcohol (2) Immersed in solvent at room temperature for 90 seconds DOCUMENT : RQ-1NH REVISION : A1 4 Chip Resistor Endurance Specification and Requirement Item Resistor Rapid change of △R: ±(1%+ 0.05) Temperature Without distinct damage in Test Method (JIS 5201) Jumper Max. 50m (1) Repeat 5 cycle as follow: (-55 ± 3℃,30minutes) appearance →(Room temperature, 2~3 minutes) →(+125 ± 2℃,30minutes)→ (Room temperature, 2~3 minutes) (2) Measuring resistance 1 hour after test Moisture with Load △R: ±(5%+ 0.1) Max. 50m (1) Without distinct damage in Environment condition: 40 ± 2℃,90~95% RH appearance (2) Applied Voltage: rated voltage Marking should be legible (3) Test period: (1.5 hour ON) → (0.5 hour OFF) cycled for total 1,000 + 48 / - 0 hours (4) Measuring resistance 1 hour after test Load Life △R: ±(5%+ 0.1) Max. 100m (1) Test temperature: 70 ± 2℃ Without distinct damage in (2) Applied Voltage: rated Voltage appearance (3) Test period: (1.5 hour ON) → (0.5 hour OFF) cycled for total 1,000 + 48 / - 0 hours (4) Measuring resistance 1 hour after test Low Temperature △R: ±(5%+ 0.1) Store Without distinct damage in Max. 100m (1) Store temperature: -55 ± 3℃ for total 1,000 + 48 / - 0 hours appearance (2) Measuring resistance 1 hour after test High Temperature △R: ±(5%+ 0.1) Store Without distinct damage in Max. 100m (1) Store temperature: -125 ± 2℃ for total 1,000 + 48 / - 0 hours appearance (2) Measuring resistance 1 hour after test DOCUMENT : RQ-1NH REVISION : A1 5 Chip Resistor Recommend Land Pattern Dimensions : A C 0.15 ~ 0.20 B 0.5 ~ 0.8 C 0.2 ~0.4 Unit: mm B TAPE PACKAGING DIMENSIONS: DOCUMENT : RQ-1NH REVISION : A1 A 6 Chip Resistor REEL DIMENSIONS: 2.0 ± 0.5 22 min. Label Unit : mm 56 ± 2.0 60 ± 1.0 178 ± 2.0 13.0 ± 0.2 9.0 ± 0.3 11.4 ± 1.0 Numbers of Taping: 20,000 pieces/reel The following items shall be marked on the reel. (1) Type designation. (2) Quantity (3) Manufacturing date code (4) Manufacturer’s name Peel force of top cover tape The peel speed shall be about 300 mm/min. The peel force of top cover tape shall be between 0.1 to 0.5 N. Top Cover Tape 165 ~ 180° 0.1~0.5 N DOCUMENT : RQ-1NH REVISION : A1 7 Chip Resistor Care Note : Care note for storage (1) Chip resistor shall be stored in a room where temperature and humidity must be controlled. (temperature 5 to 35℃, humidity 45 to 85% RH) However, a humidity keep it low, as it is possible. (2) Chip resistor shall be stored as direct sunshine doesn’t hit on it. (3) Chip resistor shall be stored with no moisture, dust, a material that will make solderability inferior, and a harmful gas (Hydrogen chloride, sulfurous acid gas, and Hydrogen sulfide) Care note for operating and handling (1) It is necessary to protect the edge and protection coat of resistors from mechanical stress. (2) Handle with care when printing circuit board (PCB) is divided or fixed on support body, because bending of printing circuit board (PCB) mounting will make mechanical stress for resistors. (3) Resistors shall be used with in rated range shown in specification. Especially, if voltage more than specified value will be loaded to resistor, there is a case it will make damage for machine because of temperature rise depending on generating of heat, and increase resistance value or breaks. (4) In case that resistor is loaded a rated voltage, it is necessary to confirms temperature of a resistor and to reduce a load power according to load reduction curve, because a temperature rise of a resistor depends on influence of heat from mounting density and neighboring element. (5) Observe Limiting element voltage and maximum overload voltage specified in each specification. (6) If there is possibility that a large voltage (pulse voltage, shock voltage) charge to resistor, it is necessary that operating condition shall be set up before use. DOCUMENT : RQ-1NH REVISION : A1 8
