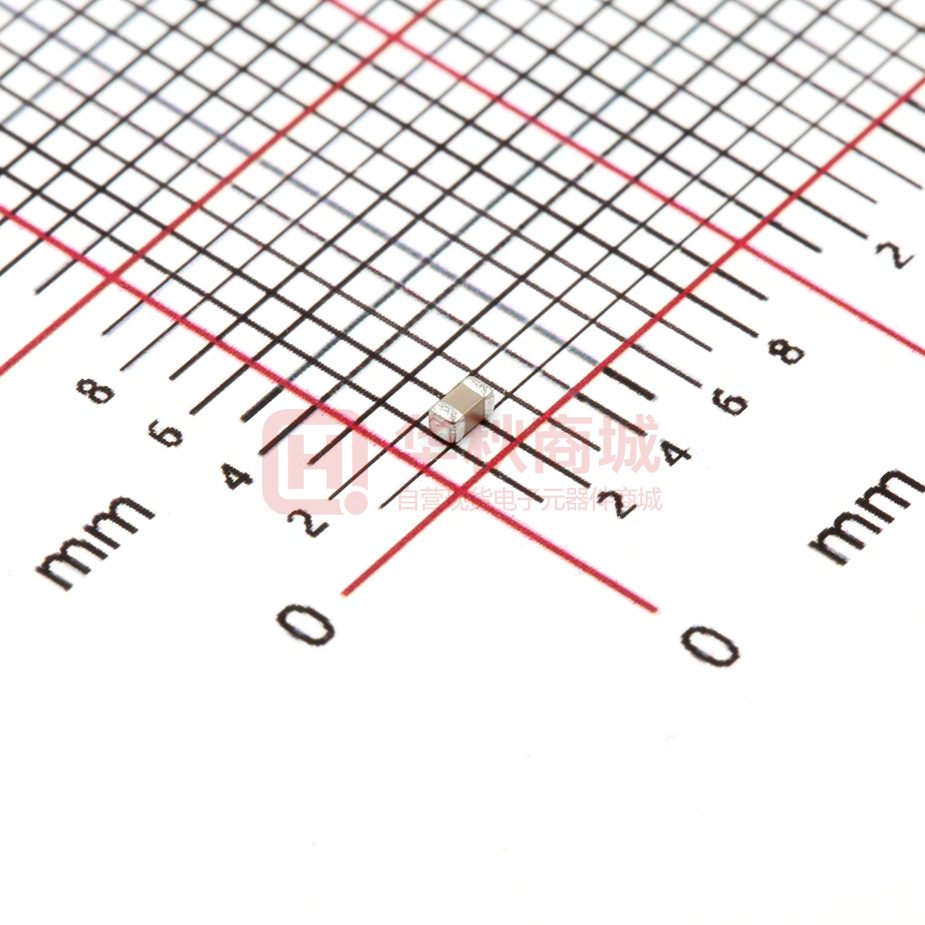

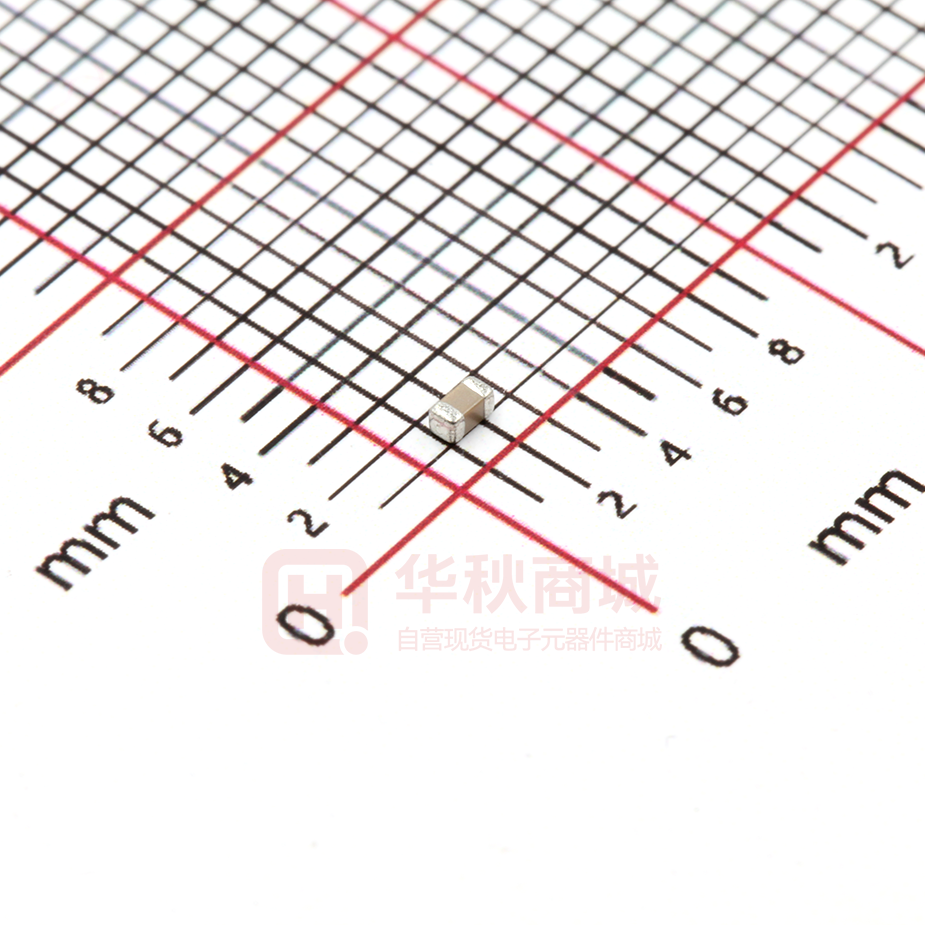

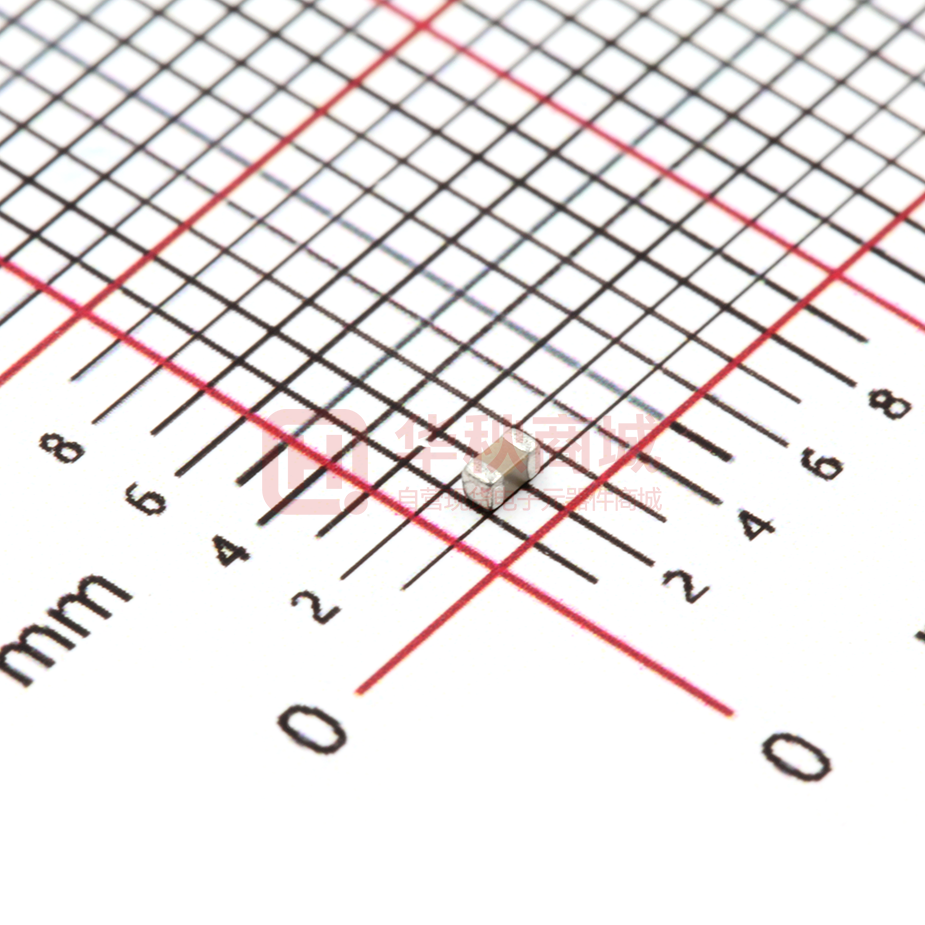

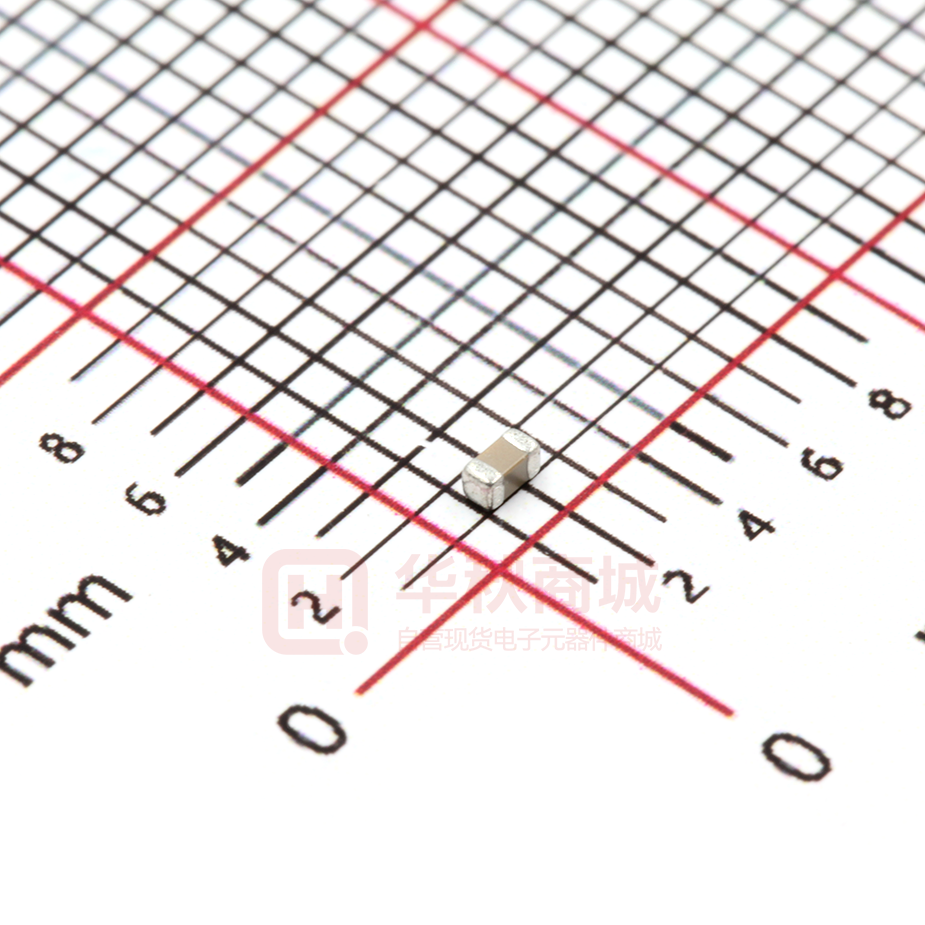

CC0603JRX7R8BB273

DATA SHEET SURFACE-MOUNT CERAMIC MULTILAYER CAPACITORS General Purpose & High Capacitance Class 2, X7R 6.3 V TO 250 V Product Specification – November 19, 2024 V.26 100 pF to 47 µF Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V SCOPE ORDERING INFORMATION - GLOBAL PART NUMBER, PHYCOMP This specification describes X7R series chip capacitors with leadfree terminations. CTC & 12NC APPLICATIONS     PCs, Hard disk, Game PCs DVDs, Video cameras Mobile phones Data processing FEATURES      Supplied in tape on reel Nickel-barrier end termination RoHS compliant Halogen Free compliant MSL class : level 1 All part numbers are identified by the series, size, tolerance, TC material, packing style, voltage, process code, termination and capacitance value. YAGEO BRAND ordering code GLOBAL PART NUMBER (PREFERRED ) CC XXXX X X (1) X7R (2) (3) X BB XXX (4) (5) (1) SIZE – INCH BASED (METRIC) 0201 (0603) 0402 (1005) 0603 (1608) 0805 (2012) 1206 (3216) 1210 (3225) 1812 (4532) 2220 (5750) (2) TOLERANCE J = ± 5% (1) K = ± 10% M = ± 20% (3) PACKING STYLE R = Paper/PE taping reel; Reel 7 inch K = Blister taping reel; Reel 7 inch P = Paper/PE taping reel; Reel 13 inch F = Blister taping reel; Reel 13 inch (4) RATED VOLTAGE 5 = 6.3 V 0 = 100 V 6 = 10 V A = 200 V 7 = 16 V Y = 250 V 8 = 25 V 9 = 50 V (5) CAPACITANCE VALUE 2 significant digits+number of zeros The 3rd digit signifies the multiplying factor, and letter R is decimal point Example: 103 = 10 x 103 = 10,000 pF = 10 nF NOTE 1. Tolerance ± 5% is not available for full product range, please contact local sales force before ordering www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V CONSTRUCTION The capacitor consists of a rectangular block of ceramic dielectric in which a number of interleaved metal electrodes are contained. This structure gives rise to a high capacitance per unit volume. The inner electrodes are connected to the two end terminations and finally covered with a layer of plated tin (NiSn). The terminations are lead-free. A cross section of the structure is shown in Fig.1. Fig. 1 Surface mounted multilayer ceramic capacitor construction DIMENSION Table 1 For outlines see fig. 2 min. Max. L4 (mm) DIMENSION CODE min. 0.3 ± 0.03 0.5 ± 0.05 0.5 ± 0.20 0.8 ± 0.1 0.8 ± 0.15 0.8 ± 0.2 0.6 ± 0.1 0.85 ± 0.1 1.25 ± 0.2 0.85 ± 0.1 1.0 ± 0.1 1.15 ± 0.1 1.25 ± 0.2 1.6 ± 0.2 1.6 ± 0.3 0.85 ± 0.1 1.25 ± 0.2 1.6 ± 0.2 1.9 ± 0.2 2.0 ± 0.2 2.5 ± 0.2 2.5 ± 0.3 0.85 ± 0.1 1.25 ± 0.2 1.6 ± 0.2 0.1 0.15 0.15 0.2 0.2 0.2 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.3 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.25 0.2 0.35 0.35 0.6 0.6 0.6 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.8 0.9 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.2 0.3 0.3 0.4 0.4 0.4 0.7 0.7 0.7 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.0 1.0 2.2 2.2 2.2 BA CA CD DA DB DC E0 EA EB F0 F1 FA FB FC FD 1.15± 0.1 0.25 0.75 3.8 KA TYPE L1 (mm) W (mm) T (mm) 0201 0.6 ± 0.03 1.0 ± 0.05 1.0 ± 0.20 1.6 ± 0.1 1.6 ± 0.15 1.6 ± 0.2 2.0 ± 0.1 2.0 ± 0.2 2.0 ± 0.2 3.2 ± 0.15 3.2 ± 0.2 3.2 ± 0.2 3.2 ± 0.3 3.2 ± 0.3 3.2 ± 0.3 3.2 ± 0.2 3.2 ± 0.4 3.2 ± 0.4 3.2 ± 0.4 3.2 ± 0.4 3.2 ± 0.4 3.2 ± 0.4 4.5 ± 0.4 4.5 ± 0.4 4.5 ± 0.4 0.3 ± 0.03 0.5 ± 0.05 0.5 ± 0.20 0.8 ± 0.1 0.8 ± 0.15 0.8 ± 0.2 1.25 ± 0.1 1.25 ± 0.2 1.25 ± 0.2 1.6 ± 0.15 1.6 ± 0.2 1.6 ± 0.2 1.6 ± 0.2 1.6 ± 0.2 1.6 ± 0.3 2.5 ± 0.2 2.5 ± 0.3 2.5 ± 0.3 2.5 ± 0.3 2.5 ± 0.3 2.5 ± 0.3 2.5 ± 0.3 3.2 ± 0.3 3.2 ± 0.2 3.2 ± 0.4 5.7± 0.4 5.0± 0.3 0402 0603 0805 1206 1210 1812 2220 L2 / L3 (mm) OUTLINES For dimension see Table 1 Fig. 2 Surface mounted multilayer ceramic capacitor dimension G0 GA G2 GB G3 GC GD JA JB JC www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V CAPACITANCE RANGE & THICKNESS FOR X7R Table 2 Sizes from 0201 to 0402 CAP. 0201 6.3 V 10 V 16 V 25 V 50 V 0402 6.3 V 10 V 16 V 25 V 50 V 100 V 100 pF BA BA BA BA BA CA CA CA CA CA CA 150 pF BA BA BA BA BA CA CA CA CA CA CA 220 pF BA BA BA BA BA CA CA CA CA CA CA 330 pF BA BA BA BA BA CA CA CA CA CA CA 470 pF BA BA BA BA BA CA CA CA CA CA CA 680 pF BA BA BA BA BA CA CA CA CA CA CA 1.0 nF BA BA BA BA BA CA CA CA CA CA CA 1.5 nF BA BA BA BA CA CA CA CA CA CA 2.2 nF BA BA BA BA CA CA CA CA CA CA 3.3 nF BA BA BA BA CA CA CA CA CA CA 4.7 nF BA BA BA BA CA CA CA CA CA CA 6.8 nF BA BA BA BA CA CA CA CA CA CA 10 nF BA BA BA BA CA CA CA CA CA CA 15 nF BA CA CA CA CA CA 22 nF BA CA CA CA CA CA 33 nF BA CA CA CA CA CA 47 nF BA CA CA CA CA CA 68 nF BA CA CA CA CA CA 100 nF BA CA CA CA CA CA CA CA CA CA BA 150 nF 220 nF CA CA CA CA 1 µF CA CA 2.2 µF CD 330 nF 470 nF 680 nF NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-6 series is on request 3. For product with 5% tolerance, please contact local sales force before ordering CASE SIZE L (mm) W (mm) T (mm) DIMENSION CODE 0201 0.6 ± 0.03 0.3 ± 0.03 0.3 ± 0.03 BA 1.0 ± 0.05 0.5 ± 0.05 0.5 ± 0.05 CA 1.0 ± 0.20 0.5 ± 0.20 0.5 ± 0.20 CD 0402 www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V CAPACITANCE RANGE & THICKNESS FOR X7R Table 3 Sizes from 0603 CAP. 0603 6.3 V 10 V 16 V 25 V 50 V 100V 200V 250V 100 pF DA DA DA DA DA DA 150 pF DA DA DA DA DA DA 220 pF DA DA DA DA DA DA DA DA 330 pF DA DA DA DA DA DA DA DA 470 pF DA DA DA DA DA DA DA DA 680 pF DA DA DA DA DA DA DA DA 1.0 nF DA DA DA DA DA DA DA DA 1.5 nF DA DA DA DA DA DA DA DA 2.2 nF DA DA DA DA DA DA DA DA 3.3 nF DA DA DA DA DA DA DA DA 4.7 nF DA DA DA DA DA DA DA DA 6.8 nF DA DA DA DA DA DA DA DA 10 nF DA DA DA DA DA DA DA DA 15 nF DA DA DA DA DA DA DA DA 22 nF DA DA DA DA DA DA DA DA 33 nF DA DA DA DA DA DA 47 nF DA DA DA DA DA DA 68 nF DA DA DA DA DA DA 100 nF DA DA DA DA DA DA 150 nF DA DA DA DA DA 220 nF DA DA DA DA DA 330 nF DA DA DA DA 470 nF DA DA DA DA DA 680 nF DA DA DA DA DB 1 µF DA DA DA DA DB 2.2 µF DA DA DC 4.7 µF DC NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-6 series is on request 3. For product with 5% tolerance, please contact local sales force before ordering CASE SIZE 0603 L (mm) W (mm) T (mm) DIMENSION CODE 1.6 ± 0.1 0.8 ± 0.1 0.8 ± 0.1 DA 1.6 ± 0.15 0.8 ± 0.15 0.8 ± 0.15 DB 1.6 ± 0.2 0.8 ± 0.2 0.8 ± 0.2 DC www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V CAPACITANCE RANGE & THICKNESS FOR X7R Table 4 Sizes from 0805 CAP. 0805 6.3 V 10 V 16 V 25 V 50 V 100V 200V 250V 100 pF E0 E0 E0 E0 E0 E0 EA EA 150 pF E0 E0 E0 E0 E0 E0 EA EA 220 pF E0 E0 E0 E0 E0 E0 EA EA 330 pF E0 E0 E0 E0 E0 E0 EA EA 470 pF E0 E0 E0 E0 E0 E0 EA EA 680 pF E0 E0 E0 E0 E0 E0 EA EA 1.0 nF E0 E0 E0 E0 E0 E0 EA EA 1.5 nF E0 E0 E0 E0 E0 E0 EA EA 2.2 nF E0 E0 E0 E0 E0 E0 EA EA 3.3 nF E0 E0 E0 E0 E0 E0 EA EA 4.7 nF E0 E0 E0 E0 E0 E0 EA EA 6.8 nF E0 E0 E0 E0 E0 E0 EB EB 10 nF E0 E0 E0 E0 E0 E0 EB EB 15 nF E0 E0 E0 E0 E0 EA EB EB 22 nF E0 E0 E0 E0 E0 EA EB EB 33 nF EA EA EA EA EA EB EB EB 47 nF EA EA EA EA EA EB EB EB 68 nF EA EA EA EA EA EB EB EB 100 nF EA EA EA EA EA EB EB EB 150 nF EA EA EA EA EA EB 220 nF EA EA EA EA EB EB 330 nF EB EB EB EB EB EB 470 nF EB EB EB EB EB EB 680 nF EB EB EB EB EB EB 1 µF EB EB EB EB EB EB 2.2 µF EB EB EB EB EB 4.7 µF EB EB EB EB 10 µF EB EB EB NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-6 series is on request 3. For product with 5% tolerance, please contact local sales force before ordering CASE SIZE 0805 L (mm) W (mm) T (mm) DIMENSION CODE 2.0 ± 0.1 1.25 ± 0.1 0.6 ± 0.1 E0 2.0 ± 0.2 1.25 ± 0.2 0.85 ± 0.1 EA 2.0 ± 0.2 1.25 ± 0.2 1.25 ± 0.2 EB www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V CAPACITANCE RANGE & THICKNESS FOR X7R Table 5 Size 1206 1206 CAP. 6.3 V 10 V 16 V 25 V 50 V 100V 200V 250V 220 pF F0 F0 F0 F0 F0 F0 F0 F0 330 pF F0 F0 F0 F0 F0 F0 F0 F0 470 pF F0 F0 F0 F0 F0 F0 F0 F0 680 pF F0 F0 F0 F0 F0 F0 F0 F0 1.0 nF F0 F0 F0 F0 F0 F0 F0 F0 1.5 nF F0 F0 F0 F0 F0 F0 F0 F0 2.2 nF F0 F0 F0 F0 F0 F0 F0 F0 3.3 nF F0 F0 F0 F0 F0 F0 F0 F0 4.7 nF F0 F0 F0 F0 F0 F0 F0 F0 6.8 nF F0 F0 F0 F0 F0 F0 F0 F0 10 nF F0 F0 F0 F0 F0 F0 F0 F0 15 nF F0 F0 F0 F0 F0 F0 F0 F0 22 nF F0 F0 F0 F0 F0 F0 FB FB 33 nF F0 F0 F0 F0 F0 F0 FB FB 47 nF F0 F0 F0 F0 F0 F0 FB FB 68 nF F0 F0 F0 F0 F0 FB FB FB 100 nF F0 F0 F0 F0 F0 FB FC FC 150 nF F0 F0 F0 F0 FA FB FC FC 220 nF F0 F0 F0 F0 FA FB FC FC 330 nF F0 F0 F0 F0 F0 FC 470 nF F0 F0 F0 F0 F1 FC 680 nF FA FA FA FA FC FC 1 µF FA FA FA FA FC FC 2.2 µF FA FA FA FA FC FC 4.7 µF FC FC FC FC FC 10 µF FC FC FC FC 22 µF FC FC FD NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-6 series is on request 3. For product with 5% tolerance, please contact local sales force before ordering 4. Please contact local sales force for special ordering code before ordering CASE SIZE 1206 L (mm) W (mm) T (mm) DIMENSION CODE 3.2 ± 0.15 1.6 ± 0.15 0.85 ± 0.1 F0 3.2 ± 0.2 1.6 ± 0.2 1.0 ± 0.1 F1 3.2 ± 0.2 1.6 ± 0.2 1.15 ± 0.1 FA 3.2 ± 0.3 1.6 ± 0.2 1.25 ± 0.2 FB 3.2 ± 0.3 1.6 ± 0.2 1.6 ± 0.2 FC 3.2 ± 0.3 1.6 ± 0.3 1.6 ± 0.3 FD www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V CAPACITANCE RANGE & THICKNESS FOR X7R Table 6 Sizes from 1210 1210 CAP. 6.3 V 10 V 16 V 25 V 50 V 100V 200V 250V 2.2 nF G0 G0 G0 G0 G0 G0 G0 G0 3.3 nF G0 G0 G0 G0 G0 G0 G0 G0 4.7 nF G0 G0 G0 G0 G0 G0 G0 G0 6.8 nF G0 G0 G0 G0 G0 G0 G0 G0 10 nF G0 G0 G0 G0 G0 G0 G0 G0 15 nF G0 G0 G0 G0 G0 G0 G0 G0 22 nF G0 G0 G0 G0 G0 G0 GA GA 33 nF G0 G0 G0 G0 G0 G0 GA GA 47 nF G0 G0 G0 G0 G0 G0 GA GA 68 nF G0 G0 G0 G0 G0 G0 GA GA 100 nF G0 G0 G0 G0 G0 G0 GA GA 150 nF G0 G0 G0 G0 GA GA GA GA 220 nF G0 G0 G0 G0 GA GA GA GA 330 nF G0 G0 G0 G0 GA GA 470 nF GA GA GA GA GA GA 680 nF GA GA GA GA GA G3 1 µF GA GA GA GA GA G3 2.2 µF G3 G3 G3 G3 G3 G3 4.7 µF GB GB GB GB GD GD 10 µF GB GB GB GB GD 22 µF GC GC GC GC 47 µF GC GC NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-6 series is on request 3. For product with 5% tolerance, please contact local sales force before ordering 4. Please contact local sales force for special ordering code before ordering CASE SIZE 1210 L (mm) W (mm) T (mm) DIMENSION CODE 3.2 ± 0.2 2.5 ± 0.2 0.85 ± 0.1 G0 3.2 ± 0.4 2.5 ± 0.3 1.25 ± 0.2 GA 3.2 ± 0.4 2.5 ± 0.3 1.6 ± 0.2 G2 3.2 ± 0.4 2.5 ± 0.3 1.9 ± 0.2 GB 3.2 ± 0.4 2.5 ± 0.3 2.0 ± 0.2 G3 3.2 ± 0.4 2.5 ± 0.3 2.5 ± 0.2 GC 3.2 ± 0.4 2.5 ± 0.3 2.5 ± 0.3 GD www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V Table 7 Sizes from 1812 to 2220 1812 CAP. 2220 50 V 100V 200V 250V 4.7 nF JA JA JA JA 6.8 nF JA JA JA JA 10 nF JA JA JA JA 15 nF JA JA JA JA 22 nF JA JA JA JA 33 nF JA JA JA JA 47 nF JA JA JB JB 68 nF JA JA JB JB 100 nF JB JB JB JB 150 nF JB JB JB JB 220 nF JB JB JC JC 330 nF JB JB JC JC 470 nF JB JC JC JC 680 nF JC JC 1 µF JC JC 50 V KA KA NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-6 series is on request 3. For product with 5% tolerance, please contact local sales force before ordering 4. Please contact local sales force for special ordering code before ordering CASE SIZE 1812 2220 L (mm) W (mm) T (mm) DIMENSION CODE 4.5 ± 0.4 3.2 ± 0.3 0.85 ± 0.1 JA 4.5 ± 0.4 3.2 ± 0.3 1.25 ± 0.2 JB 4.5 ± 0.4 3.2 ± 0.4 1.6 ± 0.2 JC 5.7± 0.4 5.0 ± 0.3 1.15 ± 0.1 KA www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V THICKNESS CLASSES AND PACKING QUANTITY Table 8 SIZE Ø 180 MM / 7 INCH Paper Blister Ø 330 MM / 13 INCH Paper Blister C O D THICKNESS E CLASSIFICATION TAPE WIDTH QUANTITY PER REEL 0201 0.3 ± 0.03 mm 8 mm 15,000 --- 50,000 --- --- 0402 0.5 ± 0.05 mm 8 mm 10,000 --- 50,000 --- 50,000 0603 0.8 ± 0.1 mm 8 mm 4,000 --- 15,000 --- 15,000 0.6 ± 0.1 mm 8 mm 4,000 --- 20,000 --- 10,000 0805 0.85 ± 0.1 mm 8 mm 4,000 --- 15,000 --- 8,000 1.25 ± 0.2 mm 8 mm --- 3,000 --- 10,000 5,000 0.6 ± 0.1 mm 8 mm 4,000 --- 20,000 --- --- 0.85 ± 0.1 mm 8 mm 4,000 --- 15,000 --- --- 1.00 / 1.15 ± 0.1 mm 8 mm --- 3,000 --- 10,000 --- 1.25 ± 0.2 mm 8 mm --- 3,000 --- 10,000 --- 1.6 ± 0.15 mm 8 mm --- 2,500 --- 10,000 --- 1.6 ± 0.2 mm 8 mm --- 2,000 --- 10,000 --- 0.6 / 0.7 ± 0.1 mm 8 mm --- 4,000 --- 15,000 --- 0.85 ± 0.1 mm 8 mm --- 4,000 --- 10,000 --- 1206 1.0 ± 0.1 mm 8 mm --- 3,000 --- 10,000 --- 1.15 ± 0.1 mm 8 mm --- 3,000 --- 10,000 --- 1.15 ± 0.15 mm 8 mm --- 3,000 --- 10,000 --- 1.25 ± 0.2 mm 8 mm --- 3,000 --- --- --- 1.5 ± 0.1 mm 8 mm --- 2,000 --- --- --- 1.6 / 1.9 ± 0.2 mm 8 mm --- 2,000 --- --- --- 2.0 ± 0.2 mm 8 mm --- 2,000 --- --- --- 2.5 ± 0.2 mm 8 mm --- --- --- --- 1.15 ± 0.15 mm 12 mm --- 3,000 --- --- --- 1.25 ± 0.2 mm 12 mm --- 3,000 --- --- --- 1.35 ± 0.15 mm 12 mm --- 2,000 --- --- --- 1.5 ± 0.1 mm 12 mm --- 2,000 --- --- --- 1.6 ± 0.2 mm 12 mm --- 2,000 --- --- --- 1210 1808 1812 QUANTITY PER BULK CASE 1,000 500 2.0 ± 0.2 mm 12 mm --- 2,000 --- --- --- 0.6 / 0.85 ± 0.1 mm 12 mm --- 2,000 --- --- --- 1.15 ± 0.1 mm 12 mm --- 1,000 --- --- --- 1.15 ± 0.15 mm 12 mm --- 1,000 --- --- --- 1.35 ± 0.15 mm 12 mm --- 1,000 --- --- --- 1.5 ± 0.1 mm 12 mm --- 1,000 --- --- --- 1.6 ± 0.2 mm 12 mm --- 1,000 --- --- --- 2.0 ± 0.2 mm 12 mm --- 1,000 --- --- --- 2.5 ± 0.2 mm 12 mm --- 500 --- --- --- www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V PAPER/PE TAPE SPECIFICATION Fig. 3 Paper/PE tape Table 9 Dimensions of paper/PE tape for relevant chip size; see Fig.3 SIZE Unit: mm SYMBOL CODE A0 B0 W E F P0 (1) P1 P2 Ø D0 01005 0.24 ± 0.03 0.45 ± 0.03 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.05 2.0 ± 0.05 2.0 ± 0.05 1.50 ± 0.1 K0 T 0.24 ± 0.03 0.36 ± 0.01 0.38 ± 0.05 (0.47 / 0.55)± 0.10 0201 0.39 ± 0.06 0.70 ± 0.06 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.05 2.0 ± 0.05 2.0 ± 0.05 1.55 ± 0.03 0402 0.70 ± 0.15 1.21 ± 0.12 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.05 2.0 ± 0.05 2.0 ± 0.05 1.50 +0.1 /-0 (0.75 / 0.60)± 0.10 0603 1.05 ± 0.14 1.86 ± 0.13 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.50 +0.1 /-0 (1.05 / 0.95 / 0.75)± 0.10 (1.15 / 1.05 / 0.85)± 0.10 0805 1.50 ± 0.15 2.26 ± 0.20 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.50 +0.1 /-0 (1.05 / 0.95 / 0.75)± 0.10 (1.15 / 1.05 / 0.85)± 0.10 1206 1.90 ± 0.15 3.50 ± 0.20 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.50 +0.1 /-0 (0.95 / 0.75)± 0.10 (0.85 / 0.70)± 0.10 (1.05 / 0.85)± 0.10 4 × 0402 1.50 ± 0.15 2.26 ± 0.20 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.50 +0.1 /-0 (1.05 / 0.95 / 0.75)± 0.10 (1.15 / 1.05 / 0.85)± 0.10 4 × 0603 1.90 ± 0.15 3.50 ± 0.20 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.50 +0.1 /-0 (0.95 / 0.75)± 0.10 (1.05 / 0.85)± 0.10 0508 1.50 ± 0.15 2.26 ± 0.20 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.50 +0.1 /-0 (1.05 / 0.95 / 0.75)± 0.10 (1.15 / 1.05 / 0.85)± 0.10 0612 1.90 ± 0.15 3.50 ± 0.20 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.10 4.0 ± 0.10 2.0 ± .05 1.50 +0.1 /-0 (0.95 / 0.75)± 0.10 (1.05 / 0.85)± 0.10 NOTE 1. P0 pitch tolerance over any 10 pitches is 0.2 mm 2. 4 x 0402 stands for 0508 array 3. 4 x 0603 stands for 0612 array www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V BLISTER TAPE SPECIFICATION For dimension see Table 4 P0 D0 K0 P2 E F cover tape W B0 A0 T2 SCM015 D1 P1 K0: so chosen that the orientation of the component cannot change For W = 8 mm: T2 = 3.5 mm max. For W = 12 mm: T2 = 6.5 mm max. direction of unreeling Fig. 4 Blister tape Table 10 Dimensions of blister tape for relevant chip size; see Fig.4 SYMBOL SIZE A0 B0 CODE Unit: mm K0 W Min. Max. Min. Max. Min. Max. E F Ø D0 Ø D1 Min. P0 (2) P1 P2 T2 Min. Max. 0805 1.29 1.65 2.09 2.60 1.25 1.62 8.1 ± 0.20 1.75 ± 0.1 3.5 ± 0.05 1.5 +0.1/-0.0 1 +0.1/-0.0 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.30 1.67 1206 1.65 2.12 3.30 3.75 1.22 2.15 8.1 ± 0.20 1.75 ± 0.1 3.5 ± 0.05 1.5 +0.1/-0.0 1 +0.1/-0.0 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.27 2.20 1210 2.55 3.02 3.31 3.88 0.97 2.92 8.1 ± 0.20 1.75 ± 0.1 3.5 ± 0.05 1.5 +0.1/-0.0 1 +0.1/-0.0 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.02 2.97 1808 2.05 2.55 4.80 5.45 1.30 2.45 12.1 ± 0.20 1.75 ± 0.1 5.5 ± 0.05 1.5 +0.1/-0.0 1.5 +0.1/-0.0 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.35 2.50 1812 3.35 3.75 4.70 5.33 0.70 2.40 12.1 ± 0.20 1.75 ± 0.1 5.5 ± 0.05 1.5 +0.1/-0.0 1.5 +0.1/-0.0 4.0 ± 0.10 8.0 ± 0.10 2.0 ± 0.05 0.75 2.45 2220 5.12 5.32 5.84 6.04 1.28 1.48 12.0 ± 0.20 1.75 ± 0.1 5.5 ± 0.05 1.5 +0.1/-0.0 1.5 +0.1/-0.0 4.0 ± 0.10 8.0 ± 0.10 2.0 ± 0.05 1.33 1.53 NOTE 1. Typical capacitor displacement in pocket 2. P0 pitch tolerance over any 10 pitches is ±0.2 mm www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V REEL SPECIFICATION W2 C N A HBK039 W1 Fig. 5 Reel Table 11 Reel dimensions; see Fig.5 SYMBOL TAPE WIDTH A N C W1 8 (Ø 178 mm/7") 178 ± 1.0 60 ± 1.0 13 +0.50/-0.20 9.4 ± 1.5 14.4 8 (Ø 330 mm/13") 330 ± 1.0 100 ± 1.0 13 +0.50/-0.20 9.0 ± 0.2 14.4 12 (Ø 178 mm/7") 178 ± 1.0 60 ± 1.0 13 +0.50/-0.20 13.4 ± 1.5 18.4 Unit: mm W2max. P ROPERTIES OF REEL Material: polystyrene Surface resistance: 1.0 µF > 2.2 µF > 4.7 µF Reflow only ≤ 1.0 µF ≤ 2.2 µF ≤ 4.7 µF --- www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors Fig. 6 General Purpose & High Cap. X7R 6.3 V to 250 V Typical capacitance change as a function of temperature Size 0201 10 nF / 16 V Solid lines: Impedance / Dotted lines: ESR Fig. 7 Impedance ESR vs. frequency characteristics for multilayer chip capacitors www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V Size 0402 100 nF / 16 V Solid lines: Impedance / Dotted lines: ESR Fig. 8 Impedance ESR vs. frequency characteristics for multilayer chip capacitors Size 0603 1 µF / 16 V Solid lines: Impedance / Dotted lines: ESR Fig. 9 Impedance ESR vs. frequency characteristics for multilayer chip capacitors www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V Size 0805 1 µF / 16 V Solid lines: Impedance / Dotted lines: ESR Fig. 10 Impedance ESR vs. frequency characteristics for multilayer chip capacitors Size 1206 1 µF / 25 V Solid lines: Impedance / Dotted lines: ESR Fig. 11 Impedance ESR vs. frequency characteristics for multilayer chip capacitors www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V Size 1206 10 µF / 10 V Solid lines: Impedance / Dotted lines: ESR Fig. 12 Impedance ESR vs. frequency characteristics for multilayer chip capacitors www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V TESTS AND REQUIREMENTS Table 14 Test procedures and requirements TEST TEST METHOD PROCEDURE REQUIREMENTS Mounting IEC 6038421/22 4.3 The capacitors may be mounted on printed-circuit boards or ceramic substrates No visible damage Visual Inspection and Dimension Check 4.4 Any applicable method using × 10 magnification In accordance with specification Capacitance (1) 4.5.1 Class II: Within specified tolerance Dissipation Factor (D.F.) (1) 4.5.2 At 20°C, 24 hrs after annealing Cap ≤ 1 µF, f = 1 KHz, measuring at voltage 1 Vrms at 20°C Cap > 1 µF, f = 1 KHz for C ≤ 10 µF, rated voltage > 6.3 V, measuring at voltage 1 Vrms at 20°C f = 1 KHz, for C ≤ 10 µF, rated voltage ≤ 6.3 V, measuring at voltage 0.5 Vrms at 20°C f = 120 Hz for C > 10 µF, measuring at voltage 0.5 Vrms at 20°C Insulation Resistance 4.5.3 At Ur (DC) for 1 minute In accordance with specification NOTE: 1. For individual product specification, please contact local sales. www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V TEST TEST METHOD PROCEDURE REQUIREMENTS Temperature Characteristic IEC 6038421/22 Capacitance shall be measured by the steps shown in the following table. Class II: X7R: ∆ C/C: ±15% 4.6 The capacitance change should be measured after 5 min at each specified temperature stage. Step Temperature(°C) a 25± 2 b Lower temperature± 3°C c 25± 2 d Upper Temperature± 2°C e 25± 2 Class II Capacitance Change shall be calculated from the formula as below C2 - C1 ∆C = x 100% C1 C1: Capacitance at step c C2: Capacitance at step b or d Adhesion 4.7 A force applied for 10 seconds to the line joining the terminations and in a plane parallel to the substrate Force size ≥ 0603: 5N size = 0402: 2.5N size = 0201: 1N www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. TEST TEST METHOD PROCEDURE Bending Strength Mounting in accordance with IEC 60384-22 4.8 X7R 6.3 V to 250 V REQUIREMENTS No visible damage paragraph 4.3 Conditions: bending 1 mm at a rate of 1 mm/s, radius jig 5 mm ∆C/C Class II: X7R: ± 10% Test Substrate: b C X7R: ± 12.5% 4.5 Y NSC 147 Type a b c 0201 0.3 0.9 0.3 0402 0.4 1.5 0.5 0603 1.0 3.0 1.2 0805 1.2 4.0 1.65 unit:mm 1206 1210 2.2 5.0 1.65 2.2 5.0 2.0 1808 3.5 7.0 3.7 40 a 100 Resistance to Soldering Heat 4.9 Precondition: 150 +0/–10°C for 1 hour, then keep for 24 ± 1 hours at room temperature Preheating: for size ≤ 1206: 120°C to 150°C for 1 minute Preheating: for size >1206: 100°C to 120°C for 1 minute and 170°C to 200°C for 1 minute Solder bath temperature: 260 ± 5°C Dimension(mm) Dissolution of the end face plating shall not exceed 25% of the length of the edge concerned ∆C/C Class II: X7R: ± 10% Dipping time: 10 ± 0.5 seconds Recovery time: 24 ± 2 hours D.F. within initial specified value Rins within initial specified value www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V TEST TEST METHOD PROCEDURE REQUIREMENTS Solderability IEC 60384- 4.10 21/22 The solder should cover over 95% of the critical area of each termination Preheated to a temperature of 80°C to 140°C and maintained for 30 seconds to 60 seconds. 1. Temperature: 235± 5°C / Dipping time: 2 ± 0.5 s 2. Temperature: 245± 5°C / Dipping time: 3 ± 0.5 s (lead free) Depth of immersion: 10mm Rapid Change of Temperature 4.11 Preconditioning; 150 +0/–10°C for 1 hour, then keep for 24 ± 1 hours at room temperature 5 cycles with following detail: 30 minutes at lower category temperature 30 minutes at upper category temperature Recovery time 24 ± 2 hours Damp Heat with Ur Load IEC 60384- 4.13 21/22 1. Preconditioning, Class II only: 150 +0/-10°C /1 hour, then keep for 24 ± 1 hour at room temp 2. Initial measure: Spec: refer to initial spec C, D, IR 3. Damp heat test: 500 ± 12 hours at 40 ± 2 C; 90 to 95% R.H. 1.0 Ur applied 4. Recovery: Class II: 24 ± 2 hours 5. Final measure: C, D, IR P.S. If the capacitance value is less than the minimum value permitted, then after the other measurements have been made the capacitor shall be preconditioned according to “IEC 60384 4.1” and then the requirement shall be met. * Note No visual damage ∆C/C Class II: X7R: ± 15% D.F. meet initial specified value Rins meet initial specified value No visual damage after recovery ∆C/C Class II: X7R: ± 15% D.F. Class II: X7R ≤ 16V: ≤ 7% or 2 x initial value whichever is greater ≥ 25V: ≤ 5% or 2 x initial value whichever is greater Rins Class II: X7R: ≥ 500 MΩ or Rins x Cr ≥ 25s whichever is less ∆C/C Class II: X7R: ± 20% D.F. Class II: X7R: 2 x initial value max Rins Class II: X7R: 500 MΩ or Rins x Cr ≥ 5s whichever is less www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V * Note 0201 ≤ 6.3V 10V 16V 25V 50V Product Type 0805 1206 1210 100pF to 10nF 100pF to 100nF 100pF to 470nF 220pF to 1µF 220pF to 1µF 2.2nF to 1µF General Purpose 15nF to 100nF 220nF to 2.2µF 560nF to 4.7µF 2.2µF to 10µF 2.2µF to 22µF 2.2µF to 47µF High Capacitance 100pF to 10nF 100pF to 100nF 100pF to 470nF 220pF to 1µF 220pF to 1µF 2.2nF to 1µF General Purpose 560nF to 4.7µF 2.2µF to 10µF 2.2µF to 22µF 2.2µF to 47µF High Capacitance 100pF to 10nF 100pF to 100nF 100pF to 470nF 220pF to 1µF 220pF to 1µF 2.2nF to 1µF General Purpose 560nF to 2.2µF 2.2µF to 10µF 2.2µF to 22µF 2.2µF to 22µF High Capacitance 100pF to 10nF 100pF to 100nF 100pF to 470nF 220pF to 1µF 220pF to 1µF 2.2nF to 1µF General Purpose 560nF to 1µF 2.2µF to 4.7µF 2.2µF to 10µF 2.2µF to 22µF High Capacitance 100pF to 47nF 100pF to 220nF 220pF to 1µF 220pF to 1µF 2.2nF to 1µF 4.7nF to 1µF General Purpose 560nF to 1µF 2.2µF 2.2µF to 4.7µF 2.2µF to 10µF High Capacitance 100pF to 10nF 100pF to 100nF 220pF to 1µF 220pF to 1µF 100nF 0402 1812 0603 X7R 220nF to 1µF 220nF 100pF to 1nF 100V 200V/250V 100nF 2.2µF 2.2nF to 1µF 4.7nF to 470nF General Purpose 2.2µF to 4.7µF High Capacitance 220pF to 22nF 220pF to 100nF 220pF to 220nF 2.2nF to 220nF 4.7nF to 470nF General Purpose www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors TEST Endurance General Purpose & High Cap. X7R TEST METHOD PROCEDURE REQUIREMENTS IEC 6038421/22 1. Preconditioning, class 2 only: 150 +0/-10 °C /1 hour, then keep for 24 ± 1 hour at room temp No visual damage 4.14 2. Initial measure: Spec: refer to initial spec C, D, IR 3. Endurance test: Temperature: X7R: 125 °C Specified stress voltage applied for 1,000 hours: Applied 2.0 x Ur for general products* Applied 1.5 x Ur for high cap. Products* 4. Recovery time: 24 ± 2 hours 5. Final measure: C, D, IR 6.3 V to 250 V ∆C/C Class II: X7R: ± 15% D.F. Class II: X7R ≤ 16V: ≤ 7% or 2 x initial value whichever is greater ≥ 25V: ≤ 5% or 2 x initial value whichever is greater P.S. If the capacitance value is less than the minimum value permitted, then after the other measurements have been made the capacitor shall be preconditioned according to “IEC 60384 4.1” and then the requirement shall be met. * Note Rins Class II: X7R: ≥ 1,000 MΩ or Rins x Cr ≥ 50s whichever is less ∆C/C Class II: X7R: ± 20% D.F. Class II: X7R: 2 x initial value max Rins Class II: X7R: 1,000 MΩ or Rins x Cr ≥ 10s whichever is less * Note X7R 0201 ≤6.3V 10V 16V 25V 50V 0402 1206 1210 100pF to 10nF 100pF to 100nF 100pF to 470nF 220pF to 1µF 220pF to 1µF 2.2nF to 1µF 200% x Rated voltage 100nF 560nF to 4.7µF 2.2µF to 10µF 2.2µF to 22µF 2.2µF to 47µF 150% x Rated voltage 100pF to 10nF 100pF to 100nF 100pF to 470nF 220pF to 1µF 220pF to 1µF 2.2nF to 1µF 200% x Rated voltage 560nF to 4.7µF 2.2µF to 10µF 2.2µF to 22µF 2.2µF to 47µF 150% x Rated voltage 100pF to 10nF 100pF to 100nF 100pF to 470nF 220pF to 1µF 220pF to 1µF 2.2nF to 1µF 200% x Rated voltage 560nF to 2.2µF 2.2µF to 10µF 2.2µF to 22µF 2.2µF to 22µF 150% x Rated voltage 100pF to 10nF 100pF to 100nF 100pF to 470nF 220pF to 1µF 220pF to 1µF 2.2nF to 1µF 200% x Rated voltage 2.2µF to 10µF 2.2µF to 22µF 150% x Rated voltage 2.2nF to 1µF 220nF to 2.2µF 220nF to 1µF 220nF 0603 560nF to 1µF 100pF to 1nF 100V 250V 0805 2.2µF to 4.7µF 100pF to 47nF 100pF to 330nF 220pF to 1µF 220pF to 1µF 100nF 470nF to 1µF 2.2µF to 4.7µF 2.2µF to 10µF 100pF to 10nF 100pF to 100nF 220pF to 680nF 220pF to 1µF 2.2µF 1µF 220pF to 22nF 2.2µF 2.2nF to 1µF 1812 4.7nF to 1µF 2220 Test voltage 470nF to 1µF 200% x Rated voltage 150% x Rated voltage 4.7nF to 1µF 2.2µF to 4.7µF 220pF to 100nF 220pF to 100nF 2.2nF to 220nF 4.7nF to 470nF 200% x Rated voltage 150% x Rated voltage 150% x Rated voltage www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V TEST TEST METHOD PROCEDURE REQUIREMENTS Voltage Proof IEC 60384-1 1. Specified stress voltage applied for 1~5 seconds 2. Ur ≤ 100 V: series applied 2.5 Ur 3. 100 V < Ur ≤ 200 V series applied (1.5 Ur + 100) 4. 200 V < Ur ≤ 500 V series applied (1.3 Ur + 100) Charge/Discharge current is less than 50 mA No breakdown or flashover 4.6 www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V REVISION HISTORY REVISION DATE Version 26 Nov. 19, 2024 CHANGE NOTIFICATION - DESCRIPTION - Add 0201, 100nF, 10V - Add 0805, 68nF to 100nF, 200V/250V - Add 1206, 150nF to 220nF, 200V/250V - 1812 Dimension updated Version 25 May 31, 2024 - - Add X7R/1210/100V/4.7uF Version 24 Mar. 12, 2024 - - Modify X7R/0805/15nF to 22nF/100V dimension typo. Version 23 Nov. 29, 2023 - - 0805, 100V, 5.6nF to 10nF dimension updated Version 22 Oct. 07, 2022 - - 1206/4.7uF/6.3V to 16V I.R. updated Version 21 Sep. 06, 2022 - - Add 100V to 250V product range. - Dissipation factor and I.R. spec updated Version 20 Sep. 8, 2020 - - 0402, 220nF to 470nF, 10V Insulation resistance after 1 minute at Ur (DC) updated Version 19 Aug. 17, 2020 - - Add 0402/220nF/25V Version 18 May. 11th, 2017 - - Add 1210/10uF/50V Version 17 Mar. 7th, 2017 - - 0805 L4 spec updated Version 16 Dec. 7th, 2016 - - Dimension updated Version 15 Oct. 3rd, 2016 - - Dimension updated, Soldering recommendation updated Version 14 May 31st, 2016 - - Dimension updated Version 13 Dec. 30, 2015 - - Dimension on 0603 and 1206 case size updated Version 12 May 26, 2015 - - 1210, 25V dissipation factor updated Version 11 Jan. 06, 2015 - - 0402, 100nF, 50V Dissipation factor (D.F.) updated. Version 10 Jul. 08, 2014 - - Dimension updated Version 9 Aug. 19, 2013 - - Dimension updated Version 8 Oct. 13, 2011 - - Dimension updated Version 7 Jan. 13, 2011 - - Dimension updated Version 6 Oct. 13, 2010 - - Rated voltage of 0201 extend to 50 V - Dimension updated - 50V Dissipation factor(D.F) updated - Capacitance range of 0201 X7R 6.3V to 16V extend to 100 pF - Capacitance range of 0805 X7R 10V extend to 10 µF - Capacitance range of 0805 X7R 50V extend to 1 µF - Capacitance range of 1210 X7R 10V extend to 22 µF - Figures of impedance ESR updated Version 5 Jul 27, 2010 - - Dimension on 0603 and 1206 case size updated - 16V to 25V Dissipation factor(D.F) updated Version 4 Apr 21, 2010 - - The statement of "Halogen Free" on the cover added - Dimension updated Version 3 Oct 26, 2009 - - Capacitance range of 0402 X7R 25 V extend to 100 nF - 16V Dissipation factor updated www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors REVISION HISTORY REVISION DATE CHANGE NOTIFICATION General Purpose & High Cap. X7R 6.3 V to 250 V DESCRIPTION Version 2 May 11, 2009 - - Product range updated Version 1 Apr 24, 2009 - - Ordering code updated Version 0 Apr 15, 2009 - - New datasheet for general purpose and high capacitance X7R series with RoHS compliant - Replace the "6.3V to 50V" part of pdf files: X7R_10V_9, X7R_16V-to100V_9, X7R_16-to-500V_9, UP-X5R_X7R_HighCaps_6.3-to-25V_11, UY-X5R_X7R_HighCaps_6.3-to-25V_11 - Combine 0201 from pdf files: UP-NP0X5RX7RY5V_0201_6.3-to50V_2 and UY-NPOX5RX7RY5V_0201_6.3-to-50V_2 - Define global part number - Description of "Halogen Free compliant" added - Test method and procedure updated www.yageo.com Nov. 19, 2024 V.26 Product specification Surface-Mount Ceramic Multilayer Capacitors General Purpose & High Cap. X7R 6.3 V to 250 V LEGAL DISCLAIMER YAGEO, its distributors and agents (collectively, “YAGEO”), hereby disclaims any and all liabilities for any errors, inaccuracies or incompleteness contained in any product related information, including but not limited to product specifications, datasheets, pictures and/or graphics. YAGEO may make changes, modifications and/or improvements to product related information at any time and without notice. YAGEO makes no representation, warranty, and/or guarantee about the fitness of its products for any particular purpose or the continuing production of any of its products. To the maximum extent permitted by law, YAGEO disclaims (i) any and all liability arising out of the application or use of any YAGEO product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for a particular purp ose, non -infringement and merchantability. YAGEO products are designed for general purpose applications under normal operation and usage conditions. Please contact YAGEO for the applications listed below which require especially high reliability for the prevention of defects which might directly cause damage to the third party's life, body or property: Aerospace equipment (artificial satellite, rocket, etc.), Atomic energy -related equipment, Aviation equipment, Disaster prevention equipment, crime prevention equipment, Electric heating apparatus, bu rning equipment, Highly public information network equipment, data-processing equipment , Medical devices, Military equipment, Power generation control equipment, Safety equipment, Traffic signal equipment, Transportation equipment and Undersea equipment, or for any other application or use in which the failure of YAGEO products could result in personal injury or death, or serious property damage. Particularly YAGEO Corporation and its affiliates do not recommend the use of commercial, automotive, and/or CO TS grade products for high reliability applications or manned space flight. Information provided here is intended to indicate product specifications only. YAGEO reserves all the rights for revising this content without further notification, as long as products are unchanged. Any product change will be announced by PCN. www.yageo.com Nov. 19, 2024 V.26
