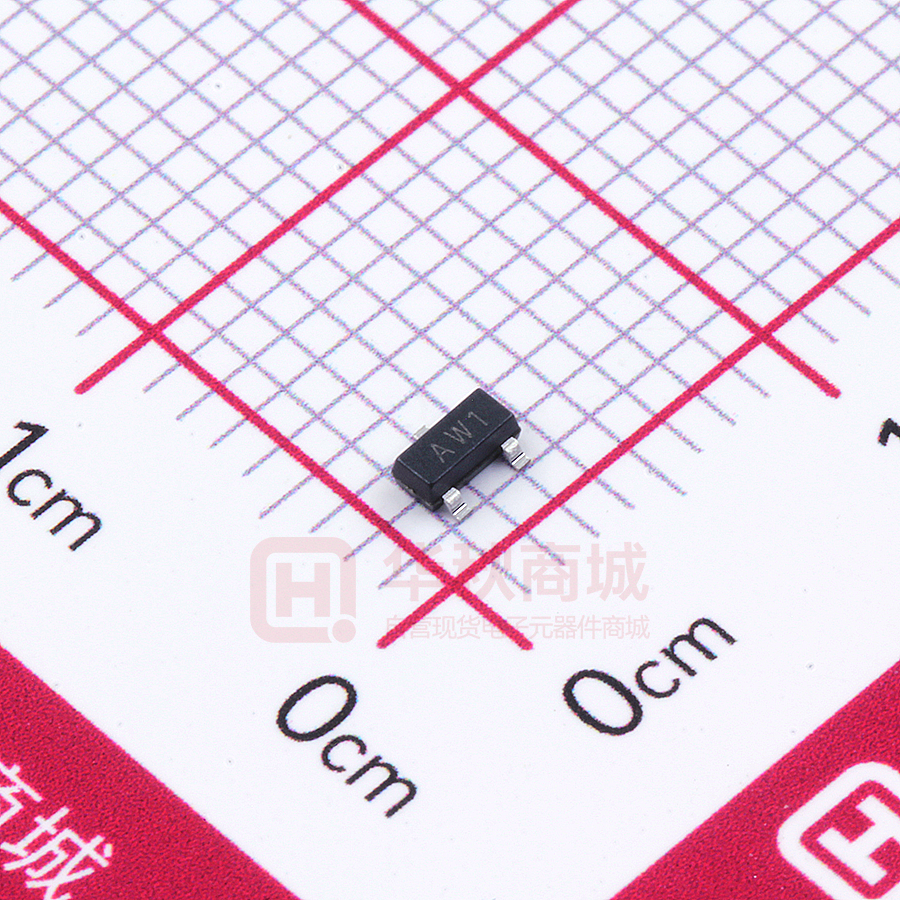

BAW56
Silicon Epitaxial Planar Switching Diode
627
)HDWXUHV
Low forward voltage
Fast reverse recovery time
Small total capacitance
(TXLYDOHQW&LUFXLW
1.Cathode1 2.Cathode2
3.Anode1、 Anode2
3.Anode1、 Anode2
Marking Code : AW1
1.Cathode1 2.Cathode2
$EVROXWH0D[LPXP5DWLQJV7$ ℃
Parameter
Symbol
Value
Unit
VR
70
V
Average Rectified Forward Current
IF(AV)
200
mA
Non-Repetitive Peak Forward Surge Current
IFSM
2
A
Maximum Power Dissipation
PD
225
mW
Junction Temperature
TJ
150
°C
TSTG
-55 to +150
°C
Reverse Voltage
Storage Temperature Range
(OHFWULFDO&KDUDFWHULVWLFV7$ ℃
Parameter
Symbol
Typ.
Max.
Unit
--
0.715
--
0.855
at IF = 50 mA
--
1
at IF = 150 mA
--
1.25
V(BR)R
70
--
V
IR
--
2.5
μA
Cj
--
1.5
pF
Trr
--
6
nS
Forward Voltage
at IF = 1 mA
at IF = 10 mA
Reverse Breakdown Voltage
at IR = 100 µA
Reverse Current
at VR = 70 V
Typical Junction Capacitance
at VR = 0 V, f = 1 MHz
Maximum Reverse Recovery Time
at IF = IR =10 mA, IRR = 0.1×IR, RL = 100Ω
www.pingjingsemi.com
Revision:2.0 Jun-2021
VF
V
BAW56
Silicon Epitaxial Planar Switching Diode
Typical Characteristic Curves
10000
200
Pulsed
Pulsed
100
Ta=100C
Reverse Current IR (nA)
a
C
=1
00
C
10
T
a
=2
5
T
Forward Current IF (mA)
1000
1
100
Ta=25C
10
0.1
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1
1.1
0
20
Forward Voltage VF (V)
40
60
80
100
Reverse Voltage VR (V)
1.4
400
Ta=25C
1.3
Power Dissipation PD (mW)
Capacitance Between Terminals CT (pF)
f=1MHz
1.2
1.1
1.0
0
4
8
12
Reverse Voltage VR (V)
www.pingjingsemi.com
Revision:2.0 Jun-2021
16
20
300
200
100
0
0
25
50
75
100
125
150
Ambient Temperature TA (℃)
2/3
BAW56
Silicon Epitaxial Planar Switching Diode
Package Outline
SOT-23
Dimensions in mm
Ordering Information
Device
Package
Shipping
BAW56
SOT-23
3,000PCS/Reel&7inches
www.pingjingsemi.com
Revision:2.0 Jun-2021
3/3
