Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1)
SPECIFICATION
CD Series (Y1-Series)
Company and Factory Name: SHANTOU FREE TRADE ZONE SONGTIAN ELECTRONIC TECHNOLOGY CO.,LTD
Add: Songtian science and technology park,Free trade zone,Shantou,City,Guangdong,China.
E-mail: info@songtian.cn P.O.BOX: 515071
Homepage: http://songtian-ste.com
1
Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1)
Contents
1. Applications.......................................................................................................................................................3
2. Part Number Code........................................................................................................................................... 3
3. Electrical Characteristics.................................................................................................................................4
4. Dimensions....................................................................................................................................................... 4
5. nternal Structure...............................................................................................................................................6
6. Marking.............................................................................................................................................................. 6
7. Temperature Characteristic Curves.............................................................................................................. 7
8. Taping And Dimensions.................................................................................................................................. 7
9. Safety Certificate.............................................................................................................................................. 8
10. Performance Test Methods And Requirements........................................................................................8
11. Reliability Test Methods And Requirements............................................................................................. 9
12. Storage Conditions......................................................................................................................................11
13. Environmental Compliance........................................................................................................................ 11
14. Packaging..................................................................................................................................................... 12
2
Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1)
1. Applications
Can be used for power supply noise suppression circuit in cross connection and bypass.It is a primary
and secondary coupling X/Y capacitor used as AC line filter and switching power supply and AC
converter.
2. Part Number Code
Q
Rated
Voltage
Q:Y1
09
F
1
Temperatur
e
Characteris
tic
S:SL
B:Y5P
E:Y5U
F:Y5V
D
Pitch
D:10.0mm
M
N0
Tolerance
K:±10%
M:±20%
B
0
S
Package
B: Bulk
T:Tape
0
N
0
Inner
Management
Environmental
Standard
0:RoHS
2:RoHS+Halogen-Free
Foot Type
1:Long straight
2:Outside Crimped
3:Short Straight
8:Vertical Crimped
Core Diameter
07:7mm
08:8mm
09:9mm
10:10mm
11:11mm
12:12mm
222
Lead Length
S0~S9:1.0~1.9mm
X0~X9:2.0~2.9mm
A0~A9:3.0~3.9mm
B0~B9:4.0~4.9mm
C0~C9:5.0~5.9mm
D0~D9:6.0~6.9mm
E0~E9:7.0~7.9mm
Nominal capacitance
101:100pF
151:470pF
221:470pF
331:470pF
471:470pF
102:1000pF
152:1500pF
222:2200pF
472:4700pF
3
Lead Length
F0~F9:8.0~8.9mm
G0~G9:9.0~9.9mm
H0~H9:10.0~10.9mm
J0~J9:11.0~11.9mm
K0~K9:12.0~12.9mm
L0~L9:13.0~13.9mm
M0~M9:14.0~14.9mm
Lead Length
M0~M9:14.0~14.9mm
N0:16~27.0mm(Bulk)
Crimped Lead Taped
N0:H0=16.5mm
P0:H0=17.0mm
Q0:H0=19.0mm
Straight Lead
Q0:20.0mm
Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1)
3. Electrical Characteristics
Capacitance and Dissipation factor
testing condition
SL: 25℃, 1MHz, 1Vrms
Y5P/Y5U/Y5V:25℃, 1KHz, 1Vrms
Dissipation Factor(tanδ)
S(SL): D.F.≤0.15%
B(Y5P), E(Y5U), F(Y5V): D.F.≤2.5%
Rated Voltage
400VAC
Withstand Voltage
4000VAC
Insulation Resistance (I.R.)
≥10000MΩ
Temperature Characteristic
SL, Y5P, Y5U, Y5V
4. Dimensions
PN of STE
Dimension (mm)
D Max
T Max
L Min
F±0.8
Φd±0.05
Q07B1D101KN0B0
S0N0
7.0
4.0
16.0
10.0
0.6
9.5
2.5
Example 2
Bulk
Q07B1D221KN0B0
S0N0
7.0
5.0
16.0
10.0
0.6
9.5
2.5
Example 2
Bulk
Q08B1D331KN0B0
S0N0
8.5
5.0
16.0
10.0
0.6
11.0
2.5
Example 2
Bulk
Q09B1D471KN0B0
S0N0
9.0
5.0
16.0
10.0
0.65
11.5
2.5
Example 1
Bulk
4
H1 Max c Max Marking
Packing
Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1)
Q12B1D102KN0B0
S0N0
12.0
5.5
16.0
10.0
0.65
15.0
3.0
Example 1
Bulk
Q07E1D331KN0B0
S0N0
7.0
5.0
16.0
10.0
0.6
9.5
2.5
Example 2
Bulk
Q07E1D471KN0B0
S0N0
7.0
5.0
16.0
10.0
0.6
9.5
2.5
Example 2
Bulk
Q08E1D102MN0B0
S0N0
8.0
5.0
16.0
10.0
0.6
10.5
2.5
Example 2
Bulk
Q10E1D152MN0B0
S0N0
10.0
5.0
16.0
10.0
0.65
12.5
2.5
Example 1
Bulk
Q11E1D222MN0B0
S0N0
11.0
5.0
16.0
10.0
0.65
14.0
3.0
Example 1
Bulk
Q08F1D152MN0B0
S0N0
8.0
5.0
16.0
10.0
0.6
10.5
2.5
Example 2
Bulk
Q09F1D222MN0B0
S0N0
9.0
5.0
16.0
10.0
0.65
11.5
2.5
Example 1
Bulk
Q07B1D101KQ0T0
S0N0
7.0
4.0
/
10.0
0.6
9.5
2.5
Example 2
Taping
Q07B1D151KQ0T0
S0N0
7.0
4.0
/
10.0
0.6
9.5
2.5
Example 2
Taping
Q07B1D221KQ0T0
S0N0
7.0
5.0
/
10.0
0.6
9.5
2.5
Example 2
Taping
Q07E1D331KQ0T0
S0N0
7.0
5.0
/
10.0
0.6
9.5
2.5
Example 2
Taping

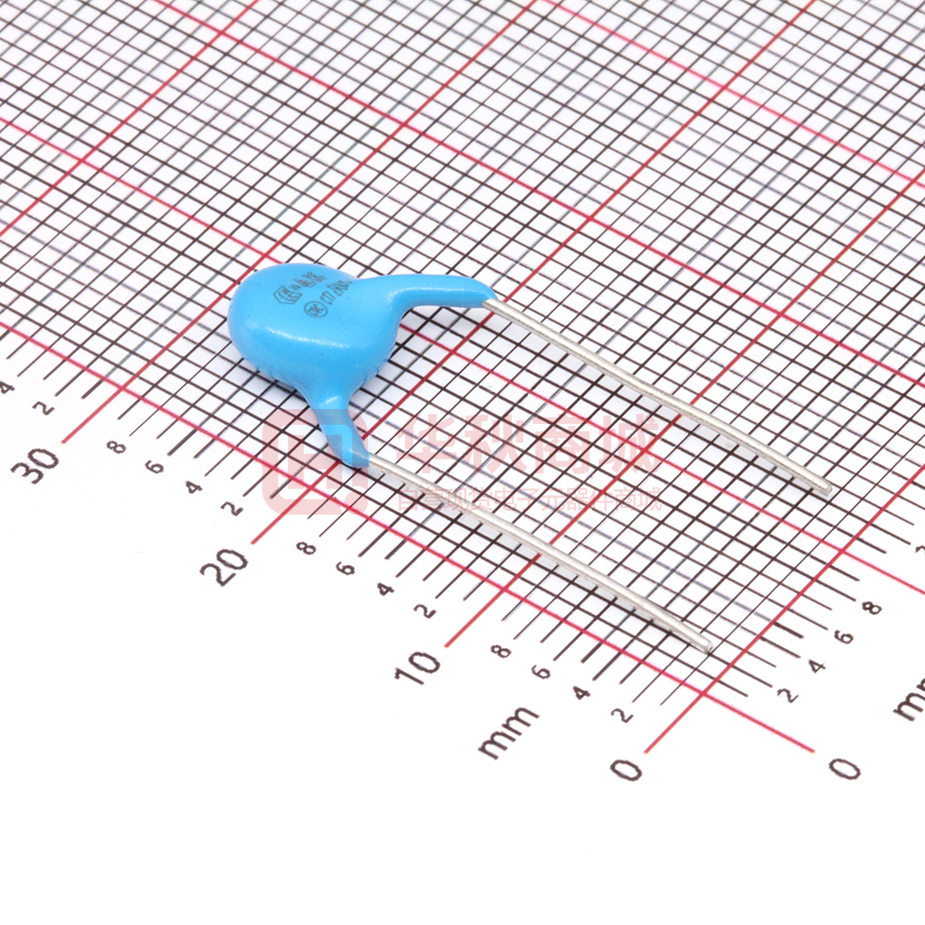

Q08E1D102MQ0T0
S0N0
8.0
5.0
/
10.0
0.6
10.5
2.5
Example 2
Taping
Q09F1D222MQ0T0
S0N0
9.0
5.0
/
10.0
0.65
11.5
2.5
Example 1
Taping
Q12F1D472MQ0T0
S0N0
12.0
5.5
/
10.0
0.65
15.0
3.0
Example 1
Taping
5
Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1)
5. Internal Structure
No.
Name
Material
1
Electrode
Metal Layer
2
Ceramic Dielectric
Ceramic
3
Lead Free
Tin Bar
4
Lead Wire
CP wire
5
Coating
Epoxy Resin
6
Marking
Laser marking
Note
Color:Blue
6. Marking
①Registered Trademark
Type(CD:Y1)
□□□
M (±20%)
②CD
③Nominal Capacitance
④Capacitance Tolerance
ENEC(EU)
VDE
⑤Safety Certification
Sign
KTL
CQC
UL
⑥Rated Voltage
400V~(400VAC)
⑦Sub-Class of
X1 Y1
Safety Performance
Example 1:Y1 Single Sided Printing
Example 1: Y2 Double Sided Printing
6
Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1)
7. Temperature Characteristic Curves
8. Taping And Dimensions
Code
Po
P
P1
P2
F
ΔS
Δh
W
Wo
Size(mm)
12.7
25.4
7.7
12.7
10.0
0
0
17.0
10.5
Tolerance
±0.3
±1.0
±0.7
±1.3
±0.8
±2.0
±2.0
+1.5/-1.0
Max
Code
W1
W2
H1
Do
H
L
t1
t2
c
Size(mm)
9.0
3.0
45.0
4.0
20.0
11.0
0.5
1.7
2.5
Tolerance
+0.75/-0.5
Max
Max
±0.2
+1.5/-1
Max
±0.2
Max
Max
7
Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1)
9. Safety Certificate
USA
Canada
Certification
Body
UL
CUL
Korea
KTL
China
CQC
Germany
VDE
EU
ENEC
Country
Report
Reference
Certificate No.
Capacitance
Range
UL60384-14
E208107
10~4700pF
SU03031-19001A
100~4700pF
CQC19001213616
10~4700pF
40025754
10~4700pF
40025754
10~4700pF
K60384-14
(2015)
GB/T
6346.14-2015
En 60384-14:
2017-04
En 60384-14:
2017-04
Rated
Voltage
X1Y1:
400VAC
10. Performance Test Methods And Requirements
No.
1
Item
Standard
Test Method
Temperature Range -25℃~125℃
2
Appearance/Size
3
Marking
4
Capacitance
/
Capacitors must be visually inspect to
No opparent defect,size within the
check if there’s opparent defect and
normal range
measure size with vernier caliper
Clear and easy to recognize
Within the specified tolerance
5
D.F.
S(SL): D.F.≤0.15%
B(Y5P), E(Y5U), F(Y5V):
D.F.≤2.5%
6
I.R.
>10000MΩ
Dielectric
Strength
S(SL): 25 ° C, 1 ± 0.1 MHz, 1.0 V
B(Y5P), E(Y5U), F(Y5V):
25 ° C, 1 ± 0.1 KHz, 1.0 V.
500VDC, 60s±5s .
Between
No breakdown and flashover
Leads
7
Visual inspection
Between
Leads and No breakdown and flashover
Body
8
Between terminals:
AC4000V (r.m.s.), 60s, ≤50mA
As shown in figure at right,a metal foil
should be closely wrapped around the
body of the capacitor to the distance of
about 3 to 4mm from each
terminal.hen,the capacitor
should be inserted into a
container filled with metal
balls of about 1mm
diameter.voltage applied
AC4000V(r.m.s.),60s
Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1)
11. Reliability Test Methods And Requirements
No.
Item
Standard
B(Y5P)
Capacitance
change
+140~-1000ppm/
℃
±10%
E(Y5U)
+22/-56%
Char.
S(SL)
1
Temperature
Characteristics
Test Method
F(Y5V)
+30/-80%
Temperature range:
-25 ~+85℃
2
Solderability
The capacitance measurement should be
made at each step specified in Table 3
< Table 3>
Step
1
2
3
4
5
Temperature 20 -25 20 85 20
(℃)
±2 ±2 ±2 ±2 ±2
Lead wire should be
245±3℃, 3±0.3s.
soldered with uniform
coating on the axial direction Solder composition:
over 95% of the
Sn96.5Ag3.0Cu0.5
circumferential direction.
Appearance No marked defect
3
Solder
Resistance
Heat Up
Capacitance
Within ±10%
change
I.R.
Dielectric
Strength
260 ± 5℃,10.0 ± 0.5 s.
≥1000MΩ
Per 10.1
[Basic characteristics] item7
Appearance No visible damage
4
Vibration
Capacity
D.F.
5
Humidity
(Under
Steady
State)
Appearance
Capacity
Rate of
Change
I.R.
Within the tolerance
S(SL): D.F.≤5%
B(Y5P)/E(Y5U)/F(Y5V):
D.F.≤2.5%
10~55Hz, 0.75mm,
10Hz→55Hz→10Hz. 1min
Apply for a total of 6 hours, 2 hrs each
in 3 mutually perpendicular
directions.
No visible damage
S(SL)/B(Y5P)/
E(Y5U)/F(Y5V): ≤±15%
>5000MΩ
Withstand Per 10.1
Voltage [Basic characteristics] item7
9
40±2℃, 90-95%RH, 500±12 hours.
Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1)
No.
Item
Standard
Test Method
Appearance No visible damage
6
Humidity
Loading
Capacitance S(SL)/B(Y5P)/
E(Y5U)/F(Y5V):
Change ≤±15%
I.R.
Dielectric
Strength
40±2℃, 90~ 95% RH, Apply with UR,500±12 hours.
>5000MΩ
Per 10.1[Basic
characteristics] item7
Impulse Voltage: 8KVDC,three times.
After the capacitors are applied to life test.
Appearance No visible damage
7
Life Test
Capacitance
Within ±20%
change
I.R.
Dielectric
Strength
8
>5000MΩ
125+2/-0℃,relative humidity of 50% max,
1000 hours,1.7*UR (r.m.s.), except that once each
Per 10.1[Basic
hour the voltage is increased to AC1000V(r.m.s.) for
characteristics] item7
0.1 sec.
The Varistor under test shall be held in the flame in
the position which best promotes
burning. Each specimen shall be exposed once in
the flame.
Specifically as follows: level C requirements.
Capacitor volume (mm3) Apply flame time
(S)
Passive The burning time shall not be
exceeded the standard.
Flammability
The tissue paper shall ignite.
9
250<
volume≤
500
500<
volume≤
1750
volume
>1750
Maximum
burning
time
(S)
A
B
15
10
30
20
60
30
120
60
3
10
C
5
10
20
30
30
As shown in the figure at right,
10N, 10±1 sec.
Tensile Strength
Robustness
of
Termination
Class
volume
<250
Lead wire should
not be cut off.
Capacitor should Each lead wire should be subjected to 5N weight
not be broken. and then a 90° bend, at the point of egress, in one
Bending Strength
direction, return to original position, and then apply
a 90° bend in the opposite direction at the rate of
one bend in 2 to 3 sec.
10
Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1)
No.
10
Item
Standard
Test Method
No visible
Capacitors should be tested in the order shown in the
Appearance
damage
following table (for one cycle) for five consecutive cycles.
Temperature cycling
S(SL)/B(Y5P)/
Capacitance E(Y5U):
(℃)
Order
(min)
Rate of
±20%;
1
-25 +0/-3
30
Change
F(Y5V): ±30%。
2
+25 +0/-3
3
Rapid
S(SL)/B(Y5P)/E
3
125 +3/-0
30
Temperature
(Y5U):
4
+25 +0/-3
3
D.F.
D.F.≤5.0%
Changes
F(Y5V):
[Pre-treatment]:
D.F.≤7.5%
Stored at 85 ± 2 ° C , 1 hour and then 24 ± 2 hours before
I.R.
>5000MΩ
making initial measurements.
Per 10.1[Basic [Treatment After testing]:
Withstand
characteristics] Capacitors must be stored at room temperature for 24 ± 2
Voltage
hours.
item7
12. Storage Conditions
12.1 Storage Temperature: ≤35℃.
12.2 Relative Humidity: ≤70% RH.
12.3 Keep away from corrosive atmosphere and sunlight.
12.4 Period : 1 year.
13. Environmental Compliance:
RoHS Compliance
REACH Compliance
11
Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1)
14. Packaging
External Packaging (Bulk)
Internal Packaging (Bulk)
External Packaging (Taping)
Internal Packaging (Taping)
Dimension Description (cm)
External Packaging (Bulk)
Internal Packaging (Bulk)
L
B
H
L
B
H
41.0
29.0
16.0
18.6
27.3
12.6
External Packaging (Taping)
L
B
H
54.0
36.0
26.3
Internal Packaging (Taping)
B
A
C
4.4
33.5
26.2
12
Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1)
SPQ Reference Table
Type
Specification
P=5 B
P=7.5 E
Bulk
P=10
Type
D
SPQ Quantity
Long Lead/Short Lead Φ≤13
500
Long Lead/Short Lead Φ≤8
1000
Long Lead/Short Lead Φ>8
500
Short lead
1000
Long Lead
500
Long Lead 14≦Φ
