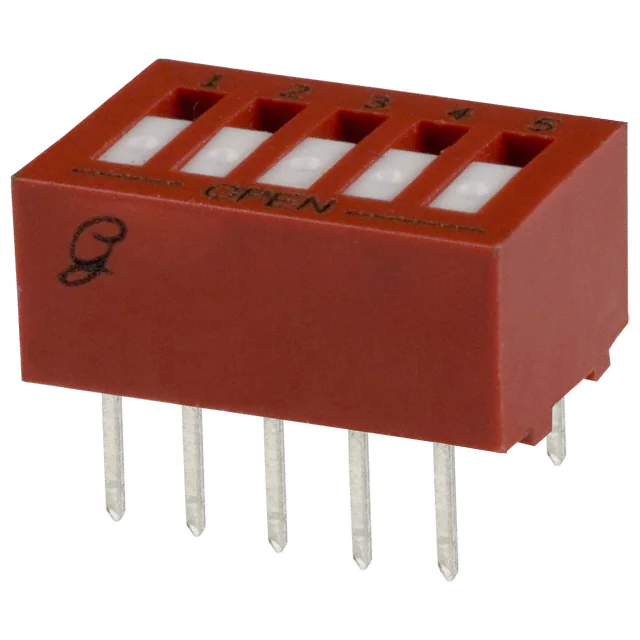

76RSB05ST

Thru-Hole DIP Switches SERIES 76 SPST Rocker FEATURES • Raised and Recessed, Rocker and PIANO-DIP® Styles • Sealed Base Standard • Spring and Ball Contact • Top Tape Seal Option DIP Switches DIMENSIONS In inches (and millimeters) Side Actuated PIANO-DIP® PIANO-DIP® End Views Rocker and Recessed Rocker B = .156 ± .010 (3,96 ± 0,25) TYPICAL .020 + .005 –.000 (0,51 + 0,13) LENGTH ± .010 (±0,25) SEE ORDER INFO. 1 2 3 4 5 6 7 LENGTH ± .010 (±0,25) SEE ORDER INFO. .281 ± .010 (7,14 ± 0,25) TYP. .380 ± .010 (9,65 ± 0,25) B .012 ± .001 (0,30 ± 0,03) .300 + .030 –.000 (7,62 + 0,76) A = .272 ± .010 (6,91 ± 0,25) .380 ± .010 (9,65 ± 0,25) OPEN OPEN C L C L Rocker 1 2 3 4 5 6 7 8 A .295 + .000 –.020 (7,49 –0,51) .156 ± .010 (3,96 ± 0,25) TYP. .020 + .005 –.000 (0,51 + 0,13) .012 ± .001 (0,30 ± 0,03) .300 + .030 –.000 (7,62 + 0,76) .020 ± .002 (0,51 ± 0,05) See also end view. .090 ± .005 (2,29 ± 0,13) .100 ± .005 (2,5 ± 0,13) .020 ± .002 (0,51 ± 0,05) .090 ± .005 (2,29 ± 0,13) .100 ± .005 (2,5 ± 0,13) See also end view. C L C L For recessed rockers, delete .295 dimension. CIRCUITRY Styles 76SB and 76RSB Style 76PSB UP IS OPEN (OFF) Styles 76PRB UP IS CLOSED (ON) Typical circuit diagram with actuator in the closed position. Actuator shown in the down position. Actuator shown in the down position. ORDERING INFORMATION Series Switch Style: SB = Raised Rocker RSB = Recessed Rocker PSB = Piano-DIP (Up is Off) PRB = Piano-DIP (Up is On) 76RSB04ST T = RoHS compliant Sealed*: S = Tape Seal Number of Positions: 02 through 10, 12 No. of Pos. 2 3 4 5 6 7 8 9 10 12 Length (Inches) 0.280" 0.380" 0.480" 0.580" 0.680" 0.780" 0.880" 0.980" 1.080" 1.280" Length (Metric) 7,1 mm 9,7 mm 12,2 mm 14,7 mm 17,3 mm 19,8 mm 22,4 mm 24,9 mm 27,4 mm 32,5 mm No./Tube 35 27 21 18 15 13 12 10 9 8 *A top tape seal is required for switches that are machine soldered or heavily cleaned after hand soldering. To order top seal versions, add "S" to the Grayhill part number. Available from your local Grayhill Distributor. For prices and discounts, contact a local Sales Office, an authorized local Distributor or Grayhill. Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com DIP 10
