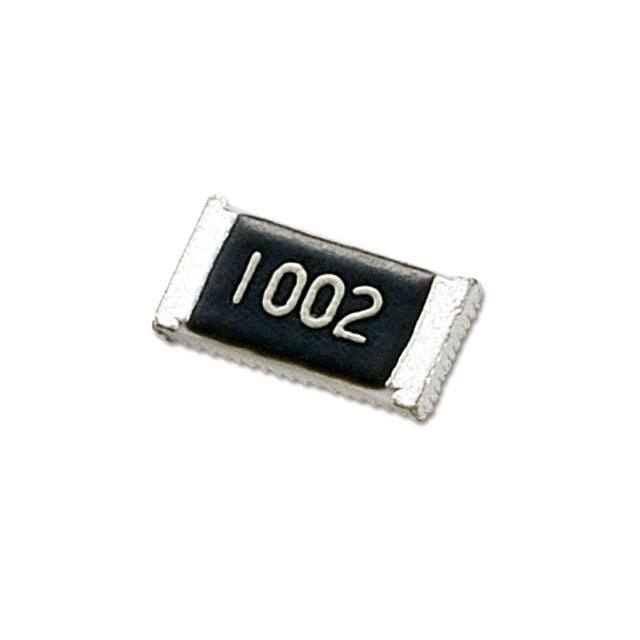

RGV3216P-5603-B-T1

Metal thin film chip resistors (high voltage operation) ■RGV series AEC-Q200 Compliant Features ・High voltage operation is possible because the limiting element voltage is hjgh. (RGV3225 1000V) ・Long term stability with inorganic Passivation. Thin film surface mount resistors ・Resistance tolerance : ±0.1% , TCR : ±25 ppm/℃ ・Thin film structure enabling low noise and anti-sulfur Applications ・Automotive electronics RGT series ・Industrial measurement instrumentation, Industrial machies. ・High voltage circuit and equipment. ◆Part numbering system RGV 3216 P - 2004 - B - T5 T1(1,000pcs) T5(5,000pcs) Series code Resistance tolerance Size：RGV3216, RGV3225 Nominal resistance value(all 4 digit) Temperature coefficient of resistance ◆Electrical Specification Type RGV3216 Power ratings Temperature coefficient of resistance （ppm/℃） Resistance range(Ω) Resistance tolerance ±0.1%（B） ±25(P) 1/4W ±0.5%（D） Maximum voltage Resistance value series Operating temperature E-24, E-96 -55℃∼ 155℃ Packaging quantity 700V 120KΩ≦R≦3MΩ ±50(Q) RGV3225 ±25(P) 1/3W 120KΩ≦R≦4.3MΩ T1 T5 1000V ±50(Q) ◆Dimensions L Type Size （inch） L W a ｂ t RGV3216 1206 3.20±0.20 1.60±0.25 0.50±0.25 0.50±0.20 0.40+0.15/-0.1 RGV3225 1210 3.20±0.20 2.50±0.25 0.50±0.25 0.50±0.20 0.40+0.15/-0.1 W a t b 19 （unit：mm） ◆Reliability specification 規 格 Test items Condition( IEC60115-1/JIS C5201-1) ※1 Standard 85℃, rated voltage , 90min. ON/ 30min. OFF, 1000hours ±0.05%+0.05Ω High temperature high humidity 85℃、85％RH, 1/10 of rated power, 90min. ON/ 30min. OFF, 1000hours ±0.1%+0.05Ω Temperature shock -55℃ (30min) ∼ 125℃(30min) 1000 cycles ±0.1%+0.01Ω High temperature exposure 155℃, no baias, not mounted, 1000h ±0.1%+0.01Ω Resistance to soldering heat 260±5℃, 10seconds (reflow) Thin film surface mount resistors Life (baised) ±0.05%+0.01Ω *1 Rated voltage is given by E= RxP E= rated voltage (V), R=nominal resistance value(Ω), P=rated power(W) If rated voltage exceeds maximum voltage /element, maximum voltage/element is the rated voltage. RGV series Ratio to rated power (％) ◆Derating Curve 100 50 0 -55 0 50 85 100 155 Ambient temperature (℃) 20
