GU1007C-40T & GU1007C-40R 数据手册
規 格 承 認 書
PECIFICATION FOR APPROVAL
客 戶
CUSTOMER
: 立创
項 目
ITEM
: 超声波传感器
型 號
TYPE
: GU1007C-40T/R
描述

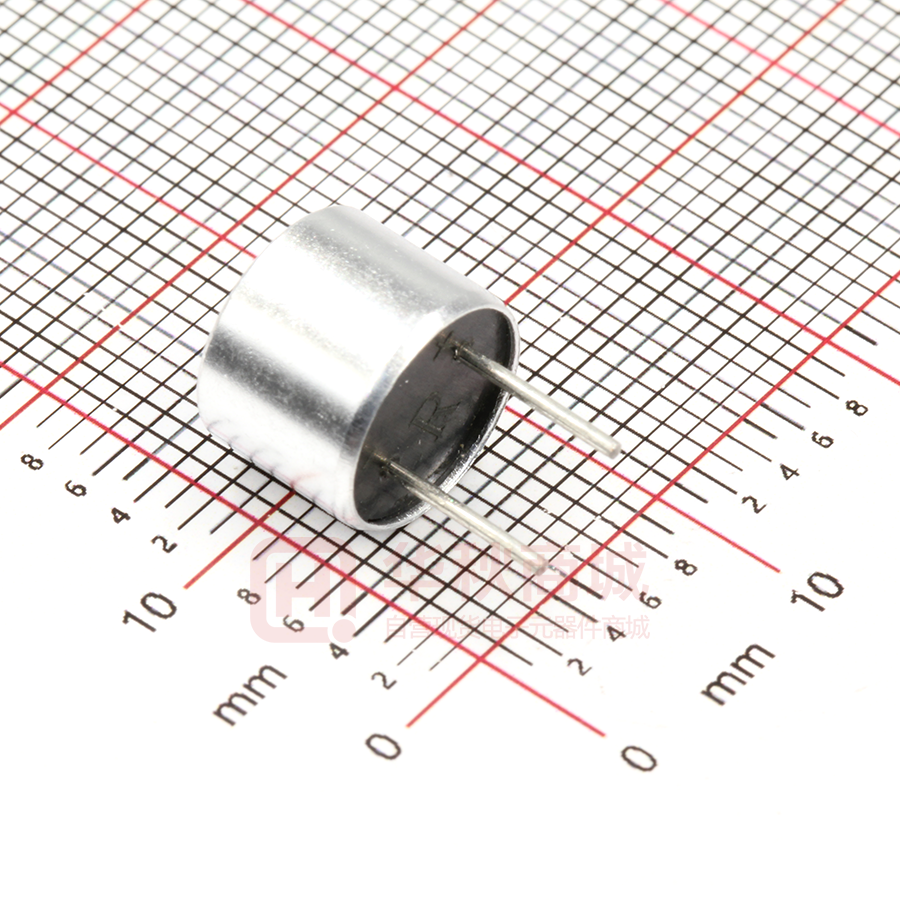

DESCRIPTION : φ10 x H7mm 40KHz
客戶料號
CUSTOMER NO. :
規格書號
SPECIFICATION NO.:
版 本
EDITION NO. :
V1.0
日 期
DATE
:
2018-5-11
开放式, 收发分体
客戶承認
CUSTOMER CONFIRM AND SIGN
檢查
TESTED BY
審核
CHECKED BY
承認
APPROVED BY
東莞市赢海電子有限公司
DONGUAN INGHAI ELECTRONICS CO.,LTD
製作
ISSUED BY
審查
CHECKED BY
周明
李林
地址:廣東省東莞市長安镇上沙第五工业区新春路 1 号新春科技园
電話 / TEL:0769-83060958 傳真 / FAX: 0769-81608993
網址:HTTP://WWW.INGHAI.COM
確認
APPROVED BY
A. Scope
This specification applies Ultrasonic sensor GU1007C-40T/R
B. Characteristics
1.1) Open structure and separate use
1.2) Compact and light weight
1.3) High sensitivity and sound pressure
1.4) Less power consumption
1.5) High reliability
C. Technical terms
No.
Item
Unit
1
Construction
Open
2
Using method
Transmitter/Receiver
3
Nominal Frequency
4
Sensitivity
5
SPL
6
Directivity
7
Capacitance
pF
2200±25%@1KHz
8
Detectable range
m
0.2….6
9
Operating Temperature
℃
-20….+80
10
Housing material
11
Weight
Hz
40K
≥-75dBV/μMbar
dB
≥105 (10V/30cm/sine wave)
80deg
Al
g
D .Drawing
铝壳
Specification
塑壳
1
E. Beam Pattem
-50
灵敏度/Sensitivity (dB)
-60
-70
-80
-90
-100
-110
35
38
40
43
频率/Frequency(kHz)
灵敏度-频率特性图/Sensitivity-Freq.Characteristics
45
48
0°
30°
-10(dB)
30°
-20(dB)
60°
-30(dB)
90°
指向性/Direcivity in Sensitivity
F. Test Circuit
60°
90°
