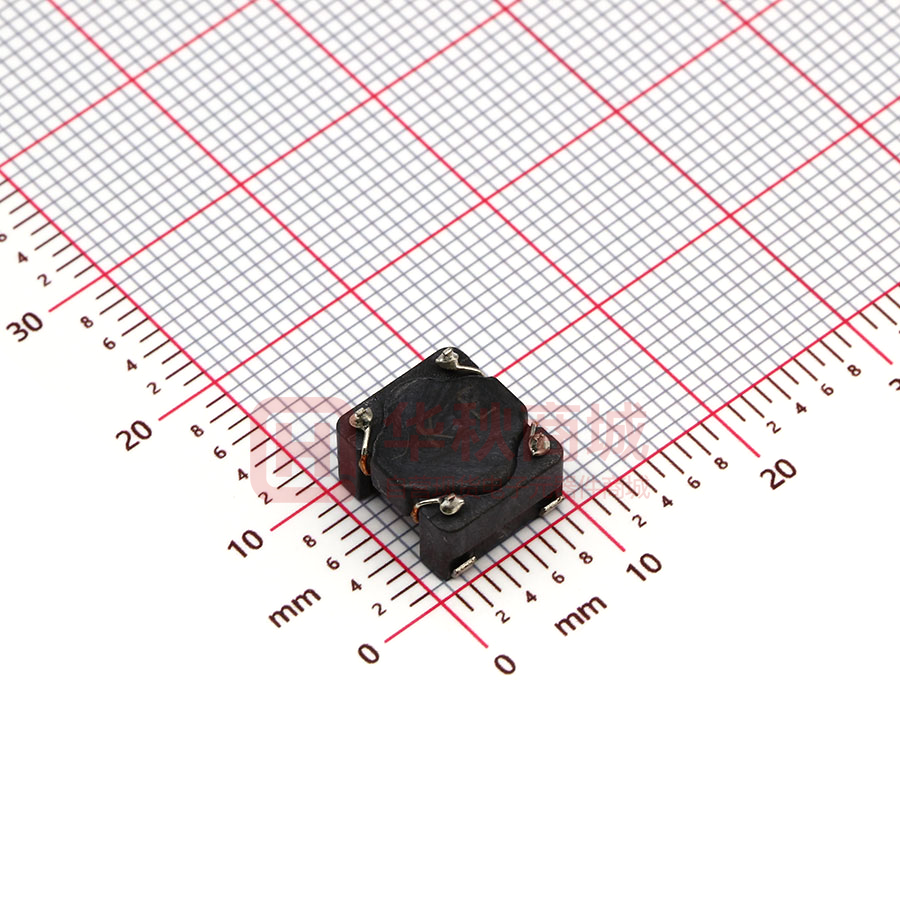

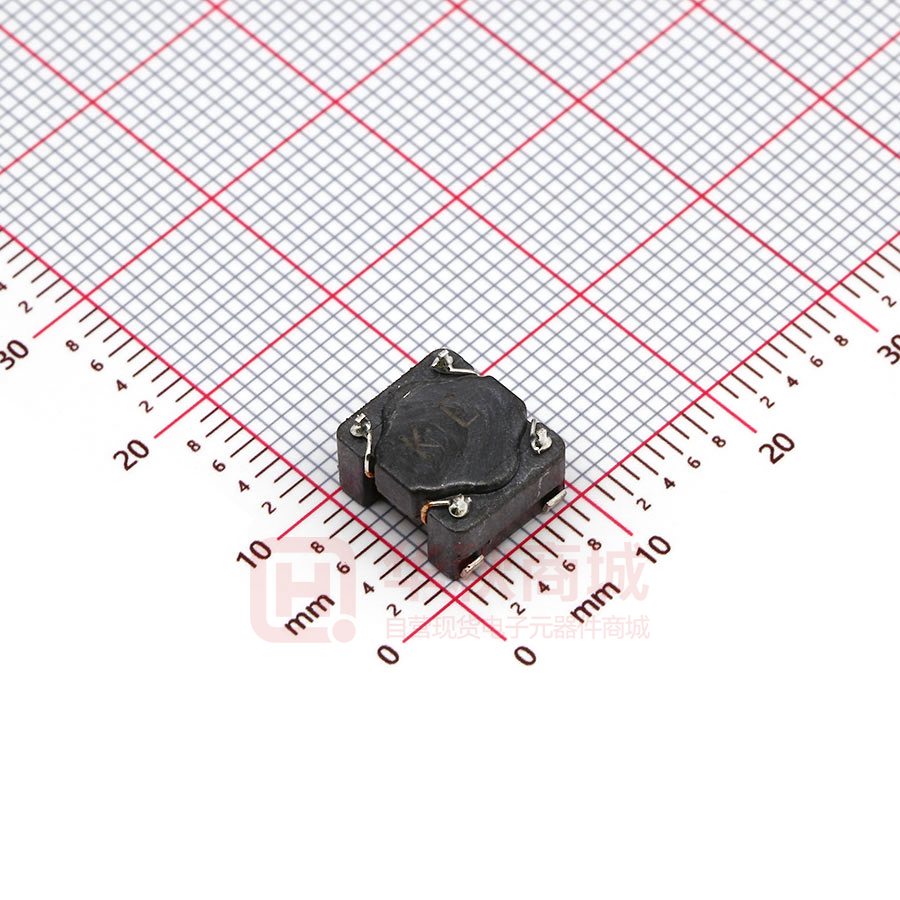

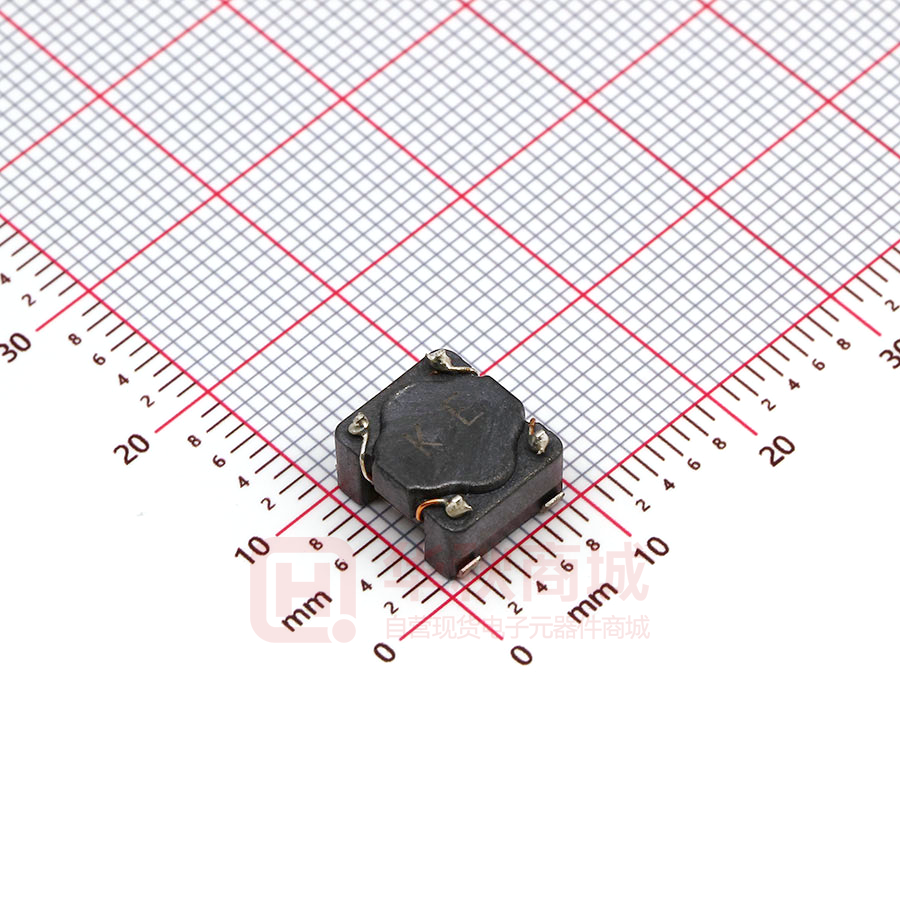

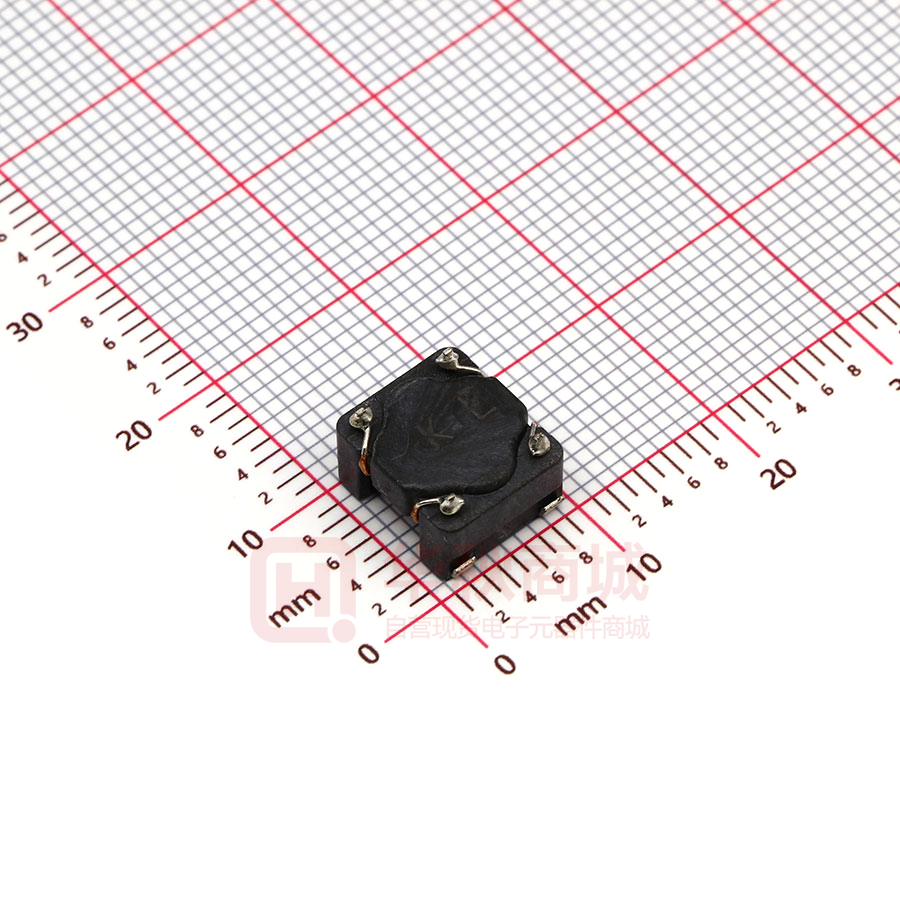

KCMF1080-221Y

Wire Wound Common Mode Choke-KCMF1080 Series Features  Low profile, height 6.5 mm  High current up to 2500 mA  Flammability corresponding to UL 94 V-0  Ferrite toroidal core construction and class H enamelled copper wire  Moisture sensitivity Level 1  RoHS compliant, Halogen free are available  Operating temperature: -40℃-125℃(temperature rise included) Application  Current compensated choke for data and signal lines  Power supply system  Signal and sensor lines  Suppression of common mode noise Product Identification KCMF ① 1080 ② 120 ③ Y ④ 1 Series name: Wire Wound Common Mode Choke 2 Chip Size: 10.0x8.7x6.5mm 3 Inductance: 120uH 4 Tolerance: ±40% SHAPE AND DIMENSIONS Schematic: sectional bifilar A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) 10.00±0.5 8.70±0.5 6.50 max. 6.22±0.1 7.62±0.1 1.40 ref. Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 1 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound Common Mode Choke-KCMF1080 Series SPECIFICATIONS Inductance Peak Common Mode Style ( μH ) Impedance [Ω] Typical KCMF1080-120Y sectional 120±40% 460@30MHz 2.5 0.025 121 KCMF1080-221Y sectional 220±40% 780@18MHz 2.2 0.032 221 KCMF1080-251Y sectional 250±40% 970@15MHz 2.0 0.035 251 KCMF1080-471Y sectional 470±40% 1750@15MHz 1.6 0.065 471 KCMF1080-102Y sectional 1000±40% 3600@6.5MHz 0.95 0.18 102 KCMF1080-222Y bifilar 2200±40% 7500@4.2MHz 0.75 0.30 222 KCMF1080-332Y bifilar 3300±40% 8900@2.0MHz 0.65 0.36 332 KCMF1080-392Y bifilar 3900±40% 9600@2.8MHz 0.52 0.54 392 KCMF1080-472Y bifilar 4700±40% 13000@1.0MHz 0.35 0.72 472 Part Number       Rated Winding Current [A] Max. DCR [Ω/line] Max. Marking Inductance shown for each winding, measured at: 100KHz, 100mV Rated current that causes a 45℃ temperature rise from 25℃ambient DC resistance measured @ 20℃ Dielectric strength 1000VAC max between line to line Rated voltage: 80 VDC(42 VAC). Standard packing : tape and reel, 800pcs per 13″ reel TYPICAL ELECTRICAL CHARACTERISTICS KCMF1080-120Y Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com KCMF1080-221Y 2 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound Common Mode Choke-KCMF1080 Series TYPICAL ELECTRICAL CHARACTERISTICS KCMF1080-251Y KCMF1080-471Y KCMF1080-102Y KCMF1080-222Y KCMF1080-332Y KCMF1080-392Y Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 3 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound Common Mode Choke-KCMF1080 Series TYPICAL ELECTRICAL CHARACTERISTICS KCMF1080-472Y SOLDERING SPECIFICATION Package Volume Package PB-Free Assembly  Thickness
