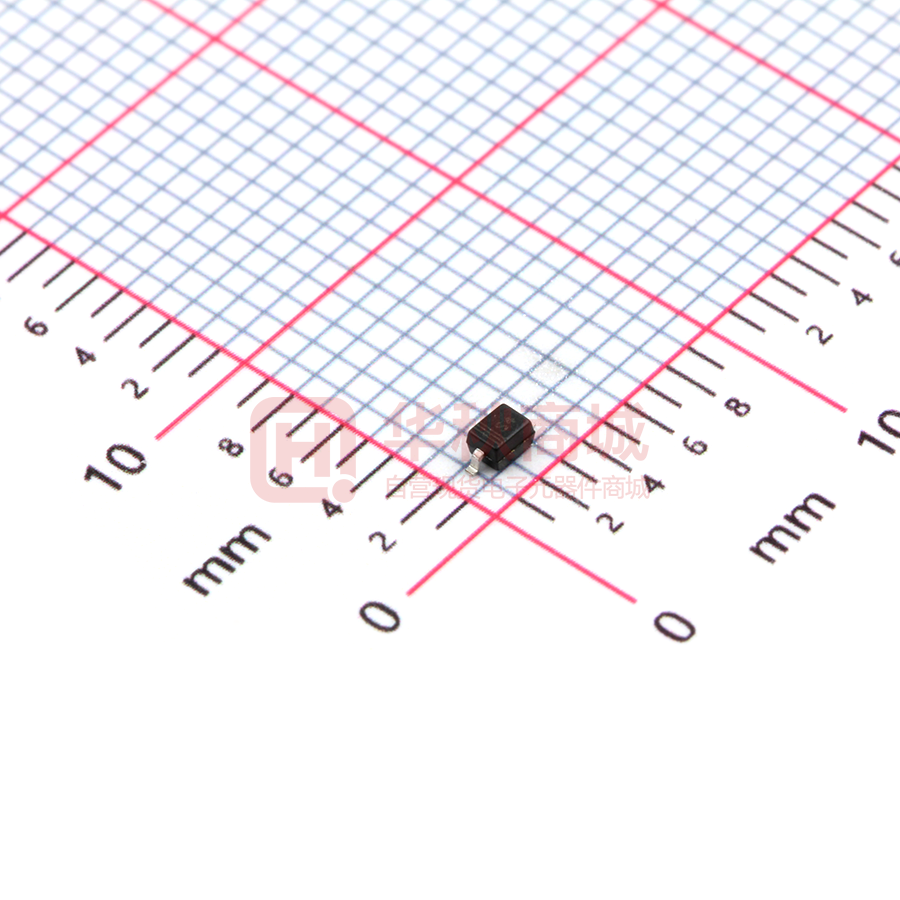

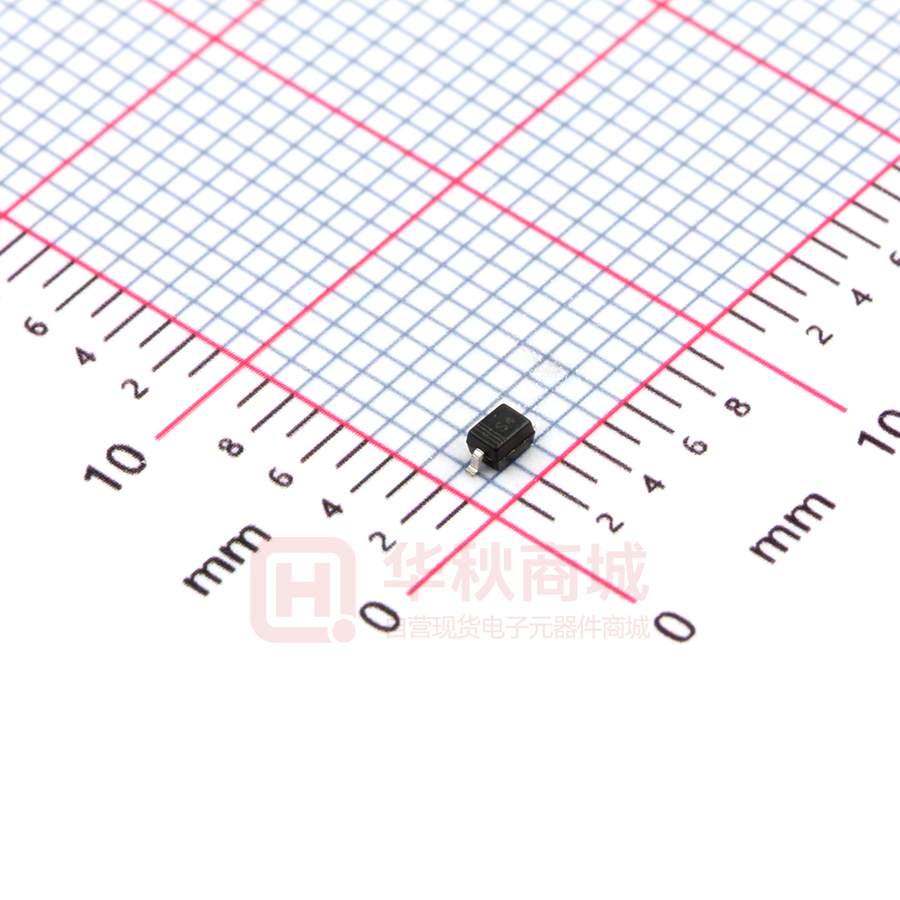

SD103AWS

Surface Mount Schottky Barrier Diodes Features PINNING • Low Forward Voltage DESCRIPTION PIN 1 Cathode 2 Anode 2 1 S4 Top View Marking Code: S4 Simplified outline SOD-323 and symbol Absolute Maximum Ratings (Ta = 25 C) O Parameter Peak Repetitive Reverse Voltage Reverse Voltage Symbol SD103AWS SD103BWS SD103CWS SD103AWS SD103BWS SD103CWS Value Unit 40 30 20 40 30 20 VRRM VR V V Average Forward Rectified Current IF(AV) 350 mA Non-Repetitive Peak Forward Surge Current at t = 1 s IFSM 2 A Power Dissipation Ptot 200 mW Tj, Tstg - 65 to + 125 Operating and Storage Temperature Range C O Characteristics at Ta = 25 C O Symbol Min. Typ. Max. SD103AWS SD103BWS SD103CWS V(BR)R 40 30 20 - - SD103AWS SD103BWS SD103CWS IR - - 5 5 5 VF - - 0.37 0.6 V Total Capacitance at VR = 0 V, f = 1 MHz CT - 50 - pF Reverse Recovery Time at IF = IR = 200 mA, Irr = 0.1 IR, RL = 100 Ω trr - 10 - ns Parameter Reverse Breakdown Voltage at IR = 10 µA Reverse Leakage Current at VR = 30 V at VR = 20 V at VR = 10 V Forward Voltage at IF = 20 mA at IF = 200 mA 1 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. Unit V µA 2 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-323 3 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd.
