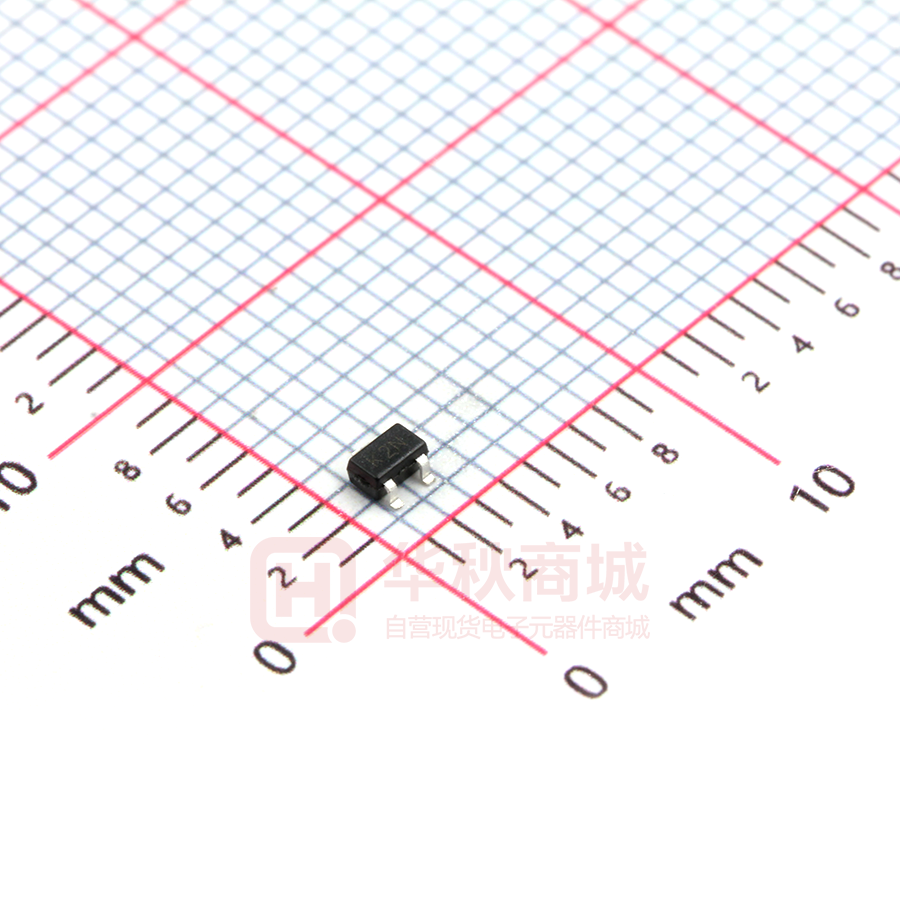

MMBT3904W

NPN Silicon Epitaxial Planar Transistor for switching and amplifier applications Marking Code: 1E Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Value Unit Collector Base Voltage VCBO 60 V Collector Emitter Voltage VCEO 40 V Emitter Base Voltage VEBO 6 V IC 200 mA Ptot 200 mW Tj 150 O Tstg - 55 to + 150 O Collector Current Total Power Dissipation Junction Temperature Storage Temperature Range 1 of 5 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. C C Characteristics at Ta = 25 OC Parameter Symbol DC Current Gain at VCE = 1 V, IC = 0.1 mA at VCE = 1 V, IC = 1 mA at VCE = 1 V, IC = 10 mA at VCE = 1 V, IC = 50 mA at VCE = 1 V, IC = 100 mA hFE hFE hFE hFE hFE Min. Max. Unit 40 70 100 60 30 300 - - Collector Emitter Cutoff Current at VCE = 30 V ICES - 50 nA Emitter Base Cutoff Current at VEB = 3 V IEBO - 50 nA Collector Base Breakdown Voltage at IC = 10 µA V(BR)CBO 60 - V Collector Emitter Breakdown Voltage at IC = 1 mA V(BR)CEO 40 - V Emitter Base Breakdown Voltage at IE = 10 µA V(BR)EBO 6 - V Collector Emitter Saturation Voltage at IC = 10 mA, IB = 1 mA at IC = 50 mA, IB = 5 mA VCE(sat) - 0.2 0.3 V Base Emitter Saturation Voltage at IC = 10 mA, IB = 1 mA at IC = 50 mA, IB = 5 mA VBE(sat) 0.65 - 0.85 0.95 V fT 300 - MHz Cob - 4 pF Delay Time at VCC = 3 V, VBE(OFF) = 0.5 V, IC = 10 mA, IB1 = 1 mA td - 35 ns Rise Time at VCC = 3 V, VBE(OFF) = 0.5 V, IC = 10 mA, IB1 = 1 mA tr - 35 ns Storage Time at VCC = 3 V, IC = 10 mA, IB1 = -IB2 = 1 mA tstg - 200 ns Fall Time at VCC = 3 V, IC = 10 mA, IB1 = -IB2 = 1 mA tf - 50 ns Transition Frequency at VCE = 20 V, -IE = 10 mA, f = 100 MHz Collector Output Capacitance at VCB = 10 V, f = 100 KHz 2 of 5 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. 3 of 5 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. Power Dissipation: Ptot (mW) 300 250 200 150 100 50 0 0 25 50 75 125 100 150 Ambient Temperature: Ta ( C) O Fig.10 Power Dissipation vs Ambient Temperature 4 of 5 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. SOT-323 Package Outline Dimensions 5 of 5 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd.
