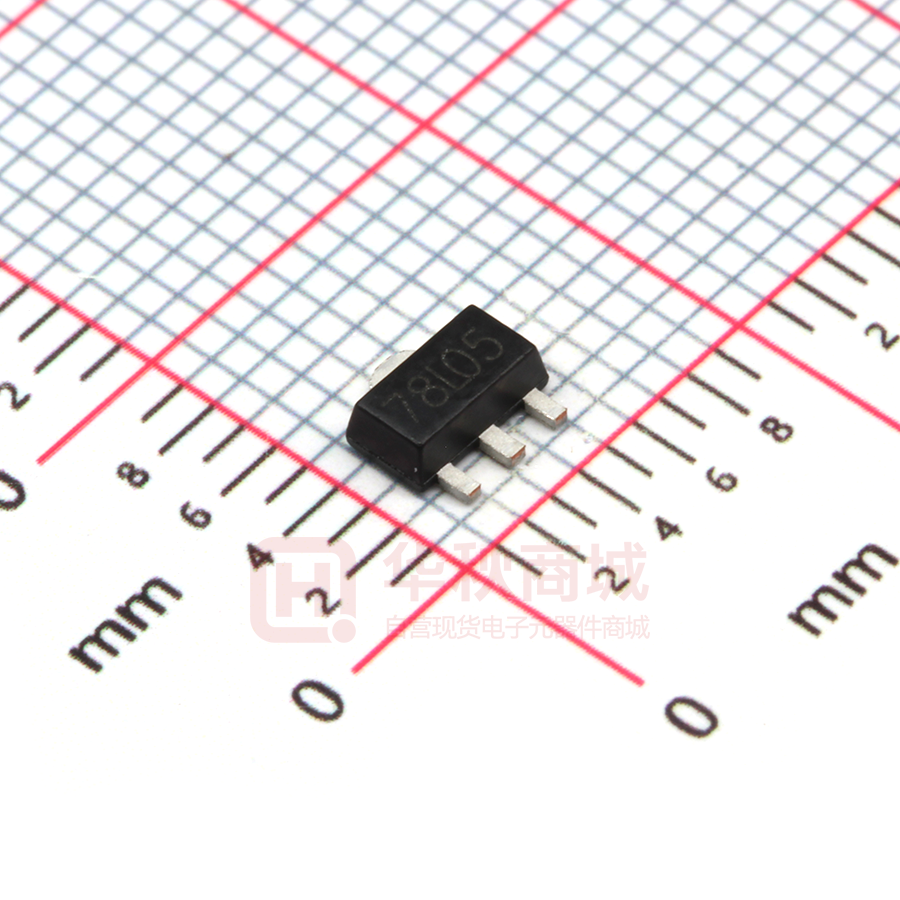

78L05U

3-Terminal Positive Voltage Regulator Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Rating Unit Input Voltage VI 30 V Power Dissipation Ptot 800 Operating Temperature Topr - 20 to + 120 O Storage Temperature Range Tstg - 55 to +150 O 1) 1) mW C C 15 mm X 25 mm X 0.7 mm alumina ceramic board, Ta ≤ 25 C O Electrical Characteristics (Ta = 25 OC) (Unless otherwise specified, 0 OC ≤ TJ ≤ 125 OC, VI = 10 V, IO = 40 mA, CI = 0.33 µF, CO = 0.1 µF) Symbol Parameter Test Condition Min. Typ. Max. Unit Tj = 25 C 4.8 5 5.2 V 7 V ≤ VI ≤ 20 V, 1 mA ≤ IO ≤ 40 mA 4.75 - 5.25 V VI = 10 V, 1 mA ≤ IO ≤ 70 mA 4.75 - 5.25 V 7 V ≤ VI ≤ 20 V, Tj = 25 C - - 150 8 V ≤ VI ≤ 20 V, Tj = 25 C - - 100 1 mA ≤ IO ≤ 100 mA, Tj = 25 OC - - 60 1 mA ≤ IO ≤ 40 mA, Tj = 25 OC - - 30 Tj = 25 OC - - 5.5 8 V ≤ VI ≤ 20 V - - 1.5 1 mA ≤ IO ≤ 40 mA - - 0.1 - 40 - µV 41 - - dB - 1.7 - V O Output Voltage VO O Line Regulation Regline Load Regulation Regload IQ Quiescent Current O Quiescent Current Change ΔIQ Output Noise Voltage VN 10 Hz ≤ f ≤ 100 KHz, Tj = 25 OC Ripple Rejection RR f = 120 Hz, 8 V ≤ VI ≤ 18 V, Tj = 25 OC Dropout Voltage VDrop Vi Tj = 25 °C 1 3 Vo 78L05U C1 0.33 µF C2 2 0.1 µF 1 of 2 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. mV mV mA mA SOT-89 PACKAGE OUTLINE 2 of 2 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd.
