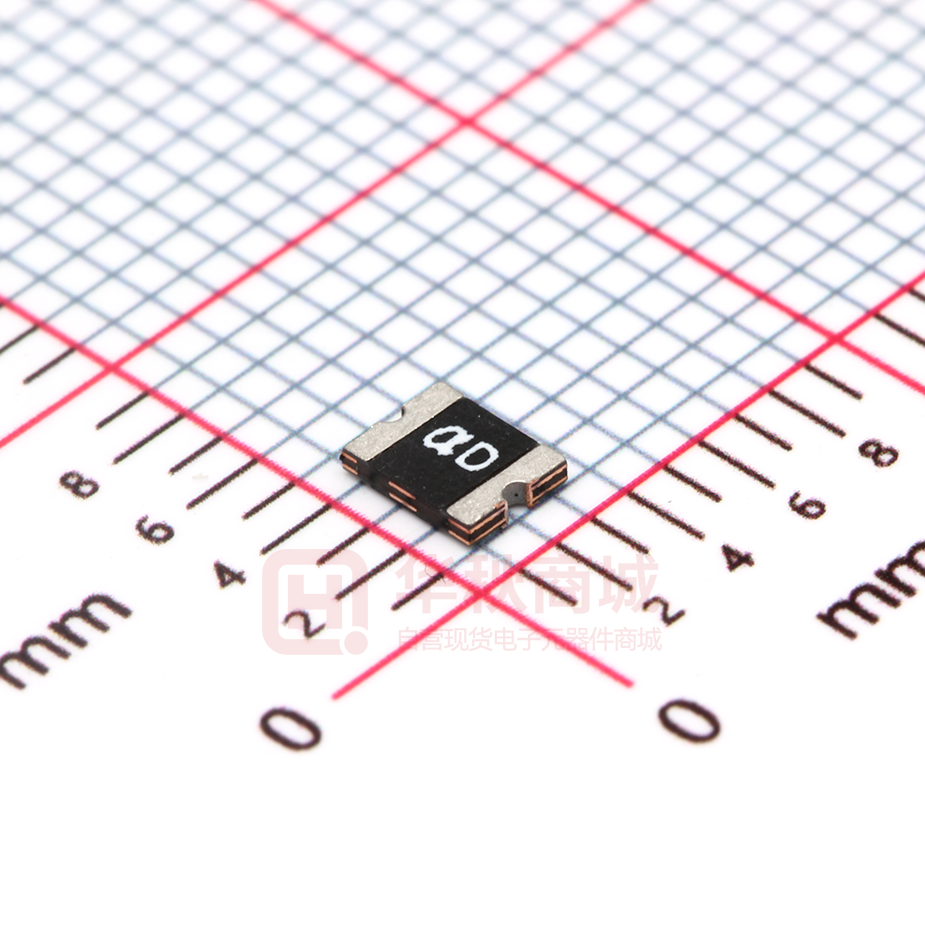

SMD1210-035

SEA&LAND ELECTRONIC CORP. 13F., No.120-10, Sec. 3, Zhongshan Rd., Zhonghe Dist.,New Taipei City 235, Taiwan Techfuse Tel.: 886-2-8221-2567 PTC Devices Fax.: 886-2-2225-7268 PRODUCT: DOCUMENT: ECN. NO.: REV LETTER: REV DATE: PAGE NO.: Resettable Fuse Specification Sheet Terminal Pad Solderability: Meets EIA Specification RS186-9E And ANSI/J-STD-002 Category 3. A Terminal Pad Materials: Tin-plated Nickel-Copper A B Lead-Free, RoHS Compliant Marking: Part Identification SMD1210-005 = αA D E TABLE I. DIMENSIONS: Model Marking SMD1210-005 SMD1210-010 SMD1210-020 SMD1210-025 SMD1210-035 SMD1210-050 SMD1210-075 SMD1210-100 SMD1210-110 SMD1210-150 SMD1210-175 SMD1210-200 αA αB αC αC αD αF αG αH αH αL αN αS Min. A Max. Min. B Max. Min. C Max. D Min. E Min. 3.00 3.00 3.00 3.00 3.00 3.00 3.00 3.00 3.00 3.00 3.00 3.00 3.43 3.43 3.43 3.43 3.43 3.43 3.43 3.43 3.43 3.43 3.43 3.43 2.35 2.35 2.35 2.35 2.35 2.35 2.35 2.35 2.35 2.35 2.35 2.35 2.80 2.80 2.80 2.80 2.80 2.80 2.80 2.80 2.80 2.80 2.80 2.80 0.40 0.40 0.40 0.40 0.40 0.40 0.40 0.40 0.40 0.50 0.50 0.50 0.90 0.90 0.90 0.90 0.90 0.90 0.90 0.90 0.90 1.20 1.20 1.20 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.30 0.10 0.10 0.10 0.10 0.10 0.10 0.10 0.10 0.10 0.10 0.10 0.10 Vmax Imax Ihold Itrip Pd (A) (A) (A) Typ. (W) Current (V) (A) Time (Sec) Rimin (W) Unit:mm TABLE II. PERFORMANCE RATINGS: Model Marking @25°C @25°C Maximum Time To Trip Resistance R1max (W) SMD1210-005 αA 30 100 0.05 0.15 0.6 0.25 1.50 2.800 50.000 SMD1210-010 αB 30 100 0.10 0.30 0.6 0.50 0.60 0.800 15.000 SMD1210-020 αC 30 100 0.20 0.40 0.6 8.0 0.02 0.400 5.000 SMD1210-025 αC 30 100 0.25 0.50 0.6 8.0 0.02 0.400 4.500 SMD1210-035 αD 6.0 100 0.35 0.75 0.6 8.0 0.20 0.200 1.300 SMD1210-050 αF 13.2 100 0.50 1.00 0.6 8.0 0.10 0.180 0.900 SMD1210-075 αG 6.0 100 0.75 1.50 0.6 8.0 0.10 0.070 0.400 SMD1210-100 αH 6.0 100 1.00 1.80 0.6 8.0 0.30 0.055 0.230 SMD1210-110 αH 6.0 100 1.10 2.20 0.6 8.0 0.30 0.050 0.210 SMD1210-150 αL 6.0 100 1.50 3.00 0.6 8.0 0.50 0.030 0.110 SMD1210-175 αN 6.0 100 1.75 3.50 0.8 8.0 0.60 0.020 0.080 SMD1210-200 αS 6.0 100 2.00 4.00 0.8 8.0 1.00 0.015 0.070 Order Information Packaging SMD1210 010 Product name Hold Max Size 3225 mm / 1210 mils SMD：surface mount device Current voltage Recognition: Tape & Reel Quantity 0.10A SMD1210-050 : UL Approved. E201504/E319079 050,075 4000 pcs/reel The others 4500 pcs/reel C SMD1210 series QR0429 2014/12/27 1 of 1
