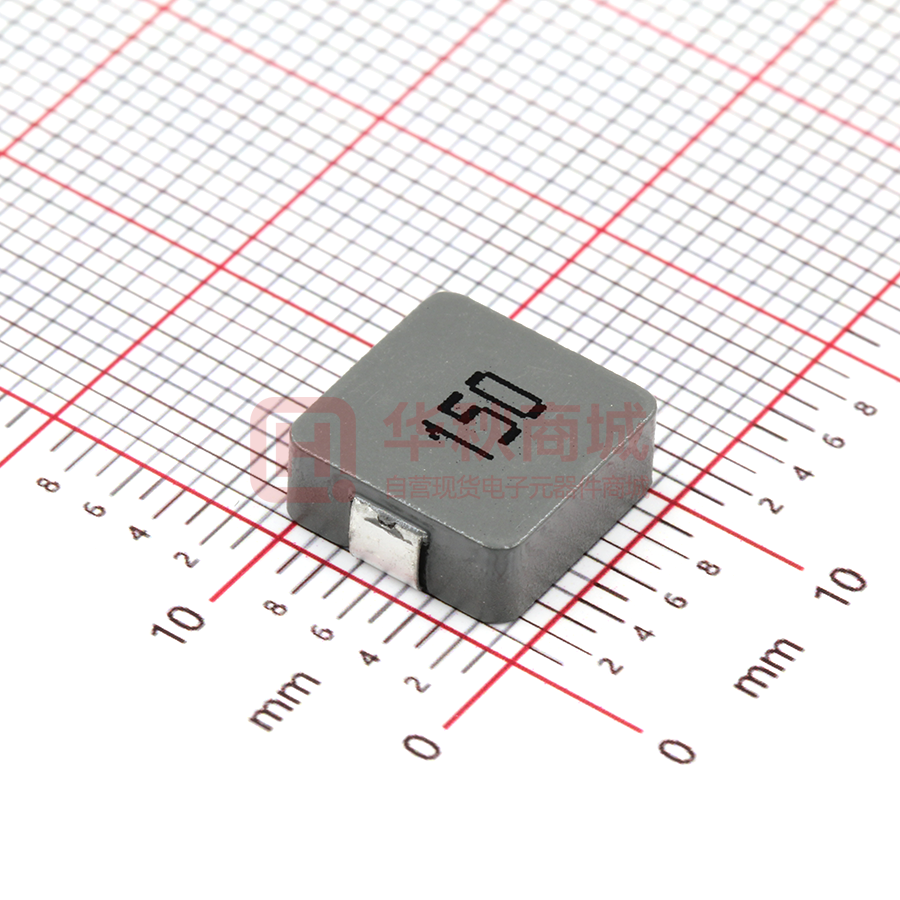

MHCC10040-150M-R7

Cautions and Warnings Please be noted that this spec is only for reference if you have projects designed with the product number listed in. If you are looking for new project design-in, please find BMRx Series specification/datasheet on Chilisin website. Or you may find our sales contact for more information on old part number at your convenience. Appreciated your attention and understanding. Note: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Molding Power Inductors – MHCC/MHCI Series MHCC、MHCI Series MHCC series is designed for low profile type with low RDC and ultra large current. Its molded magnetic shielded type is suitable for high-density mounting and ultra low buzz noise. Soldering conditions can be easily confirmed when mounting onto the board. This series also provides customers with embossed carrier type packaging for automatic mounting machine. Features Applications  RoHS, Halogen Free and REACH Compliance  High rated current  Ultra low buzz noise     Laptops and PCs Switchs and servers Base stations DC/DC converters Product Identification Shape and Dimensions Recommended Pattern Dimensions in mm Dimensions in mm TYPE A B Max C Max D F TYPE A B C 04012 4.1±0.2 4.6±0.2 1.2 1.5±0.3 1.0±0.5 04012 2.5 3.7 1.5 04015 4.1±0.2 4.6±0.2 1.5 1.5±0.3 1.0±0.5 04015 2.5 3.7 1.5 04020 4.1±0.2 4.6±0.2 2.0 1.5±0.3 1.0±0.5 04020 2.5 3.7 1.5 05012 5.4±0.35 5.7±0.2 1.2 2.0±0.3 1.5±0.3 05012 2.5 4.1 1.9 05015 5.4±0.35 5.7±0.2 1.5 2.0±0.3 1.5±0.3 05015 2.5 4.1 1.9 05018 5.4±0.35 5.7±0.2 1.8 2.0±0.3 1.5±0.3 05018 2.5 4.1 1.9 05020 5.4±0.35 5.7±0.2 1.8±0.2 2.0±0.3 1.5±0.3 05020 2.5 4.1 1.9 05030 5.4±0.35 5.7±0.2 3.0 2.0±0.3 1.5±0.3 05030 2.5 4.1 1.9 06012 6.6±0.2 7.3 1.2 2.9 1.6±0.5 06012 3.5 6.05 2.35 06015 6.6±0.2 7.3 1.3±0.2 2.9 1.6±0.5 06015 3.5 6.05 2.35 06018 6.6±0.2 7.3 1.6±0.2 2.9 1.6±0.5 06018 3.5 6.05 2.35 06024 6.6±0.2 7.3 2.4 2.9 1.6±0.5 06024 3.5 6.05 2.35 06030 6.6±0.2 7.3 3.0 2.9 1.6±0.5 06030 3.5 6.05 2.35 06050 6.6±0.2 7.3 5.0 2.9 1.6±0.5 06050 3.5 6.05 2.35 10030 10.1±0.3 11.6 3.0 3.0 2.5±0.5 10030 4.0 9.5 3.5 10040 10.1±0.3 11.6 4.0 3.0 2.5±0.5 10040 4.0 9.5 3.5 12050 12.6±0.2 13.8 5.0 3.7 2.7±0.7 12050 5.0 10.5 4.0 12060 12.6±0.2 13.8 6.0 3.7 2.7±0.7 12060 5.5 10.5 4.0 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCI04012-R22M-R8 0.22 20 100 12 11.5 8.5 MHCI04012-R33M-R8 0.33 20 100 19 8.5 6.5 MHCI04012-R47M-R8 0.47 20 100 25 7.0 5.0 MHCI04012-R68M-R8 0.68 20 100 36 6.0 4.5 20 100 47 5.2 4.2 75 4.0 3.25 MHCI04012-1R0M-R8 1.0 MHCI04012-1R5M-R8 1.5 20 100 MHCI04012-2R2M-R8 2.2 20 100 83.5 3.5 2.75 MHCI04012-3R3M-R8 3.3 20 100 165 3.0 2.0 MHCI04012-4R7M-R8 4.7 20 100 195 2.8 1.8 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance vs DC Current Tem perature Change v.s DC Current 5 140 4.5 2R2 4R7 3R3 120 4 100 4R7 3 2.5 △ T(℃ ) L(uH) 3.5 3R3 2 1.5 2R2 R47 R68 R22 R33 80 60 40 1R5 1 1R0 1R5 1R0 0.5 20 R68 R47 R33 R22 0 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 DC Current(A) 0 1 2 3 4 5 6 7 8 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 9 10 11 12 13 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCI04015-1R0M-R8 1.0 20 100 42 7 4 MHCI04015-1R5M-R8 1.5 20 100 50 6 3.5 MHCI04015-2R2M-R8 2.2 20 100 79 5 3 MHCI04015-3R3M-R8 3.3 20 100 132 4.5 2.3 MHCI04015-4R7M-R8 4.7 20 100 146 4 2 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Tem perature Change v.s DC Current Inductance vs DC Current 5 140 4.5 4R7 3R3 4 3.5 1R5 1R0 100 4R7 3 2.5 △T(℃) L(uH) 2R2 120 3R3 80 60 2 2R2 1.5 40 1R5 1 1R0 20 0.5 0 0 1 2 3 4 5 DC Current(A) 6 7 8 9 0 0 1 2 3 4 5 6 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 7 8 9 10 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCI04020-R10M-R8 0.10 20 100 4 25 12.0 MHCI04020-R22M-R8 0.22 20 100 6.6 12.5 9.0 MHCI04020-R47M-R8 0.47 20 100 14 9.5 7.0 MHCI04020-R56M-R8 0.56 20 100 16 10.0 6.5 20 100 21 8.0 5.2 27 7.0 4.5 Part Number MHCI04020-R68M-R8 0.68 MHCI04020-1R0M-R8 1.0 20 100 MHCI04020-1R5M-R8 1.5 20 100 46 6.0 4.0 MHCI04020-2R2M-R8 2.2 20 100 58 5.0 3.0 MHCI04020-3R3M-R8 3.3 20 100 87 4.0 2.5 20 100 126 3.0 2.2 20 100 135 2.5 2.0 216 2.5 2.0 258 2.0 1.6 MHCI04020-4R7M-R8 4.7 MHCI04020-6R8M-R8 6.8 MHCI04020-8R2M-R8 8.2 20 100 MHCI04020-100M-R8 10 20 100 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100KHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance vs DC Current Tem perature Change v.s DC Current 140 11 3R3 1R5 100 6R8 2R2 8R2 1R0 10 120 9 8 △ T(℃ ) L(uH) 4R7 8R2 6 6R8 4R7 3R3 2R2 1 1R5 1R0 R68 R56 R47 2 4 60 20 R22 R10 0 0 0 80 40 3 2 R10 R22 R56 7 4 R68 100 100 5 R47 6 8 10 12 14 16 18 DC Current(A) 20 22 24 26 28 30 32 0 2 4 6 8 10 12 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 14 16 18 20 22 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCI05012-1R0M-R8A 1.0 20 100 30 6.0 5.0 MHCI05012-2R2M-R8A 2.2 20 100 76 4.0 3.5 MHCI05012-6R8M-R8A 6.8 20 100 250 2.3 2.0 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance vs DC Current Tem perature Change v.s DC Current 8 140 7 120 2R2 100 5 △ T(℃ ) L(uH) 6R8 1R0 6R8 6 4 3 80 60 2R2 2 40 1R0 1 20 0 0 2 4 6 DC Current(A) 8 10 0 0 1 2 3 4 5 6 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 7 8 9 10 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCI05015-R47M-R8 0.47 20 100 16 12 8.0 MHCI05015-R68M-R8 0.68 20 100 23 10 6.0 MHCI05015-1R0M-R8 1.0 20 100 33 8.0 5.0 MHCI05015-1R5M-R8 1.5 20 100 50 6.0 4.0 MHCI05015-2R2M-R8 2.2 20 100 68 6.0 3.3 MHCI05015-3R3M-R8 3.3 20 100 84 5.0 3.0 MHCI05015-4R7M-R8 4.7 20 100 135 4.0 2.5 MHCI05015-5R6M-R8 5.6 20 100 175 3.5 2.2 MHCI05015-6R8M-R8 6.8 20 100 192 3.0 2.0 MHCI05015-100M-R8 10 20 100 195 2.0 1.5 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance vs DC Current Tem perature Change v.s DC Current 11 140 10 9 2R2 3R3 1R0 4R7 8 100 100 R47 R68 1R5 △ T(℃ ) 100 7 L(uH) 6R8 5R6 120 6 5 6R8 5R6 4R7 4 3 1 2R2 1R5 20 1R0 R68 R47 0 0 1 2 3 4 5 6 60 40 3R3 2 80 7 8 9 DC Current(A) 10 11 12 13 14 15 0 0 1 2 3 4 5 6 7 8 9 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 10 11 12 13 14 15 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCI05015-1R0M-R8A 1.0 20 100 23 9 6.5 MHCI05015-2R2M-R8A 2.2 20 100 64 6 3.3 MHCI05015-4R7M-R8A 4.7 20 100 106 4 3.0 MHCI05015-100M-R8A 10 20 100 170 3 2.0 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance vs DC Current Tem perature Change v.s DC Current 140 12 100 120 10 4R7 2R2 1R0 100 △ T( ℃ ) L(uH) 8 100 6 80 60 4 40 4R7 2 2R2 1R0 0 20 0 0 1 2 3 4 5 6 7 DC current (A) 8 9 10 11 12 0 2 4 6 8 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 10 12 14 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCI05018-R47M-R8A 0.47 20 100 9.0 15.5 10.5 MHCI05018-1R0M-R8A 1.0 20 100 17 9.0 8.0 MHCI05018-2R2M-R8A 2.2 20 100 35 6.5 5.0 MHCI05018-3R3M-R8A 3.3 20 100 58 5.0 4.5 MHCI05018-4R7M-R8A 4.7 20 100 85 4.0 3.5 MHCI05018-6R8M-R8A 6.8 20 100 120 3.4 2.8 MHCI05018-100M-R8A 10 20 100 155 3.0 2.5 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance vs DC Current Tem perature Change v.s DC Current 10 140 4R7 6R8 9 120 8 100 100 △ T( ℃ ) L(uH) 3R3 100 7 6 5 6R8 R47 80 2R2 1R0 60 4 4R7 3 40 3R3 2 2R2 1 20 1R0 R47 0 0 0 2 4 6 8 10 DC Current(A) 12 14 16 18 0 2 4 6 8 10 12 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 14 16 18 20 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCI05020-R47M-R8 0.47 20 100 9 15.5 10.5 MHCI05020-1R0M-R8 1.0 20 100 30 7.0 6.0 MHCI05020-1R5M-R8 1.5 20 100 35 6.5 5.5 MHCI05020-2R2M-R8 2.2 20 100 45 6.0 4.0 MHCI05020-3R3M-R8 3.3 20 100 60 5.5 3.5 MHCI05020-4R7M-R8 4.7 20 100 90 5.0 3.0 MHCI05020-5R6M-R8 5.6 20 100 120 4.5 2.8 MHCI05020-6R8M-R8 6.8 20 100 125 4.5 2.8 MHCI05020-100M-R8 10 20 100 180 4.0 2.3 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance v.s DC Current Tem perature Change v.s DC Current 140 12 6R8 11 100 4R7 9 100 100 8 7 △ T(℃ ) L(uH) 5R6 120 10 6 6R8 5 4 5R6 3 4R7 80 2R2 60 1R5 3R3 1R0 40 3R3 2 2R2 20 1R5 1 1R0 0 0 0 1 2 3 4 5 6 DC Current (A) 7 8 9 10 0 1 2 3 4 DC Current (A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 5 6 7 8 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ)Max Isat (A)Typ. Irms (A)Typ. MHCI05030-R20M-R8 0.20 20 100 3.9 14.5 17.0 MHCI05030-R47M-R8 0.47 20 100 8 14 10.0 MHCI05030-R68M-R8 0.68 20 100 12 14 8.0 MHCI05030-1R0M-R8 1.0 20 100 15 11 7.0 MHCI05030-1R2M-R8 1.2 20 100 15 11 6.5 MHCI05030-1R5M-R8 1.5 20 100 25 10 6.0 MHCI05030-2R2M-R8 2.2 20 100 35 8 5.0 MHCI05030-3R3M-R8 3.3 20 100 46 7 4.5 MHCI05030-4R7M-R8 4.7 20 100 60 6 4.0 MHCI05030-6R8M-R8 6.8 20 100 110 5 3.0 MHCI05030-100M-R8 10 20 100 126 4.5 1.5 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance v.s DC Current 160 6 140 6R8 120 5 6R8 4R7 3R3 1R0 R68 1R2 2R2 1R5 R20 100 △ T( ℃ ) L(uH) Tem perature Change v.s DC Current 7 4 4R7 3 60 3R3 2 2R2 1R5 1 80 40 1R2 1R0 R68 20 R20 0 0 0 5 10 15 20 DC Current(A) 25 30 0 5 10 15 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 20 25 30 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCI06012-4R7M-R8A 4.7 20 100 122 3.5 2.5 MHCI06012-6R8M-R8A 6.8 20 100 210 2.8 2.2 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance vs DC Current Tem perature Change v.s DC Current 8 120 6R8 7 100 4R7 6 80 6R8 △ T(℃ ) L(uH) 5 4 4R7 60 3 40 2 20 1 0 0 0 0.5 1 1.5 2 2.5 DC Current(A) 3 3.5 4 4.5 0 1 2 3 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 4 5 6 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ)Max Isat (A)Typ. Irms (A)Typ. MHCI06015-2R2M-R8 2.2 20 100 54 6.0 3.5 MHCI06015-3R3M-R8 3.3 20 100 63 5.5 3.3 20 100 105 4.5 3.2 20 100 140 4.0 2.5 MHCI06015-4R7M-R8 4.7 MHCI06015-6R8M-R8 6.8 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance v.s DC Current Tem perature Change v.s DC Current 10 120 6R8 4R7 9 100 8 2R2 80 6 △ T(℃ ) L(uH) 7 3R3 6R8 5 4 3 60 40 4R7 3R3 2 2R2 20 1 0 0 0 1 2 3 4 5 6 7 DC Current (A) 8 9 10 11 12 1 2 3 4 5 DC Current (A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 6 7 8 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ)Max Isat (A)Typ. Irms (A)Typ. MHCI06015-1R0M-R8A 1.0 20 100 21 9.0 5.5 MHCI06015-3R3M-R8A 3.3 20 100 63 5.5 3.3 20 100 175 3.0 2.0 MHCI06015-100M-R8A 10 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance vs DC Current Tem perature Change v.s DC Current 12 120 10 100 △ T(℃ ) L(uH) 8 100 6 4 100 3R3 1R0 80 60 40 3R3 2 20 1R0 0 0 0 2 4 6 8 DC Current(A) 10 12 14 0 2 4 6 8 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 10 12 14 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ)Max Isat (A)Typ. Irms (A)Typ. MHCI06018-R22M-R8A 0.22 20 100 5.2 29 14 MHCI06018-R33M-R8A 0.33 20 100 6.8 22 12 MHCI06018-R47M-R8A 0.47 20 100 8.4 18 11 MHCI06018-R68M-R8A 0.68 20 100 12.7 17 9 20 100 17 14 7 26 12 6.5 MHCI06018-1R0M-R8A 1.0 MHCI06018-1R5M-R8A 1.5 20 100 MHCI06018-2R2M-R8A 2.2 20 100 35 10 6.0 MHCI06018-4R7M-R8A 4.7 20 100 70 5 3.5 MHCI06018-6R8M-R8A 6.8 20 100 110 3.5 2.8 20 100 155 2.5 2.3 MHCI06018-100M-R8A 10 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Tem perature Change v.s DC Current Inductance vs DC Current 140 11 1R0 10 120 2R2 9 6R8 100 100 7 L(uH) △ T(℃ ) 8 6 6R8 5 4 100 R22 R47 1R5 R33 4R7 80 60 4R7 40 3 2 20 2R2 1R5 1 1R0 R47 R22 0 0 5 10 15 DC Current(A) 20 25 0 0 5 10 15 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 20 25 30 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ)Max Isat (A)Typ. Irms (A)Typ. MHCI06024-R22M-R8A 0.22 20 100 3.2 34 21 MHCI06024-R33M-R8A 0.33 20 100 4.1 24.5 18 MHCI06024-R47M-R8A 0.47 20 100 5.1 22 15 MHCI06024-1R0M-R8A 1.0 20 100 13.5 16 9 20 100 20 15 9 28 11 7 Part Number MHCI06024-1R5M-R8A 1.5 MHCI06024-2R2M-R8A 2.2 20 100 MHCI06024-3R3M-R8A 3.3 20 100 39 10 5.5 MHCI06024-4R7M-R8A 4.7 20 100 50 10 5.0 MHCI06024-6R8M-R8A 6.8 20 100 70 6.0 4.0 101 4.0 3.1 160 3.3 2.5 MHCI06024-100M-R8A 10 20 100 MHCI06024-150M-R8A 15 20 100 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance vs DC Current 14 140 12 120 △ T(℃ ) 160 150 10 L(uH) Tem perature Change v.s DC Current 16 8 100 6 6R8 3R3 4R7 100 100 1R5 1R0 R22 2R2 150 R47 R33 80 60 6R8 4 4R7 3R3 2R2 1R5 2 40 20 1R0 R47 R33 R22 0 0 0 5 10 15 20 25 DC Current(A) 30 35 40 45 0 5 10 15 20 25 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 30 35 40 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCI06030-R10M-R8 0.10 20 100 1.5 45 37 MHCI06030-R22M-R8 0.22 20 100 2.8 40 23 MHCI06030-R33M-R8 0.33 20 100 4.2 33 20 MHCI06030-R47M-R8 0.47 20 100 5.5 27 16.5 20 100 5.5 27 16.5 6.3 24 15 MHCI06030-R56M-R8 0.56 MHCI06030-R68M-R8 0.68 20 100 MHCI06030-R82M-R8 0.82 20 100 8.0 23 13 MHCI06030-1R0M-R8 1.0 20 100 10 22 12 MHCI06030-1R5M-R8 1.5 20 100 15 18 9.5 20 100 15 14 9.5 20 100 20 14 8.5 35 12 6.0 MHCI06030-1R8M-R8 1.8 MHCI06030-2R2M-R8 2.2 MHCI06030-3R3M-R8 3.3 20 100 MHCI06030-4R7M-R8 4.7 20 100 40 9 5.5 MHCI06030-5R6M-R8 5.6 20 100 40 8 5.5 MHCI06030-6R8M-R8 6.8 20 100 60 8 4.5 20 100 60 6 4.5 20 100 68 5.5 4.0 122 5.0 3.0 MHCC06030-8R2M-R7 8.2 MHCC06030-100M-R7 10 MHCI06030-150M-R8 15 20 100 MHCI06030-220M-R8 22 20 100 145 3.2 3.0 MHCI06030-330M-R8 33 20 100 270 3.0 2.0 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Tem perature Change v.s DC Current Inductance v.s DC Current 12 100 8R2 80 △ T(℃ ) 8R2 6R8 4 4R7 60 R22 R68 R33 R10 R47 50 40 30 3R3 2 R82 1R0 100 6 1R5 6R8 4R7 3R3 70 8 L(uH) 2R2 100 90 10 2R2 1R5 1R0 R82 20 R68 R47 R33 0 R22 R10 10 0 0 10 20 30 DC Current (A) 40 50 0 10 20 30 DC Current (A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 40 50 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ)Max Isat (A)Typ. Irms (A)Typ. MHCI06030-R10M-R8A 0.10 20 100 1.7 60 32.5 MHCI06030-R15M-R8A 0.15 20 100 2.5 40 30 MHCI06030-R22M-R8A 0.22 20 100 3.0 34 23 MHCI06030-R33M-R8A 0.33 20 100 3.5 25 21 20 100 3.9 24 20 4.1 20 18 MHCI06030-R36M-R8A 0.36 MHCI06030-R47M-R8A 0.47 20 100 MHCI06030-R56M-R8A 0.56 20 100 4.5 18 16.5 MHCI06030-R68M-R8A 0.68 20 100 5.3 17 16 MHCI06030-R82M-R8A 0.82 20 100 6.0 16 14 20 100 7.4 15 12 20 100 10 14 10 12.1 14 10 MHCI06030-1R0M-R8A 1.0 MHCI06030-1R2M-R8A 1.2 MHCI06030-1R5M-R8A 1.5 20 100 MHCI06030-2R2M-R8A 2.2 20 100 15 10 8 MHCI06030-3R3M-R8A 3.3 20 100 22 9.5 6.5 MHCI06030-4R7M-R8A 4.7 20 100 33 6.5 5.5 20 100 50 6 4.5 20 100 68 5.5 4 MHCI06030-6R8M-R8A 6.8 MHCI06030-100M-R8A 10 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance vs DC Current Tem perature Change v.s DC Current 11 140 R33 10 120 9 6R8 100 100 7 △ T(℃ ) L(uH) 8 6 6R8 5 4 3R3 100 R22 R10 R68 4R7 80 R15 1R2 2R2 1R0 1R5 R47 60 4R7 3 3R3 2R2 1R5 1R2 2 1 0 0 10 20 40 20 1R0 R68 R22 30 40 DC Current(A) R10 0 50 60 70 0 5 10 15 20 25 30 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 35 40 45 50 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCI06050-R56M-R8A 0.56 20 100 3.3 20 20 MHCI06050-1R0M-R8A 1.0 20 100 6.5 15 13 MHCI06050-2R2M-R8A 2.2 20 100 12.5 12 8 MHCI06050-3R3M-R8A 3.3 20 100 20.9 9 7 MHCI06050-4R7M-R8A 4.7 20 100 25.0 7 6.5 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance vs DC Current Tem perature Change v.s DC Current 5 140 2R2 120 4 3R3 4R7 100 △ T(℃ ) L(uH) 4R7 3 3R3 1R0 R56 80 60 2 2R2 40 1 1R0 20 R56 0 0 0 5 10 15 DC Current(A) 20 25 0 5 10 15 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 20 25 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCC10030-R33M-R7A 0.33 20 100 1.6 32 23 MHCC10030-1R0M-R7A 1.0 20 100 6.0 21 15 MHCC10030-3R3M-R7A 3.3 20 100 16.0 14 9 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Tem perature Change v.s DC Current 160 3.5 140 3 120 △ T( ℃ ) L(uH) Inductance vs DC Current 4 2.5 3R3 2 1.5 1R0 3R3 R33 100 80 60 1 40 1R0 0.5 20 R33 0 0 0 5 10 15 20 25 DC Current(A) 30 35 40 45 0 5 10 15 20 25 30 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 35 40 45 50 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCC10040-R22M-R7 0.22 20 100 0.6 45 35 20 100 1.2 42 34 20 100 1.2 38 33 1.2 38 33 MHCC10040-R36M-R7 0.36 MHCC10040-R45M-R7 0.45 MHCC10040-R47M-R7 0.47 20 100 MHCC10040-R56M-R7 0.56 20 100 1.55 32 27 MHCC10040-R68M-R7 0.68 20 100 1.55 30 27 MHCC10040-R90M-R7 0.90 20 100 3.0 20 22 20 100 3.1 26 20 4.2 22 16 MHCC10040-1R0M-R7 1.0 MHCC10040-1R5M-R7 1.5 20 100 MHCC10040-1R8M-R7 1.8 20 100 5 16 15.3 MHCC10040-2R2M-R7 2.2 20 100 7 16 14 MHCC10040-3R3M-R7 3.3 20 100 13.2 12 11 MHCC10040-4R7M-R7 4.7 20 100 16.5 12 9 20 100 25 10 6 30 9 6 MHCC10040-6R8M-R7 6.8 MHCC10040-8R2M-R7 8.2 20 100 MHCC10040-100M-R7 10 20 100 30 7 6.5 MHCC10040-150M-R7 15 20 100 45 6 6.25 MHCC10040-220M-R7 22 20 100 64 4.5 4.5 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance v.s DC Current Tem perature Change v.s DC Current 140 25 100 4R7 120 20 6R8 100 220 △ T( ℃ ) L(uH) 220 15 80 2R2 3R3 1R8 60 10 R68 1R0 R36 1R5 40 100 5 6R8 3R3 2R2 1R5 1R0 R68 0 10 R22 20 4R7 0 R56 R47 20 30 DC Current (A) 40 R56 R47R36 R22 50 0 0 10 20 30 DC Current (A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 40 50 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCC12050-R47M-R7 0.47 20 100 1.2 46 37 MHCC12050-1R0M-R7 1.0 20 100 2.5 37 29 MHCC12050-1R5M-R7 1.5 20 100 3.0 28 28 MHCC12050-4R7M-R7 4.7 20 100 11.5 16 11 20 100 22 14 9 20 100 35 13 7 Part Number MHCC12050-6R8M-R7 6.8 MHCC12050-100M-R7 10 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Tem perature Change v.s DC Current 120 11 110 10 100 9 90 8 80 ΔT( ℃ ) L(uH) Inductance v.s DC Current 12 100 7 6 6R8 5 100 6R8 1R0 4R7 R47 70 60 50 4 40 4R7 3 30 2 20 1R0 1 10 R47 0 0 10 20 30 DC Current (A) 40 50 0 0 5 10 15 20 25 30 35 DC Current (A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 40 45 50 55 Molding Power Inductors – MHCC/MHCI Series Electrical Characteristics Part Number Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) Max Isat (A)Typ. Irms (A)Typ. MHCC12060-100M-R7A 10 20 100 20.7 12.5 10 MHCC12060-150M-R7A 15 20 100 29.0 9.0 6.0 MHCC12060-220M-R7A 22 20 100 39.5 7.5 5.0 MHCC12060-330M-R7A 33 20 100 75 6.0 4.0 Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Absolute maximum voltage 30VDC  Measure Equipment： L：WK 3260B or WK 6500P, 100kHz 0.5V RDC：CHEN HWA 502 or CHEN HWA 46502B Test Instruments：WK3260B Impedance / Material Analyzer Inductance vs DC Current Tem perature Change v.s DC Current 50 120 330 100 40 100 220 △ T(℃ ) L(uH) 150 30 330 80 60 20 220 40 150 10 100 20 0 0 0 2 4 6 8 10 DC Current(A) 12 14 16 18 0 2 4 6 8 10 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 12 14 16 18 Molding Power Inductors – MHCC/MHCI Series Packaging Specifications Tape Dimensions Tape Material Reel Dimensions Dimensions in mm Tape Dimensions Reel Dimensions Quantity TYPE A0 B0 K0 D E W P P0 P2 A B C D PCS / REEL 04012 4.6 5.0 1.5 1.55 1.75 12 8 4 2 330 100 13 13.4 2000 04015 4.4 4.9 1.8 1.55 1.75 12 8 4 2 330 100 13 13.4 2000 04020 4.3 4.9 2.4 1.55 1.75 12 8 4 2 330 100 13 13.4 2000 05012 5.9 6.2 1.5 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 05015 5.7 6.1 1.9 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 05018 5.9 6.2 2.2 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 05020 5.7 5.9 2.4 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 05030 5.9 6.2 3.4 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 06012 6.9 7.6 1.6 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 06015 6.9 7.6 1.9 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 06018 6.9 7.6 2.2 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 06024 6.9 7.6 2.9 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 06030 6.9 7.6 3.4 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 06050 6.9 7.6 5.4 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 10030 10.6 11.7 3.25 1.55 1.75 24 16 4 2 330 100 13 24.4 500 10040 10.6 11.7 4.25 1.55 1.75 24 16 4 2 330 100 13 24.4 500 12050 13 14 5.25 1.55 1.75 24 16 4 2 330 100 13 24.4 500 12060 13 14 6.25 1.55 1.75 24 16 4 2 330 100 13 24.4 500
