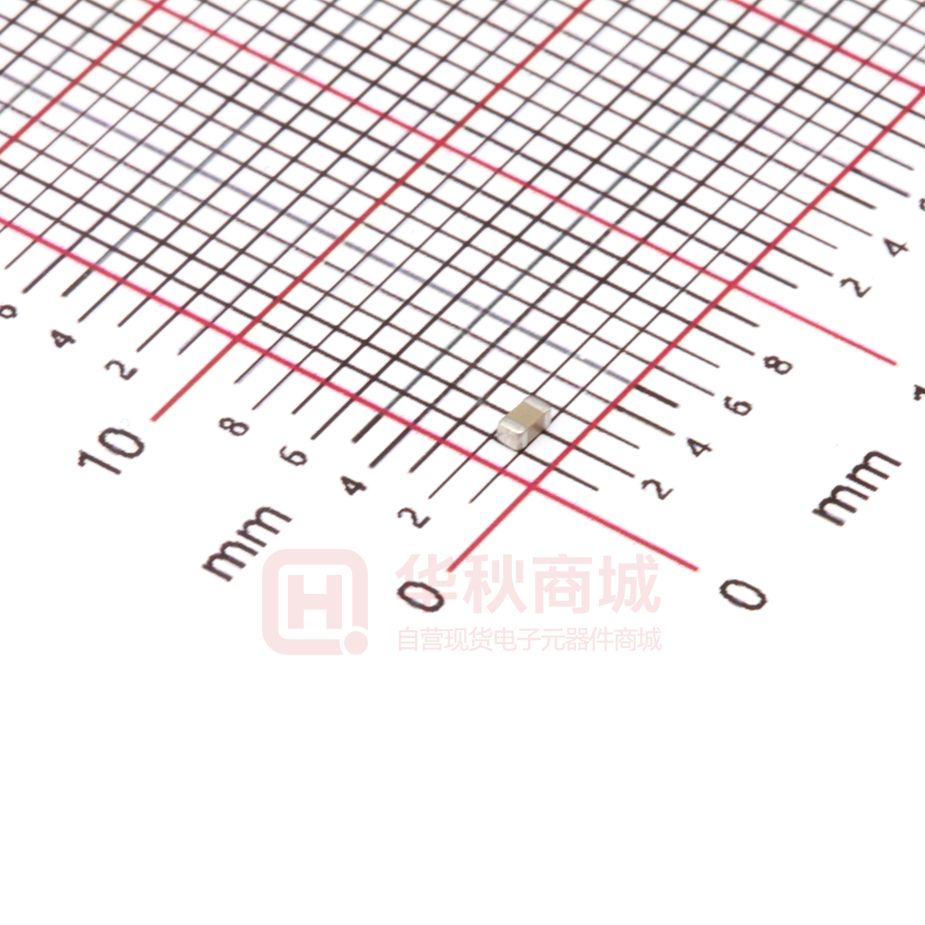

AC0603KRX7R7BB334

DATA SHEET SURFACE MOUNT MULTILAYER CERAMIC CAPACITORS Automotive grade NP0/X7R/X7S 6.3 V TO 2000 V Product Specification – June 4, 2025 V.23 0.2 pF to 680nF Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V SCOPE ORDERING INFORMATION - GLOBAL PART NUMBER This specification describes Automotive grade chip capacitors with lead-free terminations and used for automotive equipments. All part numbers are identified by the series, size, tolerance, TC material, packing style, voltage, process code, termination and capacitance value. APPLICATIONS All general purpose applications under normal operation and usage conditions for automotive equipments. FEATURES  AEC-Q200 qualified  MSL class: MSL 1  AC series soldering is compliant with J-STD-020D  High component and equipment reliability  The capacitors are 100% performed by automatic optical inspection prior to taping. GLOBAL PART NUMBER AC XXXX X X XXX X (1) (2) (3) (4) B (5) X XXX (6) (7) (1) SIZE – INCH BASED (METRIC) 0201 (0603) / 0402 (1005) / 0603 (1608) / 0805 (2012) / 1206 (3216)/ 1210 (3225) / 1812 (4532) / 2220 (5750) (2) TOLERANCE NPO(< 10 pF) NPO(≥ 10 pF) X7R/X7S B = ± 0.1 pF F = ± 1% J = ± 5% C = ± 0.25 pF G = ± 2% K = ± 10% D = ± 0.5 pF J = ± 5% M = ± 20% Note: Capacitance tolerance ±5% doesn’t available for full X7R range, please contact local sale before order. (3) PACKING STYLE (SEE TABLE. 12 FOR DETAIL) R = Paper/PE taping reel; Reel 7 inch K = Blister taping reel; Reel 7 inch P = Paper/PE taping reel; Reel 13 inch F = Blister taping reel; Reel 13 inch (4) TC MATERIAL NPO X7R X7S (5) RATED VOLTAGE 5 = 6.3 V 6 = 10 V 7 = 16 V 8 = 25 V 9 = 50 V 0 = 100 V A = 200 V Y = 250 V B = 500 V Z = 630 V C = 1000 V D = 2000 V 6) PROCESS N = NPO B = X7R/X7S (7) CAPACITANCE VALUE 2 significant digits+number of zeros The 3rd digit signifies the multiplying factor, and letter R is decimal point Example: 121 = 12 x 101 = 120 pF www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V CONSTRUCTION The capacitor consists of a rectangular block of ceramic dielectric in which a number of interleaved metal electrodes are contained. This structure gives rise to a high capacitance per unit volume. The inner electrodes are connected to the two end terminations and finally covered with a layer of plated tin (Matte Sn). The terminations are leadfree. A cross section of the structure is shown in Fig.1. Detailed Cross Section Dielectric Material Barrier Layer (Ni) Termination Finish (100% Matte Sn) Dielectric Material End Termination/ External Electrode (Cu) Inner Electrodes (Ni) End Termination/ External Electrode (Cu) Barrier Layer (Ni) Termination Finish (100% Matte Sn) Inner Electrodes (Ni) Fig. 1 Surface mounted multilayer ceramic capacitor construction DIMENSION OUTLINES Table 1 For outlines see fig. 2 TYPE L1 (mm) 0201 0402 0603 0805 1206 L2 / L3 (mm) min. max. L4 (mm) min. W (mm) T (MM) 0.6± 0.03 0.3± 0.03 0.3± 0.03 0.10 0.20 0.20 1.0± 0.05 0.5 ± 0.05 0.5± 0.05 0.15 0.35 0.30 1.6± 0.10 0.8± 0.10 0.8± 0.10 0.20 0.50 0.60 2.0± 0.10 1.25± 0.10 0.25 0.75 0.70 For dimension see Table 1 0.6± 0.10 0.85± 0.10 1.25± 0.20 0.6± 0.10 0.85± 0.10 1.00± 0.10 1.15± 0.10 1.25± 0.20 1.6± 0.20 2.0± 0.20 1.25± 0.20 3.2± 0.15 1.6± 0.15 3.2± 0.30 1.6± 0.20 3.2± 0.30 1.6± 0.30 1.6± 0.30 3.2± 0.20 2.5± 0.20 0.85± 0.10 3.2± 0.30 2.5± 0.20 Fig. 2 Surface mounted multilayer ceramic capacitor dimension 0.25 0.75 1.50 0.25 0.85 1.50 0.25 0.75 2.20 0.25 0.75 2.20 0.25 0.75 3.40 1.25± 0.20 1210 1808 3.2± 0.40 2.5± 0.30 4.5± 0.40 2.0± 0.30 1812 4.5± 0.40 3.2± 0.30 2220 5.7± 0.40 5.0± 0.30 1.6± 0.20 2.0± 0.20 (1) 1.6± 0.20 (2) 2.0± 0.20 2.5± 0.20 2.5± 0.30 1.25± 0.20 0.85± 0.10 1.25± 0.20 1.60± 0.20 2.0± 0.20 1.25 ± 0.20 1.6 ± 0.20 NOTE (1)(2) NPO, 1210, 630V ~1000V, 4.7nF ~22nF www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V CAPACITANCE RANGE & THICKNESS FOR NP0 Table 2 Sizes from 0201 to 0805 CAP. 0201 0402 0603 0805 25 V / 50 V 25 V / 50 V 25 V / 50 V 100 V 200 V / 250 V 50 V 100 V 200 V / 250 V 500 V 630 V 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 39 pF 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 47 pF 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 56 pF 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 68 pF 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 82 pF 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 100 pF 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.2 pF 0.3± 0.03 0.47 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.56 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.68 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.82 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.0 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.2 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.5 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.8 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 2.2 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 2.7 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 3.3 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 3.9 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 4.7 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 5.6 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 6.8 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 8.2 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 10 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 12 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 15 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 18 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 0.8± 0.1 22 pF 0.3± 0.03 0.5± 0.05 0.8± 0.1 27 pF 0.3± 0.03 0.5± 0.05 33 pF 0.3± 0.03 NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-12 series is on request www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V CAPACITANCE RANGE & THICKNESS FOR NP0 Table 3 Sizes from 0402 to 0805 (continued) 0402 0603 25 V / 50 V 25 V / 50 V 120 pF 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 150 pF 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 180 pF 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 220 pF 0.5± 0.05 0.8± 0.1 0.8± 0.1 270 pF 0.5± 0.05 0.8± 0.1 330 pF 0.5± 0.05 390 pF CAP. 0805 100 V 200 V / 250 V 50 V 100 V 200 V / 250 V 500 V 630 V 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.85± 0.1 0.85± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.85± 0.1 0.85± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.85± 0.1 0.85± 0.1 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.85± 0.1 0.85± 0.1 470 pF 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.6± 0.1 0.85± 0.1 0.85± 0.1 560 pF 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.85± 0.1 0.85± 0.1 680 pF 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.85± 0.1 0.85± 0.1 820 pF 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.85± 0.1 0.85± 0.1 1.0 nF 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.6± 0.1 0.85± 0.1 0.85± 0.1 1.2 nF 0.8± 0.1 0.8± 0.1 0.85± 0.1 0.85± 0.1 1.5 nF 0.8± 0.1 0.8± 0.1 0.85± 0.1 0.85± 0.1 1.8 nF 0.8± 0.1 0.8± 0.1 0.85± 0.1 0.85± 0.1 2.2 nF 0.8± 0.1 0.8± 0.1 1.25± 0.2 1.25± 0.2 2.7 nF 0.8± 0.1 1.25± 0.2 1.25± 0.2 3.3 nF 0.8± 0.1 1.25± 0.2 1.25± 0.2 3.9 nF 0.8± 0.1 1.25± 0.2 1.25± 0.2 4.7 nF 0.8± 0.1 1.25± 0.2 1.25± 0.2 5.6 nF 0.8± 0.1 1.25± 0.2 1.25± 0.2 6.8 nF 0.8± 0.1 1.25± 0.2 1.25± 0.2 8.2 nF 0.8± 0.1 1.25± 0.2 1.25± 0.2 10 nF 0.8± 0.1 1.25± 0.2 1.25± 0.2 NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-12 series is on request www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V CAPACITANCE RANGE & THICKNESS FOR NP0 Table 4 Sizes from 1206 to 1210 CAP. 1206 1210 50 V 100 V 200 V / 250 V 10 pF 12 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 15 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 18 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 22 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 27 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 33 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 39 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 47 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 56 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 68 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 500 V 630 V 1000 V 2000 V 50 V 100 V 200 V / 250 V 500 V 82 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 100 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 120 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 150 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 180 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 220 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 270 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 330 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 390 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 470 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 560 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 680 pF 0.6± 0.1 0.6± 0.1 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 820 pF 0.6± 0.1 0.6± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.0 nF 0.6± 0.1 0.6± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.2 nF 0.6± 0.1 0.6± 0.1 0.85± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.5 nF 0.6± 0.1 0.6± 0.1 0.85± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.8 nF 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 2.2 nF 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 2.7 nF 0.6± 0.1 0.6± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 630 V* 1000 V* 3.3 nF 1.25± 0.2 3.9 nF 1.25± 0.2 4.7 nF 1.25± 0.2 1.60± 0.2 2.0± 0.2 5.6 nF 1.25± 0.2 1.60± 0.2 2.0± 0.2 6.8 nF 1.25± 0.2 1.60± 0.2 2.0± 0.2 8.2 nF 1.60± 0.2 1.60± 0.2 2.0± 0.2 10 nF 1.60± 0.2 1.60± 0.2 2.5± 0.3 15 nF 1.60± 0.2 2.5± 0.3 22 nF 2.0± 0.2 2.5± 0.3 33 nF 2.5± 0.3 47 nF NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-12 series is on request 3. * : L: 3.2± 0.40 W: 2.5± 0.30 www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V CAPACITANCE RANGE & THICKNESS FOR X7R/X7S Table 5 CAP. Sizes from 0201 to 0603 0201 25V 0603 0402 50 V 10V 10V 16 V 25 V 50 V 100 V 100 pF 0.3± 0.03 0.3± 0.03 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 150 pF 0.3± 0.03 0.3± 0.03 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 220 pF 0.3± 0.03 0.3± 0.03 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 330 pF 0.3± 0.03 0.3± 0.03 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 470 pF 0.3± 0.03 0.3± 0.03 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 680 pF 0.3± 0.03 0.3± 0.03 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 1.0 nF 0.3± 0.03 0.3± 0.03 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 1.5 nF 0.3± 0.03 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 2.2 nF 0.3± 0.03 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 3.3 nF 0.3± 0.03 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 4.7 nF 0.3± 0.03 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 6.8 nF 0.3± 0.03 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 10 nF 0.3± 0.03 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 15 nF 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 22 nF 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 33 nF 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 47 nF 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 68 nF 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 100 nF 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 150 nF 0.5± 0.05 0.5± 0.05 0.5± 0.05 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 0.8± 0.1 330 nF 0.8± 0.1 0.8± 0.1 0.8± 0.1 470 nF 0.8± 0.1 0.8± 0.1 0.8± 0.1 680 nF 0.8± 0.1 0.8± 0.1 0.8± 0.1 (X7S) 220 nF 16 V (X7S) 25 V (X7S) 0.5± 0.05 0.5± 0.05 0.5± 0.05 (X7S) (X7S) (X7S) 50 V 100 V 0.8± 0.1 0.8± 0.1 NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-6 series is on request www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V CAPACITANCE RANGE & THICKNESS FOR X7R Table 6 Size 0805 0805 CAP. 10 V 16 V 25 V 50 V 100 V 200 V / 250 V 500 V 1.0 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.5 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 2.2 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 3.3 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 4.7 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 6.8 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 10 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 15 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 22 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 33 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 47 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 68 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 100 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 150 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 220 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 330 nF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 470 nF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 680 nF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 0.85± 0.1 1.25± 0.2 0.85± 0.1 1.25± 0.2 1.25± 0.2 1.25± 0.2 NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-6 series is on request www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V CAPACITANCE RANGE & THICKNESS FOR X7R Table 7 Size 1206 1206 CAP. 6.3 V 10V 16V 25V 50 V 100 V 220 pF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 330 pF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 470 pF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 680 pF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1 nF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 2.2 nF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 4.7 nF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 10 nF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 22 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 33 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.60± 0.2 47 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.60± 0.2 68 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 1.60± 0.2 100 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 1.60± 0.2 150 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 1.25± 0.2 220 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 1.25± 0.2 330 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.60± 0.2 1.60± 0.2 470 nF 1.00± 0.1 1.00± 0.1 1.00± 0.1 1.00± 0.1 1.60± 0.2 1.60± 0.2 680 nF 1.15± 0.1 1.15± 0.1 1.15± 0.1 1.60± 0.2 1.60± 0.2 1.60± 0.2 Table 8 200 V / 250 V 500 V 630 V 1000 V Size 1210 1812 1210 CAP. 6.3V 10 V 16 V 25 V 50V 100 V 200 V / 250 V 50V 100V 100 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 150 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 1.25± 0.2 220 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 1.25± 0.2 330 nF 0.85± 0.1 0.85± 0.1 0.85± 0.1 0.85± 0.1 1.25± 0.2 2.0± 0.2 470 nF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 2.0± 0.2 1.60± 0.2 1.60± 0.2 680 nF 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 1.25± 0.2 2.0± 0.2 1.60± 0.2 1.60± 0.2 NOTE 1. Values in shaded cells indicate thickness class in mm 2. Capacitance value of non E-6 series is on request www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V ELECTRICAL CHARACTERISTICS NP0/X7R DIELECTRIC CAPACITORS; NI/SIN TERMINATIONS Unless otherwise specified, all test and measurements shall be made under standard atmospheric conditions for testing as given in 5.3 of IEC 60068-1: - Temperature: 15 - Relative humidity: 25% to 75% C to 35 C - Air pressure: 86 kPa to 106 kPa Before the measurements are made, the capacitor shall be stored at the measuring temperature for a time sufficient to allow the entire capacitor to reach this temperature. The period as prescribed for recovery at the end of a test is normally sufficient for this purpose. Table 9 VALUE DESCRIPTION Capacitance range 0.2 pF to 680 nF Dissipation factor (D.F.) NPO C < 30 pF ≤ 1 / ( 400 + 20C ) C ≥ 30 pF X7R/X7S ≤ 0.1 % 0201 ≤10V 0402 0603 0805 1206 1210 100pF to 100nF 100pF to 680nF 1nF to 680nF 220pF to 680nF 100nF to 680nF 1812 ≤ 5% 150nF to 220nF 16V ≤ 10% 100pF to 22nF 100pF to 220nF 1nF to 470nF 27nF to 100nF 330nF to 680nF 680nF 100pF to 39nF 1nF to 180nF 220pF to 680nF 100nF to 680nF ≤ 3.5% ≤ 5% 150nF to 220nF 25V ≤ 10% 100pF to 470pF 100pF to 10nF 220pF to 680nF 100nF to 680nF ≤ 2.5% 12nF to 27nF 47nF to 220nF 220nF ≤ 3.5% 560pF to 10nF 33nF to 100nF 330nF to 680nF 330nF to 680nF ≤ 5% 150nF to 220nF 50V 100pF to 470pF FF 100pF to 10nF 560pF to 1nF ≤ 10% 100pF to 39nF 1nF to 180nF 47nF to 220nF 220nF to 470nF 12nF to 100nF 100V 220pF to 1.5nF 100pF to 10nF 220pF to 470nF 100nF to 680nF ≤ 2.5% ≤ 3.5% 560nF to 680nF 680nF 1nF to 100nF 220pF to 470nF 100nF to 270nF 12nF to 100nF 470nF to 680nF ≤ 5% 470nF to 680nF ≤ 2.5% 560nF to 680nF 330nF to 680nF ≤ 5% 200V/250V 1nF to 22nF 220pF to 100nF 100nF ≤ 2.5% 500V 1nF to 4.7nF 220pF to 10nF ≤ 2.5% 630V 220pF to 10nF ≤ 2.5% 1KV 220pF to 1nF ≤ 2.5% Insulation resistance after 1 minute at Ur (DC) NPO (general) X7R (general) 0603/25V/330nF to 470nF 0603/10V to 25V/560nF to 680nF 0402/10V/>100nF 0402/16V/>100nF X7S (general) 0402/10V to 25V/>100nF Operating temperature range: NP0/X7R/X7S I.R. ≥ 100 GΩ or I.R. × C ≥ 1000 Ω.F. whichever is less 1206/630V >1nF, 1210/630V & 1KV >1nF I.R. ≥ 10 GΩ or I.R. × C ≥ 500 Ω.F. whichever is less I.R. ≥ 10 GΩ or I.R. × C ≥ 500 Ω.F. whichever is less I.R. X C ≥ 100 Ω.F. I.R. X C ≥ 100 Ω.F. I.R. X C ≥ 50 Ω.F. I.R. X C ≥ 50 Ω.F. I.R. ≥ 1 GΩ or I.R. × C ≥ 100 Ω.F. whichever is less I.R. X C ≥ 50 Ω.F. –55 °C to +125 °C www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors SOLDERING RECOMMENDATION Table 10 SOLDERING SIZE METHOD 0201 Reflow O Wave Automotive grade NPO/X7R/X7S 6.3 V to 2000 V 0402 0603 0805 1206 ≥ 1210 O O O O O --- O O O --- SOLDERING CONDITIONS The lead free MLCCs are able to stand the reflow soldering conditions as below: Temperature: above 220 °C Endurance: 95 to 120 seconds Cycles: 3 times    The test of "soldering heat resistance" is carried out in accordance with the schedule of "MIL-STD-202G-method 210F", "The robust construction of chip capacitors allows them to be completely immersed in a solder bath of 260 °C for 10 seconds". Therefore, it is possible to mount MLCCs on one side of a PCB and other discrete components on the reverse (mixed PCBs). Surface Mount Capacitors are tested for solderability at 245 °C during 2 seconds. The test condition for no leaching is 260°C for 30 seconds. TESTS AND REQUIREMENTS Table 11 Test procedures and requirements NO AEC-Q200 TEST TEST METHOD Preconditioning, Class II only : 150 +0/–10 °C for 1 hour, then keep for 24 ± 1 hours at room temperature 4 Temperature Cycling 1000 cycles with following detail: 15 minutes at lower category temperature 15 minutes at upper category temperature Measurement at least 24 hours after test conclusion. 5 Destructive Physical Analysis 2. Test condition: 85 °C, 85% R.H. connected with 100 KΩ resistor, applied 1.5V/Ur (no more than 630V) for 1,000 hours. Biased Humidity No visual damage ∆C/C NPO: Within ± 2.5% or 0.25 pF, whichever is greater X7R/X7S: ± 10% D.F. meet initial specified value IR meet initial specified value Electrical test not required. 1. Preconditioning, class 2 only: 150 +0/-10 °C /1 hour, then keep for 24 ± 1 hour at room temp 7 REQUIREMENTS 3. Recovery: NPO: 6 to 24 hours X7R/X7S: 24 ± 4 hours 4. Final measure: C. D. I.R. 5. Measurement at least 24 hours after test conclusion No visual damage after recovery ∆C/C NPO: Within ± 2% or 1 pF, whichever is greater X7R/X7S: ± 15% D.F. NPO: ≤ 2 x specified value. X7R/X7S: (1) ≤ 16V: ≤ 7% or specified value whichever is greater (2) ≥ 25V: ≤ 5% or specified value whichever is greater I.R. The insulation resistance shall greater than 10% of initial spec. 8 High Temperature No visual damage www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors NO AEC-Q200 TEST Operational Life Automotive grade NPO/X7R/X7S 6.3 V to 2000 V TEST METHOD 1. Preconditioning, class 2 only: REQUIREMENTS ∆C/C 150 +0/-10 °C /1 hour, then keep for NPO: Within ± 2% or 1 pF, 24 ± 1 hour at room temp whichever is greater Temperature: 125 °C X7R/X7S: ± 15% Specified stress voltage applied for 1,000 hours: D.F. Applied 2.0 x Ur for 6.3V to 100V * High voltage series follows with below stress condition: Applied 1.5 x Ur for 200V, 250V series Applied 1.3 x Ur for 500V, 630V series Applied 1.2 x Ur for 1KV, 2KV, 3KV series Measurement at least 24 hours after test conclusion. Note: If the capacitance value is less than the minimum value NPO: ≤ 2 x specified value. X7R/X7S: (1) ≤ 16V: ≤ 7% or specified value whichever is greater (2) ≥ 25V: ≤ 5% or specified value whichever is greater IR NPO: ≥ 4,000 MΩ or IR x Cr ≥ permitted, then after the other measurements have been 40Ω.F. whichever is less made the capacitor shall be preconditioned according to “IEC X7R/X7S: ≥ 1,000 MΩ or 60384 and then the requirement shall be met. IRx Cr ≥ 50Ω.F. * Note : Applied 1.5 x Ur for 6.3V to 100V 0402/X7S/10V~25V/>100nF whichever is less * * IRx Cr ≥ 5Ω.F. 0402/X7R/50V/>10nF 0603/X7R/25V/>220nF; 0603/X7R/50V/220nF 0402/10V-16V/>100nF * IRx Cr ≥ 10Ω.F. 0603/X7R/100V/≥100nF 0603/25V/>220nF 0805/X7R/100V/≥ 470nF 9 External Visual Any applicable method using × 10 magnification 10 Physical Dimension Verify physical dimensions to the applicable device specification. In accordance with specification 13 Mechanical Shock In accordance with specification Three shocks in each direction shall be applied along the three ∆C/C mutually perpendicular axes of the test specimen NPO: Within ± 0.5% or 0.5 pF, (18 shocks) whichever is greater Peak value: 100 g’s X7R/X7S: ± 10% Duration: 6 ms Velocity change: 12.3 ft/s Waveform: Half-sin D.F. Within initial specified value IR Within initial specified value 5 g’s for 20 minutes, 12 cycles each of 3 orientations. ∆C/C Test from 10-2000 Hz. NP0: Within ± 0.5% or 0.5 pF, whichever is greater 14 Vibration X7R/X7S: ± 10% D.F: meet initial specified value IR meet initial specified value www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors NO AEC-Q200 TEST Automotive grade NPO/X7R/X7S 6.3 V to 2000 V TEST METHOD REQUIREMENTS Preconditioning, class II only : 150 +0/–10 °C for 1 hour, then Dissolution of the end face keep for 24 ± 1 hours at room temperature plating shall not exceed 25% of Follow MIL-STD-202 method 210 condition k, time above 217 the length of the edge deg-C , 60s to 150s. concerned ∆C/C 15 Resistance to Soldering Heat NPO: Within ± 1% or 0.5 pF, whichever is greater. X7R/X7S: ± 10% D.F. within initial specified value IR within initial specified value Per AEC-Q200-002 A component passes a voltage level if all components stressed at that voltage level pass. YNM0053-1 6 kV DC FAIL PASS 2 kV DC FAIL 17 ESD 12 kV AD PASS FAIL 1 kV DC FAIL 500 V DC FAIL < 500 V DC 4 kV DC PASS 1 kV DC FAIL 2 kV DC PASS 8 kV DC PASS 4 kV DC FAIL 6 kV DC 16 kV AD PASS FAIL 8 kV DC PASS 12 kV AD PASS 25 kV AD FAIL 500 V DC PASS 16 kV AD 25 kV AD Note: Classify the components according to the highest ESD voltage level survived during ESD testing. Fig. 4 Passive component HBM ESD test flow diagram (DC = Direct Contact Discharge, AD = Air Discharge) 1. J-STD-002 Method B1, coating durability category 2. Preheat The solder should cover over at 155°C for 4 hours. After preheating, immerse the capacitor 95% of the critical area of each in a solution of ethanol and rosin. Immerse in eutectic solder termination. solution for 5+0/-0.5 seconds at 245± 5°C. 18 Solderability 2. J-STD-002 Method D, Coating Durability Category 2. 3. Should be placed into steam aging. After preheating, immerse the capacitor in a solution of Ethanol and rosin. Immerse in eutectic solder solution for 30 seconds at 260± 5°C. www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V Within specified tolerance Capacitance NPO: f = 1 MHz for C ≤ 1nF, measuring at voltage 1 Vrms at 25 °C f = 1± 0.1 KHz for C > 1nF, measuring at voltage 1± 0.2 Vrms at 25 °C X7R/X7S: At 25 °C, 24 hours after annealing f = 1± 0.1 KHz, measuring at voltage 1± 0.2 Vrms at 25 °C In accordance with specification on Table 9 Dissipation Factor (D.F.) NPO: f = 1 MHz for C ≤ 1nF, measuring at voltage 1 Vrms at 25 °C f = 1± 0.1 KHz for C > 1nF, measuring at voltage 1± 0.2 Vrms at 25°C X7R/X7S: At 25 °C, 24 hours after annealing f = 1± 0.1 KHz, measuring at voltage 1± 0.2 Vrms at 25 °C Insulation Resistance (I.R.) At Ur (DC) for 1 minute Capacitance shall be measured by the steps shown in the following table. The capacitance change should be measured after 5 min at each specified temperature stage. 19 Step a b c d e Electrical Characterization Temperature coefficient Temperature(°C) 25± 2 Lower temperature± 3°C 25± 2 Upper Temperature± 2°C 25± 2 In accordance with specification on Table 9 ∆C/C NPO: ± 30ppm /°C X7R: ± 15% X7S: ± 22% (1) NPO Temperature Coefficient shall be calculated from the formula as below Temp, Coefficient = C2 - C1 106 [ppm/°C] C1 xΔT C1: Capacitance at step c C2: Capacitance at 125°C ∆T: 100°C (=125°C -25°C) (2) X7R/X7S Capacitance Change shall be calculated from the formula as below ∆C = C2 - C1 x 100% C1 C1: Capacitance at step c C2: Capacitance at step b or d Voltage Proof 1. Specified stress voltage applied for 1~5 seconds 2. Ur ≤ 100 V: series applied 2.5 Ur 3. 100 V < Ur ≤ 200 V series applied (1.5 Ur + 100) 4. 200 V < Ur ≤ 500 V series applied (1.3 Ur + 100) 5. Ur > 500 V: 1.3 Ur 6. Ur ≥ 1000 V: 1.2 Ur Charge/Discharge current is less than 50 mA No breakdown or flashover www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V Part mounted on a 100mm × 40mm FR4 PCB board, which is 1.6± 0.2 mm thick and has a layer-thickness 35µm± 10 µm. Part should be mounted using the following soldering reflow profile. Conditions: No visual damage ∆C/C NPO: Within ± 1% or 0.5 pF, whichever is greater X7R/X7S: ± 10% NPO: Bending 3 mm at a rate of 1 mm/s, radius jig 340 mm X7R/X7S: Bending 2 mm at a rate of 1 mm/s, radius jig 340 mm 21 Board Flex Test Substrate: b C 4.5 Y NSC 147 40 a 100 unit: mm 22 Terminal Strength With the component mounted on a PCB obtained with the device to be tested, apply a 17.7N (1.8Kg) force to the side of a device being tested. This force shall be applied for 60+1 seconds. Also the force shall be applied gradually as not to apply a shock to the component being tested. * Apply 2N force for 0402 size. * Apply 1N force for 0201 size. Magnification of 20X or greater may be employed for inspection of the mechanical integrity of the device body, terminals and body/terminal junction. Before, during and after the test, the device shall comply with all electrical requirements stated in this specification. www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V THICKNESS CLASSES AND PACKING QUANTITY Table 12 SIZE CODE THICKNESS CLASSIFICATION PACKING CODE 7 INCH 13 INCH QUANTITY PER REEL TAPE WIDTH Ø 180 MM / 7 INCH Paper Blister Ø 330 MM / 13 INCH Paper Blister 0201 0.3 ± 0.03 mm R P 8 mm 15,000 --- 50,000 --- 0402 0.5 ± 0.05 mm R P 8 mm 10,000 --- 50,000 --- 0603 0.8 ± 0.1 mm R P 8 mm 4,000 --- 15,000 --- 0.6 ± 0.1 mm R P 8 mm 4,000 --- 20,000 --- 0.85 ± 0.1 mm R P 8 mm 4,000 --- 15,000 --- 1.25 ± 0.2 mm K F 8 mm --- 3,000 --- 10,000 0.6 ± 0.1 mm R P 8 mm 4,000 --- 20,000 --- 0.85 ± 0.1 mm R P 8 mm 4,000 --- 15,000 --- 1.0/1.15 ± 0.1 mm K F 8 mm --- 3,000 --- 10,000 1.25 ± 0.2 mm K F 8 mm --- 3,000 --- 10,000 1.60 ± 0.2 mm K F 8 mm --- 2,000 --- 8,000 0.85 ± 0.1 mm K F 8 mm --- 4,000 --- 10,000 1.15 ± 0.1 mm K F 8 mm --- 3,000 --- 10,000 1.25 ± 0.2 mm K F 8 mm --- 3,000 --- 10,000 2.0 ± 0.2 mm K 8 mm --- 2,000 --- --- 2.5 ± 0.2 mm K 8 mm --- 1,000 --- --- 0.6 / 0.85± 0.1 mm K 12 mm --- 2,000 --- --- 1.15± 0.1 mm K 12 mm --- 1,000 --- --- 1.25± 0.2 mm K 12 mm --- 1,000 --- --- 1.6 ± 0.2 mm K 12 mm --- 2,000 --- --- 0805 1206 1210 1812 www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V PAPER/PE TAPE SPECIFICATION Fig. 5 Paper/PE tape Table 13 Dimensions of paper/PE tape for relevant chip size; see Fig.5 SIZE Unit: mm SYMBOL CODE A0 B0 W E F P0 (1) P1 P2 Ø D0 K0 T 0.38 ± 0.05 (0.47/ 0.55)± 0.10 0201 0.39 ± 0.06 0.70 ± 0.06 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.05 2.0 ± 0.05 2.0 ± 0.05 1.55 ± 0.03 0402 0.70 ± 0.15 1.21 ± 0.12 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.05 2.0 ± 0.05 2.0 ± 0.05 1.50 +0.1 /-0 (0.75/ 0.60)± 0.10 0603 1.05 ± 0.14 1.86 ± 0.13 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.50 +0.1 /-0 (1.05/0.95/ 0.75)± 0.10 (1.15/ 1.05/ 0.85)± 0.10 0805 1.50 ± 0.15 2.26 ± 0.20 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.50 +0.1 /-0 (1.05/0.95/ 0.75)± 0.10 (1.15/ 1.05/ 0.85)± 0.10 1206 1.90 ± 0.15 3.50 ± 0.20 8.0 ± 0.20 1.75 ± 0.1 3.50 ± 0.05 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.50 +0.1 /-0 (0.95/ 0.75)± 0.10 (0.85/ 0.70)± 0.10 (1.05/ 0.85)± 0.10 NOTE 1. P0 pitch tolerance over any 10 pitches is 0.2 mm www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V BLISTER TAPE SPECIFICATION P0 D0 K0 P2 E F cover tape W B0 A0 T2 SCM015 D1 P1 K0: so chosen that the orientation of the component cannot change For W = 8 mm: T2 = 3.5 mm max. For W = 12 mm: T2 = 6.5 mm max. direction of unreeling Fig. 6 Blister tape Table 14 Dimensions of blister tape for relevant chip size; see Fig.6 SYMBOL SIZE A0 B0 CODE Unit: mm K0 W Min. Max. Min. Max. Min. Max. E F Ø D0 Ø D1 Min. P0 (2) P1 P2 T2 Min. Max. 0805 1.29 1.65 2.09 2.60 1.25 1.62 8.1 ± 0.20 1.75 ± 0.1 3.5 ± 0.05 1.5 +0.1/-0.0 1 +0.1/-0.0 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.30 1.67 1206 1.65 2.12 3.30 3.75 1.22 2.15 8.1 ± 0.20 1.75 ± 0.1 3.5 ± 0.05 1.5 +0.1/-0.0 1 +0.1/-0.0 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.27 2.20 1210 2.55 3.02 3.31 3.88 0.97 2.92 8.1 ± 0.20 1.75 ± 0.1 3.5 ± 0.05 1.5 +0.1/-0.0 1 +0.1/-0.0 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.02 2.97 1808 2.05 2.55 4.80 5.45 1.30 2.45 12.1 ± 0.20 1.75 ± 0.1 5.5 ± 0.05 1.5 +0.1/-0.0 1.5 +0.1/-0.0 4.0 ± 0.10 4.0 ± 0.10 2.0 ± 0.05 1.35 2.50 1812 3.35 3.75 4.70 5.33 0.70 2.40 12.1 ± 0.20 1.75 ± 0.1 5.5 ± 0.05 1.5 +0.1/-0.0 1.5 +0.1/-0.0 4.0 ± 0.10 8.0 ± 0.10 2.0 ± 0.05 0.75 2.45 NOTE 1. Typical capacitor displacement in pocket 2. P0 pitch tolerance over any 10 pitches is ±0.2 mm www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V REEL SPECIFICATION W2 C N A HBK039 W1 Fig. 7 Reel Table15 Reel dimensions; see Fig.7 TAPE WIDTH SYMBOL Unit: mm A N C W1 W2max. 8 (Ø 178 mm/7") 178 ± 1.0 60 ± 1.0 13 +0.50/-0.20 9.4 ± 1.5 14.4 8 (Ø 330 mm/13") 330 ± 1.0 100 ± 1.0 13 +0.50/-0.20 9.0 ± 0.2 14.4 12 (Ø 178 mm/7") 178 ± 1.0 60 ± 1.0 13 +0.50/-0.20 13.4 ± 1.5 18.4 P ROPERTIES OF REEL Material: polystyrene Surface resistance: 100 °C). Therefore, it is advised to use the smallest possible size and follow the dimensional recommendations given in Tables 8, 9 and 10 for reflow and wave soldering. More detailed information is available on request. Solid line: Typical process (terminal temperature) Dotted lines: Process limits - bottom process limit (terminal temperature) & upper process limit (top surface temperature). Fig. 8 Infrared soldering, forced gas convection reflow soldering - Temperature/time profile for SnPb solders www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V 300 YNM0016 10 s max. T (C) 260 C 255 C 245 C 250 220 C 200 180 C Preheating ca. 45~90 s > 220 C 150 C 150 Typical Ramp down rate < 6 C/s 100 Ramp up rate < 3 C/s 50 0 0 50 100 150 200 250 300 350 400 t (s) Solid line: Typical process (terminal temperature) Dotted lines: Process limits - bottom process limit (terminal temperature) & upper process limit (top surface temperature). Fig. 9 Infrared soldering, forced gas convection reflow soldering - Temperature/time profile for lead-free SnAgCu solders 300 T 10 s max., max. contact time 5 s per wave (C) 235 C to 260 C (SnPb) 250 C to 260 C (SnAgCu) 250 cooling first wave 200 YNM0017 second wave Preheating ca. 2 C/s T < 150 C ca. 3.5 C/s typical 150 ca. 5 C/s 130 C 120 C 100 C 100 Typical 50 0 0 50 100 150 200 t (s) 250 Solid line: Typical process Dotted lines: Process limits Fig. 10 Double wave soldering for SnPb and lead-free SnAgCu solder - Temperature/time profile (terminal temperature) www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V D C preferred direction during wave soldering FOOTPRINT DIMENSIONS G B A F solder land / solder paste pattern solder resist pattern occupied area MBG628-1 Fig. 11 Discrete capacitors recommended dimensions of footprint Table 17 Reflow soldering; for footprint dimensions see Fig.11 Unit: mm SIZE CODE FOOTPRINT DIMENSIONS A B C D F G 0201 0.8 ± 0.20 0.25 ± 0.05 0.28 ± 0.07 0.3 ± 0.10 --- --- 0402 1.5 ± 0.15 0.5 ± 0.15 0.5 ± 0.15 0.5 ± 0.15 1.75 ± 0.15 0.95 ± 0.15 0603 2.3 ± 0.15 0.7 ± 0.15 0.8 ± 0.15 0.9 ± 0.15 2.7 ± 0.15 1.5 ± 0.15 0805 2.8 ± 0.25 0.9 ± 0.25 0.95 ± 0.25 1.4 ± 0.25 3.2 ± 0.25 2.1 ± 0.25 1206 4.0 ± 0.25 2.0 ± 0.25 1.0 ± 0.25 1.8 ± 0.25 4.4 ± 0.25 2.5 ± 0.25 1210 4.0 ± 0.25 2.0 ± 0.25 1.0 ± 0.25 2.7 ± 0.25 4.4 ± 0.25 3.4 ± 0.25 1808 5.4 ± 0.25 3.3 ± 0.25 1.05 ± 0.25 2.3 ± 0.25 5.8 ± 0.25 2.9 ± 0.25 1812 5.4 ± 0.25 3.3 ± 0.25 1.05 ± 0.25 3.5 ± 0.25 5.8 ± 0.25 4.1 ± 0.25 2220 6.6 ± 0.25 4.5 ± 0.25 1.05 ± 0.25 5.3 ± 0.25 7.0 ± 0.25 5.9 ± 0.25 Processing remarks IR or hot plate soldering Ceramic substrate only www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V REVISION HISTORY REVISION DATE CHANGE NOTIFICATION DESCRIPTION Version 23 Jun. 4, 2025 - - Add NPO, 1210, 630V to 1000V, 15nF Version 22 Jan. 14, 2025 - - Revise AEC-Q200 test condition to version E. Version 21 May 21, 2024 - - Add 1206/NPO/630V/1.2nF to 10nF; - Add 1210/NPO/630V/4.7nF to 33nF; - Add 1210/NPO/1000V/4.7nF to 22nF; Version 20 Jan. 20, 2024 - Version 19 Jul. 08, 2022 - Version 18 Apr. 16, 2022 - - Add 0402/X7R/100pF to 150pF/10V to 50V; - Add 0603/X7R/100pF to 680pF/10V to 100V; - Add 1206/X7R/220pF to 10nF/6.3V to 250V; - Add 0805/NPO/500V 10pF to 470pF - Add 0805/NPO/630V 10pF to 180pF - Add 1210/NPO/50V~500V/47pF to 820pF - Add 0402/X7S/10V~16V/150nF~220nF Version 17 Jan. 14, 2022 - - Add 1206/NPO/2000V/10pF to 47pF Version 16 Nov. 17, 2021 - - Add 1206/X7R/500V to 1000V/220pF to 1nF Version 15 Oct. 12, 2021 - Version 14 Aug. 09, 2021 - Version 13 Jun. 08, 2021 - Version 12 Feb. 26, 2021 Version 11 Jun. 29, 2018 - Version 10 May. 2, 2018 - - Add 0603/NPO/25V/50V/2.7nF to 10nF - I.R. for NPO change to " I.R. ≥ 100 GΩ or I.R. C ≥ 1000Ω.F. whichever is less" - Add 1206/NPO/1kV/10pF to 220pF 1206/X7R/1kV/1nF - Move out "Array" and "High Cap" to individual specification Add 0603 NPO 50V/100V 1.2nF to 2.2nF 0402 X7R 50V 15nF to 100nF 0603 X7R 25V 330nF to 680nF 0603 X7R 50V 150nF to 220nF 0603 X7R 100V 68nF to 100nF - Add 0201/ X7R/ 50V / 100 pF to 1nF 0603/ X7R/ 16V / 680nF to 1µF 0603/ X7R/ 25V / 150nF / 220nF/ 1µF 1210/ X7R/ 50V / 4.7µF - Add 0201 NPO 25V/ 50V, 0.2pF to 33pF, Add 0402 NPO 50V 270pF to 1nF, Add 0805 X7R 25V 2.2uF - Add 0603 NPO 100V 820pF to 1nF, - Add 0805 NPO 50V to 100V, 1.2nF to 10nF, - Add 0805 X7R 16V 2.2uF, 50V 680nF to 1uF, - Add 1206 X7R 100V 330nF to 2.2uF, 250V 33nF to 100nF Version 9 Mar. 22, 2018 - - Add 0402 X7R 100nF 25~50V Version 8 Nov. 22, 2017 - - Add X7R/0201/25V/100pF~10nF Version 7 Jul. 7, 2017 - - Add X7R/0805/330nF to 470nF/50V, X7R/1206/10uF/6.3V Version 6 Mar. 31, 2017 - - Add NPO/0603/1nF/50V, X7R/0603/1uF/10V, X7R/0603/470nF/16V, X7R/0603/220nF/25V Version 5 Nov. 15, 2016 - - Add Soldering Condition Version 4 Jun. 14, 2016 - - Add X7R/0805/2.2uF/10V and NPO/1206/1.2nF to 1.5nF/250V Version 3 Jul. 21, 2015 - - Tests and Requirements update Version 2 Jul. 17, 2014 - - Tests and Requirements update Version 1 Apr. 19, 2013 - - Capacitance range update Version 0 Dec. 25, 2012 - - New www.yageo.com Jun. 4, 2025 V.23 Product specification Surface-Mount Ceramic Multilayer Capacitors Automotive grade NPO/X7R/X7S 6.3 V to 2000 V LEGAL DISCLAIMER YAGEO, its distributors and agents (collectively, “YAGEO”), hereby disclaims any and all liabilities for any errors, inaccuracies or incompleteness contained in any product related information, including but not limited to product specifications, datasheets, pictures and/or graphics. YAGEO may make changes, modifications and/or improvements to product related information at any time and without notice. YAGEO makes no representation, warranty, and/or guarantee about the fitness of its products for any particular purpose or the continuing production of any of its products. To the maximum extent permitted by law, YAGEO disclaims (i) any and all liability arising out of the application or use of any YAGEO product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for a particular purp ose, non-infringement and merchantability. YAGEO products are designed for general purpose applications under normal operation and usage conditions. Please contact YAGEO for the applications listed below which require especially high reliability for the prevention of defects which might directly cause damage to the third party's life, body or property: Aerospace equipment (artificial satellite, rocket, etc.), Atomic energy -related equipment, Aviation equipment, Disaster prevention equipment, crime prevention equipment, Electric heating apparatus, bu rning equipment, Highly public information network equipment, data-processing equipment , Medical devices, Military equipment, Power generation control equipment, Safety equipment, Traffic signal equipment, Transportation equipment and Undersea equipment, or for any other application or use in which the failure of YAGEO products could result in personal injury or death, or serious property damage. Information provided here is intended to indicate product specifications only. YAGEO reserves all the rights for revising this content without further notification, as long as products are unchanged. Any product change will be announced by PCN. www.yageo.com Jun. 4, 2025 V.23
